Roller Bearings-Cam Follower Bearings / Stud Track Rollers / Yoke Rollers-Eccentric Stud CFE / CFE-S, CFE-B / CFE-SB, CCFE-S / CCFE-SB cam followers with or without seals, Hex hole, Eccentric configuration, black oxide finished steel, INCH size

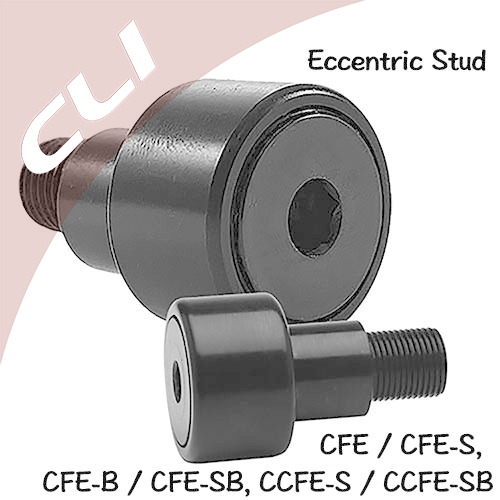

Original eccentric stud cfe b cfe sb ccfe s ccfe sb 2 on web
Product Picture

Eccentric Stud CFE / CFE-S cam followers with Eccentric Configuration ( INCH size )
CLI Part No. ROLLER DIA.  ROLLER WIDTH BUSH. L'GTH  BUSH. DIA. STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS. ECC. LUB. FIT- TING SIZE Load Rating
(LBS)
Without Seals With Seals RD W G * BD SL TL F Static Dynamic
CFE-1/2 CFE-1/2-S 0.500 0.375 0.375 0.250 5/8 1/4 10-32 0.010 1/8 790 680
CFE-9/16 CFE-9/16-S 0.5625 0.375 0.375 0.250 5/8 1/4 10-32 0.010 1/8 790 680
CFE-5/8 CFE-5/8-S 0.625 0.4375 0.437 0.375 3/4 5/16 1/4-28 0.015 1/8 1215 955
CFE-11/16 CFE-11/16-S 0.6875 0.4375 0.437 0.375 3/4 5/16 1/4-28 0.015 1/8 1215 955
CFE-3/4 CFE-3/4-S 0.750 0.500 0.500 0.500 7/8 3/8 3/8-24 0.015 3/16 2065 1660
CFE-7/8 CFE-7/8-S 0.875 0.500 0.500 0.500 7/8 3/8 3/8-24 0.015 3/16 2065 1660
CFE-1 CFE-1-S 1.000 0.625 0.500 0.625 1 1/2 7/16-20 0.030 3/16 3060 2225
CFE-1 1/8 CFE-1 1/8-S 1.125 0.625 0.500 0.625 1 1/2 7/16-20 0.030 3/16 3060 2225
CFE-1 1/4 CFE-1 1/4-S 1.250 0.750 0.625 0.687 1 1/4 5/8 1/2-20 0.030 3/16 4250 3930
CFE-1 3/8 CFE-1 3/8-S 1.375 0.750 0.625 0.687 1 1/4 5/8 1/2-20 0.030 3/16 4250 3930
CFE-1 1/2 CFE-1 1/2-S 1.500 0.875 0.750 0.875 1 1/2 3/4 5/8-18 0.030 3/16 5640 4840
CFE-1 5/8 CFE-1 5/8-S 1.625 0.875 0.750 0.875 1 1/2 3/4 5/8-18 0.030 3/16 5640 4840
CFE-1 3/4 CFE-1 3/4-S 1.750 1.000 0.875 1.000 1 3/4 7/8 3/4-16 0.030 3/16 7920 6385
CFE-1 7/8 CFE-1 7/8-S 1.875 1.000 0.875 1.000 1 3/4 7/8 3/4-16 0.030 3/16 7920 6385
CFE-2 CFE-2-S 2.000 1.250 1.000 1.187 2 1 7/8-14 0.030 3/16 10570 8090
CFE-2 1/4 CFE-2 1/4-S 2.250 1.250 1.000 1.187 2 1 7/8-14 0.030 3/16 10570 8090
CFE-2 1/2 CFE-2 1/2-S 2.500 1.500 1.125 1.375 2 1/4 1 1/8 1-14 0.030 3/16 16450 11720
CFE-2 3/4 CFE-2 3/4-S 2.750 1.500 1.125 1.375 2 1/4 1 1/8 1-14 0.030 3/16 16450 11720
CFE-3 CFE-3-S 3.000 1.750 1.250 1.750 2 1/2 1 1/4 1 1/4-12 0.060 1/4 24910 15720
CFE-3 1/4 CFE-3 1/4-S 3.250 1.750 1.250 1.750 2 1/2 1 1/4 1 1/4-12 0.060 1/4 24910 15720
CFE-3 1/2 CFE-3 1/2-S 3.500 2.000 1.375 1.812 2 3/4 1 3/8 1 3/8-12 0.060 1/4 31625 22800
CFE-4 CFE-4-S 4.000 2.250 2.000 2.000 3 1/2 1 1/2 1 1/2-12 0.060 1/4 44770 29985

Eccentric Stud CFE-B / CFE-SB cam followers with Eccentric Configuration & Hex Hole ( INCH size )
CLI Part No. ROLLER DIA.  ROLLER WIDTH BUSH. L'GTH  BUSH. DIA. STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS. ECC. LUB. FIT- TING SIZE Load Rating
(LBS)
Without Seals With Seals RD W G * BD SL TL F Static Dynamic
CFE-1/2- N-B CFE-1/2-N-SB 0.500 0.344 0.250 0.250 1/2 1/4 10-32 0.010 - 720 620
CFE-1/2-B CFE-1/2-SB 0.500 0.375 0.375 0.250 5/8 1月5日 10-32 0.010 - 790 680
CFE-9/16-B CFE-9/16-SB 0.5625 0.375 0.375 0.250 5/8 1/6 10-32 0.010 - 790 680
CFE-5/8-B CFE-5/8-SB 0.625 0.4375 0.437 0.375 3/4 1/7 1/4-28 0.015 - 1215 955
CFE-11/16-B CFE-11/16-SB 0.6875 0.4375 0.437 0.375 3/4 1/8 1/4-28 0.015 - 1215 955
CFE-3/4-B CFE-3/4-SB 0.750 0.500 0.500 0.500 7/8 1/9 3/8-24 0.015 3/16 2065 1660
CFE-7/8-B CFE-7/8-SB 0.875 0.500 0.500 0.500 7/8 1/10 3/8-24 0.015 3/16 2065 1660
CFE-1-B CFE-1-SB 1.000 0.625 0.500 0.625 1 1/11 7/16-20 0.030 3/16 3060 2225
CFE-1 1/8-B CFE-1 1/8-SB 1.125 0.625 0.500 0.625 1 1/12 7/16-20 0.030 3/16 3060 2225
CFE-1 1/4-B CFE-1 1/4-SB 1.250 0.750 0.625 0.687 1 1/4 1/13 1/2-20 0.030 3/16 4250 3930
CFE-1 3/8-B CFE-1 3/8-SB 1.375 0.750 0.625 0.687 1 1/4 1/14 1/2-20 0.030 3/16 4250 3930
CFE-1 1/2-B CFE-1 1/2-SB 1.500 0.875 0.750 0.875 1 1/2 1/15 5/8-18 0.030 3/16 5640 4840
CFE-1 5/8-B CFE-1 5/8-SB 1.625 0.875 0.750 0.875 1 1/2 1/16 5/8-18 0.030 3/16 5640 4840
CFE-1 3/4-B CFE-1 3/4-SB 1.750 1.000 0.875 1.000 1 3/4 1/17 3/4-16 0.030 3/16 7920 6385
CFE-1 7/8-B CFE-1 7/8-SB 1.875 1.000 0.875 1.000 1 3/4 1/18 3/4-16 0.030 3/16 7920 6385
CFE-2-B CFE-2-SB 2.000 1.250 1.000 1.187 2 1/19 7/8-14 0.030 3/16 10570 8090
CFE-2 1/4-B CFE-2 1/4-SB 2.250 1.250 1.000 1.187 2 1/20 7/8-14 0.030 3/16 10570 8090
CFE-2 1/2-B CFE-2 1/2-SB 2.500 1.500 1.125 1.375 2 1/4 1/21 1-14 0.030 3/16 16450 11720
CFE-2 3/4-B CFE-2 3/4-SB 2.750 1.500 1.125 1.375 2 1/4 1/22 1-14 0.030 3/16 16450 11720
CFE-3-B CFE-3-SB 3.000 1.750 1.250 1.750 2 1/2 1/23 1 1/4-12 0.060 1/4 24910 15720
CFE-3 1/4-B CFE-3 1/4-SB 3.250 1.750 1.250 1.750 2 1/2 1/24 1 1/4-12 0.060  1/4 24910 15720
CFE-3 1/2-B CFE-3 1/2-SB 3.500 2.000 1.375 1.812 2 3/4 1/25 1 3/8-12 0.060  1/4 31625 22800
CFE-4-B CFE-4-SB 4.000 2.250 2.000 2.000 3 1/2 1/26 1 1/2-12 0.060 1/4 44770 29985

Eccentric Stud CCFE-S cam followers with Crowned OD & Screwdrive Slot ( INCH size )
CLI Part No. ROLLER DIA.  ROLLER WIDTH BUSH. L'GTH  BUSH. DIA. STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS. ECC. LUB. FIT- TING SIZE Load Rating
(LBS)
With Seals RD W G * BD SL TL F Static Dynamic
CCFE-1/2-N-S 0.500 0.344 0.250 0.250 1/2 1/4 10-32 0.010 1/8** 720 620
CCFE-1/2-S 0.500 0.375 0.375 0.250 5/8 1/4 10-32 0.010 1/8** 790 680
CCFE-9/16-S 0.5625 0.375 0.375 0.250 5/8 1/4 10-32 0.010 1/8** 790 680
CCFE-5/8-S 0.625 0.4375 0.437 0.375 3/4 5/16 1/4-28 0.015 1/8** 1215 955
CCFE-11/16-S 0.6875 0.4375 0.437 0.375 3/4 5/16 1/4-28 0.015 1/8** 1215 955
CCFE-3/4-S 0.750 0.500 0.500 0.500 7/8 3/8 3/8-24 0.015 3/16 2065 1660
CCFE-7/8-S 0.875 0.500 0.500 0.500 7/8 3/8 3/8-24 0.015 3/16 2065 1660
CCFE-1-S 1.000 0.625 0.500 0.625 1 1/2 7/16-20 0.030 3/16 3060 2225
CCFE-1 1/8-S 1.125 0.625 0.500 0.625 1 1/2 7/16-20 0.030 3/16 3060 2225
CCFE-1 1/4-S 1.250 0.750 0.625 0.687 1 1/4 5/8 1/2-20 0.030 3/16 4250 3930
CCFE-1 3/8-S 1.375 0.750 0.625 0.687 1 1/4 5/8 1/2-20 0.030 3/16 4250 3930
CCFE-1 1/2-S 1.500 0.875 0.750 0.875 1 1/2 3/4 5/8-18 0.030 3/16 5640 4840
CCFE-1 5/8-S 1.625 0.875 0.750 0.875 1 1/2 3/4 5/8-18 0.030 3/16 5640 4840
CCFE-1 3/4-S 1.750 1.000 0.875 1.000 1 3/4 7/8 3/4-16 0.030 3/16 7920 6385
CCFE-1 7/8-S 1.875 1.000 0.875 1.000 1 3/4 7/8 3/4-16 0.030 3/16 7920 6385
CCFE-2-S 2.000 1.250 1.000 1.187 2 1 7/8-14 0.030 3/16 10570 8090
CCFE-2 1/4-S 2.250 1.250 1.000 1.187 2 1 7/8-14 0.030 3/16 10570 8090
CCFE-2 1/2-S 2.500 1.500 1.125 1.375 2 1/4 1 1/8 1-14 0.030 3/16 16450 11720
CCFE-2 3/4-S 2.750 1.500 1.125 1.375 2 1/4 1 1/8 1-14 0.030 3/16 16450 11720
CCFE-3-S 3.000 1.750 1.250 1.750 2 1/2 1 1/4 1 1/4-12 0.060 1/4 24910 15720
CCFE-3 1/4-S 3.250 1.750 1.250 1.750 2 1/2 1 1/4 1 1/4-12 0.060 1/4 24910 15720
CCFE-3 1/2-S 3.500 2.000 1.375 1.812 2 3/4 1 3/8 1 3/8-12 0.060 1/4 31625 22800
CCFE-4-S 4.000 2.250 2.000 2.000 3 1/2 1 1/2 1 1/2-12 0.060 1/4 44770 29985

Eccentric Stud CCFE-SB cam followers with Crowned OD & Hex Hole ( INCH size )
CLI Part No. ROLLER DIA.  ROLLER WIDTH BUSH. L'GTH  BUSH. DIA. STUD L'GTH. MIN. THR'D L'GTH. FINE THR'DS. ECC. LUB. FIT- TING SIZE Load Rating
(LBS)
With Seals RD W G * BD SL TL F Static Dynamic
CCFE-1/2-N-SB 0.500 0.344 0.250 0.250 1/2 1/4 10-32 0.010 - 720 620
CCFE-1/2-SB 0.500 0.375 0.375 0.250 5/8 1/4 10-32 0.010 - 790 680
CCFE-9/16-SB 0.5625 0.375 0.375 0.250 5/8 1/4 10-32 0.010 - 790 680
CCFE-5/8-SB 0.625 0.4375 0.437 0.375 3/4 5/16 1/4-28 0.015 - 1215 955
CCFE-11/16-SB 0.6875 0.4375 0.437 0.375 3/4 5/16 1/4-28 0.015 - 1215 955
CCFE-3/4-SB 0.750 0.500 0.500 0.500 7/8 3/8 3/8-24 0.015 3/16 2065 1660
CCFE-7/8-SB 0.875 0.500 0.500 0.500 7/8 3/8 3/8-24 0.015 3/16 2065 1660
CCFE-1-SB 1.000 0.625 0.500 0.625 1 1/2 7/16-20 0.030 3/16 3060 2225
CCFE-1 1/8-SB 1.125 0.625 0.500 0.625 1 1/2 7/16-20 0.030 3/16 3060 2225
CCFE-1 1/4-SB 1.250 0.750 0.625 0.687 1 1/4 5/8 1/2-20 0.030 3/16 4250 3930
CCFE-1 3/8-SB 1.375 0.750 0.625 0.687 1 1/4 5/8 1/2-20 0.030 3/16 4250 3930
CCFE-1 1/2-SB 1.500 0.875 0.750 0.875 1 1/2 3/4 5/8-18 0.030 3/16 5640 4840
CCFE-1 5/8-SB 1.625 0.875 0.750 0.875 1 1/2 3/4 5/8-18 0.030 3/16 5640 4840
CCFE-1 3/4-SB 1.750 1.000 0.875 1.000 1 3/4 7/8 3/4-16 0.030 3/16 7920 6385
CCFE-1 7/8-SB 1.875 1.000 0.875 1.000 1 3/4 7/8 3/4-16 0.030 3/16 7920 6385
CCFE-2-SB 2.000 1.250 1.000 1.187 2 1 7/8-14 0.030 3/16 10570 8090
CCFE-2 1/4-SB 2.250 1.250 1.000 1.187 2 1 7/8-14 0.030 3/16 10570 8090
CCFE-2 1/2-SB 2.500 1.500 1.125 1.375 2 1/4 1 1/8 1-14 0.030 3/16 16450 11720
CCFE-2 3/4-SB 2.750 1.500 1.125 1.375 2 1/4 1 1/8 1-14 0.030 3/16 16450 11720
CCFE-3-SB 3.000 1.750 1.250 1.750 2 1/2 1 1/4 1 1/4-12 0.060 ①   1/4 24910 15720
CCFE-3 1/4-SB 3.250 1.750 1.250 1.750 2 1/2 1 1/4 1 1/4-12 0.060 ①   1/4 24910 15720
CCFE-3 1/2-SB 3.500 2.000 1.375 1.812 2 3/4 1 3/8 1 3/8-12 0.060 ①   1/4 31625 22800
CCFE-4-SB 4.000 2.250 2.000 2.000 3 1/2 1 1/2 1 1/2-12 0.060 ①   1/4 44770 29985
