Drawn cup needle roller bearings
SCH / SCH-P / SCH-PP with OPEN end,
HEAVY series, chrome steel AISI52100, INCH sizes

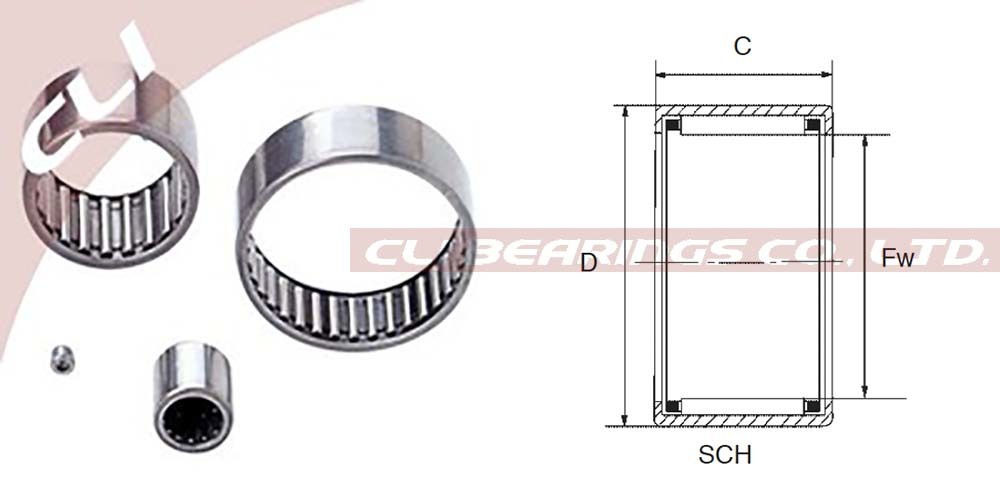

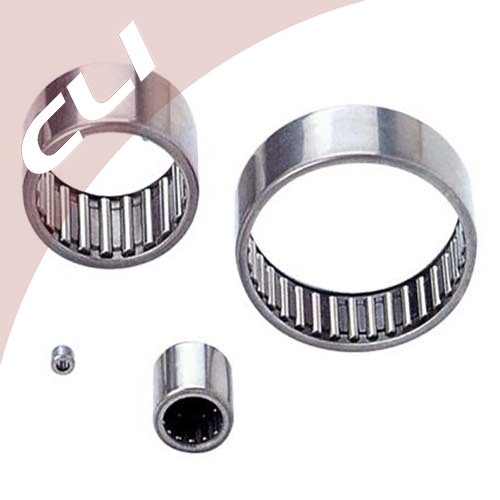

SCH drawn cup needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with OPEN ends. They are characterized by a very low sectional height and high load carrying capacity.

SCH drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

SCH / SCH-P / SCH-PP with OPEN end
AISI52100 chrome steel drawn cup needle roller bearings for
shaft sizes from
0.375 inch to 1.375 inch



CLI Bearing No. Seal Type End Boundary dimensions (inch) Basic load ratings Max Speed
Bore Dia Outer Dia Width Dynamic Load Static Load (Grease)
(Fw) (D) (C) (Cr) (N) (Cor) (N) (RPM)
SCH68 Open Open 0.375" 0.625" 0.5" 6600 N 6400 N 23700
SCH78 Open Open 0.4375" 0.6875" 0.5" 7900 N 8200 N 20700
SCH79-P Single seal Open 0.4375" 0.6875" 0.5625" 7900 N 8200 N 20700
SCH710-PP Double seals Open 0.4375" 0.6875" 0.625" 7900 N 8200 N 19600
SCH87 Open Open 0.5" 0.75" 0.4375" 7300 N 7800 N 18600
SCH88 Open Open 0.5" 0.75" 0.5" 8500 N 9400 N 18600
SCH812 Open Open 0.5" 0.75" 0.75" 12600 N 15700 N 18600
SCH98 Open Open 0.5625" 0.8125" 0.5" 9100 N 10600 N 16800
SCH912 Open Open 0.5625" 0.8125" 0.75" 14400 N 19000 N 16800
SCH913-P Single seal Open 0.5625" 0.8125" 0.8125" 14400 N 19000 N 16800
SCH108 Open Open 0.625" 0.875" 0.5" 10000 N 12200 N 15300
SCH1010 Open Open 0.625" 0.875" 0.625" 12700 N 16600 N 15300
SCH1016 Open Open 0.625" 0.875" 1" 19200 N 28000 N 15300
SCH1110 Open Open 0.6875" 0.9375" 0.625" 12800 N 17200 N 14100
SCH1112 Open Open 0.6875" 0.9375" 0.75" 15900 N 22700 N 14100
SCH1212 Open Open 0.75" 1.0625" 0.75" 18500 N 23600 N 12600
SCH1310 Open Open 0.8125" 1.125" 0.625" 16100 N 21100 N 11900
SCH1412 Open Open 0.875" 1.1875" 0.75" 19600 N 27000 N 11100
SCH1416 Open Open 0.875" 1.1875" 1" 25500 N 38500 N 11100
SCH1413-P Single seal Open 0.875" 1.1875" 0.8125" 19600 N 27000 N 11100
SCH1414-PP Double seals Open 0.875" 1.1875" 0.875" 19600 N 27000 N 10700
SCH1612 Open Open 1" 1.3125" 0.75" 20000 N 28500 N 9800
SCH1616 Open Open 1" 1.3125" 1" 29000 N 46500 N 9800
SCH1614-P Single seal Open 1" 1.3125" 0.875" 20000 N 28500 N 9800
SCH1616-PP Double seals Open 1" 1.3125" 1" 20000 N 28500 N 9500
SCH1812 Open Open 1.125" 1.5" 0.75" 25000 N 35000 N 8700
SCH1810 Open Open 1.125" 1.5" 0.625" 21800 N 29000 N 8700
SCH1816 Open Open 1.125" 1.5" 1" 36000 N 55000 N 8700
SCH1818 Open Open 1.125" 1.5" 1.125" 40500 N 65000 N 8700
SCH208 Open Open 1.25" 1.625" 0.5" 16400 N 21000 N 7900
SCH2016 Open Open 1.25" 1.625" 1" 36000 N 57000 N 7900
SCH2020 Open Open 1.25" 1.625" 1.25" 43500 N 73000 N 7900
SCH2018-P Single seal Open 1.25" 1.625" 1.125" 36500 N 58000 N 7900
SCH2020-PP Double seals Open 1.25" 1.625" 1.25" 36000 N 58000 N 7700
SCH2212 Open Open 1.375" 1.75" 0.75" 29500 N 45000 N 7200
SCH2216 Open Open 1.375" 1.75" 1" 39000 N 65000 N 7200
