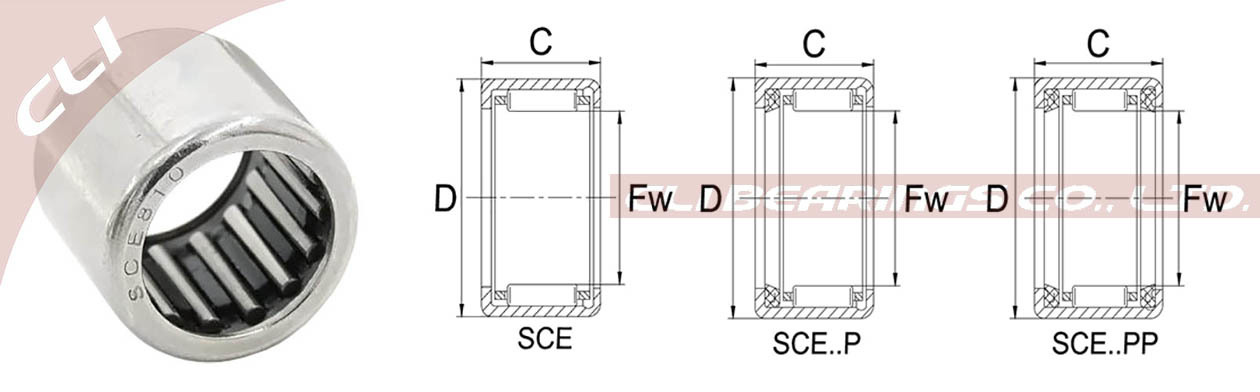

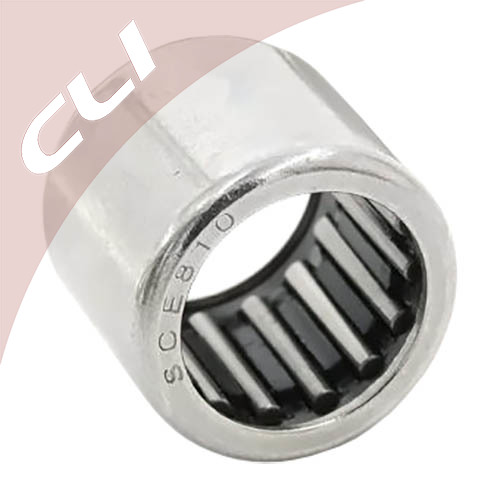

Drawn cup needle roller bearings
SCE / SCE-P / SCE-PP with OPEN end,
chrome steel AISI52100, INCH sizes
|
|
SCE drawn cup needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with OPEN ends. They are characterized by a very low sectional height and high load carrying capacity.
SCE drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
Drawn cup needle roller bearings
SCE / SCE-P / SCE-PP with OPEN end
AISI52100 chrome steel drawn cup needle roller bearings for
shaft sizes from 0.125 inch to 2.75 inch
|
 |
| CLI |
MEASURE |
END |
BORE DIA (Fw) |
OUTER DIA (D) |
WIDTH (C) |
WEIGHT |
SEAL |
RING |
ROLLER |
CAGE |
| BEARING NO. |
UNIT |
TYPE |
(inch) |
(inch) |
(inch) |
(grams) |
TYPE |
MATERIAL |
MATERIAL |
MATERIAL |
| SCE24-TN |
Inch |
Open End |
0.125" |
0.25" |
0.25" |
1 |
Open |
Steel |
Steel |
PA66 |
| SCE2-1/2-4 |
Inch |
Open End |
0.1563" |
0.2813" |
0.25" |
1 |
Open |
Steel |
Steel |
Steel |
| SCE34-TN |
Inch |
Open End |
0.1875" |
0.3437" |
0.25" |
1 |
Open |
Steel |
Steel |
PA66 |
| SCE36 |
Inch |
Open End |
0.1875" |
0.3437" |
0.3752" |
2 |
Open |
Steel |
Steel |
Steel |
| SCE44 |
Inch |
Open End |
0.25" |
0.4375" |
0.25" |
2 |
Open |
Steel |
Steel |
Steel |
| SCE45 |
Inch |
Open End |
0.25" |
0.4375" |
0.3125" |
2 |
Open |
Steel |
Steel |
Steel |
| SCE45-P |
Inch |
Open End |
0.25" |
0.4375" |
0.3125" |
3 |
Single seal |
Steel |
Steel |
Steel |
| SCE46-P |
Inch |
Open End |
0.25" |
0.4375" |
0.375" |
5 |
Single seal |
Steel |
Steel |
Steel |
| SCE46-PP |
Inch |
Open End |
0.25" |
0.4375" |
0.375" |
5 |
Double seals |
Steel |
Steel |
Steel |
| SCE47 |
Inch |
Open End |
0.25" |
0.4375" |
0.4375" |
4 |
Open |
Steel |
Steel |
Steel |
| SCE47-PP |
Inch |
Open End |
0.25" |
0.4375" |
0.4375" |
4 |
Double seals |
Steel |
Steel |
Steel |
| SCE48-P |
Inch |
Open End |
0.25" |
0.4375" |
0.5" |
4 |
Single seal |
Steel |
Steel |
Steel |
| SCE49-PP |
Inch |
Open End |
0.25" |
0.4375" |
0.5625" |
5 |
Double seals |
Steel |
Steel |
Steel |
| SCE55 |
Inch |
Open End |
0.3125" |
0.5" |
0.3125" |
4 |
Open |
Steel |
Steel |
Steel |
| SCE56-P |
Inch |
Open End |
0.3125" |
0.5" |
0.375" |
4 |
Single seal |
Steel |
Steel |
Steel |
| SCE57 |
Inch |
Open End |
0.3125" |
0.5" |
0.4375" |
6 |
Open |
Steel |
Steel |
Steel |
| SCE57-PP |
Inch |
Open End |
0.3125" |
0.5" |
0.4375" |
4 |
Double seals |
Steel |
Steel |
Steel |
| SCE58-P |
Inch |
Open End |
0.3125" |
0.5" |
0.5" |
6 |
Single seal |
Steel |
Steel |
Steel |
| SCE59 |
Inch |
Open End |
0.3125" |
0.5" |
0.5625" |
6 |
Open |
Steel |
Steel |
Steel |
| SCE59-PP |
Inch |
Open End |
0.3125" |
0.5" |
0.5625" |
5 |
Double seals |
Steel |
Steel |
Steel |
| SCE65 |
Inch |
Open End |
0.375" |
0.5625" |
0.3125" |
3 |
Open |
Steel |
Steel |
Steel |
| SCE66 |
Inch |
Open End |
0.375" |
0.5625" |
0.375" |
4 |
Open |
Steel |
Steel |
Steel |
| SCE66-P |
Inch |
Open End |
0.375" |
0.5625" |
0.375" |
5 |
Single seal |
Steel |
Steel |
Steel |
| SCE67 |
Inch |
Open End |
0.375" |
0.5625" |
0.4375" |
5 |
Open |
Steel |
Steel |
Steel |
| SCE67-PP |
Inch |
Open End |
0.375" |
0.5625" |
0.4375" |
12 |
Double seals |
Steel |
Steel |
Steel |
| SCE68 |
Inch |
Open End |
0.375" |
0.5625" |
0.5" |
6 |
Open |
Steel |
Steel |
Steel |
| SCE68-PP |
Inch |
Open End |
0.375" |
0.5625" |
0.5" |
6 |
Double seals |
Steel |
Steel |
Steel |
| SCE69-P |
Inch |
Open End |
0.375" |
0.5625" |
0.5625" |
7 |
Single seal |
Steel |
Steel |
Steel |
| SCE610 |
Inch |
Open End |
0.375" |
0.5625" |
0.625" |
7 |
Open |
Steel |
Steel |
Steel |
| SCE610-PP |
Inch |
Open End |
0.375" |
0.5625" |
0.625" |
7 |
Double seals |
Steel |
Steel |
Steel |
| SCE78 |
Inch |
Open End |
0.4375" |
0.625" |
0.5" |
7 |
Open |
Steel |
Steel |
Steel |
| SCE710 |
Inch |
Open End |
0.4375" |
0.625" |
0.625" |
9 |
Open |
Steel |
Steel |
Steel |
| SCE85 |
Inch |
Open End |
0.5" |
0.6875" |
0.3125" |
4 |
Open |
Steel |
Steel |
Steel |
| SCE86 |
Inch |
Open End |
0.5" |
0.6875" |
0.375" |
5 |
Open |
Steel |
Steel |
Steel |
| SCE86-P |
Inch |
Open End |
0.5" |
0.6875" |
0.375" |
9 |
Single seal |
Steel |
Steel |
Steel |
| SCE87 |
Inch |
Open End |
0.5" |
0.6875" |
0.4375" |
6 |
Open |
Steel |
Steel |
Steel |
| SCE87-PP |
Inch |
Open End |
0.5" |
0.6875" |
0.4375" |
6 |
Double seals |
Steel |
Steel |
Steel |
| SCE88 |
Inch |
Open End |
0.5" |
0.6875" |
0.5" |
7 |
Open |
Steel |
Steel |
Steel |
| SCE89-P |
Inch |
Open End |
0.5" |
0.6875" |
0.5625" |
10 |
Single seal |
Steel |
Steel |
Steel |
| SCE810 |
Inch |
Open End |
0.5" |
0.6875" |
0.625" |
9 |
Open |
Steel |
Steel |
Steel |
| SCE810-PP |
Inch |
Open End |
0.5" |
0.6875" |
0.625" |
10 |
Double seals |
Steel |
Steel |
Steel |
| SCE812 |
Inch |
Open End |
0.5" |
0.6875" |
0.75" |
11 |
Open |
Steel |
Steel |
Steel |
| SCE812-PP |
Inch |
Open End |
0.5" |
0.6875" |
0.75" |
14 |
Double seals |
Steel |
Steel |
Steel |
| SCE96 |
Inch |
Open End |
0.5625" |
0.75" |
0.375" |
6 |
Open |
Steel |
Steel |
Steel |
| SCE98 |
Inch |
Open End |
0.5625" |
0.75" |
0.5" |
9 |
Open |
Steel |
Steel |
Steel |
| SCE910 |
Inch |
Open End |
0.5625" |
0.75" |
0.625" |
10 |
Open |
Steel |
Steel |
Steel |
| SCE910-PP |
Inch |
Open End |
0.5625" |
0.75" |
0.625" |
13 |
Double seals |
Steel |
Steel |
Steel |
| SCE912 |
Inch |
Open End |
0.5625" |
0.75" |
0.75" |
12 |
Open |
Steel |
Steel |
Steel |
| SCE912-PP |
Inch |
Open End |
0.5625" |
0.75" |
0.75" |
12 |
Double seals |
Steel |
Steel |
Steel |
| SCE105 |
Inch |
Open End |
0.625" |
0.8125" |
0.3125" |
5 |
Open |
Steel |
Steel |
Steel |
| SCE107 |
Inch |
Open End |
0.625" |
0.8125" |
0.4375" |
8 |
Open |
Steel |
Steel |
Steel |
| SCE107-1/2 |
Inch |
Open End |
0.625" |
0.8125" |
0.4689" |
8 |
Open |
Steel |
Steel |
Steel |
| SCE108 |
Inch |
Open End |
0.625" |
0.8125" |
0.5" |
9 |
Open |
Steel |
Steel |
Steel |
| SCE109-P |
Inch |
Open End |
0.625" |
0.8125" |
0.5625" |
10 |
Single seal |
Steel |
Steel |
Steel |
| SCE1010 |
Inch |
Open End |
0.625" |
0.8125" |
0.625" |
11 |
Open |
Steel |
Steel |
Steel |
| SCE1010-PP |
Inch |
Open End |
0.625" |
0.8125" |
0.625" |
10 |
Double seals |
Steel |
Steel |
Steel |
| SCE1011-P |
Inch |
Open End |
0.625" |
0.8125" |
0.6874" |
12 |
Single seal |
Steel |
Steel |
Steel |
| SCE1012 |
Inch |
Open End |
0.625" |
0.8125" |
0.75" |
14 |
Open |
Steel |
Steel |
Steel |
| SCE1012-PP |
Inch |
Open End |
0.625" |
0.8125" |
0.75" |
13 |
Double seals |
Steel |
Steel |
Steel |
| SCE1014-PP |
Inch |
Open End |
0.625" |
0.8125" |
0.875" |
15 |
Double seals |
Steel |
Steel |
Steel |
| SCE116 |
Inch |
Open End |
0.6875" |
0.875" |
0.375" |
6 |
Open |
Steel |
Steel |
Steel |
| SCE118 |
Inch |
Open End |
0.6875" |
0.875" |
0.5" |
10 |
Open |
Steel |
Steel |
Steel |
| SCE1110 |
Inch |
Open End |
0.6875" |
0.875" |
0.625" |
13 |
Open |
Steel |
Steel |
Steel |
| SCE1112 |
Inch |
Open End |
0.6875" |
0.875" |
0.75" |
16 |
Open |
Steel |
Steel |
Steel |
| SCE126 |
Inch |
Open End |
0.75" |
1" |
0.375" |
10 |
Open |
Steel |
Steel |
Steel |
| SCE128 |
Inch |
Open End |
0.75" |
1" |
0.5" |
14 |
Open |
Steel |
Steel |
Steel |
| SCE128-PP |
Inch |
Open End |
0.75" |
1" |
0.5" |
13 |
Double seals |
Steel |
Steel |
Steel |
| SCE129-P |
Inch |
Open End |
0.75" |
1" |
0.5625" |
17 |
Single seal |
Steel |
Steel |
Steel |
| SCE1210 |
Inch |
Open End |
0.75" |
1" |
0.625" |
18 |
Open |
Steel |
Steel |
Steel |
| SCE1210-PP |
Inch |
Open End |
0.75" |
1" |
0.625" |
17 |
Double seals |
Steel |
Steel |
Steel |
| SCE1211-P |
Inch |
Open End |
0.75" |
1" |
0.6874" |
22 |
Single seal |
Steel |
Steel |
Steel |
| SCE1212 |
Inch |
Open End |
0.75" |
1" |
0.75" |
21 |
Open |
Steel |
Steel |
Steel |
| SCE1212-PP |
Inch |
Open End |
0.75" |
1" |
0.75" |
20 |
Double seals |
Steel |
Steel |
Steel |
| SCE138 |
Inch |
Open End |
0.8125" |
1.0625" |
0.5" |
16 |
Open |
Steel |
Steel |
Steel |
| SCE1314 |
Inch |
Open End |
0.8125" |
1.0625" |
0.875" |
27 |
Open |
Steel |
Steel |
Steel |
| SCE146 |
Inch |
Open End |
0.875" |
1.125" |
0.375" |
13 |
Open |
Steel |
Steel |
Steel |
| SCE148 |
Inch |
Open End |
0.875" |
1.125" |
0.5" |
19 |
Open |
Steel |
Steel |
Steel |
| SCE148-PP |
Inch |
Open End |
0.875" |
1.125" |
0.5" |
16 |
Double seals |
Steel |
Steel |
Steel |
| SCE1412 |
Inch |
Open End |
0.875" |
1.125" |
0.75" |
28 |
Open |
Steel |
Steel |
Steel |
| SCE1414-PP |
Inch |
Open End |
0.875" |
1.125" |
0.875" |
30 |
Double seals |
Steel |
Steel |
Steel |
| SCE1416 |
Inch |
Open End |
0.875" |
1.125" |
1" |
34 |
Open |
Steel |
Steel |
Steel |
| SCE166 |
Inch |
Open End |
1" |
1.25" |
0.375" |
18 |
Open |
Steel |
Steel |
Steel |
| SCE168 |
Inch |
Open End |
1" |
1.25" |
0.5" |
19 |
Open |
Steel |
Steel |
Steel |
| SCE1612 |
Inch |
Open End |
1" |
1.25" |
0.75" |
27 |
Open |
Steel |
Steel |
Steel |
| SCE1616 |
Inch |
Open End |
1" |
1.25" |
1" |
38 |
Open |
Steel |
Steel |
Steel |
| SCE1616-PP |
Inch |
Open End |
1" |
1.25" |
1" |
33 |
Double seals |
Steel |
Steel |
Steel |
| SCE188 |
Inch |
Open End |
1.125" |
1.375" |
0.5" |
21 |
Open |
Steel |
Steel |
Steel |
| SCE1812 |
Inch |
Open End |
1.125" |
1.375" |
0.75" |
30 |
Open |
Steel |
Steel |
Steel |
| SCE1816 |
Inch |
Open End |
1.125" |
1.375" |
1" |
40 |
Open |
Steel |
Steel |
Steel |
| SCE208 |
Inch |
Open End |
1.25" |
1.5" |
0.5" |
22 |
Open |
Steel |
Steel |
Steel |
| SCE2010 |
Inch |
Open End |
1.25" |
1.5" |
0.625" |
30 |
Open |
Steel |
Steel |
Steel |
| SCE2012 |
Inch |
Open End |
1.25" |
1.5" |
0.75" |
37 |
Open |
Steel |
Steel |
Steel |
| SCE2012-P |
Inch |
Open End |
1.25" |
1.5" |
0.75" |
36 |
Single seal |
Steel |
Steel |
Steel |
| SCE2014-P |
Inch |
Open End |
1.25" |
1.5" |
0.875" |
38 |
Single seal |
Steel |
Steel |
Steel |
| SCE2016 |
Inch |
Open End |
1.25" |
1.5" |
1" |
45 |
Open |
Steel |
Steel |
Steel |
| SCE2020 |
Inch |
Open End |
1.25" |
1.5" |
1.25" |
56 |
Open |
Steel |
Steel |
Steel |
| SCE2110 |
Inch |
Open End |
1.3125" |
1.625" |
0.625" |
37 |
Open |
Steel |
Steel |
Steel |
| SCE228 |
Inch |
Open End |
1.375" |
1.625" |
0.5" |
25 |
Open |
Steel |
Steel |
Steel |
| SCE2212 |
Inch |
Open End |
1.375" |
1.625" |
0.75" |
39 |
Open |
Steel |
Steel |
Steel |
| SCE2216 |
Inch |
Open End |
1.375" |
1.625" |
1" |
58 |
Open |
Steel |
Steel |
Steel |
| SCE2220 |
Inch |
Open End |
1.375" |
1.625" |
1.25" |
81 |
Open |
Steel |
Steel |
Steel |
| SCE248 |
Inch |
Open End |
1.5" |
1.875" |
0.5" |
48 |
Open |
Steel |
Steel |
Steel |
| SCE2410 |
Inch |
Open End |
1.5" |
1.875" |
0.625" |
54 |
Open |
Steel |
Steel |
Steel |
| SCE2412 |
Inch |
Open End |
1.5" |
1.875" |
0.75" |
62 |
Open |
Steel |
Steel |
Steel |
| SCE2414 |
Inch |
Open End |
1.5" |
1.875" |
0.875" |
72 |
Open |
Steel |
Steel |
Steel |
| SCE2414-P |
Inch |
Open End |
1.5" |
1.875" |
0.875" |
70 |
Single seal |
Steel |
Steel |
Steel |
| SCE2416 |
Inch |
Open End |
1.5" |
1.875" |
1" |
83 |
Open |
Steel |
Steel |
Steel |
| SCE2416-P |
Inch |
Open End |
1.5" |
1.875" |
1" |
83 |
Single seal |
Steel |
Steel |
Steel |
| SCE2424-PP |
Inch |
Open End |
1.5" |
1.875" |
1.5" |
117 |
Double seals |
Steel |
Steel |
Steel |
| SCE2420 |
Inch |
Open End |
1.5" |
1.875" |
1.25" |
105 |
Open |
Steel |
Steel |
Steel |
| SCE2422-P |
Inch |
Open End |
1.5" |
1.875" |
1.3748" |
110 |
Single seal |
Steel |
Steel |
Steel |
| SCE2610 |
Inch |
Open End |
1.625" |
2" |
0.625" |
55 |
Open |
Steel |
Steel |
Steel |
| SCE2620 |
Inch |
Open End |
1.625" |
2" |
1.25" |
110 |
Open |
Steel |
Steel |
Steel |
| SCE2816 |
Inch |
Open End |
1.75" |
2.125" |
1" |
115 |
Open |
Steel |
Steel |
Steel |
| SCE2824 |
Inch |
Open End |
1.75" |
2.125" |
1.5" |
163 |
Open |
Steel |
Steel |
Steel |
| SCE328 |
Inch |
Open End |
2" |
2.375" |
0.5" |
58 |
Open |
Steel |
Steel |
Steel |
| SCE3210 |
Inch |
Open End |
2" |
2.375" |
0.625" |
68 |
Open |
Steel |
Steel |
Steel |
| SCE3216 |
Inch |
Open End |
2" |
2.375" |
1" |
102 |
Open |
Steel |
Steel |
Steel |
| SCE348 |
Inch |
Open End |
2.125" |
2.5" |
0.5" |
62 |
Open |
Steel |
Steel |
Steel |
| SCE3410 |
Inch |
Open End |
2.125" |
2.5" |
0.625" |
72 |
Open |
Steel |
Steel |
Steel |
| SCE3612 |
Inch |
Open End |
2.25" |
2.625" |
0.75" |
89 |
Open |
Steel |
Steel |
Steel |
| SCE3616 |
Inch |
Open End |
2.25" |
2.625" |
1" |
120 |
Open |
Steel |
Steel |
Steel |
| SCE4412 |
Inch |
Open End |
2.75" |
3.125" |
0.75" |
132 |
Open |
Steel |
Steel |
Steel |
|
* Note: TN=Cage made from glass fibre reinforced polyamide PA66,
* Note: P=Contact seal on one side (Single Seal)
* Note: PP=Contact seal on both sides (Double Seals)
|
