Rolling Roller Bearings-Needle Roller Bearings-Drawn cup needle roller bearings HN with OPEN end, full complement needle roller set, chrome steel AISI52100, METRIC sizes

Original 19 picture hn

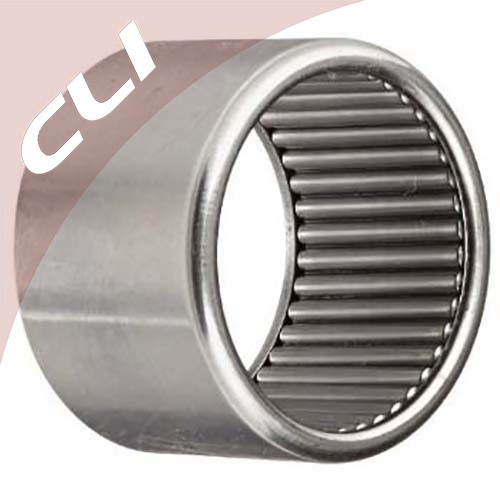

Product Picture

Drawn cup needle roller bearings
HN with OPEN end, full complement needle roller set,
chrome steel AISI52100,
METRIC sizes




HN full complement needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with OPEN ends. They are characterized by a very low sectional height and high load carrying capacity.

HN full complement needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

HN with OPEN end, full complement needle roller set,
AISI52100 chrome steel drawn cup needle roller bearings for
shaft sizes from
8 mm to 50 mm

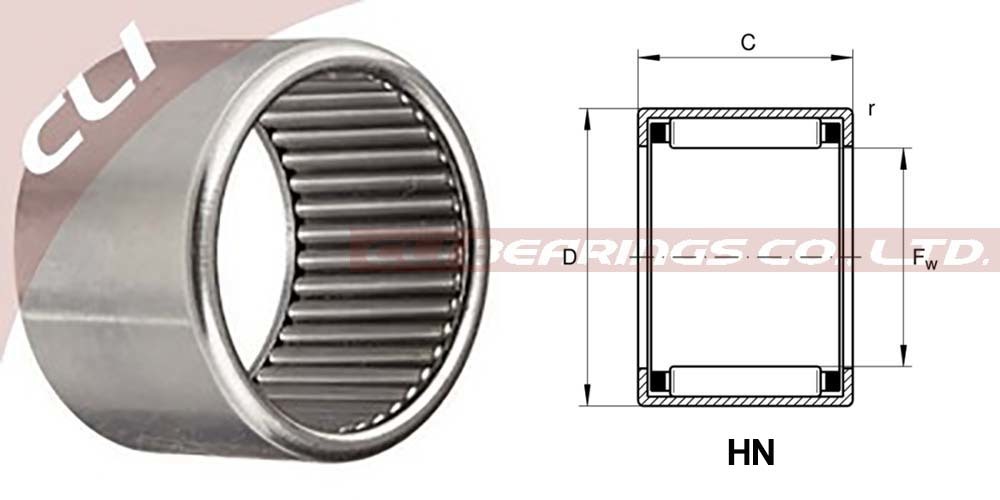

CLI Bearing No. Seal Type End Boundary dimensions (inch) Basic load ratings Max Speed
Bore Dia Outer Dia Width Dynamic Load Static Load (Grease)
(Fw) (D) (C) (Cr) (N) (Cor) (N) (RPM)
HN0808 Open Open 8mm 12mm 8mm 5000 N 6700 N 12700
HN1010 Open Open 10mm 14mm 10mm 6820N 11400N 18000
HN1210 Open Open 12mm 16mm 10mm 8000 N 13400 N 8900
HN1212 Open Open 12mm 18mm 12mm 10200 N 15200 N 8600
HN1412 Open Open 14mm 20mm 12mm 11000 N 17500 N 7500
HN1516 Open Open 15mm 21mm 16mm 15400 N 27500 N 7100
HN1612 Open Open 16mm 22mm 12mm 12000 N 20300 N 6700
HN1816 Open Open 18mm 24mm 16mm 17000 N 32500 N 6000
HN2016 Open Open 20mm 26mm 16mm 18100 N 36500 N 7300
HN2020 Open Open 20mm 26mm 20mm 22400 N 48000 N 5400
HN2520 Open Open 25mm 32mm 20mm 28000 N 59000 N 4350
HN2820 Open Open 28mm 35mm 20mm 30000 N 67000 N 3950
HN3520 Open Open 35mm 42mm 20mm 33500 N 83000 N 3200
HN4020 Open Open 40mm 47mm 20mm 36000 N 95000 N 2800
HN4520 Open Open 45mm 52mm 20mm 38500 N 108000 N 2500
HN4525 Open Open 45mm 52mm 25mm 47000 N 139000 N 2500
HN5020 Open Open 50mm 58mm 20mm 44500 N 119000 N 2260
HN5025 Open Open 50mm 58mm 25mm 54000 N 152000 N 2260
