BK drawn cup needle roller bearings with CLOSED end, chrome steel AISI52100, METRIC SIZE

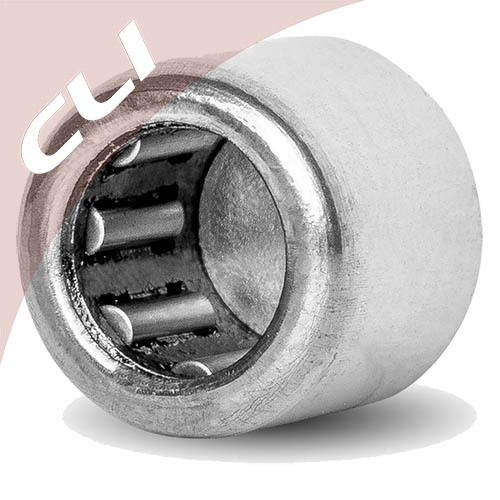

Product Picture

Original 1 drawn cup caged needle roller bearings hk bk hk rs bk rs hk 2rs sce bce nw

Download PDF Catalogue

Drawn cup needle roller bearings
BK / BK-RS / BK-TN / BK-TW with CLOSED end,
chrome steel AISI52100, METRIC sizes

BK drawn cup needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with CLOSED ends. They are characterized by a very low sectional height and high load carrying capacity.

BK drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

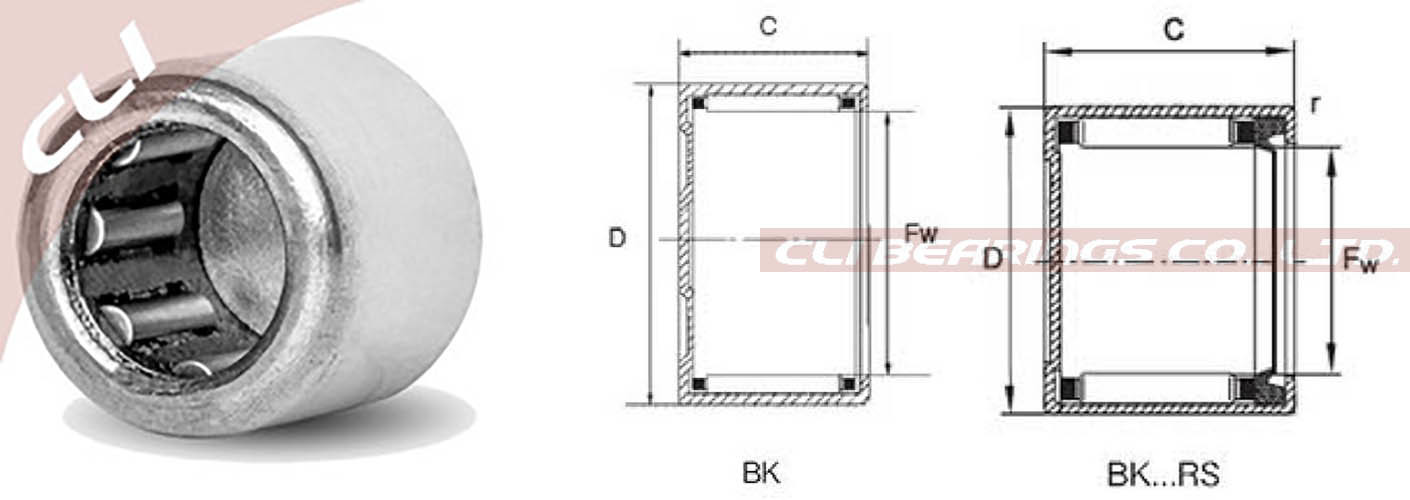

BK / BK-RS / BK-TN / BK-TW
AISI52100 chrome steel drawn cup needle roller bearings for
shaft sizes from 3 mm to 45 mm

CLI		BEARING	Bore Dia	Outer Dia	Width	Weight	Seal	Ring	Roller	Cage
Part No.		TYPE	(mm)	(mm)	(mm)	(grams)	Type	Material	Material	Material
BK0306-TV	BK0306TN	Closed End	3 mm	6.5 mm	6 mm	1	Open	Steel	Steel	Nylon
BK0408	-	Closed End	4 mm	8 mm	8 mm	1.6	Open	Steel	Steel	Steel
BK0509	-	Closed End	5 mm	9 mm	9 mm	2.1	Open	Steel	Steel	Steel
BK0609	-	Closed End	6 mm	10 mm	9 mm	2.6	Open	Steel	Steel	Steel
BK0709	-	Closed End	7 mm	11 mm	9 mm	2.9	Open	Steel	Steel	Steel
BK0808	-	Closed End	8 mm	12 mm	8 mm	3	Open	Steel	Steel	Steel
BK0810	-	Closed End	8 mm	12 mm	10 mm	3.4	Open	Steel	Steel	Steel
BK0910	-	Closed End	9 mm	13 mm	10 mm	4.3	Open	Steel	Steel	Steel
BK0912	-	Closed End	9 mm	13 mm	12 mm	4.9	Open	Steel	Steel	Steel
BK1010	-	Closed End	10 mm	14 mm	10 mm	4.3	Open	Steel	Steel	Steel
BK1012	-	Closed End	10 mm	14 mm	12 mm	5	Open	Steel	Steel	Steel
BK1012-RS	-	Closed End	10 mm	14 mm	12 mm	4.3	Single seal	Steel	Steel	Steel
BK1015	-	Closed End	10 mm	14 mm	15 mm	6.2	Open	Steel	Steel	Steel
BK1210	-	Closed End	12 mm	16 mm	10 mm	5.2	Open	Steel	Steel	Steel
BK1212	-	Closed End	12 mm	18 mm	12 mm	10	Open	Steel	Steel	Steel
BK1312	-	Closed End	13 mm	19 mm	12 mm	11	Open	Steel	Steel	Steel
BK1412	-	Closed End	14 mm	20 mm	12 mm	12	Open	Steel	Steel	Steel
BK1414-RS	-	Closed End	14 mm	20 mm	14 mm	13	Single seal	Steel	Steel	Steel
BK1512	-	Closed End	15 mm	21 mm	12 mm	13	Open	Steel	Steel	Steel
BK1514-RS	-	Closed End	15 mm	21 mm	14 mm	14	Single seal	Steel	Steel	Steel
BK1516	-	Closed End	15 mm	21 mm	16 mm	17	Open	Steel	Steel	Steel
BK1612	-	Closed End	16 mm	22 mm	12 mm	14	Open	Steel	Steel	Steel
BK1614-RS	-	Closed End	16 mm	22 mm	14 mm	15	Single seal	Steel	Steel	Steel
BK1616	-	Closed End	16 mm	22 mm	16 mm	18	Open	Steel	Steel	Steel
BK1622-ZW	BK1622	Closed End	16 mm	22 mm	22 mm	24	Open	Steel	Steel	Steel
BK1812	-	Closed End	18 mm	24 mm	12 mm	15	Open	Steel	Steel	Steel
BK1816	-	Closed End	18 mm	24 mm	16 mm	20	Open	Steel	Steel	Steel
BK2016	-	Closed End	20 mm	26 mm	16 mm	22	Open	Steel	Steel	Steel
BK2018-RS	-	Closed End	20 mm	26 mm	18 mm	24	Single seal	Steel	Steel	Steel
BK2020	-	Closed End	20 mm	26 mm	20 mm	27	Open	Steel	Steel	Steel
BK2212	-	Closed End	22 mm	28 mm	12 mm	18	Open	Steel	Steel	Steel
BK2216	-	Closed End	22 mm	28 mm	16 mm	24	Open	Steel	Steel	Steel
BK2516	-	Closed End	25 mm	32 mm	16 mm	32	Open	Steel	Steel	Steel
BK2518-RS	-	Closed End	25 mm	32 mm	18 mm	34	Single seal	Steel	Steel	Steel
BK2520	-	Closed End	25 mm	32 mm	20 mm	38	Open	Steel	Steel	Steel
BK2526	-	Closed End	25 mm	32 mm	26 mm	48	Open	Steel	Steel	Steel
BK2538-ZW	BK2538	Closed End	25 mm	32 mm	38 mm	68	Open	Steel	Steel	Steel
BK3012	-	Closed End	30 mm	37 mm	12 mm	28	Open	Steel	Steel	Steel
BK3016	-	Closed End	30 mm	37 mm	16 mm	38	Open	Steel	Steel	Steel
BK3020	-	Closed End	30 mm	37 mm	20 mm	47	Open	Steel	Steel	Steel
BK3026	-	Closed End	30 mm	37 mm	26 mm	58	Open	Steel	Steel	Steel
BK3038-ZW	BK3038	Closed End	30 mm	37 mm	38 mm	84	Open	Steel	Steel	Steel
BK3520	-	Closed End	35 mm	42 mm	20 mm	53	Open	Steel	Steel	Steel
BK4020	-	Closed End	40 mm	47 mm	20 mm	62	Open	Steel	Steel	Steel
BK4520	-	Closed End	45 mm	52 mm	20 mm	72	Open	Steel	Steel	Steel
BK5025	-	Closed End	50 mm	58 mm	25 mm	109	Open	Steel	Steel	Steel

Notes: "TN" = Bearing with Nylon Cage, "TV" = Bearing with Nylon Cage,
"RS" = Bearing with Single Seal, "ZW" = Bearing with Two Rows' Rollers
