Rolling Roller Bearings-Needle Roller Bearings-Drawn cup needle roller bearings BCH / BCH-P with CLOSED end, HEAVY series, chrome steel AISI52100, INCH sizes

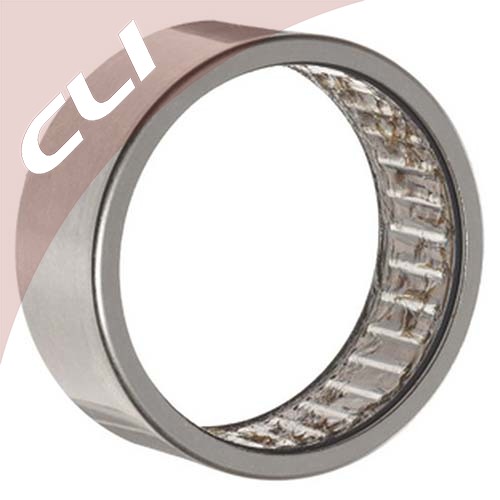

Original 21 picture bch
Product Picture

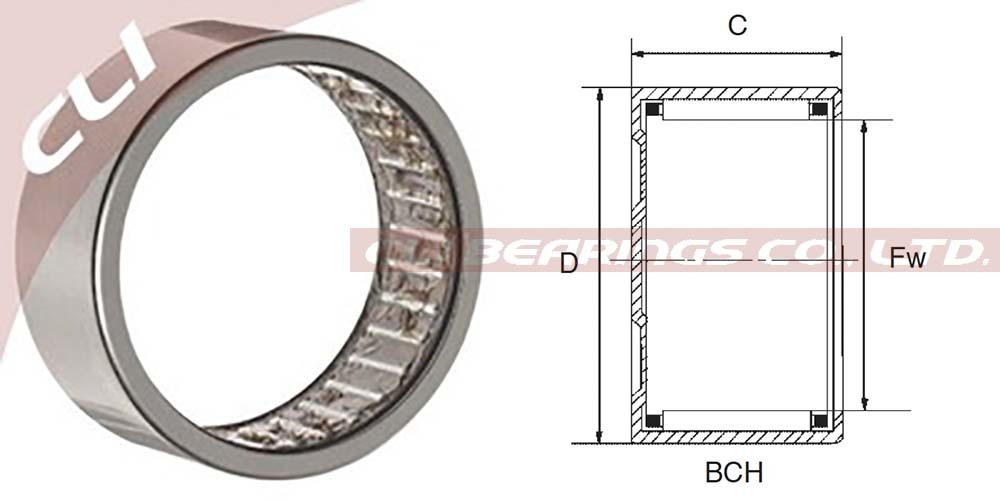

Drawn cup needle roller bearings
BCH / BCH-P with CLOSED end,
HEAVY series, chrome steel AISI52100, INCH sizes




BCH drawn cup needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with CLOSED ends. They are characterized by a very low sectional height and high load carrying capacity.

BCH drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

BCH / BCH-P with CLOSED end
AISI52100 chrome steel drawn cup needle roller bearings for
shaft sizes from
0.3125 inch to 1.375 inch



CLI Bearing No. Seal Type End Boundary dimensions (inch) Basic load ratings Max Speed
Bore Dia Outer Dia Width Dynamic Load Static Load (Grease)
(d) (D) (B) (Cr) (N) (Cor) (N) (RPM)
BCH57 Open Closed 0.3125" 0.5625" 0.4375" 4750 N 4150 N 27500
BCH58-P Single seal Closed 0.3125" 0.5625" 0.5" 5600 N 4800 N 21000
BCH68 Open Closed 0.375" 0.625" 0.5" 6600N 6400 N 23700
BCH78 Open Closed 0.4375" 0.6875" 0.5" 7900 N 8200 N 20700
BCH79-P Single seal Closed 0.4375" 0.6875" 0.5625" 7900 N 8200 N 20700
BCH87 Open Closed 0.5" 0.75" 0.4375" 7300 N 7800 N 18600
BCH88 Open Closed 0.5" 0.75" 0.5" 8500 N 9400 N 18600
BCH810 Open Closed 0.5" 0.75" 0.625" 10500 N 12400 N 22000
BCH812 Open Closed 0.5" 0.75" 0.75" 12600 N 15700 N 18600
BCH813-P Single seal Closed 0.5" 0.75" 0.8125" 12600 N 15700 N 18600
BCH98 Open Closed 0.5625" 0.8125" 0.5" 9100 N 10600 N 16800
BCH910 Open Closed 0.5625" 0.8125" 0.625" 12000 N 15000 N 16800
BCH912 Open Closed 0.5625" 0.8125" 0.75" 14400 N 19000 N 16800
BCH910-P Single seal Closed 0.5625" 0.8125" 0.625" 10900 N 13300 N 12000
BCH913-P Single seal Closed 0.5625" 0.8125" 0.8125" 14400 N 19000 N 16800
BCH108 Open Closed 0.625" 0.875" 0.5" 10000 N 12200 N 15300
BCH1010 Open Closed 0.625" 0.875" 0.625" 12700 N 16600 N 15300
BCH1012 Open Closed 0.625" 0.875" 0.75" 14700 N 20000 N 17600
BCH1016 Open Closed 0.625" 0.875" 1" 19200 N 28000 N 15300
BCH06604-P Single seal Closed 0.6667" 0.9375" 0.6882" 7400 N 8000 N 11000
BCH117 Open Closed 0.6875" 0.9375" 0.4375" 8400 N 10000 N 16000
BCH1110 Open Closed 0.6875" 0.9375" 0.625" 12800 N 17200 N 14100
BCH1112 Open Closed 0.6875" 0.9375" 0.75" 15900 N 22700 N 16000
BCH1212 Open Closed 0.75" 1.0625" 0.75" 18500 N 23600 N 12600
BCE1312 Open Closed 0.8125" 1.0625" 0.75" 15900 N 23700 N 13600
BCH1310 Open Closed 0.8125" 1.125" 0.625" 16100 N 21100 N 11900
BCH1312 Open Closed 0.8125" 1.125" 0.75" 19200 N 26500 N 13600
BCH1412 Open Closed 0.875" 1.1875" 0.75" 19600 N 27000 N 11100
BCH1416 Open Closed 0.875" 1.1875" 1" 25500 N 38500 N 11100
BCH1610 Open Closed 1" 1.3125" 0.625" 16700 N 22700 N 11000
BCH1612 Open Closed 1" 1.3125" 0.75" 20000 N 28500 N 9800
BCH1616 Open Closed 1" 1.3125" 1" 29000 N 46500 N 9800
BCH1614-P Single seal Closed 1" 1.3125" 0.875" 20000 N 28500 N 9800
BCH1810 Open Closed 1.125" 1.5" 0.625" 21800 N 29000 N 8700
BCH1812 Open Closed 1.125" 1.5" 0.75" 25000 N 35000 N 8700
BCH1816 Open Closed 1.125" 1.5" 1" 36000 N 55000 N 8700
BCH1818 Open Closed 1.125" 1.5" 1.125" 40500 N 65000 N 8700
BCH1820 Open Closed 1.125" 1.5" 1.25" 40900 N 64500 N 9800
BCH208 Open Closed 1.25" 1.625" 0.5" 16400 N 21000 N 7900
BCH2012 Open Closed 1.25" 1.625" 0.75" 27100 N 39500 N 8800
BCH2016 Open Closed 1.25" 1.625" 1" 36000 N 57500 N 8800
BCH2020 Open Closed 1.25" 1.625" 1.25" 43500 N 73000 N 7900
BCH2216 Open Closed 1.375" 1.75" 1" 39000 N 65000 N 7200
BCH2212-P Single seal Closed 1.375" 1.75" 0.75" 25000 N 40500 N 6000
