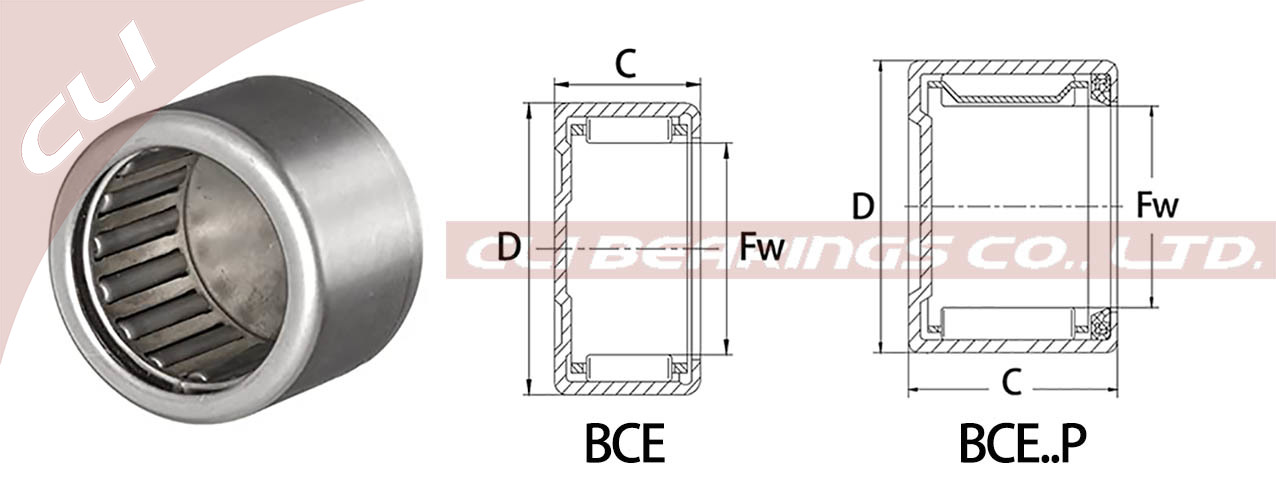

Product Picture
Original 4 1 drawn cup caged needle roller bearings hk bk hk rs bk rs hk 2rs sce bce 41 nw
Download PDF Catalogue

Drawn cup needle roller bearings
BCE / BCE-TNBCE-P with CLOSED end,
chrome steel AISI52100, INCH sizes




BCE drawn cup needle roller bearings, as the name suggests, are needle roller bearings with a deep drawn, thin-walled outer ring with CLOSED ends. They are characterized by a very low sectional height and high load carrying capacity.

BCE drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

BCE / BCE-TNBCE-P with CLOSED end
AISI52100 chrome steel drawn cup needle roller bearings for
shaft sizes from
0.125 inch to
2.75 inch


CLI Bearing No. Seal Type End Boundary dimensions (inch) Basic load ratings Max Speed
Bore Dia Outer Dia Width Dynamic Load Static Load (Grease)
(d) (D) (B) (Cr) (N) (Cor) (N) (RPM)
BCE24-TN Open Closed 0.125" 0.25" 0.25" 1070 N 740 N 31500
BCE34-TN Open Closed 0.1875" 0.3437" 0.25" 1790 N 1360 N 21000
BCE36-TN Open Closed 0.1875" 0.3437" 0.375" 2750 N 2350 N 21000
BCE44 Open Closed 0.25" 0.4375" 0.25" 1600 N 1170 N 35000
BCE45 Open Closed 0.25" 0.4375" 0.3125" 2500 N 2090 N 35000
BCE47 Open Closed 0.25" 0.4375" 0.4375" 4100 N 4000 N 31500
BCE48-P Single seal Closed 0.25" 0.4375" 0.5" 4100 N 3900 N 35000
BCE55 Open Closed 0.3125" 0.5" 0.3125" 2900 N 2600 N 29000
BCE57 Open Closed 0.3125" 0.5" 0.4375" 4700 N 4850 N 29000
BCE59 Open Closed 0.3125" 0.5" 0.5625" 6000 N 6600 N 29000
BCE58-P Single seal Closed 0.3125" 0.5" 0.5" 4700 N 4850 N 23000
BCE65 Open Closed 0.375" 0.5625" 0.3125" 2900 N 2700 N 25000
BCE66 Open Closed 0.375" 0.5625" 0.375" 3900 N 3950 N 25000
BCE67 Open Closed 0.375" 0.5625" 0.4375" 4350 N 4600 N 25000
BCE68 Open Closed 0.375" 0.5625" 0.5" 5800 N 6600 N 25000
BCE610 Open Closed 0.375" 0.5625" 0.625" 7400 N 9100 N 25000
BCE66-P Single seal Closed 0.375" 0.5625" 0.375" 2900 N 2700 N 25000
BCE69-P Single seal Closed 0.375" 0.5625" 0.5625" 5800 N 6600 N 25000
BCE78 Open Closed 0.4375" 0.625" 0.5" 6400 N 7800 N 21900
BCE85 Open Closed 0.5" 0.6875" 0.3125" 3650 N 3950 N 19500
BCE86 Open Closed 0.5" 0.6875" 0.375" 4650 N 5400 N 19500
BCE87 Open Closed 0.5" 0.6875" 0.4375" 5900 N 7400 N 19500
BCE88 Open Closed 0.5" 0.6875" 0.5" 6900 N 9000 N 19500
BCE810 Open Closed 0.5" 0.6875" 0.625" 8800 N 12300 N 19500
BCE812 Open Closed 0.5" 0.6875" 0.75" 9900 N 14300 N 19500
BCE89-P Single seal Closed 0.5" 0.6875" 0.5625" 6900 N 9000 N 19500
BCE96 Open Closed 0.5625" 0.75" 0.375" 5200 N 6400 N 17600
BCE98 Open Closed 0.5625" 0.75" 0.5" 7700 N 10800 N 17600
BCE910 Open Closed 0.5625" 0.75" 0.625" 9400 N 14000 N 17600
BCE912 Open Closed 0.5625" 0.75" 0.75" 10700 N 16400 N 17600
BCE105 Open Closed 0.625" 0.8125" 0.3125" 4300 N 5200 N 16000
BCE107 Open Closed 0.625" 0.8125" 0.4375" 6600 N 9400 N 16000
BCE107-1/2 Open Closed 0.625" 0.8125" 0.4689" 7100 N 10300 N 16000
BCE108 Open Closed 0.625" 0.8125" 0.5" 8100 N 12000 N 16000
BCE1010 Open Closed 0.625" 0.8125" 0.625" 10400 N 16300 N 16000
BCE1012 Open Closed 0.625" 0.8125" 0.75" 12100 N 19700 N 16000
BCE118 Open Closed 0.6875" 0.875" 0.5" 8600 N 13200 N 14600
BCE1110 Open Closed 0.6875" 0.875" 0.625" 10900 N 18000 N 14600
BCE1112 Open Closed 0.6875" 0.875" 0.75" 13200 N 22900 N 14600
BCE126 Open Closed 0.75" 1" 0.375" 7100 N 8300 N 13100
BCE128 Open Closed 0.75" 1" 0.5" 9800 N 12500 N 14700
BCE1210 Open Closed 0.75" 1" 0.625" 12800 N 17500 N 13100
BCE1212 Open Closed 0.75" 1" 0.75" 15400 N 22100 N 13100
BCE129-P Single seal Closed 0.75" 1" 0.5625" 9800 N 12500 N 13100
BCE1211-P Single seal Closed 0.75" 1" 0.6874" 12800 N 17500 N 13100
BCE138 Open Closed 0.8125" 1.0625" 0.5" 10800 N 14300 N 12200
BCE1312 Open Closed 0.8125" 1.0625" 0.75" 15900 N 23700 N 13600
BCE146 Open Closed 0.875" 1.125" 0.375" 8200 N 10700 N 11400
BCE148 Open Closed 0.875" 1.125" 0.5" 11200 N 15800 N 11400
BCE1412 Open Closed 0.875" 1.125" 0.75" 16900 N 27000 N 11400
BCE1416 Open Closed 0.875" 1.125" 1" 22100 N 38000 N 11400
BCE1516 Open Closed 0.9375" 1.1875" 1" 24100 N 43000 N 11800
BCE166 Open Closed 1" 1.25" 0.375" 7800 N 10200 N 10100
BCE168 Open Closed 1" 1.25" 0.5" 12600 N 19100 N 10100
BCE1612 Open Closed 1" 1.25" 0.75" 18000 N 30000 N 10100
BCE1616 Open Closed 1" 1.25" 1" 24800 N 45500 N 10100
BCE186 Open Closed 1.125" 1.375" 0.375" 8300 N 11500 N 9800
BCE188 Open Closed 1.125" 1.375" 0.5" 12800 N 20200 N 9000
BCE1812 Open Closed 1.125" 1.375" 0.75" 18900 N 34000 N 9800
BCE1816 Open Closed 1.125" 1.375" 1" 25500 N 49500 N 9000
BCE208 Open Closed 1.25" 1.5" 0.5" 13500 N 22200 N 8200
BCE2010 Open Closed 1.25" 1.5" 0.625" 17500 N 31000 N 8200
BCE2012 Open Closed 1.25" 1.5" 0.75" 21100 N 39500 N 8200
BCE2016 Open Closed 1.25" 1.5" 1" 27000 N 55000 N 8200
BCE2020 Open Closed 1.25" 1.5" 1.25" 33500 N 71000 N 8200
BCE228 Open Closed 1.375" 1.625" 0.5" 13600 N 23700 N 8000
BCE2212 Open Closed 1.375" 1.625" 0.75" 21500 N 42500 N 7500
BCE2220 Open Closed 1.375" 1.625" 1.25" 34000 N 77000 N 8000
BCE248 Open Closed 1.5" 1.875" 0.5" 18600 N 26000 N 6700
BCE2410 Open Closed 1.5" 1.875" 0.625" 24400 N 36500 N 7400
BCE2412 Open Closed 1.5" 1.875" 0.75" 30500 N 48500 N 6700
BCE2414 Open Closed 1.5" 1.875" 0.875" 36000 N 60000 N 6700
BCE2416 Open Closed 1.5" 1.875" 1" 38500 N 66000 N 6700
BCE2420 Open Closed 1.5" 1.875" 1.25" 47500 N 86000 N 6700
BCE2610 Open Closed 1.625" 2" 0.625" 25500 N 40000 N 6200
BCE2620 Open Closed 1.625" 2" 1.25" 51000 N 97000 N 6200
BCE2812 Open Closed 1.75" 2.125" 0.75" 31500 N 55000 N 6300
BCE2816 Open Closed 1.75" 2.125" 1" 41000 N 76000 N 5800
BCE2824 Open Closed 1.75" 2.125" 1.5" 62000 N 130000 N 6300
BCE3216 Open Closed 2" 2.375" 1" 41500 N 80000 N 5100
BCE3410 Open Closed 2.125" 2.5" 0.625" 31000 N 57000 N 5200
BCE3612 Open Closed 2.25" 2.625" 0.75" 37000 N 72000 N 4600
BCE3616 Open Closed 2.25" 2.625" 1" 50000 N 107000 N 4600
BCE4412 Open Closed 2.75" 3.125" 0.75" 39000 N 81000 N 3800
