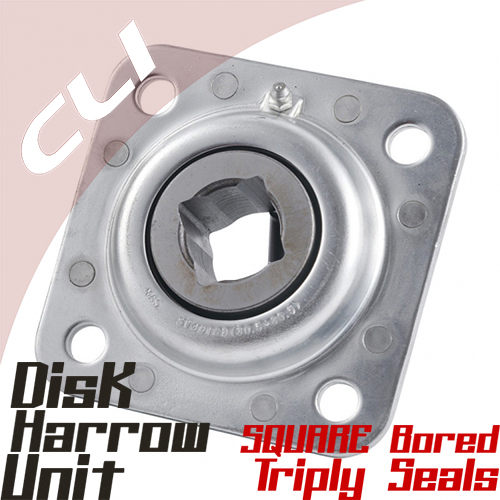

Original disk harrow units with square bored bearing web
Product Picture

209 Series / 211 Series
Disk Harrow Units with SQUARE Bored Bearing Insert,
Triply Seals, Re-greaseable & NON Re-greaseable,
Metric Sizes




CLI disc harrow unit is avaiable in two size groups. One incorporating a 209 and one a 211 bearing, both size groups offer these outstanding features:

· Dynamic aligmment capability ;
· Shroud effect from close clearance of stampigm to inner ring ;
· Available for elubrication ;
· One unit piece for easy handling and assembly ;
· Fitting flange mates with outer ring milled recess, preventing possibility of outer ring circumfernial movement.

 ► Application:

 1. Agriculture-combine harvesters, tillage equipment, hay balers, lawn mower regulators, cotton pickers, drills, planters / seeders, wheel bearings, disc bearings ...

 2. Lawn & Garden-Mower wheels and spindle.

 3. Conveyor, grain, aggregate.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

209 Series
Disk Harrow Units with SQUARE Bored Bearing Insert,
Triply Seals, Re-greaseable & NON Re-greaseable,

for shaft metric sizes from 12 mm to 90 mm



CLI
Bearing No.

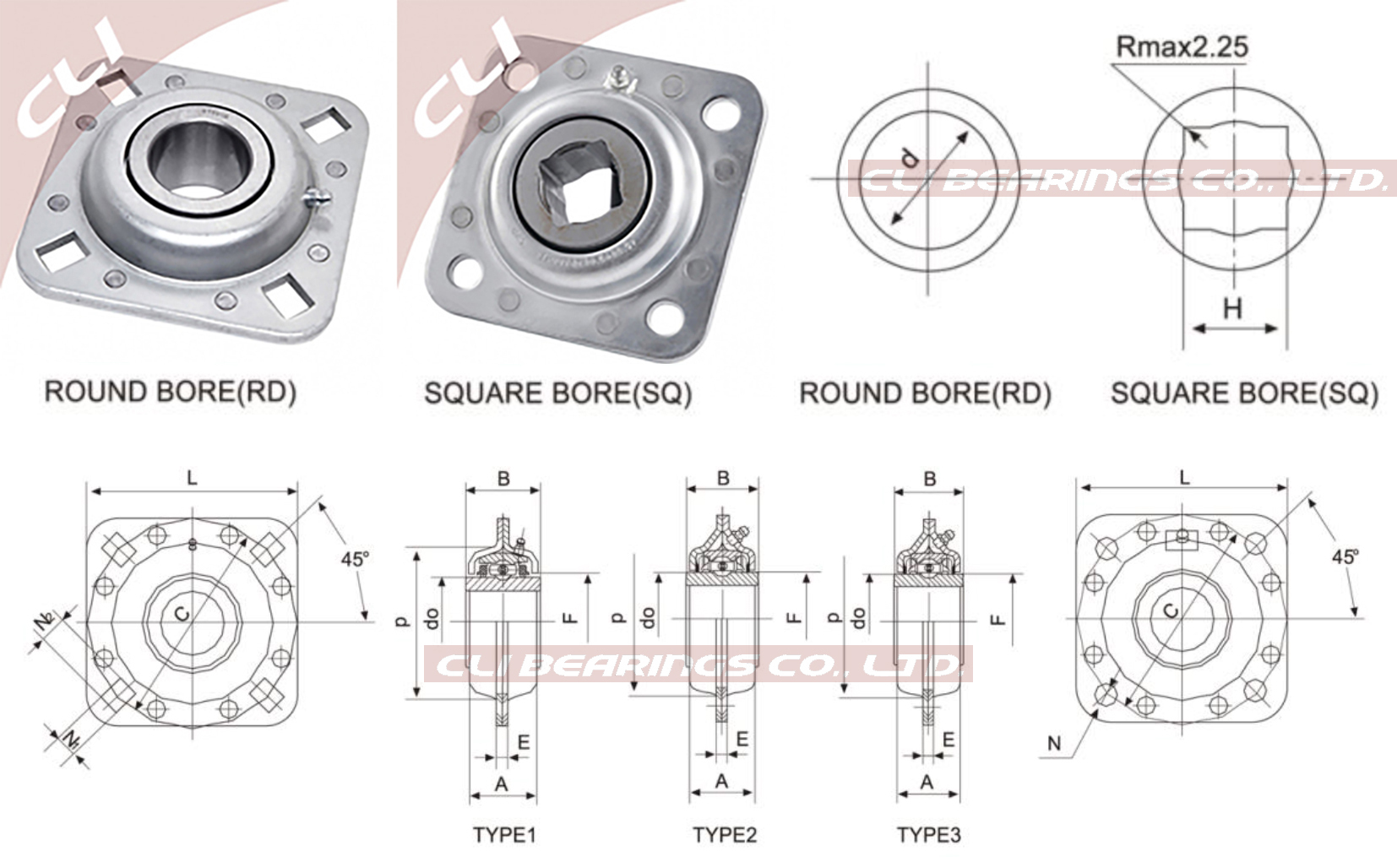

Type Bearing Bore Size (mm) Dimensions (mm) Basic load ratings (N)
H (SQ) d (RD) L P B A F do E c N(N1XN2) Dynarmic Cr Static Cor
ST491A 1 - 45 127 98 42.8 42 60 57.547 7 127 Ø13.5 31850 17500
ST491A-I 2 - 45 127 98 42.8 37 60 57.547 7 127 Ø13.5 31850 17500
ST491A-II 3 - 45 127 98 42.8 37 60 57.547 7 127 Ø13.5 31850 17500
DHU45R-209 1 - 45 127 98 42.8 42 60 57.547 7 127 13.5X16.7 31850 17500
ST491B 1 - 38.86 127 98 42.8 42 60 57.547 7 127 Ø13.5 31850 17500
ST491B-I 2 - 38.86 127 98 42.8 37 60 57.547 7 127 13.5X16.7 31850 17500
ST491B-II 3 - 38.86 127 98 42.8 37 60 57.547 7 127 13.5X16.7 31850 17500
ST209-1 1/8 1 29.927 -- 127 98 42.8 42 60 57.547 7 127 13.5X16.7 31850 17500
ST209-1 1/8-1 2 29.927 - 127 98 42.8 37 60 57.547 7 127 13.5X16.7 31850 17500
ST209-1 1/8-11 3 29.927 - 127 98 42.8 37 60 57.547 7 127 13.5X16.7 31850 17500


211 Series
Disk Harrow Units with SQUARE Bored Bearing Insert,
Triply Seals, Re-greaseable & NON Re-greaseable,

for shaft metric sizes from 12 mm to 90 mm


CLI
Bearing No.
Type Bearing Bore Size (mm) Dimensions (mm) Basic load ratings (N)
H (SQ) d (RD) L P B A F do E C N(N1XN2) Dynarmic Cr Static Cor
DHU55R-211 1 - 55 139.7 113.5 51 46.4 73 69 9 139.7 13.5X15.1 43550 25000
DHU55R-211-I 2 - 55 139.7 113.5 51 42 71 69 8 139.7 13.5X15.1 43550 25000
ST211-1 3/4 1 - 45.212 139.7 113.5 55.5 46.4 73 69 9 139.7 Ø13.5 43550 25000
ST211-2 3/16 1 - 45.212 139.7 113.5 55.5 46.4 73 69 9 139.7 Ø13.5 43550 25000
ST211-2 3/16-1 2 - 45.212 139.7 113.5 55.5 42 71 69 8 139.7 Ø13.5 43550 25000
ST211-1 3/4 1 - 55.575 139.7 113.5 55.5 46.4 73 69 9 139.7 Ø13.5 43550 25000
ST211-2 3/16 1 - 55.575 139.7 113.5 55.5 46.4 73 69 9 139.7 Ø13.5 43550 25000
ST211-2 3/16-1 2 - 55.575 139.7 113.5 55.5 42 71 69 8 139.7 Ø13.5 43550 25000
DHU40S-211 1 40.878 - 139.7 113.5 51 46.4 73 69 9 139.7 13.5X15.1 43550 25000
FD211-1 1/2 2 38.89 - 139.7 113.5 51 42 71 69 8 139.7 13.5X15.1 43550 25000
