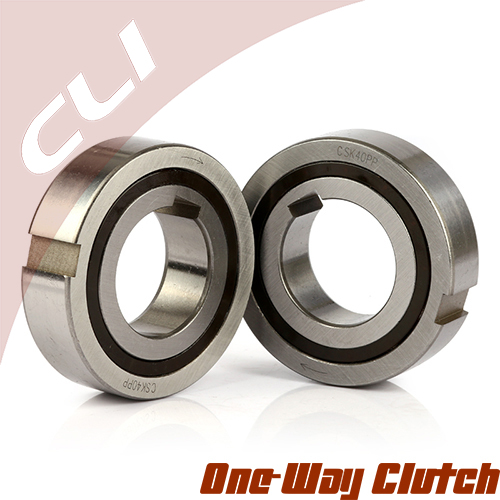

Original 13 picture csk pp csk pp 2rs 402
Product Picture

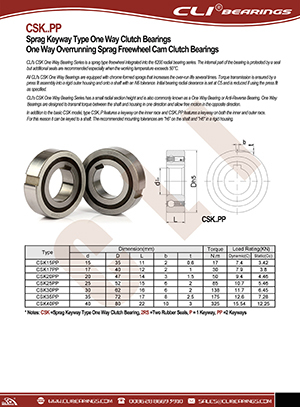

Original 9 one way clutch csk pp nw
Download PDF Catalogue


CSK..PP
Sprag Keyway Type One Way Clutch Bearings
One Way Overrunning Sprag Freewheel Cam Clutch Bearing

METRIC size




CLI's CSK One Way Bearing Series is a sprag type freewheel integrated into the 6200 radial bearing series. The internal part of the bearing is protected by a seal but additional seals are recommended especially when the working temperature exceeds 50°C.

All CLI's CSK One Way Bearings are equipped with chrome formed sprags that increases the over-run life several times. Torque transmission is ensured by a press fit assembly into a rigid outer housing and onto a shaft with an N6 tolerance. Initial bearing radial clearance is set at C5 and is reduced if using the press fit as specified.

CLI's CSK One Way Bearing Series has a small radial section height and is also commonly known as a One Way Bearing or Anti-Reverse Bearing. One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction.

In addition to the basic CSK model, type CSK..P features a keyway on the inner race and CSK..PP features a keyway on both the inner and outer race. For this reason it can be keyed to a shaft. The recommended mounting tolerances are "h6" on the shaft and "H6" in a rigid housing.


Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

CSK..PP
Sprag Keyway Type One Way Clutch Bearings
One Way Overrunning Sprag Freewheel Cam Clutch Bearing

Metric Size for shaft sizes from 15 mm to 40 mm



CLI Dimension(mm) Torque Limiting Speed(RPM) Load Rating Weight
Bearing No. d D L N.m Dynamic(C) Static(Co) (KN) Kg
CSK15PP 15 35 11 2 0.6 17 7.4 3.42
CSK17PP 17 40 12 2 1 30 7.9 3.8
CSK20PP 20 47 14 3 1.5 50 9.4 4.46
CSK25PP 25 52 15 6 2 85 10.7 5.46
CSK30PP 30 62 16 6 2 138 11.7 6.45
CSK35PP 35 72 17 8 2.5 175 12.6 7.28
CSK40PP 40 80 22 10 3 325 15.54 12.25


 *
Notes: CSK =Sprag Keyway Type One Way Clutch Bearing, PP =with a Keyway on inner ring and a Keyway on outer ring
