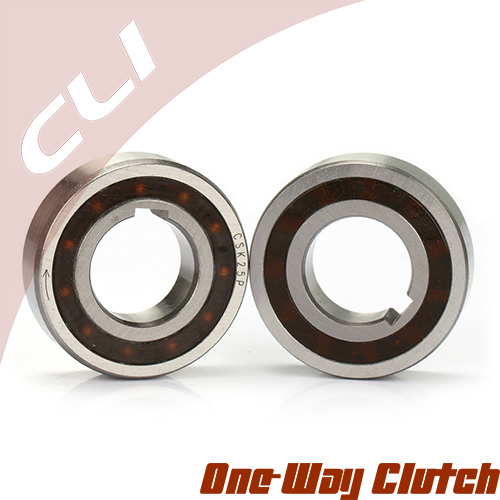

Original 12 picture csk p csk p 2rs 402
Product Picture

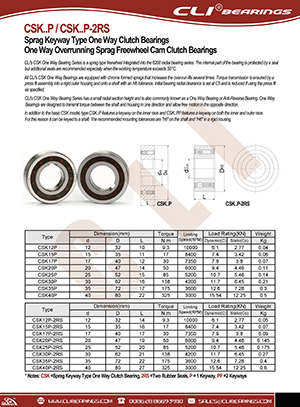

Original 8 one way clutch csk p csk p 2rs nw
Download PDF Catalogue


CSK..PCSK..P-2RS
Sprag Keyway Type One Way Clutch Bearings
One Way Overrunning Sprag Freewheel Cam Clutch Bearings

METRIC size




CLI's CSK One Way Bearing Series is a sprag type freewheel integrated into the 6200 radial bearing series. The internal part of the bearing is protected by a seal but additional seals are recommended especially when the working temperature exceeds 50°C.

All CLI's CSK One Way Bearings are equipped with chrome formed sprags that increases the over-run life several times. Torque transmission is ensured by a press fit assembly into a rigid outer housing and onto a shaft with an N6 tolerance. Initial bearing radial clearance is set at C5 and is reduced if using the press fit as specified.

CLI's CSK One Way Bearing Series has a small radial section height and is also commonly known as a One Way Bearing or Anti-Reverse Bearing. One Way Bearings are designed to transmit torque between the shaft and housing in one direction and allow free motion in the opposite direction.

In addition to the basic CSK model, type CSK..P features a keyway on the inner race and CSK..PP features a keyway on both the inner and outer race. For this reason it can be keyed to a shaft. The recommended mounting tolerances are "h6" on the shaft and "H6" in a rigid housing.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

CSK..PCSK..P-2RS
Sprag Keyway Type One Way Clutch Bearings
One Way Overrunning Sprag Freewheel Cam Clutch Bearings
for
shaft sizes from
12 mm to 40 mm





CLI Dimension(mm) Torque Limiting Speed(RPM) Load Rating Weight
Bearing No. d D L N.m Dynamic(C) Static(Co) (KN) Kg
CSK12P 12 32 10 9.3 10000 6.1 2.77 0.04
CSK15P 15 35 11 17 8400 7.4 3.42 0.06
CSK17P 17 40 12 30 7350 7.9 3.8 0.07
CSK20P 20 47 14 50 6000 9.4 4.46 0.11
CSK25P 25 52 15 85 5200 10.7 5.46 0.14
CSK30P 30 62 16 138 4200 11.7 6.45 0.21
CSK35P 35 72 17 175 3600 12.6 7.28 0.3
CSK40P 40 80 22 325 3000 15.54 12.25 0.5

CLI Dimension(mm) Torque Limiting Speed(RPM) Load Rating Weight
Bearing No. d D L N.m Dynamic(C) Static(Co) (KN) Kg
CSK12P-2RS 12 32 14 9.3 10000 6.1 2.77 0.05
CSK15P-2RS 15 35 16 17 8400 7.4 3.42 0.07
CSK17P-2RS 17 40 17 30 7350 7.9 3.8 0.09
CSK20P-2RS 20 47 19 50 6000 9.4 4.46 0.145
CSK25P-2RS 25 52 20 85 5200 10.7 5.46 0.175
CSK30P-2RS 30 62 21 138 4200 11.7 6.45 0.27
CSK35P-2RS 35 72 22 175 3600 12.6 7.28 0.4
CSK40P-2RS 40 80 27 325 3000 15.54 12.25 0.6


 * Notes: CSK =Sprag Keyway Type One Way Clutch Bearing, 2RS =Two Rubber Seals, P =with a Keyway
