Roller Bearings / Needle Roller Bearings-CP Series Thin Thrust Washers, Metric Size

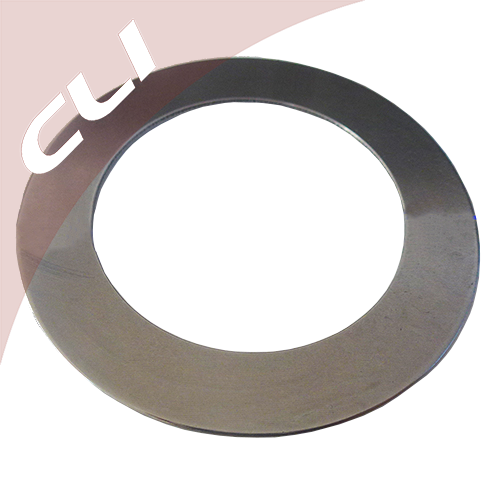

Original 1 picture cp series thin thrust washers metric size

Product Picture

CP Series
Thin Thrust Washers
Metric Size

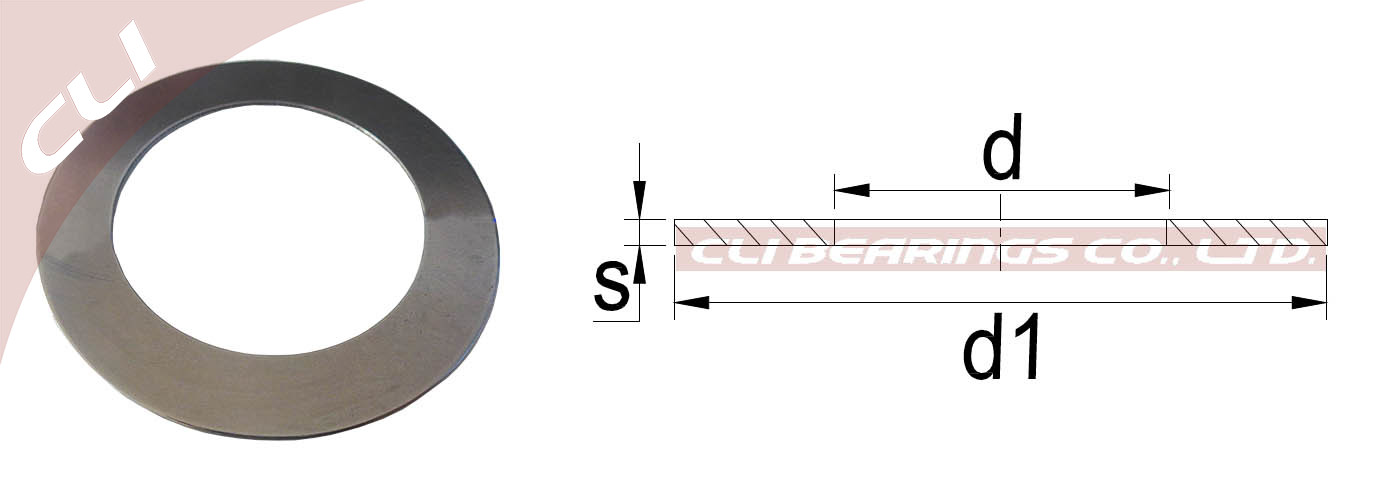

CLI Part Number	Dimension (mm)
CLI Part Number	d	d1	s
CP513	5	12.4	0.8
CP2 513	5	12.4	2
CP614	6	13.4	0.8
CP2 614	6	13.4	2
CP715	7	14.4	0.8
CP2 715	7	14.4	2
CP816	8	15.4	0.8
CP2 816	8	15.4	2
CP917	9	16.4	0.8
CP2 917	9	16.4	2
CP2 1022	10	21.2	2
CP1226	12	25.5	0.8
CP2 1226	12	25.5	2
CP1326	13	25.5	0.8
CP2 1326	13	25.5	2
CP1528	15	27.5	0.8
CP2 1528	15	27.5	2
CP1730	17	29.5	0.8
CP2 1730	17	29.5	2
CP1932	19	31.5	0.8
CP2 1932	19	31.5	2
CP3 2035	20	34.5	3
CP2542	25	41.5	0.8
CP3 2542	25	41.5	3
CP2744	27	43.7	0.8
CP3047	30	46.5	0.8
CP3 3047	30	46.5	3
CP3552	35	51.5	0.8
CP3 3552	35	51.5	3
CP3553	35	52.5	0.8
CP3 3553	35	52.5	3
CP4060	40	59.5	0.8
CP3 4060	40	59.5	3

CLI Part Number	Dimension (mm)
CLI Part Number	d	d1	s
CP4565	45	64.3	0.8
CP3 4565	45	64.3	3
CP5070	50	69.4	0.8
CP3 5070	50	69.4	3
CP5578	55	77.4	0.8
CP4 5578	55	77.4	4
CP4 6085	60	84.3	4
CP1.5 6590	65	89.3	1.5
CP4 6590	65	89.3	4
CP1.5 7095	70	94.3	1.5
CP4 7095	70	94.3	4
CP1.5 75100	75	99	1.5
CP4 75100	75	99	4
CP1.5 80105	80	104	1.5
CP4 80105	80	104	4
CP1.5 85110	85	109	1.5
CP4 85110	85	109	4
CP1.5 90120	90	119	1.5
CP5 90120	90	119	5
CP6 100135	100	133.8	6
CP1.5 110145	110	143.8	1.5
CP6 110145	110	143.8	6
CP1.5 120155	120	153.8	1.5
CP6 120155	120	153.8	6
CP7 130170	130	168.7	7
CP7 140180	140	178.7	7
CP7 150190	150	188.7	7
CP7 160200	160	198.7	7
CP7 170215	170	213.5	7
CP7 180225	180	223.5	7
CP8 190240	190	238.3	8
CP8 200250	200	248.3	8
CP8 220270	220	268.3	8
CP9 240300	240	298.5	9
