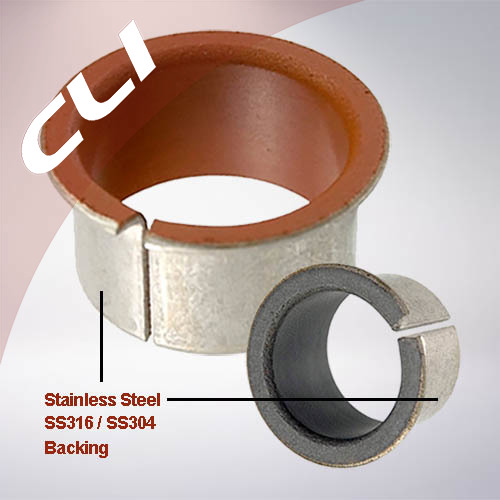

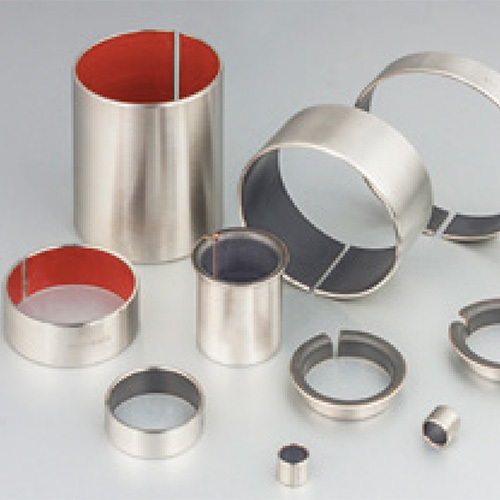

CLI-1S / CLI-1DS series
DU-S flanged bushing & DP4-S flanged bushing,
PTFE-coated with STAINLESS STEEL backing, Self Lubricated,
Metric Size & Inch Size, ROHS compliant
|
|
• CLI-1S is based on stainless steel backing AISI304, AISI316 or AISI316L with sintered porous bronze layer mixed with PTFE and fibers;
• It is characterized by acid-resistant, alkaline-resistant, and ocean water resistant ... etc ;
• CLI-1S parts are widely used as fluid valve of measuring acid and alkalizing flow in chemical industry, and corrosion resistant sliding position in marine industry ;
• CLI-1S parts are also known as SF-1S .
TECHNICAL DATA

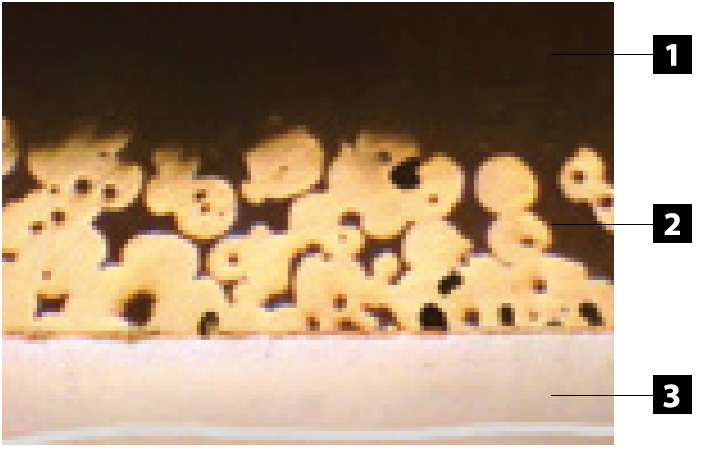

| • Metallographic Micrographs |
|
|
• Technical Data |
Layer 1: PTFE mixed with Polymer Fibers, thickness 0.01 to 0.03 mm
Layer 2: Sintered bronze powder, thickness 0.20 to 0.35 mm
Layer 3: Stainless steel backing (AISI304 / AISI316 / AISI316L), thickness 0.70 to 2.30 mm
♦ The actual thickness of metallographic structure as the negotiation |
|
|
| Item |
Standards |
Unit |
| Maximum Operating Temperature Tmax |
280 |
°C |
| Minimum Operating Temperature Tmin |
-200 |
°C |
| Maximum Static Load Psta,max |
250 |
N/mm2 |
| Maximum Dynamic Load Pdyn,max |
140 |
N/mm2 |
| Maximum Sliding Speed V-dry |
2.5 |
m/s |
| Maximum PV Factor-dry, continuous operation |
1.8 |
N/mm2 * m/s |
| Maximum PV Factor-dry, intermittent operation |
3.5 |
N/mm2 * m/s |
| Coefficient of friction f-dry |
0.02-0.25 |
| Coefficient of friction f-oil lubricated |
0.02-0.12 |
| Usage Range |
| dry |
very good |
| oil lubricated |
good |
| grease lubricated |
fair |
| water lubricated |
fair |
| process fluid lubricated |
fair |
|
|
APPLICATIONS
1. PTFE with oil fibres can protect the shaft in operation ;
2. Low friction coefficient, good anti-wear ;
3. High loading capacity, working well in motions of rotation, rock or advance and return movements ;
4. Excellent anti-corrosion ;
5. Green features, used in food machines, pharmaceuticals industry ... etc ;
6. Mainly used in the condion of strong acid and alkali, soch as chemical industry, pumps, valves ... etc .
|
|
|
 |
STANDARD TYPES AVAILABLE
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|

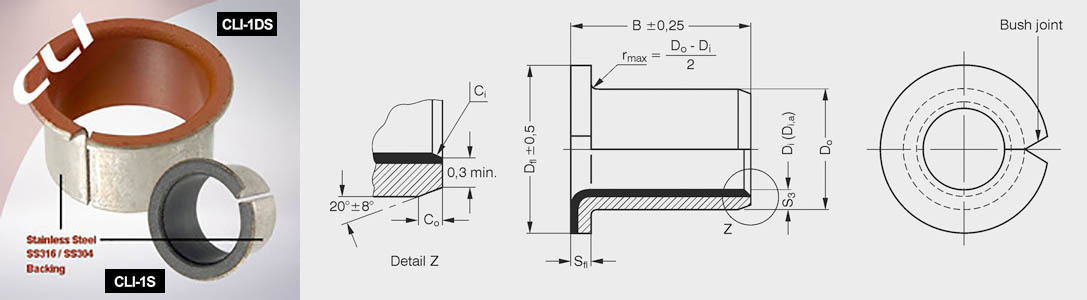

| BEARING LIST & BEARING DETAILS |
CLI-1S / CLI-1DS series
DU-S flanged bushing & DP4-S flanged bushing,
PTFE-coated with STAINLESS STEEL backing, Self Lubricated,
Metric Size
|
 |
| |
|
CLI Part No.
(Black Slide Layer)
|
CLI Part No.
(Red Slide Layer)
|
Di
(mm)
|
Do
(mm)
|
Sfl
(mm)
|
Dfl
(mm)
|
B
(mm)
|
Housing
|
Shaft
|
Di,a max
H7 (mm)
|
Di,a min
H7 (mm)
|
Clearance max.
(mm)
|
Clearance min.
(mm)
|
|
F0304CLI-1
|
F0304CLI-1DS
|
3
|
4.5
|
0.75
|
7
|
4
|
H6
|
h6
|
3.048
|
3
|
0.054
|
0
|
|
F0404CLI-1
|
F0404CLI-1DS
|
4
|
5.5
|
0.75
|
9
|
4
|
H6
|
h6
|
4.048
|
4
|
0.056
|
0
|
|
F0505CLI-1
|
F0505CLI-1DS
|
5
|
7
|
0.925
|
10
|
5
|
H7
|
f7
|
5.055
|
4.99
|
0.077
|
0
|
|
F0604CLI-1
|
F0604CLI-1DS
|
6
|
8
|
0.925
|
12
|
4
|
H7
|
f7
|
6.055
|
5.99
|
0.077
|
0
|
|
F0608CLI-1
|
F0608CLI-1DS
|
6
|
8
|
0.925
|
12
|
8
|
H7
|
f7
|
6.055
|
5.99
|
0.077
|
0
|
|
F0806CLI-1
|
F0806CLI-1DS
|
8
|
10
|
0.925
|
15
|
5.5
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
F0808CLI-1
|
F0808CLI-1DS
|
8
|
10
|
0.925
|
15
|
7.5
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
F0810CLI-1
|
F0810CLI-1DS
|
8
|
10
|
0.925
|
15
|
9.5
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
F1007CLI-1
|
F1007CLI-1DS
|
10
|
12
|
0.925
|
18
|
7
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
F1009CLI-1
|
F1009CLI-1DS
|
10
|
12
|
0.925
|
18
|
9
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
F1012CLI-1
|
F1012CLI-1DS
|
10
|
12
|
0.925
|
18
|
12
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
F1017CLI-1
|
F1017CLI-1DS
|
10
|
12
|
0.925
|
18
|
17
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
F1207CLI-1
|
F1207CLI-1DS
|
12
|
14
|
0.925
|
20
|
7
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
F1209CLI-1
|
F1209CLI-1DS
|
12
|
14
|
0.925
|
20
|
9
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
F1212CLI-1
|
F1212CLI-1DS
|
12
|
14
|
0.925
|
20
|
12
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
F1217CLI-1
|
F1217CLI-1DS
|
12
|
14
|
0.925
|
20
|
17
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
F1412CLI-1
|
F1412CLI-1DS
|
14
|
16
|
0.925
|
22
|
12
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
F1417CLI-1
|
F1417CLI-1DS
|
14
|
16
|
0.925
|
22
|
17
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
F1509CLI-1
|
F1509CLI-1DS
|
15
|
17
|
0.925
|
23
|
9
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
F1512CLI-1
|
F1512CLI-1DS
|
15
|
17
|
0.925
|
23
|
12
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
F1517CLI-1
|
F1517CLI-1DS
|
15
|
17
|
0.925
|
23
|
17
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
F1612CLI-1
|
F1612CLI-1DS
|
16
|
18
|
0.925
|
24
|
12
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
F1617CLI-1
|
F1617CLI-1DS
|
16
|
18
|
0.925
|
24
|
17
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
F1812CLI-1
|
F1812CLI-1DS
|
18
|
20
|
0.925
|
26
|
12
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
F1817CLI-1
|
F1817CLI-1DS
|
18
|
20
|
0.925
|
26
|
17
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
F1822CLI-1
|
F1822CLI-1DS
|
18
|
20
|
0.925
|
26
|
22
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
F2012CLI-1
|
F2012CLI-1DS
|
20
|
23
|
1.45
|
30
|
11.5
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
F2017CLI-1
|
F2017CLI-1DS
|
20
|
23
|
1.45
|
30
|
16.5
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
F2022CLI-1
|
F2022CLI-1DS
|
20
|
23
|
1.45
|
30
|
21.5
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
F2512CLI-1
|
F2512CLI-1DS
|
25
|
28
|
1.45
|
35
|
11.5
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
F2517CLI-1
|
F2517CLI-1DS
|
25
|
28
|
1.45
|
35
|
16.5
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
F2522CLI-1
|
F2522CLI-1DS
|
25
|
28
|
1.45
|
35
|
21.5
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
F3016CLI-1
|
F3016CLI-1DS
|
30
|
34
|
1.95
|
42
|
16
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
F3026CLI-1
|
F3026CLI-1DS
|
30
|
34
|
1.95
|
42
|
26
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
F3516CLI-1
|
F3516CLI-1DS
|
35
|
39
|
1.95
|
47
|
16
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
F3526CLI-1
|
F3526CLI-1DS
|
35
|
39
|
1.95
|
47
|
26
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
F4016CLI-1
|
F4016CLI-1DS
|
40
|
44
|
1.95
|
53
|
16
|
H7
|
f7
|
40.085
|
39.99
|
0.135
|
0.015
|
|
F4026CLI-1
|
F4026CLI-1DS
|
40
|
44
|
1.95
|
53
|
26
|
H7
|
f7
|
40.085
|
39.99
|
0.135
|
0.015
|
|
F4516CLI-1
|
F4516CLI-1DS
|
45
|
50
|
2.45
|
58
|
16
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
F4526CLI-1
|
F4526CLI-1DS
|
45
|
50
|
2.45
|
58
|
26
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
| |
| BEARING LIST & BEARING DETAILS |
CLI-1S / CLI-1DS series
DU-S flanged bushing & DP4-S flanged bushing,
PTFE-coated with STAINLESS STEEL backing, Self Lubricated,
Inch Size
|
|
| |
|
CLI Part No.
(Black Slide Layer)
|
CLI Part No.
(Red Slide Layer)
|
Di
[inch]
|
Do
[inch]
|
Sfl
(inch)
|
Sfl max.
(inch)
|
Sfl min.
(inch)
|
Dfl
(inch)
|
Dfl max.
(inch)
|
Dfl min.
(inch)
|
B
(inch)
|
DJ max.
(inch)
|
DJ min.
(inch)
|
DH max.
(inch)
|
DH min.
(inch)
|
Di,a max
(inch)
|
Di,a min
(inch)
|
|
06.FCLI-1.04
|
06.FCLI-1DS.04
|
3/8
|
15/32
|
0.043
|
0.047
|
0.039
|
0.6875
|
0.7075
|
0.6675
|
0.245
|
0.375
|
0.374
|
0.4691
|
0.4684
|
0.3779
|
0.3752
|
|
06.FCLI-1.06
|
06.FCLI-1DS.06
|
3/8
|
15/32
|
0.043
|
0.047
|
0.039
|
0.6875
|
0.7075
|
0.6675
|
0.37
|
0.375
|
0.374
|
0.4691
|
0.4684
|
0.3779
|
0.3752
|
|
06.FCLI-1.08
|
06.FCLI-1DS.08
|
3/8
|
15/32
|
0.043
|
0.047
|
0.039
|
0.6875
|
0.7075
|
0.6675
|
0.495
|
0.375
|
0.374
|
0.4691
|
0.4684
|
0.3779
|
0.3752
|
|
06.FCLI-1.12
|
06.FCLI-1DS.12
|
3/8
|
15/32
|
0.043
|
0.047
|
0.039
|
0.6875
|
0.7075
|
0.6675
|
0.745
|
0.375
|
0.374
|
0.4691
|
0.4684
|
0.3779
|
0.3752
|
|
08.FCLI-1.04
|
08.FCLI-1DS.04
|
1/2
|
19/32
|
0.043
|
0.047
|
0.039
|
0.8125
|
0.8325
|
0.7925
|
0.245
|
0.5
|
0.499
|
0.4691
|
0.5934
|
0.5029
|
0.5002
|
|
08.FCLI-1.06
|
08.FCLI-1DS.06
|
1/2
|
19/32
|
0.043
|
0.047
|
0.039
|
0.8125
|
0.8325
|
0.7925
|
0.37
|
0.5
|
0.499
|
0.4691
|
0.5934
|
0.5029
|
0.5002
|
|
08.FCLI-1.08
|
08.FCLI-1DS.08
|
1/2
|
19/32
|
0.043
|
0.047
|
0.039
|
0.8125
|
0.8325
|
0.7925
|
0.495
|
0.5
|
0.499
|
0.4691
|
0.5934
|
0.5029
|
0.5002
|
|
08.FCLI-1.12
|
08.FCLI-1DS.12
|
1/2
|
19/32
|
0.043
|
0.047
|
0.039
|
0.8125
|
0.8325
|
0.7925
|
0.745
|
0.5
|
0.499
|
0.4691
|
0.5934
|
0.5029
|
0.5002
|
|
10.FCLI-1.06
|
10.FCLI-1DS.06
|
5/8
|
23/32
|
0.043
|
0.047
|
0.039
|
0.93725
|
0.9575
|
0.917
|
0.37
|
0.625
|
0.624
|
0.7192
|
0.7184
|
0.628
|
0.6252
|
|
10.FCLI-1.08
|
10.FCLI-1DS.08
|
5/8
|
23/32
|
0.043
|
0.047
|
0.039
|
0.93725
|
0.9575
|
0.917
|
0.495
|
0.625
|
0.624
|
0.7192
|
0.7184
|
0.628
|
0.6252
|
|
10.FCLI-1.10
|
10.FCLI-1DS.10
|
5/8
|
23/32
|
0.043
|
0.047
|
0.039
|
0.93725
|
0.9575
|
0.917
|
0.62
|
0.625
|
0.624
|
0.7192
|
0.7184
|
0.628
|
0.6252
|
|
10.FCLI-1.12
|
10.FCLI-1DS.12
|
5/8
|
23/32
|
0.043
|
0.047
|
0.039
|
0.93725
|
0.9575
|
0.917
|
0.745
|
0.625
|
0.624
|
0.7192
|
0.7184
|
0.628
|
0.6252
|
|
12.FCLI-1.06
|
12.FCLI-1DS.06
|
3/4
|
7/8
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.37
|
0.75
|
0.7488
|
0.8755
|
0.8747
|
0.7534
|
0.7502
|
|
12.FCLI-1.08
|
12.FCLI-1DS.08
|
3/4
|
7/8
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.495
|
0.75
|
0.7488
|
0.8755
|
0.8747
|
0.7534
|
0.7502
|
|
12.FCLI-1.12
|
12.FCLI-1DS.12
|
3/4
|
7/8
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.745
|
0.75
|
0.7488
|
0.8755
|
0.8747
|
0.7534
|
0.7502
|
|
12.FCLI-1.16
|
12.FCLI-1DS.16
|
3/4
|
7/8
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.995
|
0.75
|
0.7488
|
0.8755
|
0.8747
|
0.7534
|
0.7502
|
|
14.FCLI-1.08
|
14.FCLI-1DS.08
|
7/8
|
1
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.495
|
0.875
|
0.8738
|
1.0005
|
0.9997
|
0.8784
|
0.8752
|
|
14.FCLI-1.12
|
14.FCLI-1DS.12
|
7/8
|
1
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.745
|
0.875
|
0.8738
|
1.0005
|
0.9997
|
0.8784
|
0.8752
|
|
14.FCLI-1.16
|
14.FCLI-1DS.16
|
7/8
|
1
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.995
|
0.875
|
0.8738
|
1.0005
|
0.9997
|
0.8784
|
0.8752
|
|
14.FCLI-1.20
|
14.FCLI-1DS.20
|
7/8
|
1
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
1.245
|
0.875
|
0.8738
|
1.0005
|
0.9997
|
0.8784
|
0.8752
|
|
16.FCLI-1.08
|
16.FCLI-1DS.08
|
1
|
1 1/8
|
0.059
|
0.063
|
0.055
|
1.375
|
1.395
|
1.355
|
0.495
|
1.0005
|
0.9988
|
1.1255
|
1.1247
|
1.0034
|
1.0002
|
|
16.FCLI-1.12
|
16.FCLI-1DS.12
|
1
|
1 1/8
|
0.059
|
0.063
|
0.055
|
1.375
|
1.395
|
1.355
|
0.745
|
1.0005
|
0.9988
|
1.1255
|
1.1247
|
1.0034
|
1.0002
|
|
16.FCLI-1.16
|
16.FCLI-1DS.16
|
1
|
1 1/8
|
0.059
|
0.063
|
0.055
|
1.375
|
1.395
|
1.355
|
0.995
|
1.0005
|
0.9988
|
1.1255
|
1.1247
|
1.0034
|
1.0002
|
|
16.FCLI-1.20
|
16.FCLI-1DS.20
|
1
|
1 1/8
|
0.059
|
0.063
|
0.055
|
1.375
|
1.395
|
1.355
|
1.245
|
1.0005
|
0.9988
|
1.1255
|
1.1247
|
1.0034
|
1.0002
|
|
20.FCLI-1.16
|
20.FCLI-1DS.16
|
1 1/4
|
1 13/32
|
0.074
|
0.078
|
0.07
|
1.75
|
1.78
|
1.72
|
0.995
|
1.25
|
1.2484
|
1.4068
|
1.4058
|
1.254
|
1.2502
|
|
20.FCLI-1.20
|
20.FCLI-1DS.20
|
1 1/4
|
1 13/32
|
0.074
|
0.078
|
0.07
|
1.75
|
1.78
|
1.72
|
1.245
|
1.25
|
1.2484
|
1.4068
|
1.4058
|
1.254
|
1.2502
|
|
20.FCLI-1.24
|
20.FCLI-1DS.24
|
1 1/4
|
1 13/32
|
0.074
|
0.078
|
0.07
|
1.75
|
1.78
|
1.72
|
1.495
|
1.25
|
1.2484
|
1.4068
|
1.4058
|
1.254
|
1.2502
|
|
24.FCLI-1.16
|
24.FCLI-1DS.16
|
1 1/2
|
1 21/32
|
0.074
|
0.078
|
0.07
|
2
|
2.03
|
1.97
|
0.995
|
1.5
|
1.4984
|
1.6568
|
1.6558
|
1.504
|
1.5002
|
|
24.FCLI-1.24
|
24.FCLI-1DS.24
|
1 1/2
|
1 21/32
|
0.074
|
0.078
|
0.07
|
2
|
2.03
|
1.97
|
1.495
|
1.5
|
1.4984
|
1.6568
|
1.6558
|
1.504
|
1.5002
|
|
24.FCLI-1.32
|
24.FCLI-1DS.32
|
1 1/2
|
1 21/32
|
0.074
|
0.078
|
0.07
|
2
|
2.03
|
1.97
|
1.995
|
1.5
|
1.4984
|
1.6568
|
1.6558
|
1.504
|
1.5002
|
|
28.FCLI-1.16
|
28.FCLI-1DS.16
|
1 3/4
|
1 15/16
|
0.09
|
0.094
|
0.086
|
2.375
|
2.405
|
2.345
|
0.995
|
1.75
|
1.7484
|
1.9381
|
1.9371
|
1.7548
|
1.7502
|
|
28.FCLI-1.24
|
28.FCLI-1DS.24
|
1 3/4
|
1 15/16
|
0.09
|
0.094
|
0.086
|
2.375
|
2.405
|
2.345
|
1.495
|
1.75
|
1.7484
|
1.9381
|
1.9371
|
1.7548
|
1.7502
|
|
28.FCLI-1.32
|
28.FCLI-1DS.32
|
1 3/4
|
1 15/16
|
0.09
|
0.094
|
0.086
|
2.375
|
2.405
|
2.345
|
1.995
|
1.75
|
1.7484
|
1.9381
|
1.9371
|
1.7548
|
1.7502
|
|
| |
| |
