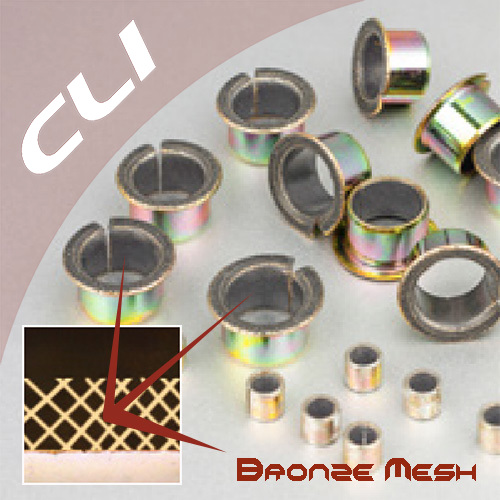

Original cli 1m bronze mesh bearings

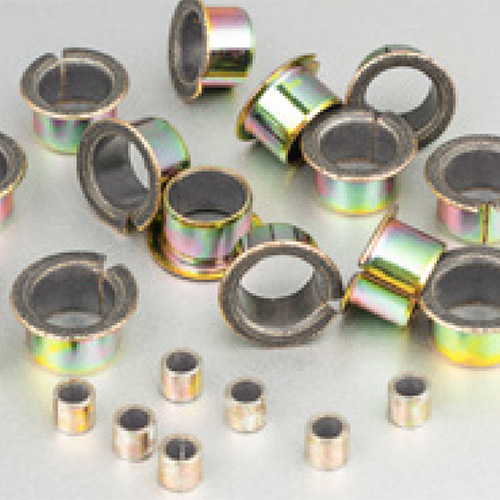

Product Picture

CLI-1M series
Sintered BRONZE MESH Dry Bush & Dry Bearing,
sintered
Fibre & PTFE on BRONZE MESH bushing with STEEL backing,
Self Lubricated, Metric Size & Inch Size, ROHS compliant



• CLI-1M parts are with low carbon steel as the backing, sintered bronze mesh, mixed with PTFE and fibers;
• CLI-1M parts are with more firm and stable lubrication layer, accordingly with higher loading capacity and working lives.
• CLI-1M parts are suitable for application in door door hinges, GYM arms, robot arms ... etc.

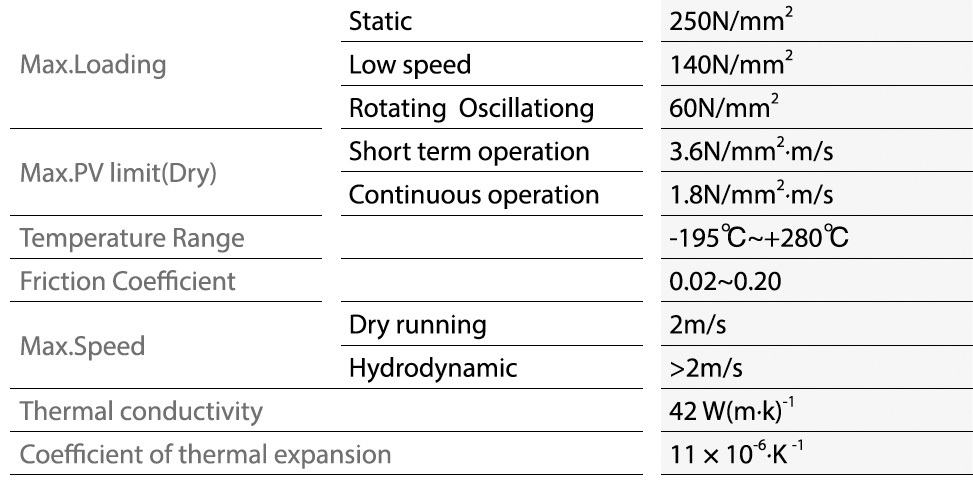

TECHNICAL DATA

• Metallographic Micrographs   • Technical Data

Layer 1:  PTFE with special fibers, thickness 0.01 to 0.03 mm
Layer 2:  Sintered bronze MESH, thickness 0.20 to 0.35 mm
Layer 3:  Low carbon steel backing, thickness  0.70 to 2.30 mm
Layer 4:  Copper / Tin / Zinc coating, thickness 0.008 mm
♦ The actual thickness of metallographic structure as the negotiation


APPLICATIONS

1. PTFE and oil fiber created the lubricated film and it will be transfered to the mating shaft to improve running properties, also protect the surfaces of mating shaft ;
2. Low friction, wear resistant and anti-impact ;
3. Firm and stable structure, with high loading capacity and more wear resistant ;

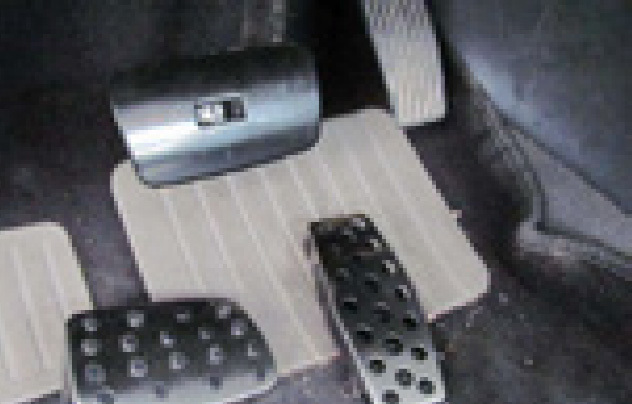

4. Used for pedal rod, Gearshift rod, clutch brake lever, control rod, door hinge and other parts ... etc .




STANDARD TYPES AVAILABLE





* Most of the CLI-1M parts are produced on customized requests by worldwide customers.
CLI would like to manufacture those parts according to customers' drawing, samples, and special requirements.
Please contact us by email or direct call-in.
We will do our best to support and give our best solutions accordingly.
