Sliding Bearings | Self Lubricated Dry Bearings-PTFE-coated Dry Bearings, Washers & Plates-CLI-1D series DP4 washer & DP4 thrust washer, Fibre & PTFE-coated with STEEL backing, Self Lubricated, Metric Size & Inch Size, ROHS compliant

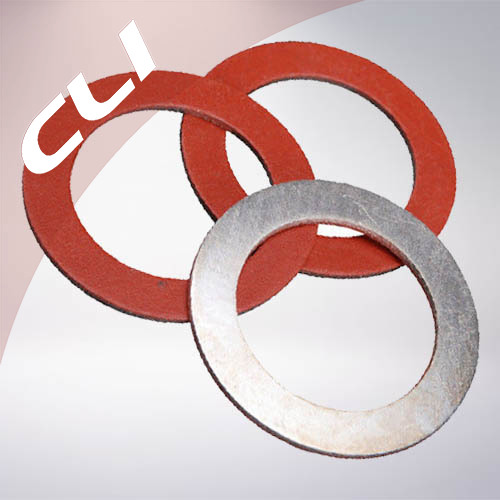

Original dp4 thrust washer
Product Picture

CLI-1D series
DP4 bearings & DP4 bushings,

PTFE mixed Polymer Fibers coated Dry Bush with
STEEL backing, Self Lubricated,
Metric Size & Inch Size, ROHS compliant



• CLI-1D is developed for high  duty, oil lubricated, hydraulic applicaations;
• CLI-1D is with excellent wear resistance and low static and dynamic frication coefficient, special stuitable for frequently reciprocating motion;
• CLI-1D is with or without the strong stocks from side directions;
• CLI-1D parts also know as SF-1D or similar to DP4 .


TECHNICAL DATA

• Metallographic Micrographs     • Technical Data



Layer 1:  PTFE mixed with Polymer Fibers, thickness 0.01 to 0.03 mm
Layer 2:  Sintered bronze powder, thickness 0.20 to 0.35 mm
Layer 3:  Low carbon steel backing, thickness  0.70 to 2.30 mm
Layer 4:  Copper or Tin coating, thickness 0.008 mm

♦ The actual thickness of metallographic structure as the negotiation

 Items  Value  Unit
 Maximum Operating Temperature Tmax  280  °C
 Minimum Operating Temperature Tmin  -200  °C
 Maximum Static Load Psta,max  250  N/mm2
 Maximum Dynamic Load Pdyn,max  140  N/mm2
 Maximum Sliding Speed V-dry  2.5  m/s
 Maximum Sliding Speed V-oil lubricated  5  m/s
 Maximum PV Factor-dry  1  N/mm2 * m/s
 Maximum PV Factor-oil lubricated  10  N/mm2 * m/s
 Coefficient of friction f-dry  0.04-0.25
 Coefficient of friction f-oil lubricated  0.02-0.08
 Usage  dry  good
 oil lubricated  very good
 grease lubricated  good
 water lubricated  fair
 process fluid lubricated  good

APPLICATIONS

1. PTFE and Polymer Fibers created the lubricated film and it is transfered to teh mating shaft to improve running properties, also protect the mating surface of shaft;
2. Perfect wear resistant, lower friction, suitable for the working conditions of with or without lubricating oil, and keep the lubricating oil clear after long period of working;
3. Particularly suitable for bushes in reciprocating motions, also for other motions;
4. Used in automotive suspension structs, shock absorbers, hydraulic, cylinders, gear pumps, motors, axial and radial pistion pumps & motors.


STANDARD TYPES AVAILABLE



Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

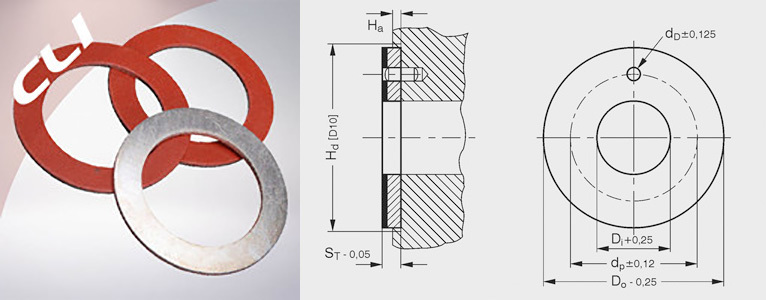

BEARING LIST & BEARING DETAILS

CLI-1D series
DP4 bearings & DP4 bushings,

PTFE mixed Polymer Fibers coated Dry Bush with
STEEL backing, Self Lubricated,
Metric Size



CLI
Part No.

Di
(mm)

Do
(mm)

ST
(mm)

dD
(mm)

dP
(mm)

Ha max.
(mm)

Ha min.
(mm)

WC08CLI-1D

10

20

1.5

0

0

1.2

0.95

WC10CLI-1D

12

24

1.5

1.75

18

1.2

0.95

WC12CLI-1D

14

26

1.5

2.25

20

1.2

0.95

WC14CLI-1D

16

30

1.5

2.25

22

1.2

0.95

WC16CLI-1D

18

32

1.5

2.25

25

1.2

0.95

WC18CLI-1D

20

36

1.5

3.25

28

1.2

0.95

WC20CLI-1D

22

38

1.5

3.25

30

1.2

0.95

WC22CLI-1D

24

42

1.5

3.25

33

1.2

0.95

WC24CLI-1D

26

44

1.5

3.25

35

1.2

0.95

WC25CLI-1D

28

48

1.5

4.25

38

1.2

0.95

WC30CLI-1D

32

54

1.5

4.25

43

1.2

0.95

WC35CLI-1D

38

62

1.5

4.25

50

1.2

0.95

WC40CLI-1D

42

66

1.5

4.25

54

1.2

0.95

WC45CLI-1D

48

74

2

4.25

61

1.7

1.45

WC50CLI-1D

52

78

2

4.25

65

1.7

1.45

WC60CLI-1D

62

90

2

4.25

76

1.7

1.45


BEARING LIST & BEARING DETAILS

CLI-1D series
DP4 bearings & DP4 bushings,

PTFE mixed Polymer Fibers coated Dry Bush with
STEEL backing, Self Lubricated,
Inch Size



CLI
Part No.

Di
(inch)

Do
(inch)

ST
(inch)

ST
(inch)

dP
(inch)

Ha max.
(inch)

Ha min.
(inch)

CLI-1D.06

0.5

0.875

0.0605

0.072

0.687

0.05

0.04

CLI-1D.07

0.562

1

0.0605

0.072

0.781

0.05

0.04

CLI-1D.08

0.625

1.125

0.0605

0.104

0.875

0.05

0.04

CLI-1D.09

0.687

1.187

0.0605

0.104

0.937

0.05

0.04

CLI-1D.10

0.75

1.25

0.0605

0.104

1

0.05

0.04

CLI-1D.11

0.812

1.375

0.0605

0.104

1.094

0.05

0.04

CLI-1D.12

0.875

1.5

0.0605

0.135

1.187

0.05

0.04

CLI-1D.14

1

1.75

0.0605

0.135

1.375

0.05

0.04

CLI-1D.16

1.125

2

0.0605

0.166

1.562

0.05

0.04

CLI-1D.18

1.25

2.125

0.0605

0.166

1.687

0.05

0.04

CLI-1D.20

1.375

2.25

0.0605

0.166

1.812

0.05

0.04

CLI-1D.22

1.5

2.5

0.0605

0.197

2

0.05

0.04

CLI-1D.24

1.625

2.625

0.0605

0.197

2.125

0.05

0.04

CLI-1D.26

1.75

2.75

0.0605

0.197

2.25

0.05

0.04

CLI-1D.28

2

3

0.0915

0.197

2.5

0.08

0.07

CLI-1D.30

2.125

3.125

0.0915

0.197

2.625

0.08

0.07

CLI-1D.32

2.25

3.25

0.0915

0.197

2.75

0.08

0.07
