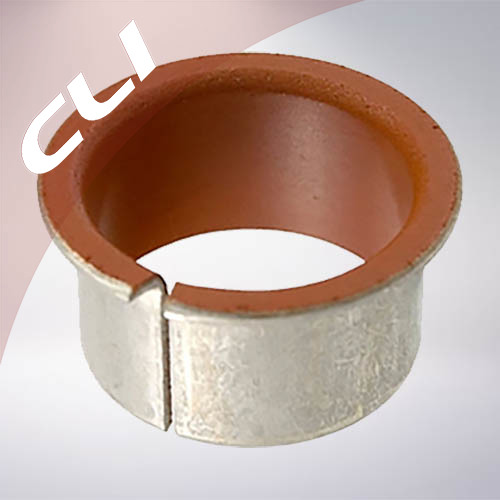

CLI-1D series
DP4 flanged bearing & DP4 flanged bushing,
Fibre & PTFE-coated with STEEL backing, Self Lubricated,
Metric Size & Inch Size, ROHS compliant
|
|
• CLI-1D is developed for high duty, oil lubricated, hydraulic applicaations;
• CLI-1D is with excellent wear resistance and low static and dynamic frication coefficient, special stuitable for frequently reciprocating motion;
• CLI-1D is with or without the strong stocks from side directions;
• CLI-1D parts also know as SF-1D or similar to DP4 .
TECHNICAL DATA

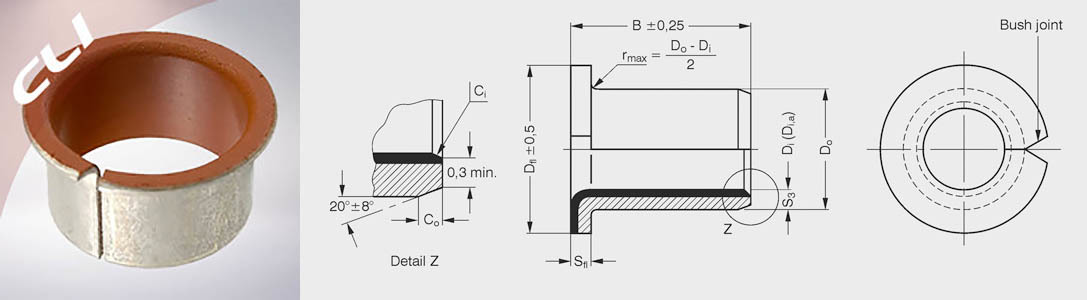

| • Metallographic Micrographs |
|
|
• Technical Data |
Layer 1: PTFE mixed with Polymer Fibers, thickness 0.01 to 0.03 mm
Layer 2: Sintered bronze powder, thickness 0.20 to 0.35 mm
Layer 3: Low carbon steel backing, thickness 0.70 to 2.30 mm
Layer 4: Copper or Tin coating, thickness 0.008 mm
♦ The actual thickness of metallographic structure as the negotiation |
|
|
| Items |
Value |
Unit |
| Maximum Operating Temperature Tmax |
280 |
°C |
| Minimum Operating Temperature Tmin |
-200 |
°C |
| Maximum Static Load Psta,max |
250 |
N/mm2 |
| Maximum Dynamic Load Pdyn,max |
140 |
N/mm2 |
| Maximum Sliding Speed V-dry |
2.5 |
m/s |
| Maximum Sliding Speed V-oil lubricated |
5 |
m/s |
| Maximum PV Factor-dry |
1 |
N/mm2 * m/s |
| Maximum PV Factor-oil lubricated |
10 |
N/mm2 * m/s |
| Coefficient of friction f-dry |
0.04-0.25 |
| Coefficient of friction f-oil lubricated |
0.02-0.08 |
| Usage |
dry |
good |
| oil lubricated |
very good |
| grease lubricated |
good |
| water lubricated |
fair |
| process fluid lubricated |
good |
|
|
APPLICATIONS
1. PTFE and Polymer Fibers created the lubricated film and it is transfered to teh mating shaft to improve running properties, also protect the mating surface of shaft;
2. Perfect wear resistant, lower friction, suitable for the working conditions of with or without lubricating oil, and keep the lubricating oil clear after long period of working;
3. Particularly suitable for bushes in reciprocating motions, also for other motions;
4. Used in automotive suspension structs, shock absorbers, hydraulic, cylinders, gear pumps, motors, axial and radial pistion pumps & motors. |
|
|
|
  |
STANDARD TYPES AVAILABLE
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
CLI-1D series
DP4 flanged bearing & DP4 flanged bushing,
Fibre & PTFE-coated with STEEL backing, Self Lubricated,
Metric Size
|
 |
| |
|
CLI
Part No.
|
Di
(mm)
|
Do
(mm)
|
Sfl
(mm)
|
Dfl
(mm)
|
B
(mm)
|
Housing
|
Shaft
|
Di,a max
H7 (mm)
|
Di,a min
H7 (mm)
|
Clearance max.
(mm)
|
Clearance min.
(mm)
|
|
F0304CLI-1D
|
3
|
4.5
|
0.75
|
7
|
4
|
H6
|
h6
|
3.048
|
3
|
0.054
|
0
|
|
F0404CLI-1D
|
4
|
5.5
|
0.75
|
9
|
4
|
H6
|
h6
|
4.048
|
4
|
0.056
|
0
|
|
F0505CLI-1D
|
5
|
7
|
0.925
|
10
|
5
|
H7
|
f7
|
5.055
|
4.99
|
0.077
|
0
|
|
F0604CLI-1D
|
6
|
8
|
0.925
|
12
|
4
|
H7
|
f7
|
6.055
|
5.99
|
0.077
|
0
|
|
F0608CLI-1D
|
6
|
8
|
0.925
|
12
|
8
|
H7
|
f7
|
6.055
|
5.99
|
0.077
|
0
|
|
F0806CLI-1D
|
8
|
10
|
0.925
|
15
|
5.5
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
F0808CLI-1D
|
8
|
10
|
0.925
|
15
|
7.5
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
F0810CLI-1D
|
8
|
10
|
0.925
|
15
|
9.5
|
H7
|
f7
|
8.055
|
7.99
|
0.083
|
0.003
|
|
F1007CLI-1D
|
10
|
12
|
0.925
|
18
|
7
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
F1009CLI-1D
|
10
|
12
|
0.925
|
18
|
9
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
F1012CLI-1D
|
10
|
12
|
0.925
|
18
|
12
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
F1017CLI-1D
|
10
|
12
|
0.925
|
18
|
17
|
H7
|
f7
|
10.058
|
9.99
|
0.086
|
0.003
|
|
F1207CLI-1D
|
12
|
14
|
0.925
|
20
|
7
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
F1209CLI-1D
|
12
|
14
|
0.925
|
20
|
9
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
F1212CLI-1D
|
12
|
14
|
0.925
|
20
|
12
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
F1217CLI-1D
|
12
|
14
|
0.925
|
20
|
17
|
H7
|
f7
|
12.058
|
11.99
|
0.092
|
0.006
|
|
F1412CLI-1D
|
14
|
16
|
0.925
|
22
|
12
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
F1417CLI-1D
|
14
|
16
|
0.925
|
22
|
17
|
H7
|
f7
|
14.058
|
13.99
|
0.092
|
0.006
|
|
F1509CLI-1D
|
15
|
17
|
0.925
|
23
|
9
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
F1512CLI-1D
|
15
|
17
|
0.925
|
23
|
12
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
F1517CLI-1D
|
15
|
17
|
0.925
|
23
|
17
|
H7
|
f7
|
15.058
|
14.99
|
0.092
|
0.006
|
|
F1612CLI-1D
|
16
|
18
|
0.925
|
24
|
12
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
F1617CLI-1D
|
16
|
18
|
0.925
|
24
|
17
|
H7
|
f7
|
16.058
|
15.99
|
0.092
|
0.006
|
|
F1812CLI-1D
|
18
|
20
|
0.925
|
26
|
12
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
F1817CLI-1D
|
18
|
20
|
0.925
|
26
|
17
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
F1822CLI-1D
|
18
|
20
|
0.925
|
26
|
22
|
H7
|
f7
|
18.061
|
17.99
|
0.095
|
0.006
|
|
F2012CLI-1D
|
20
|
23
|
1.45
|
30
|
11.5
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
F2017CLI-1D
|
20
|
23
|
1.45
|
30
|
16.5
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
F2022CLI-1D
|
20
|
23
|
1.45
|
30
|
21.5
|
H7
|
f7
|
20.071
|
19.99
|
0.112
|
0.01
|
|
F2512CLI-1D
|
25
|
28
|
1.45
|
35
|
11.5
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
F2517CLI-1D
|
25
|
28
|
1.45
|
35
|
16.5
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
F2522CLI-1D
|
25
|
28
|
1.45
|
35
|
21.5
|
H7
|
f7
|
25.071
|
24.99
|
0.112
|
0.01
|
|
F3016CLI-1D
|
30
|
34
|
1.95
|
42
|
16
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
F3026CLI-1D
|
30
|
34
|
1.95
|
42
|
26
|
H7
|
f7
|
30.085
|
29.99
|
0.126
|
0.01
|
|
F3516CLI-1D
|
35
|
39
|
1.95
|
47
|
16
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
F3526CLI-1D
|
35
|
39
|
1.95
|
47
|
26
|
H7
|
f7
|
35.085
|
34.99
|
0.135
|
0.015
|
|
F4016CLI-1D
|
40
|
44
|
1.95
|
53
|
16
|
H7
|
f7
|
40.085
|
39.99
|
0.135
|
0.015
|
|
F4026CLI-1D
|
40
|
44
|
1.95
|
53
|
26
|
H7
|
f7
|
40.085
|
39.99
|
0.135
|
0.015
|
|
F4516CLI-1D
|
45
|
50
|
2.45
|
58
|
16
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
F4526CLI-1D
|
45
|
50
|
2.45
|
58
|
26
|
H7
|
f7
|
45.105
|
44.99
|
0.155
|
0.015
|
|
| |
| BEARING LIST & BEARING DETAILS |
CLI-1D series
DP4 flanged bearing & DP4 flanged bushing,
Fibre & PTFE-coated with STEEL backing, Self Lubricated,
Inch Size |
|
|
| |
|
CLI
Part No.
|
Di
[inch]
|
Do
[inch]
|
Sfl
(inch)
|
Sfl max.
(inch)
|
Sfl min.
(inch)
|
Dfl
(inch)
|
Dfl max.
(inch)
|
Dfl min.
(inch)
|
B
(inch)
|
DJ max.
(inch)
|
DJ min.
(inch)
|
DH max.
(inch)
|
DH min.
(inch)
|
Di,a max
(inch)
|
Di,a min
(inch)
|
|
06.FCLI-1D.04
|
3/8
|
15/32
|
0.043
|
0.047
|
0.039
|
0.6875
|
0.7075
|
0.6675
|
0.245
|
0.375
|
0.374
|
0.4691
|
0.4684
|
0.3779
|
0.3752
|
|
06.FCLI-1D.06
|
3/8
|
15/32
|
0.043
|
0.047
|
0.039
|
0.6875
|
0.7075
|
0.6675
|
0.37
|
0.375
|
0.374
|
0.4691
|
0.4684
|
0.3779
|
0.3752
|
|
06.FCLI-1D.08
|
3/8
|
15/32
|
0.043
|
0.047
|
0.039
|
0.6875
|
0.7075
|
0.6675
|
0.495
|
0.375
|
0.374
|
0.4691
|
0.4684
|
0.3779
|
0.3752
|
|
06.FCLI-1D.12
|
3/8
|
15/32
|
0.043
|
0.047
|
0.039
|
0.6875
|
0.7075
|
0.6675
|
0.745
|
0.375
|
0.374
|
0.4691
|
0.4684
|
0.3779
|
0.3752
|
|
08.FCLI-1D.04
|
1/2
|
19/32
|
0.043
|
0.047
|
0.039
|
0.8125
|
0.8325
|
0.7925
|
0.245
|
0.5
|
0.499
|
0.4691
|
0.5934
|
0.5029
|
0.5002
|
|
08.FCLI-1D.06
|
1/2
|
19/32
|
0.043
|
0.047
|
0.039
|
0.8125
|
0.8325
|
0.7925
|
0.37
|
0.5
|
0.499
|
0.4691
|
0.5934
|
0.5029
|
0.5002
|
|
08.FCLI-1D.08
|
1/2
|
19/32
|
0.043
|
0.047
|
0.039
|
0.8125
|
0.8325
|
0.7925
|
0.495
|
0.5
|
0.499
|
0.4691
|
0.5934
|
0.5029
|
0.5002
|
|
08.FCLI-1D.12
|
1/2
|
19/32
|
0.043
|
0.047
|
0.039
|
0.8125
|
0.8325
|
0.7925
|
0.745
|
0.5
|
0.499
|
0.4691
|
0.5934
|
0.5029
|
0.5002
|
|
10.FCLI-1D.06
|
5/8
|
23/32
|
0.043
|
0.047
|
0.039
|
0.93725
|
0.9575
|
0.917
|
0.37
|
0.625
|
0.624
|
0.7192
|
0.7184
|
0.628
|
0.6252
|
|
10.FCLI-1D.08
|
5/8
|
23/32
|
0.043
|
0.047
|
0.039
|
0.93725
|
0.9575
|
0.917
|
0.495
|
0.625
|
0.624
|
0.7192
|
0.7184
|
0.628
|
0.6252
|
|
10.FCLI-1D.10
|
5/8
|
23/32
|
0.043
|
0.047
|
0.039
|
0.93725
|
0.9575
|
0.917
|
0.62
|
0.625
|
0.624
|
0.7192
|
0.7184
|
0.628
|
0.6252
|
|
10.FCLI-1D.12
|
5/8
|
23/32
|
0.043
|
0.047
|
0.039
|
0.93725
|
0.9575
|
0.917
|
0.745
|
0.625
|
0.624
|
0.7192
|
0.7184
|
0.628
|
0.6252
|
|
12.FCLI-1D.06
|
3/4
|
7/8
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.37
|
0.75
|
0.7488
|
0.8755
|
0.8747
|
0.7534
|
0.7502
|
|
12.FCLI-1D.08
|
3/4
|
7/8
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.495
|
0.75
|
0.7488
|
0.8755
|
0.8747
|
0.7534
|
0.7502
|
|
12.FCLI-1D.12
|
3/4
|
7/8
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.745
|
0.75
|
0.7488
|
0.8755
|
0.8747
|
0.7534
|
0.7502
|
|
12.FCLI-1D.16
|
3/4
|
7/8
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.995
|
0.75
|
0.7488
|
0.8755
|
0.8747
|
0.7534
|
0.7502
|
|
14.FCLI-1D.08
|
7/8
|
1
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.495
|
0.875
|
0.8738
|
1.0005
|
0.9997
|
0.8784
|
0.8752
|
|
14.FCLI-1D.12
|
7/8
|
1
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.745
|
0.875
|
0.8738
|
1.0005
|
0.9997
|
0.8784
|
0.8752
|
|
14.FCLI-1D.16
|
7/8
|
1
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
0.995
|
0.875
|
0.8738
|
1.0005
|
0.9997
|
0.8784
|
0.8752
|
|
14.FCLI-1D.20
|
7/8
|
1
|
0.059
|
0.063
|
0.055
|
1.25
|
1.27
|
1.23
|
1.245
|
0.875
|
0.8738
|
1.0005
|
0.9997
|
0.8784
|
0.8752
|
|
16.FCLI-1D.08
|
1
|
1 1/8
|
0.059
|
0.063
|
0.055
|
1.375
|
1.395
|
1.355
|
0.495
|
1.0005
|
0.9988
|
1.1255
|
1.1247
|
1.0034
|
1.0002
|
|
16.FCLI-1D.12
|
1
|
1 1/8
|
0.059
|
0.063
|
0.055
|
1.375
|
1.395
|
1.355
|
0.745
|
1.0005
|
0.9988
|
1.1255
|
1.1247
|
1.0034
|
1.0002
|
|
16.FCLI-1D.16
|
1
|
1 1/8
|
0.059
|
0.063
|
0.055
|
1.375
|
1.395
|
1.355
|
0.995
|
1.0005
|
0.9988
|
1.1255
|
1.1247
|
1.0034
|
1.0002
|
|
16.FCLI-1D.20
|
1
|
1 1/8
|
0.059
|
0.063
|
0.055
|
1.375
|
1.395
|
1.355
|
1.245
|
1.0005
|
0.9988
|
1.1255
|
1.1247
|
1.0034
|
1.0002
|
|
20.FCLI-1D.16
|
1 1/4
|
1 13/32
|
0.074
|
0.078
|
0.07
|
1.75
|
1.78
|
1.72
|
0.995
|
1.25
|
1.2484
|
1.4068
|
1.4058
|
1.254
|
1.2502
|
|
20.FCLI-1D.20
|
1 1/4
|
1 13/32
|
0.074
|
0.078
|
0.07
|
1.75
|
1.78
|
1.72
|
1.245
|
1.25
|
1.2484
|
1.4068
|
1.4058
|
1.254
|
1.2502
|
|
20.FCLI-1D.24
|
1 1/4
|
1 13/32
|
0.074
|
0.078
|
0.07
|
1.75
|
1.78
|
1.72
|
1.495
|
1.25
|
1.2484
|
1.4068
|
1.4058
|
1.254
|
1.2502
|
|
24.FCLI-1D.16
|
1 1/2
|
1 21/32
|
0.074
|
0.078
|
0.07
|
2
|
2.03
|
1.97
|
0.995
|
1.5
|
1.4984
|
1.6568
|
1.6558
|
1.504
|
1.5002
|
|
24.FCLI-1D.24
|
1 1/2
|
1 21/32
|
0.074
|
0.078
|
0.07
|
2
|
2.03
|
1.97
|
1.495
|
1.5
|
1.4984
|
1.6568
|
1.6558
|
1.504
|
1.5002
|
|
24.FCLI-1D.32
|
1 1/2
|
1 21/32
|
0.074
|
0.078
|
0.07
|
2
|
2.03
|
1.97
|
1.995
|
1.5
|
1.4984
|
1.6568
|
1.6558
|
1.504
|
1.5002
|
|
28.FCLI-1D.16
|
1 3/4
|
1 15/16
|
0.09
|
0.094
|
0.086
|
2.375
|
2.405
|
2.345
|
0.995
|
1.75
|
1.7484
|
1.9381
|
1.9371
|
1.7548
|
1.7502
|
|
28.FCLI-1D.24
|
1 3/4
|
1 15/16
|
0.09
|
0.094
|
0.086
|
2.375
|
2.405
|
2.345
|
1.495
|
1.75
|
1.7484
|
1.9381
|
1.9371
|
1.7548
|
1.7502
|
|
28.FCLI-1D.32
|
1 3/4
|
1 15/16
|
0.09
|
0.094
|
0.086
|
2.375
|
2.405
|
2.345
|
1.995
|
1.75
|
1.7484
|
1.9381
|
1.9371
|
1.7548
|
1.7502
|
|
| |
