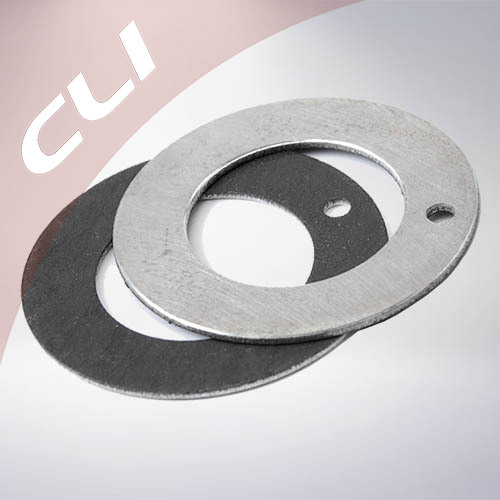

• CLI-1 dry bushing and self lubricating bearings are also known as SF-1 or DU bearings;
• CLI-1 dry bushing and self lubricating bearings are with low carbon steel as the backing,
sintered bronze as medial layer, mixed PTFE with fibers as self-lubricating layer.
• It is suitable for dry running with low coefficient of friction, low wear rate,good sliding characteristics, the transfer film created will protect the mating metal surface.
• It is also suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling.
• CLI-1 series dry bushing and self lubricating bearings are also performing well with lubrication.
TECHNICAL DATA
| • Metallographic Micrographs |
|
|
• Technical Data |
1. Layer 1: PTFE with fibers, thickness 0.01 to 0.03 mm
2. Layer 2: Sintered bronze powder, thickness 0.20 to 0.35 mm
3. Layer 3: Low carbon steel, thickness 0.70 to 2.30 mm
4. Layer 4: Copper or Tin coating, thickness 0.008 mm
♦ The actual thickness of metallographic structure as the negotiation |
|
|
| Max.Loading |
Static |
250N/mm² |
| Low speed |
140N/mm² |
| Rotating Oscillation |
60N/mm² |
| Max.PV limit(Dry) |
Short term operation |
3.6N/mm²·m/s |
| Continuous operation |
1.8N/mm²·m/s |
| Temperature Range |
195℃~+280℃ |
| Friction Coefficient |
0.02~0.20 |
| Max.Speed |
Dry running |
2m/s |
| Hydrodynamic |
>2m/s |
| Thermal conductivity |
42 W(m·k)﹣¹ |
| Coefficient of thermal expansion |
11×10-6 W(m·k)﹣¹ |
|
|
APPLICATIONS
1. Suitable for oilless or few grease working conditions;
2. Long maintenance-free ; Long operating life due to low friction;
4. Low vibration,low noise and non-pollution in operation;
5. Thin wall thickness & low weight for the machine with compact design;
6. Low hardness of mating shaft can be mated,so the shafts processing is easy;
7. PTFE film is transfered to the mating shaft, to protect the mating metal Surface, also improve running properties;
8. Lower absorption of water ,heat dissipation,and reduced swelling,to keep the exact sizes;
9. Copper or Tin plated in outer Surface , for good anit-corrosion. |
|
|
  |

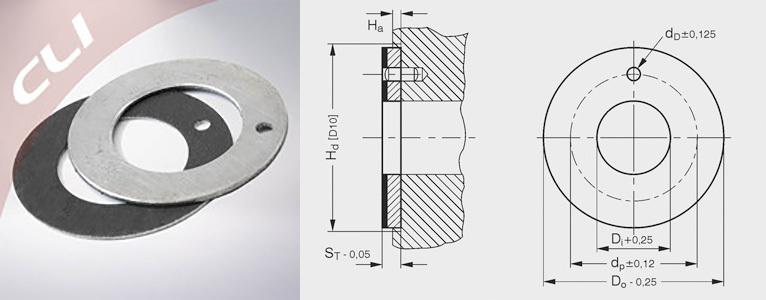

STANDARD TYPES AVAILABLE
Please select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
