 CLI-1 series

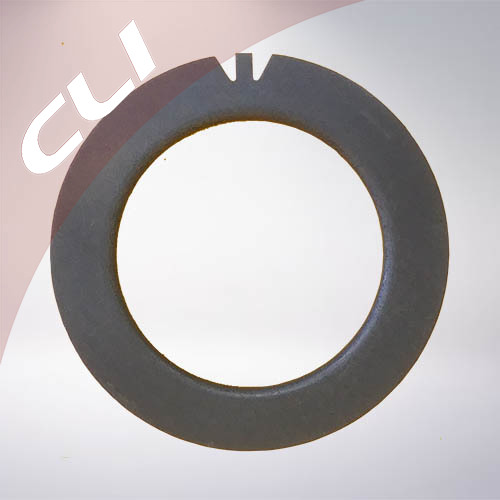

DU washer & DU flanged washer,
PTFE-coated washer with STEEL backing,
Self Lubricated, ROHS compliant



• CLI-1 dry bushing and self lubricating bearings are also known as SF-1 or DU bearings;
• CLI-1 dry bushing and self lubricating bearings are with low carbon steel as the backing,
   sintered bronze as medial layer, mixed PTFE with fibers as self-lubricating layer.
• It is suitable for dry running with low coefficient of friction, low wear rate,good sliding characteristics, the transfer film created will protect the mating metal surface.
• It is also suitable for rotary and oscillating movement, high chemical resistance, lower absorption of water and reduced swelling.
• CLI-1 series dry bushing and self lubricating bearings are also performing well with lubrication.


TECHNICAL DATA

• Metallographic Micrographs     • Technical Data


1. PTFE with fibers 0.01-0.03mm
2. Sintered bronze powder 0.2-0.35mm
3. Low carbon steel 0.7-2.3mm
4. Copper or Tin coating 0.008 mm
♦ The actual thickness of metallographic structure as the negotiation

 Max.Loading  Static  250N/mm²
 Low speed  140N/mm²
 Rotating Oscillation  60N/mm²
 Max.PV limit(Dry)  Short term operation  3.6N/mm²·m/s
 Continuous operation  1.8N/mm²·m/s
 Temperature Range  195℃~+280℃
 Friction Coefficient  0.02~0.20
 Max.Speed  Dry running  2m/s
 Hydrodynamic  >2m/s
 Thermal conductivity  42 W(m·k)﹣¹
 Coefficient of thermal expansion  11×10-6 W(m·k)﹣¹

APPLICATIONS

1. Suitable for oilless or few grease working conditions;
2. Long maintenance-free ; Long operating life due to low friction;
4. Low vibration,low noise and non-pollution in operation;
5. Thin wall thickness & low weight for the machine with compact design;
6. Low hardness of mating shaft can be mated,so the shafts processing is easy;
7. PTFE film is transfered to the mating shaft, to protect the mating metal Surface, also improve running properties;
8. Lower absorption of water ,heat dissipation,and reduced swelling,to keep the exact sizes;
9. Copper or Tin plated in outer Surface , for good anit-corrosion.​


STANDARD TYPES AVAILABLE


Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

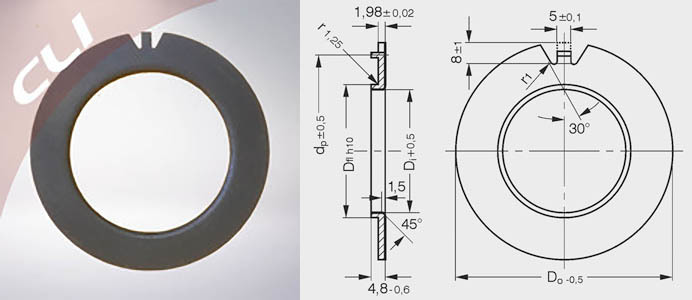

BEARING LIST & BEARING DETAILS

CLI-1 series
DU washer & DU thrust washer,

PTFE-coated washer with STEEL backing, Self Lubricated, ROHS compliant
Metric Size




CLI
Part No.

Di
(mm)

Do
(mm)

Dfl
(mm)

dP
(mm)

BS40CLI-1

40.45

75

44

64.75

BS50CLI-1

51.25

85

55

74.75

BS60CLI-1

61.25

95

65

84.75

BS70CLI-1

71.25

110

75

99.75

BS80CLI-1

81.25

120

85

109.75

BS90CLI-1

91.25

130

95

119.75

BS100CLI-1

101.25

140

105

129.75

 * For non-standard sizes and larger sizes, please ask CLI sales for more details ...
