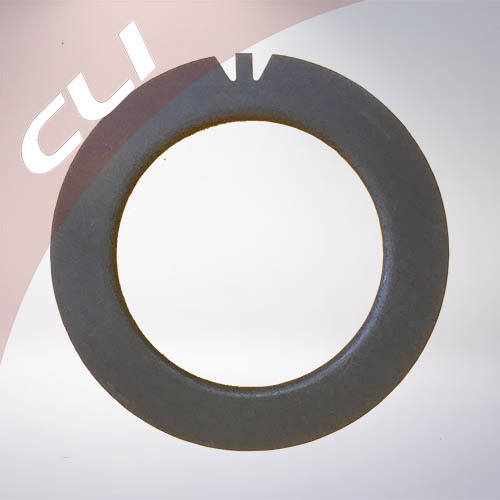

Original dub flanged washer
Product Picture

 CLI-1B series
DU-B flanged washer,
PTFE-coated washers with
BRONZE backing, Self Lubricated,
Metric Size, ROHS compliant



• CLI-1B with the common characteristics of CLI-1, with more features: more green & healthier excellent heat dissipation, very high chemical resistance, lower absorption of water and swelling, also performs very good lubrication feature.
• ‚Äč Bronze backing also can be as the self-lubricating materials, while PTFE layer be worked out, then with more long lifes.
• CLI-1B parts also know as SF-1B or DU-B (DUB)


TECHNICAL DATA

• Metallographic Micrographs     • Technical Data



Layer 1:  PTFE with fibers, thickness: 0.01 to 0.03 mm
Layer 2:  Sintered bronze powder, thickness: 0.20 to 0.35 mm
Layer 3:  Bronze backing, thickness:  0.70 to 2.30 mm

♦ The actual thickness of metallographic structure as the negotiation


 Max.Load

 Static

 250 N/mm2

 Dynamic

 140 N/mm2

 Oscillating

 60 N/mm2

 PV limit

 Dry

 1.8 N/mm2.m/s

 Oil

 3.6 N/mm2.m/s

 Operating Temperature

 -200°C~+280°C

 Friction Coeff.

 0.02~0.20μ

 Speed limit

 Dry

 2.5 m/s

 Oil

 5.0 m/s

 Hardness

 > 220HB

 Coeff. Of linear expansion

 18x10-6/K


APPLICATIONS

1. The transfer film created can protect the mating metal surface; perfect sliding;
2. Excellent thermal conductivity, particular appropriate for high temperature environment;
3. Suitable for dry running and the machine must be under successive long period working;
4. Better corrosion resistance;
5. High loading capacity;
6. Bronze backing with self-lubrication feature, then with longer working lifes;
7. Environment-friendly & anti-magnetic.


STANDARD TYPES AVAILABLE


Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...


BEARING LIST & BEARING DETAILS

CLI-1B series
DU-B flanged washer,
PTFE-coated washers with
BRONZE backing, Self Lubricated,
Metric Size

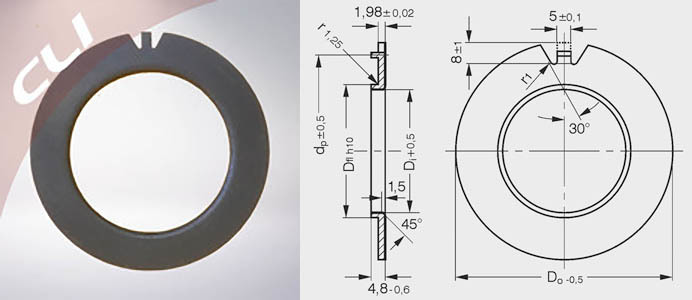

CLI
Part No.

Di
(mm)

Do
(mm)

Dfl
(mm)

dP
(mm)

BS40CLI-1B

40.45

75

44

64.75

BS50CLI-1B

51.25

85

55

74.75

BS60CLI-1B

61.25

95

65

84.75

BS70CLI-1B

71.25

110

75

99.75

BS80CLI-1B

81.25

120

85

109.75

BS90CLI-1B

91.25

130

95

119.75

BS100CLI-1B

101.25

140

105

129.75
