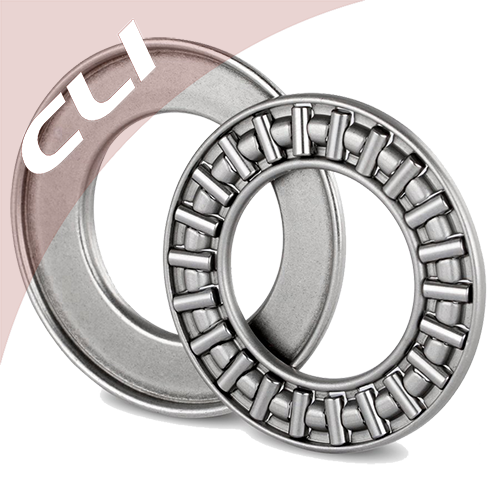

AXW
needle roller thrust bearings & single direction,
AXK with axial bearing washer, METRIC sizes
|
|
CLI needle roller cages require ground and hardened surfaces as raceways, have a low axial section height and can support axial forces in one direction.Washers allow you to use the bearing on unhardened and unground surfaces.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |

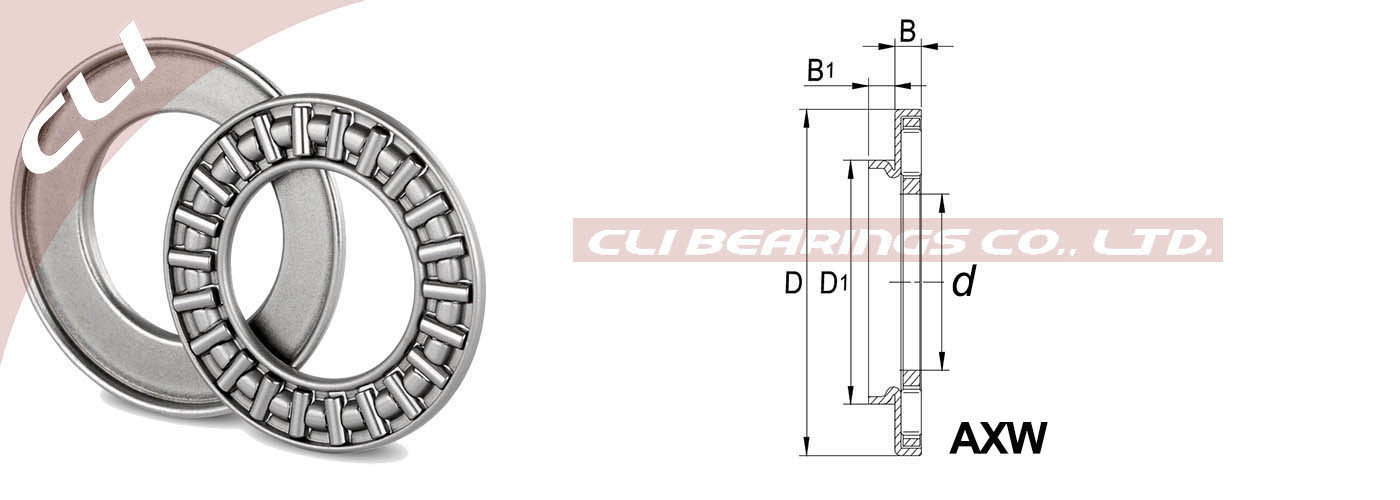

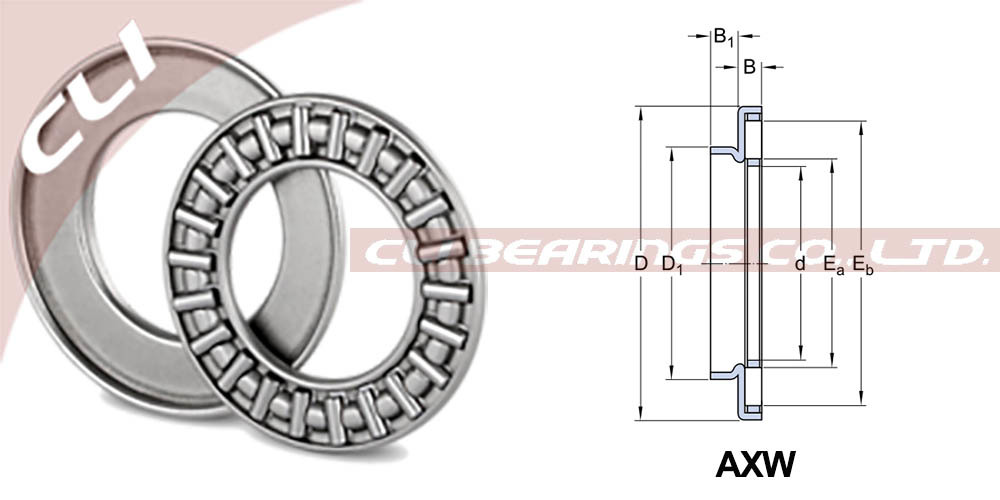

AXW
Needle roller thrust bearings for
shaft sizes from 10 mm to 50 mm
|
 |
| |
| CLI Bearing No. |
Bore Dia |
Outer Dia |
Thickness |
Dynamic load rating |
Static load rating |
Max Speed |
| (d) |
(D) |
(B) |
(Newtons) |
(Newtons) |
(RPM) |
| AXW10 |
10mm |
27mm |
3.2mm |
9200 |
25500 |
16900 |
| AXW12 |
12mm |
29mm |
3.2mm |
9900 |
29000 |
15200 |
| AXW15 |
15mm |
31mm |
3.2mm |
11300 |
36000 |
13200 |
| AXW17 |
17mm |
33mm |
3.2mm |
11900 |
39500 |
12100 |
| AXW20 |
20mm |
38mm |
3.2mm |
13100 |
46500 |
10500 |
| AXW25 |
25mm |
45mm |
3.2mm |
14700 |
58000 |
8400 |
| AXW30 |
30mm |
50mm |
3.2mm |
16300 |
70000 |
7300 |
| AXW35 |
35mm |
55mm |
3.2mm |
17800 |
81000 |
6500 |
| AXW40 |
40mm |
63mm |
4.2mm |
28000 |
114000 |
5600 |
| AXW45 |
45mm |
68mm |
4.2mm |
30000 |
128000 |
5100 |
| AXW50 |
50mm |
73mm |
4.2mm |
32000 |
143000 |
4700 |
|
| |
