Roller Bearings-Needle Roller Bearings-AX Series Unitized Needle Thrust Bearings, Metric Size

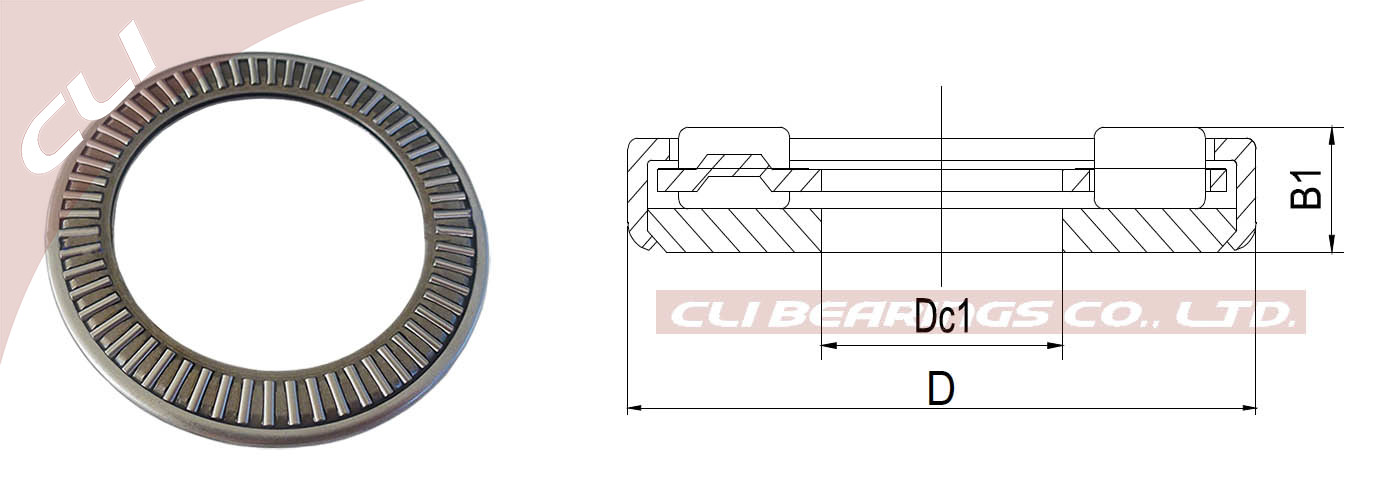

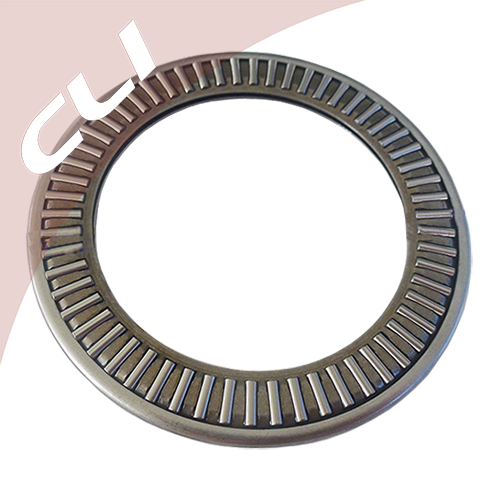

Product Picture







CLI Part Number Dimension(mm) Load Rating (KN) Limiting Speed (RPM） Weight (Kg) Dc1 D B1 Dynamic Static AX513 5 13 2.3 3 5.7 25000 1.3 AX3.5 513 5 13 3.5 3 5.7 25000 2.3 AX614 6 14 2.3 3.15 6.35 22000 1.4 AX3.5 614 6 14 3.5 3.15 6.35 22000 2.4 AX715 7 15 2.3 3.55 7.6 22000 1.7 AX3.5 715 7 15 3.5 3.55 7.6 22000 2.9 AX816 8 16 2.3 3.7 8.3 22000 1.7 AX3.5 816 8 16 3.5 3.7 8.3 22000 3 AX917 9 17 2.3 4.05 9.5 19000 2.1 AX3.5 917 9 17 3.5 4.05 9.5 19000 3.6 AX4 1022 10 22 4 5 10.9 15500 6.6 AX1226 12 26 2.8 6.9 17.7 13000 6 AX4 1226 12 26 4 6.9 17.7 13000 10 AX1326 13 26 2.8 6.9 17.7 13000 6 AX4 1326 13 26 4 6.9 17.7 13000 9.8 AX1528 15 28 2.8 7.4 20 11500 6.9 AX4 1528 15 28 4 7.4 20 11500 9 AX1730 17 30 2.8 7.8 22 10500 7.6 AX4 1730 17 30 4 7.8 22 10500 10 AX1932 19 32 2.8 8 23.3 10000 8.6 AX4 1932 19 32 4 8 23.3 10000 13 AX5 2035 20 35 5 11.8 39 9000 18 AX2542 25 42 2.8 13.3 49 7500 11.5 AX5 2542 25 42 5 13.3 49 7500 25 AX2744 27 44 2.8 13.7 52 7200 12.1 AX3047 30 47 2.8 14.5 57 6500 13.7 AX5 3047 30 47 5 14.5 57 6500 29 AX3552 35 52 2.8 18.9 84 5500 18.5 AX5 3552 35 52 5 18.9 84 5500 35 AX3553 35 53 2.8 18.9 84 5500 19.3 AX5 3553 35 53 5 18.9 84 5500 36 AX4060 40 60 2.8 20.4 96 5000 23.9 AX5 4060 40 60 5 20.4 96 5000 46 AX4565 45 65 2.8 21.8 109 4500 24.7 AX5 4565 45 65 5 21.8 109 4500 50 AX5070 50 70 2.8 22.5 118 4000 25.5 AX5 5070 50 70 5 22.5 118 4000 55 AX5578 55 78 2.8 28.5 164 3800 34 AX6 5578 55 78 6 28.5 164 3800 89 AX6 6085 60 85 6 31.5 193 3500 106 AX3.5 6590 65 90 3.5 33.5 210 3200 59 AX6 6590 65 90 6 33.5 210 3200 114 AX3.5 7095 70 95 3.5 34.5 223 3000 61 AX6 7095 70 95 6 34.5 223 3000 120 AX3.5 75100 75 100 3.5 36 240 2900 65 AX6 75100 75 100 6 36 240 2900 127 AX3.5 80105 80 105 3.5 36.5 253 2700 69 AX6 80105 80 105 6 36.5 253 2700 134 AX3.5 85110 85 110 3.5 38 270 2600 78 AX6 85110 85 110 6 38 270 2600 142 AX4.5 90120 90 120 4.5 59 360 2400 117 AX8 90120 90 120 8 59 360 2400 238 AX9 100135 100 135 9 73 490 2100 364 AX4.5 110145 110 145 4.5 77 550 2000 168 AX9 110145 110 145 9 77 550 2000 393 AX4.5 120155 120 155 4.5 80 590 1800 182 AX9 120155 120 155 9 80 590 1800 424 AX11 130170 130 170 11 106 710 1700 660 AX11 140180 140 180 9 111 770 1600 670 AX11 150190 150 190 9 115 830 1500 710 AX11 160200 160 200 9 118 870 1400 760 AX12 170215 170 215 12 165 1160 1300 1000 AX12 180225 180 225 12 173 1250 1200 1050 AX14 190240 190 240 13.9 230 1650 1200 1400 AX14 200250 200 250 13.9 239 1730 1100 1500 AX14 220270 220 270 13.9 248 1850 1000 1600 AX15 240300 240 300 14.9 280 2240 9900 2300
