Rolling Roller Bearings-Needle Roller Bearings-AS / LS axial bearing washers for cylindrical & needle roller thrust bearings, METRIC sizes

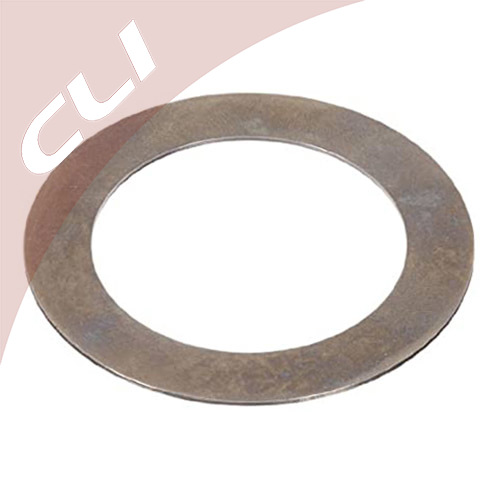

Original 26 picture as ls
Product Picture


AS / LS
Axial bearing washers for cylindrical & needle roller thrust bearings,
METRIC sizes




CLI axial cylindrical roller bearings are designed to withstand heavy loads in the direction of the shaft.

Depending on the bearing design, the load can occur from one or both sides. Axial cylindrical roller bearings are fundamentally different in design from cylindrical roller bearings and consist of roller rings, housing washers, shaft washers and can be dismantled.


Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...


BEARING LIST & BEARING DETAILS

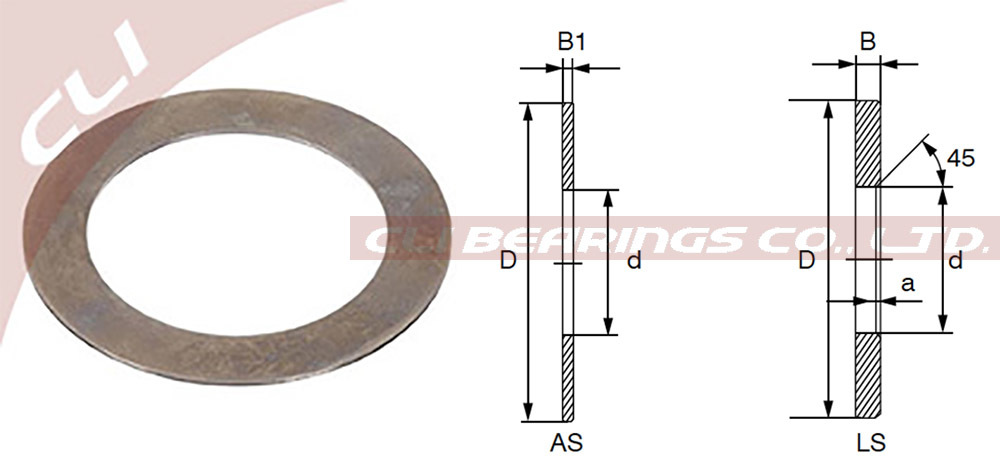

AS / LS
Axial bearing washers for cylindrical & needle roller thrust bearings
 for
shaft sizes from
4 mm to 160 mm



Product Number Bore Dia Outer Dia Thickness Weight (grams)
(d) (D)
AS0414 4mm 14mm 1mm 1
AS0515 5mm 15mm 1mm 1
AS0619 6mm 19mm 1mm 2
AS0821 8mm 21mm 1mm 2
AS1024 10mm 24mm 1mm 3
AS1226 12mm 26mm 1mm 3
AS1528 15mm 28mm 1mm 3
LS1528 15mm 28mm 2.75mm 8
AS1730 17mm 30mm 1mm 4
LS1730 17mm 30mm 2.75mm 9
AS2035 20mm 35mm 1mm 5
LS2035 20mm 35mm 2.75mm 12
AS2542 25mm 42mm 1mm 7
LS2542 25mm 42mm 3mm 19
AS3047 30mm 47mm 1mm 8
LS3047 30mm 47mm 3mm 20
AS3552 35mm 52mm 1mm 9
LS3552 35mm 52mm 3.5mm 27
AS4060 40mm 60mm 1mm 12
LS4060 40mm 60mm 3.5mm 37
AS4565 45mm 65mm 1mm 13
LS4565 45mm 65mm 4mm 47
AS5070 50mm 70mm 1mm 14
LS5070 50mm 70mm 4mm 51
AS5578 55mm 78mm 1mm 18
LS5578 55mm 78mm 5mm 82
AS6085 60mm 85mm 1mm 22
LS6085 60mm 85mm 4.75mm 92
AS6590 65mm 90mm 1mm 24
LS6590 65mm 90mm 5.25mm 110
AS7095 70mm 95mm 1mm 25
LS7095 70mm 95mm 5.25mm 120
AS75100 75mm 100mm 1mm 27
LS75100 75mm 100mm 5.75mm 136
AS80105 80mm 105mm 1mm 28
LS80105 80mm 105mm 5.75mm 144
AS85110 85mm 110mm 1mm 29
LS85110 85mm 110mm 5.75mm 151
AS90120 90mm 120mm 1mm 39
LS90120 90mm 120mm 6.5mm 225
AS100135 100mm 135mm 1mm 50
LS100135 100mm 135mm 7mm 350
AS110145 110mm 145mm 1mm 55
LS110145 110mm 145mm 7mm 385
AS120155 120mm 155mm 1mm 59
LS120155 120mm 155mm 7mm 415
AS130170 130mm 170mm 1mm 65
LS130170 130mm 170mm 9mm 643
AS140180 140mm 180mm 1mm 79
LS140180 140mm 180mm 9.5mm 749
AS150190 150mm 190mm 1mm 84
LS150190 150mm 190mm 9.5mm 796
AS160200 160mm 200mm 1mm 89
LS160200 160mm 200mm 9.5mm 842
