AISI440C Stainless Steel, deep groove ball bearings, SINGLE row, OPEN / SELAED (2RS) / SHIELDED (ZZ), METRIC sizes

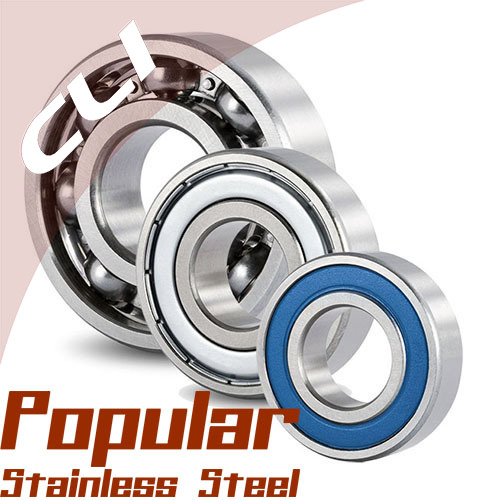

Product Picture

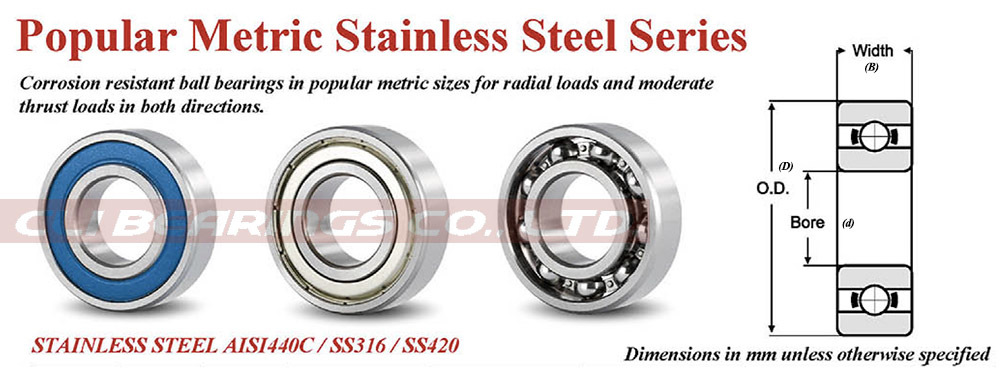

AISI440C Stainless Steel, deep groove ball bearings,
OPEN / SELAED (2RS) / SHIELDED (ZZ),
METRIC size

CLI stainless steel bearings are designed for wet and mildly corrosive environments where the bearings are required to cope with medium to high loads or speeds.

These stainless steel bearings are manufactured in AISI-440C. The stainless steel shields and retainers are usually made from AISI-304 stainless steel but some sizes are available with a reinforced polyamide retainer. All sizes can be supplied with stainless steel shields or rubber contact seals.

Our stainless steel ball bearings can be supplied with food grade lubricants, water resistant or chemically resistant lubricants as well as high temperature lubricants to withstand up to 300°C. Stainless steel will cope with much higher temperatures than chrome steel. Our stainless steel bearings are widely used in the food and beverage industries where equipment is frequently washed down.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

Standard OPEN (no suffix) type
AISI440C Stainless Steel bearings for
shaft sizes from 2 mm to 105 mm

CLI BEARING NO.	Seal Type (No suffix)	Bore Dia	Outer Dia	Width	Dynamic Load	Static Load	MAX SPEED
		d	D	B	Rating	Rating	(GREASE)
		(mm)	(mm)	(mm)	(Cr)	(Cor)	(X1000 RPM)
S682	Open	2 mm	5mm	1.5mm	129.6	36	90
SMR52	Open	2mm	5mm	2mm	129.6	36	90
S692	Open	2mm	6mm	2.3mm	252.9	71.1	81
SMR62	Open	2mm	6mm	2.5mm	252.9	71.1	81
S602	Open	2mm	7mm	2.8mm	295.2	92.7	63.9
SMR72	Open	2mm	7mm	2.5mm	295.2	92.7	67.5
S682x	Open	2.5mm	6mm	1.8mm	160.2	53.1	72
S692x	Open	2.5mm	7mm	2.5mm	295.2	92.7	67.5
S602x	Open	2.5mm	8mm	2.8mm	422.1	127.8	63.9
SMR82x	Open	2.5mm	8mm	2.5mm	426.6	129.6	60.3
SMR63	Open	3mm	6mm	2mm	160.2	53.1	72
S683	Open	3mm	7mm	2mm	237.6	81	67.5
S693	Open	3mm	8mm	3mm	426.6	129.6	60.3
SMR83	Open	3mm	8mm	2.5mm	302.4	101.7	60.3
S603	Open	3mm	9mm	3mm	207	135.9	60.3
SMR93	Open	3mm	9mm	2.5mm	436.5	135.9	60.3
S623	Open	3mm	10mm	4mm	482.4	157.5	54
S633	Open	3mm	13mm	5mm	995.4	351	43.2
SMR74	Open	4mm	7mm	2mm	237.6	82.8	60.3
SMR84	Open	4mm	8mm	2mm	302.4	101.7	60.3
S684	Open	4mm	9mm	2.5mm	490.5	163.8	56.7
SMR104	Open	4mm	10mm	3mm	543.6	196.2	50.4
S694	Open	4mm	11mm	4mm	732.6	252	50.4
S604	Open	4mm	12mm	4mm	732.6	252	50.4
S624	Open	4mm	13mm	5mm	995.4	351	43.2
S634	Open	4mm	16mm	5mm	1025.1	376.2	38.7
SMR85	Open	5mm	8mm	2mm	235.8	86.4	56.7
SMR95	Open	5mm	9mm	2.5mm	329.4	121.5	54
SMR105	Open	5mm	10mm	3mm	329.4	121.5	54
S685	Open	5mm	11mm	3mm	548.1	203.4	47.7
SMR115	Open	5mm	11mm	4mm	548.1	203.4	56.7
S695	Open	5mm	13mm	4mm	824.4	311.4	45
S605	Open	5 mm	14mm	5mm	1017	365.4	45
S625	Open	5mm	16mm	5mm	1323	486	38.7
S635	Open	5mm	19mm	6mm	1787.4	645.3	36
SMR106	Open	6mm	10mm	2.5mm	379.8	156.6	47.7
SMR126	Open	6mm	12mm	3mm	548.1	212.4	45
S686	Open	6mm	13mm	3.5mm	828	318.6	45
S696	Open	6mm	15mm	5mm	1025.1	376.2	40.5
S606	Open	6mm	17mm	6mm	1731.6	609.3	40.5
S626	Open	6mm	19mm	6mm	1787.4	645.3	36
S636	Open	6mm	22mm	7mm	2549.7	1024.2	32.4
SMR117	Open	7mm	11mm	2.5mm	348.3	145.8	45
SMR137	Open	7mm	13mm	3mm	414	198.9	43.2
S687	Open	7mm	14mm	3.5mm	897.3	369	45
S697	Open	7mm	17mm	5mm	1227.6	517.5	38.7
S607	Open	7mm	19mm	6mm	1787.4	645.3	38.7
S627	Open	7mm	22mm	7mm	2514.6	992.7	32.4
S637	Open	7mm	26mm	9mm	3491.1	1427.4	30.6
SMR128	Open	8mm	12mm	2.5mm	415.8	197.1	43.2
SMR148	Open	8mm	14mm	3.5mm	625.5	278.1	40.5
S688	Open	8mm	16mm	4mm	957.6	426.6	38.7
S698	Open	8mm	19mm	6mm	1711.8	660.6	38.7
S608	Open	8mm	22mm	7mm	2519.1	992.7	36
S628	Open	8mm	24mm	8mm	2549.7	1024.2	30.6
S638	Open	8mm	28mm	9mm	3491.1	1427.4	30.6
S679	Open	9mm	14mm	3mm	702.9	336.6	37.8
S689	Open	9mm	17mm	4mm	1015.2	480.6	38.7
S699	Open	9mm	20mm	6mm	1887.3	778.5	36
S609	Open	9mm	24mm	7mm	2567.7	1039.5	34.2
S629	Open	9mm	26mm	8mm	3491.1	1427.4	30.6
S639	Open	9mm	30mm	10mm	3564	1497.6	27
S6700	Open	10mm	15mm	3mm	771.3	391.5	15.3
S63800	Open	10mm	19mm	7mm	1548	756	36
S6800	Open	10mm	19mm	5mm	1548	756	36
S6900	Open	10mm	22mm	6mm	2430	1143	33.3
S6000	Open	10 mm	26mm	8mm	4095	1755	32.4
S6200	Open	10 mm	30mm	9mm	4590	2160	26.1
S6300	Open	10 mm	35mm	11mm	7290	3105	24.3
S6701	Open	12mm	18mm	4mm	835.2	478.8	13.5
S63801	Open	12mm	21mm	7mm	1728	936	32.4
S6801	Open	12mm	21mm	5mm	1728	936	32.4
S6901	Open	12mm	24mm	6mm	2601	1314	29.7
S6001	Open	12 mm	28mm	8mm	4590	2160	28.8
S6201	Open	12 mm	32mm	10mm	6120	2745	24.3
S6301	Open	12 mm	37mm	12mm	8730	3780	22.5
S6702	Open	15mm	21mm	4mm	843.3	522.9	11.7
S63802	Open	15mm	24mm	7mm	1863	1134	27.9
S6802	Open	15mm	24mm	5mm	1863	1134	27.9
S6902	Open	15mm	28mm	7mm	3897	2025	26.1
S6002	Open	15 mm	32mm	9mm	5040	2565	24.3
S6202	Open	15 mm	35mm	11mm	6885	3375	21.6
S6302	Open	15 mm	42mm	13mm	10260	4905	18
S6703	Open	17mm	23mm	4mm	899.1	591.3	9.9
S63803	Open	17mm	26mm	7mm	2007	1314	26.1
S6803	Open	17mm	26mm	5mm	2007	1314	26.1
S6903	Open	17mm	30mm	7mm	4131	2304	23.4
S6003	Open	17 mm	35mm	10mm	5400	2925	22.5
S6203	Open	17 mm	40mm	12mm	8595	4320	18.9
S6303	Open	17 mm	47mm	14mm	12240	5985	16.2
S6704	Open	20mm	27mm	4mm	909	649.8	9
S63804	Open	20mm	32mm	10mm	3618	2214	22.5
S6804	Open	20mm	32mm	7mm	3618	2214	22.5
S6904	Open	20mm	37mm	9mm	5742	3312	19.8
S6004	Open	20 mm	42mm	12mm	8460	4545	18.9
S6204	Open	20 mm	47mm	14mm	11520	5985	15.3
S6304	Open	20 mm	52mm	15mm	14310	7065	15.3
S6705	Open	25mm	32mm	4mm	990	754.2	7.2
S63805	Open	25mm	37mm	10mm	3870	2646	18.9
S6805	Open	25mm	37mm	7mm	3870	2646	18.9
S6905	Open	25mm	42mm	9mm	6309	4095	17.1
S6005	Open	25 mm	47mm	12mm	9090	5265	16.2
S6205	Open	25 mm	52mm	15mm	12600	7065	13.5
S6305	Open	25 mm	62mm	17mm	18540	10170	11.7
S6706	Open	30mm	37mm	4mm	1026	852.3	6.3
S63806	Open	30mm	42mm	10mm	4084.2	3061.8	16.2
S6806	Open	30mm	42mm	7mm	4005	3096	16.2
S6906	Open	30mm	47mm	9mm	6516	4509	15.3
S6006	Open	30 mm	55mm	13mm	11880	7425	13.5
S6206	Open	30 mm	62mm	16mm	17550	10170	11.7
S6306	Open	30 mm	72mm	19mm	24030	13500	10.8
S6707	Open	35mm	44mm	5mm	1674	1467	5.4
S6807	Open	35mm	47mm	7mm	4266	3438	14.4
S6907	Open	35mm	55mm	10mm	9810	6975	12.6
S6007	Open	35 mm	62mm	14mm	14310	9270	11.7
S6207	Open	35 mm	72mm	17mm	23130	13860	9.9
S6307	Open	35 mm	80mm	21mm	30060	17370	9
S6708	Open	40mm	50mm	6mm	2259	2007	4.5
S6808	Open	40mm	52mm	7mm	4437	3762	12.6
S6908	Open	40mm	62mm	12mm	12330	8928	11.7
S6008	Open	40 mm	68mm	15mm	15030	10350	10.8
S6208	Open	40 mm	80mm	18mm	26190	16020	9
S6308	Open	40 mm	90mm	23mm	36630	21600	8.1
S6709	Open	45mm	55mm	6mm	2313	2160	4.14
S6809	Open	45mm	58mm	7mm	5589	4842	11.7
S6909	Open	45mm	68mm	12mm	12690	9810	9.9
S6009	Open	45 mm	75mm	16mm	18900	13590	9.9
S6209	Open	45 mm	85mm	19mm	29430	18270	8.28
S6309	Open	45 mm	100mm	25mm	47700	28800	7.2
S6710	Open	50mm	62mm	6mm	2403	2385	3.69
S6810	Open	50mm	65mm	7mm	5553	5184	9.9
S6910	Open	50mm	72mm	12mm	13050	10530	9.9
S6010	Open	50 mm	80mm	16mm	19620	14940	8.91
S6210	Open	50 mm	90mm	20mm	31590	20970	7.65
S6310	Open	50 mm	110mm	27mm	55800	34470	6.75
S6811	Open	55mm	72mm	9mm	7920	7272	9
S6911	Open	55mm	80mm	13mm	14940	12690	8.64
S6011	Open	55 mm	90mm	18mm	25470	19080	8.1
S6211	Open	55 mm	100mm	21mm	39060	26460	6.75
S6311	Open	55 mm	120mm	29mm	64440	40500	6.03
S6812	Open	60mm	78mm	10mm	10350	9540	8.46
S6912	Open	60mm	85mm	13mm	18180	15570	8.01
S6012	Open	60 mm	95mm	18mm	26460	20880	7.65
S6212	Open	60 mm	110mm	22mm	47160	32580	6.39
S6312	Open	60 mm	130mm	31mm	73710	46980	5.67
S6813	Open	65mm	85mm	10mm	10710	10350	7.74
S6913	Open	65mm	90mm	13mm	15570	14400	7.47
S6013	Open	65 mm	100mm	18mm	27450	22680	7.2
S6213	Open	65 mm	120mm	23mm	51480	36090	5.67
S6313	Open	65 mm	140mm	33mm	83430	53910	5.4
S6814	Open	70mm	90mm	10mm	10440	10620	7.29
S6914	Open	70mm	100mm	16mm	21330	18990	6.84
S6014	Open	70 mm	110mm	20mm	34290	27810	6.39
S6214	Open	70 mm	125mm	24mm	55980	39690	5.67
S6314	Open	70 mm	150mm	35mm	93600	61380	4.77
S6815	Open	75mm	95mm	10mm	11070	11520	6.84
S6915	Open	75mm	105mm	16mm	21600	20340	6.39
S6015	Open	75 mm	115mm	20mm	35640	30150	6.03
S6215	Open	75 mm	130mm	25mm	60660	43470	5.04
S6315	Open	75 mm	160mm	37mm	101700	69480	4.5
S6816	Open	80mm	100mm	10mm	11340	11970	6.39
S6916	Open	80mm	110mm	16mm	22320	21510	6.03
S6016	Open	80 mm	125mm	22mm	42840	35820	5.67
S6216	Open	80 mm	140mm	26mm	65430	47700	4.77
S6316	Open	80 mm	170mm	39mm	110700	78030	4.32
S6817	Open	85mm	110mm	13mm	16830	17100	5.94
S6917	Open	85mm	120mm	18mm	28710	26640	5.58
S6017	Open	85 mm	130mm	22mm	44550	38790	5.4
S6217	Open	85 mm	150mm	28mm	75600	55710	4.5
S6317	Open	85 mm	180mm	41mm	119700	87120	4.05
S6818	Open	90mm	115mm	13mm	16470	17550	5.58
S6918	Open	90mm	125mm	18mm	29160	28440	5.31
S6018	Open	90 mm	140mm	24mm	52380	44730	5.04
S6218	Open	90 mm	160mm	30mm	86490	64350	0
S6318	Open	90 mm	190mm	43mm	128700	96300	3.87
S6819	Open	95mm	120mm	13mm	16920	18270	5.31
S6019	Open	95 mm	145mm	24mm	54360	48510	4.77
S6219	Open	95 mm	170mm	32mm	98100	73710	4.05
S6319	Open	95 mm	200mm	45mm	137700	107100	4.77
S6020	Open	100 mm	150mm	24mm	54180	48780	4.77
S6220	Open	100 mm	180mm	34mm	109800	83790	3.87
S6320	Open	100 mm	215mm	47mm	155700	126900	3.06
S6021	Open	105 mm	160mm	26mm	65070	59220	4.32
S6221	Open	105 mm	190mm	36mm	119700	94500	3.6
S6321	Open	105 mm	225mm	49mm	165600	137700	2.88

BEARING LIST & BEARING DETAILS

Standard SEALED (2RS) type
AISI440C Stainless Steel bearings for
shaft sizes from 2 mm to 105 mm

CLI BEARING NO.	Seal Type (2RS)	Bore Dia	Outer Dia	Width	Dynamic Load	Static Load	MAX SPEED
		d	D	B	Rating	Rating	(GREASE)
		(mm)	(mm)	(mm)	(Cr)	(Cor)	(X1000 RPM)
S682-2RS	Sealed	2mm	5mm	2.3mm	129.6	36	90
SMR52-2RS	Sealed	2mm	5mm	2.5mm	129.6	36	90
S692-2RS	Sealed	2mm	6mm	3mm	252.9	71.1	81
SMR62-2RS	Sealed	2mm	6mm	2.5mm	252.9	71.1	81
S602-2RS	Sealed	2mm	7mm	3.5mm	295.2	92.7	63.9
SMR72-2RS	Sealed	2mm	7mm	3mm	295.2	92.7	67.5
S682x-2RS	Sealed	2.5mm	6mm	2.6mm	160.2	53.1	72
S692x-2RS	Sealed	2.5mm	7mm	3.5mm	295.2	92.7	67.5
S602x-2RS	Sealed	2.5mm	8mm	4mm	422.1	127.8	63.9
SMR82x-2RS	Sealed	2.5mm	8mm	2.5mm	426.6	129.6	60.3
SMR63-2RS	Sealed	3mm	6mm	2.5mm	160.2	53.1	72
S683-2RS	Sealed	3mm	7mm	3mm	237.6	81	67.5
S693-2RS	Sealed	3mm	8mm	4mm	426.6	129.6	60.3
SMR83-2RS	Sealed	3mm	8mm	3mm	302.4	101.7	60.3
S603-2RS	Sealed	3mm	9mm	5mm	207	135.9	60.3
SMR93-2RS	Sealed	3mm	9mm	4mm	436.5	135.9	60.3
S623-2RS	Sealed	3mm	10mm	4mm	482.4	157.5	54
S633-2RS	Sealed	3mm	13mm	5mm	995.4	351	43.2
SMR74-2RS	Sealed	4mm	7mm	2.5mm	195.3	77.4	60.3
SMR84-2RS	Sealed	4mm	8mm	3mm	302.4	101.7	60.3
S684-2RS	Sealed	4mm	9mm	4mm	490.5	163.8	56.7
SMR104-2RS	Sealed	4mm	10mm	4mm	543.6	196.2	50.4
S694-2RS	Sealed	4mm	11mm	4mm	732.6	252	50.4
S604-2RS	Sealed	4mm	12mm	4mm	732.6	252	50.4
S624-2RS	Sealed	4mm	13mm	5mm	995.4	351	43.2
S634-2RS	Sealed	4mm	16mm	5mm	1025.1	376.2	38.7
SMR85-2RS	Sealed	5mm	8mm	2.5mm	166.5	64.8	56.7
SMR95-2RS	Sealed	5mm	9mm	3mm	329.4	121.5	54
SMR105-2RS	Sealed	5mm	10mm	4mm	329.4	121.5	54
S685-2RS	Sealed	5mm	11mm	5mm	548.1	203.4	47.7
SMR115-2RS	Sealed	5mm	11mm	4mm	548.1	203.4	56.7
S695-2RS	Sealed	5mm	13mm	4mm	824.4	311.4	45
S605-2RS	Sealed	5mm	14mm	5mm	1017	365.4	45
S625-2RS	Sealed	5mm	16mm	5mm	1323	486	38.7
S635-2RS	Sealed	5mm	19mm	6mm	1787.4	645.3	36
SMR106-2RS	Sealed	6mm	10mm	3mm	379.8	156.6	47.7
SMR126-2RS	Sealed	6mm	12mm	4mm	548.1	212.4	45
S686-2RS	Sealed	6mm	13mm	5mm	828	318.6	45
S696-2RS	Sealed	6mm	15mm	5mm	1025.1	376.2	40.5
S606-2RS	Sealed	6mm	17mm	6mm	1731.6	609.3	40.5
S626-2RS	Sealed	6mm	19mm	6mm	1787.4	645.3	36
S636-2RS	Sealed	6mm	22mm	7mm	2549.7	1024.2	32.4
SMR117-2RS	Sealed	7mm	11mm	3mm	348.3	145.8	45
SMR137-2RS	Sealed	7mm	13mm	4mm	414	198.9	43.2
S687-2RS	Sealed	7mm	14mm	5mm	897.3	369	45
S697-2RS	Sealed	7mm	17mm	5mm	1227.6	517.5	38.7
S607-2RS	Sealed	7mm	19mm	6mm	1787.4	645.3	38.7
S627-2RS	Sealed	7mm	22mm	7mm	2514.6	992.7	32.4
S637-2RS	Sealed	7mm	26mm	9mm	3491.1	1427.4	30.6
SMR128-2RS	Sealed	8mm	12mm	3.5mm	415.8	197.1	43.2
SMR148-2RS	Sealed	8mm	14mm	4mm	625.5	278.1	40.5
S688-2RS	Sealed	8mm	16mm	5mm	957.6	426.6	38.7
S698-2RS	Sealed	8mm	19mm	6mm	1711.8	660.6	38.7
S608-2RS	Sealed	8mm	22mm	7mm	2519.1	992.7	36
S628-2RS	Sealed	8mm	24mm	8mm	2549.7	1024.2	30.6
S638-2RS	Sealed	8mm	28mm	9mm	3491.1	1427.4	30.6
S679-2RS	Sealed	9mm	14mm	4.5mm	702.9	336.6	37.8
S689-2RS	Sealed	9mm	17mm	5mm	1015.2	480.6	38.7
S699-2RS	Sealed	9mm	20mm	6mm	1887.3	778.5	36
S609-2RS	Sealed	9mm	24mm	7mm	2567.7	1039.5	34.2
S629-2RS	Sealed	9mm	26mm	8mm	3491.1	1427.4	30.6
S639-2RS	Sealed	9mm	30mm	10mm	3564	1497.6	27
S6700-2RS	Sealed	10mm	15mm	4mm	771.3	391.5	15.3
S63800-2RS	Sealed	10mm	19mm	7mm	1548	756	36
S6800-2RS	Sealed	10mm	19mm	5mm	1548	756	36
S6900-2RS	Sealed	10mm	22mm	6mm	2430	1143	33.3
S6000-2RS	Sealed	10 mm	26mm	8mm	4095	1755	32.4
S6200-2RS	Sealed	10 mm	30mm	9mm	4590	2160	26.1
S6300-2RS	Sealed	10 mm	35mm	11mm	7290	3105	24.3
S6701-2RS	Sealed	12mm	18mm	4mm	835.2	478.8	13.5
S63801-2RS	Sealed	12mm	21mm	7mm	1728	936	32.4
S6801-2RS	Sealed	12mm	21mm	5mm	1728	936	32.4
S6901-2RS	Sealed	12mm	24mm	6mm	2601	1314	29.7
S6001-2RS	Sealed	12 mm	28mm	8mm	4590	2160	28.8
S6201-2RS	Sealed	12 mm	32mm	10mm	6120	2745	24.3
S6301-2RS	Sealed	12 mm	37mm	12mm	8730	3780	22.5
S6702-2RS	Sealed	15mm	21mm	4mm	843.3	522.9	11.7
S63802-2RS	Sealed	15mm	24mm	7mm	1863	1134	27.9
S6802-2RS	Sealed	15mm	24mm	5mm	1863	1134	27.9
S6902-2RS	Sealed	15mm	28mm	7mm	3897	2025	26.1
S6002-2RS	Sealed	15 mm	32mm	9mm	5040	2565	24.3
S6202-2RS	Sealed	15 mm	35mm	11mm	6885	3375	21.6
S6302-2RS	Sealed	15 mm	42mm	13mm	10260	4905	18
S6703-2RS	Sealed	17mm	23mm	4mm	899.1	591.3	9.9
S63803-2RS	Sealed	17mm	26mm	7mm	2007	1314	26.1
S6803-2RS	Sealed	17mm	26mm	5mm	2007	1314	1314
S6903-2RS	Sealed	17mm	30mm	7mm	4131	2304	23.4
S6003-2RS	Sealed	17 mm	35mm	10mm	5400	2925	22.5
S6203-2RS	Sealed	17 mm	40mm	12mm	8595	4320	18.9
S6303-2RS	Sealed	17 mm	47mm	14mm	12240	5985	16.2
S6704-2RS	Sealed	20mm	27mm	4mm	909	649.8	9
S63804-2RS	Sealed	20mm	32mm	10mm	3618	2214	22.5
S6804-2RS	Sealed	20mm	32mm	7mm	3618	2214	22.5
S6904-2RS	Sealed	20mm	37mm	9mm	5742	3312	19.8
S6004-2RS	Sealed	20 mm	42mm	12mm	8460	4545	18.9
S6204-2RS	Sealed	20 mm	47mm	14mm	11520	5985	15.3
S6304-2RS	Sealed	20 mm	52mm	15mm	14310	7065	15.3
S6705-2RS	Sealed	25mm	32mm	4mm	990	754.2	7.2
S63805-2RS	Sealed	25mm	37mm	10mm	3870	2646	18.9
S6805-2RS	Sealed	25mm	37mm	7mm	3870	2646	18.9
S6905-2RS	Sealed	25mm	42mm	9mm	6309	4095	17.1
S6005-2RS	Sealed	25 mm	47mm	12mm	9090	5265	16.2
S6205-2RS	Sealed	25 mm	52mm	15mm	12600	7065	13.5
S6305-2RS	Sealed	25 mm	62mm	17mm	18540	10170	11.7
S6706-2RS	Sealed	30mm	37mm	4mm	1026	852.3	6.3
S63806-2RS	Sealed	30mm	42mm	10mm	4084.2	3061.8	16.2
S6806-2RS	Sealed	30mm	42mm	7mm	4005	3096	16.2
S6906-2RS	Sealed	30mm	47mm	9mm	6516	4509	15.3
S6006-2RS	Sealed	30 mm	55mm	13mm	11880	7425	13.5
S6206-2RS	Sealed	30 mm	62mm	16mm	17550	10170	11.7
S6306-2RS	Sealed	30 mm	72mm	19mm	24030	13500	10.8
S6707-2RS	Sealed	35mm	44mm	5mm	1674	1467	5.4
S6807-2RS	Sealed	35mm	47mm	7mm	4266	3438	14.4
S6907-2RS	Sealed	35mm	55mm	10mm	9810	6975	12.6
S6007-2RS	Sealed	35 mm	62mm	14mm	14310	9270	11.7
S6207-2RS	Sealed	35 mm	72mm	17mm	23130	13860	9.9
S6307-2RS	Sealed	35 mm	80mm	21mm	30060	17370	9
S6708-2RS	Sealed	40mm	50mm	6mm	2259	2007	4.5
S6808-2RS	Sealed	40mm	52mm	7mm	4437	3762	12.6
S6908-2RS	Sealed	40mm	62mm	12mm	12330	8928	11.7
S6008-2RS	Sealed	40 mm	68mm	15mm	15030	10350	10.8
S6208-2RS	Sealed	40 mm	80mm	18mm	26190	16020	9
S6308-2RS	Sealed	40 mm	90mm	23mm	36630	21600	8.1
S6709-2RS	Sealed	45mm	55mm	6mm	2313	2160	4.14
S6809-2RS	Sealed	45mm	58mm	7mm	5589	4842	11.7
S6909-2RS	Sealed	45mm	68mm	12mm	12690	9810	9.9
S6009-2RS	Sealed	45 mm	75mm	16mm	18900	13590	7.2
S6209-2RS	Sealed	45 mm	85mm	19mm	29430	18270	8.28
S6309-2RS	Sealed	45 mm	100mm	25mm	47700	28800	7.2
S6710-2RS	Sealed	50mm	62mm	6mm	2403	2385	3.69
S6810-2RS	Sealed	50mm	65mm	7mm	5553	5184	9.9
S6910-2RS	Sealed	50mm	72mm	12mm	13050	10530	9.9
S6010-2RS	Sealed	50 mm	80mm	16mm	19620	14940	8.91
S6210-2RS	Sealed	50 mm	90mm	20mm	31590	20970	6.75
S6310-2RS	Sealed	50 mm	110mm	27mm	55800	34470	6.75
S6811-2RS	Sealed	55mm	72mm	9mm	7920	7272	9
S6911-2RS	Sealed	55mm	80mm	13mm	14940	12690	8.64
S6011-2RS	Sealed	55 mm	90mm	18mm	25470	19080	8.1
S6211-2RS	Sealed	55 mm	100mm	21mm	39060	26460	6.75
S6311-2RS	Sealed	55 mm	120mm	29mm	64440	40500	6.03
S6812-2RS	Sealed	60mm	78mm	10mm	10350	9540	8.46
S6912-2RS	Sealed	60mm	85mm	13mm	18180	15570	8.01
S6012-2RS	Sealed	60 mm	95mm	18mm	26460	20880	7.65
S6212-2RS	Sealed	60 mm	110mm	22mm	47160	32580	6.39
S6312-2RS	Sealed	60 mm	130mm	31mm	73710	46980	5.67
S6813-2RS	Sealed	65mm	85mm	10mm	10710	10350	7.74
S6913-2RS	Sealed	65mm	90mm	13mm	15570	14400	7.47
S6013-2RS	Sealed	65 mm	100mm	18mm	27450	22680	7.2
S6213-2RS	Sealed	65 mm	120mm	23mm	51480	36090	5.67
S6313-2RS	Sealed	65 mm	140mm	33mm	83430	53910	5.4
S6814-2RS	Sealed	70mm	90mm	10mm	10440	10620	7.29
S6914-2RS	Sealed	70mm	100mm	16mm	21330	18990	6.84
S6014-2RS	Sealed	70 mm	110mm	20mm	34290	27810	6.39
S6214-2RS	Sealed	70 mm	125mm	24mm	55980	39690	5.67
S6314-2RS	Sealed	70 mm	150mm	35mm	93600	61380	4.77
S6815-2RS	Sealed	75mm	95mm	10mm	11070	11520	6.84
S6915-2RS	Sealed	75mm	105mm	16mm	21600	20340	6.39
S6015-2RS	Sealed	75 mm	115mm	20mm	35640	30150	6.03
S6215-2RS	Sealed	75 mm	130mm	25mm	60660	43470	5.04
S6315-2RS	Sealed	75 mm	160mm	37mm	101700	69480	4.5
S6816-2RS	Sealed	80mm	100mm	10mm	11340	11970	6.39
S6916-2RS	Sealed	80mm	110mm	16mm	22320	21510	6.03
S6016-2RS	Sealed	80 mm	125mm	22mm	42840	35820	5.67
S6216-2RS	Sealed	80 mm	140mm	26mm	65430	47700	4.77
S6316-2RS	Sealed	80 mm	170mm	39mm	110700	78030	4.32
S6817-2RS	Sealed	85mm	110mm	13mm	16830	17100	5.94
S6917-2RS	Sealed	85mm	120mm	18mm	28710	26640	5.58
S6017-2RS	Sealed	85 mm	130mm	22mm	44550	38790	5.4
S6217-2RS	Sealed	85 mm	150mm	28mm	75600	55710	4.5
S6317-2RS	Sealed	85 mm	180mm	41mm	119700	87120	4.05
S6818-2RS	Sealed	90mm	115mm	13mm	16470	17550	5.58
S6918-2RS	Sealed	90mm	125mm	18mm	29520	28440	5.4
S6018-2RS	Sealed	90 mm	140mm	24mm	52380	44730	5.04
S6218-2RS	Sealed	90 mm	160mm	30mm	86490	64350	4.32
S6318-2RS	Sealed	90 mm	190mm	43mm	128700	96300	3.87
S6819-2RS	Sealed	95mm	120mm	13mm	16920	18270	5.31
S6019-2RS	Sealed	95 mm	145mm	24mm	54360	48510	4.77
S6219-2RS	Sealed	95 mm	170mm	32m	98100	73710	4.05
S6319-2RS	Sealed	95 mm	200mm	45mm	137700	107100	4.77
S6020-2RS	Sealed	100 mm	150mm	24mm	54180	48780	4.77
S6220-2RS	Sealed	100 mm	180mm	34mm	109800	83790	3.87
S6320-2RS	Sealed	100 mm	215mm	47mm	155700	126900	3.06
S6021-2RS	Sealed	105 mm	160mm	26mm	65070	59220	4.32
S6221-2RS	Sealed	105 mm	190mm	36mm	119700	94500	3.6
S6321-2RS	Sealed	105 mm	225mm	49mm	165600	137700	2.88

BEARING LIST & BEARING DETAILS

Standard SHIELDED (ZZ) type
AISI440 Stainless Steel bearings for
shaft sizes from 2 mm to 105 mm

CLI BEARING NO.	Seal Type (ZZ)	Bore Dia	Outer Dia	Width	Dynamic Load	Static Load	MAX SPEED
		d	D	B	Rating	Rating	(GREASE)
		(mm)	(mm)	(mm)	(Cr)	(Cor)	(X1000 RPM)
S682ZZ	Shielded	2mm	5mm	2.3mm	129.6	36	90
SMR52ZZ	Shielded	2mm	5mm	2.5mm	129.6	36	90
S692ZZ	Shielded	2mm	6mm	3mm	252.9	71.1	81
SMR62ZZ	Shielded	2mm	6mm	2.5mm	252.9	71.1	81
S602ZZ	Shielded	2mm	7mm	3.5mm	295.2	92.7	63.9
SMR72ZZ	Shielded	2mm	7mm	3mm	295.2	92.7	67.5
S682XZZ	Shielded	2.5mm	6mm	2.6mm	160.2	53.1	72
S692XZZ	Shielded	2.5mm	7mm	3.5mm	295.2	92.7	67.5
S602XZZ	Shielded	2.5mm	8mm	4mm	422.1	127.8	63.9
SMR82XZZ	Shielded	2.5mm	8mm	2.5mm	426.6	129.6	60.3
SMR63ZZ	Shielded	3mm	6mm	2.5mm	160.2	53.1	72
S683ZZ	Shielded	3mm	7mm	3mm	237.6	81	67.5
S693ZZ	Shielded	3mm	8mm	4mm	426.6	129.6	60.3
SMR83ZZ	Shielded	3mm	8mm	3mm	302.4	101.7	60.3
S603ZZ	Shielded	3mm	9mm	5mm	207	135.9	60.3
SMR93ZZ	Shielded	3mm	9mm	4mm	436.5	135.9	60.3
S623ZZ	Shielded	3mm	10mm	4mm	482.4	157.5	54
S633ZZ	Shielded	3mm	13mm	5mm	995.4	351	43.2
SMR74ZZ	Shielded	4mm	7mm	2.5mm	195.3	77.4	60.3
SMR84ZZ	Shielded	4mm	8mm	3mm	302.4	101.7	60.3
S684ZZ	Shielded	4mm	9mm	4mm	490.5	163.8	56.7
SMR104ZZ	Shielded	4mm	10mm	4mm	543.6	196.2	50.4
S694ZZ	Shielded	4mm	11mm	4mm	732.6	252	50.4
S604ZZ	Shielded	4mm	12mm	4mm	732.6	252	50.4
S624ZZ	Shielded	4mm	13mm	5mm	995.4	351	43.2
S634ZZ	Shielded	4mm	16mm	5mm	1025.1	376.2	38.7
SMR85ZZ	Shielded	5mm	8mm	2.5mm	166.5	64.8	56.7
SMR95ZZ	Shielded	5mm	9mm	3mm	329.4	121.5	54
SMR105ZZ	Shielded	5mm	10mm	4mm	329.4	121.5	54
S685ZZ	Shielded	5mm	11mm	5mm	548.1	203.4	47.7
SMR115ZZ	Shielded	5mm	11mm	4mm	548.1	203.4	56.7
S695ZZ	Shielded	5mm	13mm	4mm	824.4	311.4	45
S605ZZ	Shielded	5mm	14mm	5mm	1017	365.4	45
S625ZZ	Shielded	5mm	16mm	5mm	1323	486	38.7
S635ZZ	Shielded	5mm	19mm	6mm	1787.4	645.3	36
SMR106ZZ	Shielded	6mm	10mm	3mm	379.8	156.6	47.7
SMR126ZZ	Shielded	6mm	12mm	4mm	548.1	212.4	45
S686ZZ	Shielded	6mm	13mm	5mm	828	318.6	45
S696ZZ	Shielded	6mm	15mm	5mm	1025.1	376.2	40.5
S606ZZ	Shielded	6mm	17mm	6mm	1731.6	609.3	40.5
S626ZZ	Shielded	6mm	19mm	6mm	1787.4	645.3	36
S636ZZ	Shielded	6mm	22mm	7mm	2549.7	1024.2	32.4
SMR117ZZ	Shielded	7mm	11mm	3mm	348.3	145.8	45
SMR137ZZ	Shielded	7mm	13mm	4mm	414	198.9	43.2
S687ZZ	Shielded	7mm	14mm	5mm	897.3	369	45
S697ZZ	Shielded	7mm	17mm	5mm	1227.6	517.5	38.7
S607ZZ	Shielded	7mm	19mm	6mm	1787.4	645.3	38.7
S627ZZ	Shielded	7mm	22mm	7mm	2514.6	992.7	32.4
S637ZZ	Shielded	7mm	26mm	9mm	3491.1	1427.4	30.6
SMR128ZZ	Shielded	8mm	12mm	3.5mm	415.8	197.1	43.2
SMR148ZZ	Shielded	8mm	14mm	4mm	625.5	278.1	40.5
S688ZZ	Shielded	8mm	16mm	5mm	957.6	426.6	38.7
S698ZZ	Shielded	8mm	19mm	6mm	1711.8	660.6	38.7
S608ZZ	Shielded	8mm	22mm	7mm	2519.1	992.7	36
S628ZZ	Shielded	8mm	24mm	8mm	2549.7	1024.2	30.6
S638ZZ	Shielded	8mm	28mm	9mm	3491.1	1427.4	30.6
S679ZZ	Shielded	9mm	14mm	4.5mm	702.9	336.6	37.8
S689ZZ	Shielded	9mm	17mm	5mm	1015.2	480.6	38.7
S699ZZ	Shielded	9mm	20mm	6mm	1887.3	778.5	36
S609ZZ	Shielded	9mm	24mm	7mm	2567.7	1039.5	34.2
S629ZZ	Shielded	9mm	26mm	8mm	3491.1	1427.4	30.6
S639ZZ	Shielded	9mm	30mm	10 mm	3564	1497.6	27
S6700ZZ	Shielded	10mm	15mm	4mm	771.3	391.5	15.3
S63800ZZ	Shielded	10mm	19mm	7mm	1548	756	36
S6800ZZ	Shielded	10mm	19mm	5mm	1548	756	36
S6900ZZ	Shielded	10mm	22mm	6mm	2430	1143	33.3
S6000ZZ	Shielded	10 mm	26mm	8mm	4095	1755	32.4
S6200ZZ	Shielded	10 mm	30mm	9mm	4590	2160	26.1
S6300ZZ	Shielded	10 mm	35mm	11mm	7290	3105	24.3
S6701ZZ	Shielded	12mm	18mm	4mm	835.2	478.8	13.5
S63801ZZ	Shielded	12mm	21mm	7mm	1728	936	32.4
S6801ZZ	Shielded	12mm	21mm	5mm	1728	936	32.4
S6901ZZ	Shielded	12mm	24mm	6mm	2601	1314	29.7
S6001ZZ	Shielded	12 mm	28mm	8mm	4590	2160	28.8
S6201ZZ	Shielded	12 mm	32mm	10mm	6120	2745	24.3
S6301ZZ	Shielded	12 mm	37mm	12mm	8730	3780	22.5
S6702ZZ	Shielded	15mm	21mm	4mm	843.3	522.9	11.7
S63802ZZ	Shielded	15mm	24mm	7mm	1863	1134	27.9
S6802ZZ	Shielded	15mm	24mm	5mm	1863	1134	27.9
S6902ZZ	Shielded	15mm	28mm	7mm	3897	2025	26.1
S6002ZZ	Shielded	15 mm	32mm	9mm	5040	2565	24.3
S6202ZZ	Shielded	15 mm	35mm	11mm	6885	3375	21.6
S6302ZZ	Shielded	15 mm	42mm	13mm	10260	4905	18
S6703ZZ	Shielded	17mm	23mm	4mm	899.1	591.3	9.9
S63803ZZ	Shielded	17mm	26mm	7mm	2007	1314	26.1
S6803ZZ	Shielded	17mm	26mm	5mm	2007	1314	26.1
S6903ZZ	Shielded	17mm	30mm	7mm	4131	2304	23.4
S6003ZZ	Shielded	17 mm	35mm	10mm	5400	2925	22.5
S6203ZZ	Shielded	17 mm	40mm	12mm	8595	4320	18.9
S6303ZZ	Shielded	17 mm	47mm	14mm	12240	12240	16.2
S6704ZZ	Shielded	20mm	27mm	4mm	909	649.8	9
S63804ZZ	Shielded	20mm	32mm	10mm	3618	2214	22.5
S6804ZZ	Shielded	20mm	32mm	7mm	3618	2214	22.5
S6904ZZ	Shielded	20mm	37mm	9mm	5742	3312	19.8
S6004ZZ	Shielded	20 mm	42mm	12mm	8460	4545	18.9
S6204ZZ	Shielded	20 mm	47mm	14mm	11520	5985	15.3
S6304ZZ	Shielded	20 mm	52mm	15mm	14310	7065	15.3
S6705ZZ	Shielded	25mm	32mm	4mm	990	754.2	7.2
S63805ZZ	Shielded	25mm	37mm	10mm	3870	2646	18.9
S6805ZZ	Shielded	25mm	37mm	7mm	3870	2646	18.9
S6905ZZ	Shielded	25mm	42mm	9mm	6309	4095	17.1
S6005ZZ	Shielded	25 mm	47mm	12mm	9090	5265	16.2
S6205ZZ	Shielded	25 mm	52mm	15mm	12600	7065	13.5
S6305ZZ	Shielded	25 mm	62mm	17mm	18540	10170	11.7
S6706ZZ	Shielded	30mm	37mm	4mm	1026	852.3	6.3
S63806ZZ	Shielded	30mm	42mm	10mm	4084.2	3061.8	16.2
S6806ZZ	Shielded	30mm	42mm	7mm	4084.2	3061.8	16.2
S6906ZZ	Shielded	30mm	47mm	9mm	6516	4509	15.3
S6006ZZ	Shielded	30 mm	55mm	13mm	11880	7425	13.5
S6206ZZ	Shielded	30 mm	62mm	16mm	17550	10170	11.7
S6306ZZ	Shielded	30 mm	72mm	19mm	24030	13500	10.8
S6707ZZ	Shielded	35mm	44mm	5mm	1674	1467	5.4
S6807ZZ	Shielded	35mm	47mm	7mm	4266	3438	14.4
S6907ZZ	Shielded	35mm	55mm	10mm	9810	6975	12.6
S6007ZZ	Shielded	35 mm	62mm	14mm	14310	9270	11.7
S6207ZZ	Shielded	35 mm	72mm	17mm	23130	13860	9.9
S6307ZZ	Shielded	35 mm	80mm	21mm	30060	17370	9
S6708ZZ	Shielded	40mm	50mm	6mm	2259	2007	4.5
S6808ZZ	Shielded	40mm	52mm	7mm	4437	3762	12.6
S6908ZZ	Shielded	40mm	62mm	12mm	12330	8928	11.7
S6008ZZ	Shielded	40 mm	68mm	15mm	15030	10350	10.8
S6208ZZ	Shielded	40 mm	80mm	18mm	26190	16020	9
S6308ZZ	Shielded	40 mm	90mm	23mm	36630	21600	8.1
S6709ZZ	Shielded	45mm	55mm	6mm	2313	2160	4.14
S6809ZZ	Shielded	45mm	58mm	7mm	5589	4842	11.7
S6909ZZ	Shielded	45mm	68mm	12mm	12690	9810	9.9
S6009ZZ	Shielded	45 mm	75mm	16mm	18900	13590	9.9
S6209ZZ	Shielded	45 mm	85mm	19mm	29430	18270	8.28
S6309ZZ	Shielded	45 mm	100mm	25mm	47700	28800	7.2
S6710ZZ	Shielded	50mm	62mm	6mm	2403	2385	3.69
S6810ZZ	Shielded	50mm	65mm	7mm	5553	5184	9.9
S6910ZZ	Shielded	50mm	72mm	12mm	13050	10530	9.9
S6010ZZ	Shielded	50 mm	80mm	16mm	19620	14940	8.91
S6210ZZ	Shielded	50 mm	90mm	20mm	31590	20970	7.65
S6310ZZ	Shielded	50 mm	110 mm	27mm	55800	34470	6.75
S6811ZZ	Shielded	55mm	72mm	9mm	7920	7272	9
S6911ZZ	Shielded	55mm	80mm	13mm	14940	12690	8.64
S6011ZZ	Shielded	55 mm	90mm	18mm	25470	19080	8.1
S6211ZZ	Shielded	55 mm	100mm	21mm	39060	26460	6.75
S6311ZZ	Shielded	55 mm	120mm	29mm	64440	40500	6.03
S6812ZZ	Shielded	60mm	78mm	10mm	10350	9540	8.46
S6912ZZ	Shielded	60mm	85mm	13mm	18180	15570	8.01
S6012ZZ	Shielded	60 mm	95mm	18mm	26460	20880	7.65
S6212ZZ	Shielded	60 mm	110mm	22mm	47160	32580	6.39
S6312ZZ	Shielded	60 mm	130mm	31mm	73710	46980	5.67
S6813ZZ	Shielded	65mm	85mm	10mm	10710	10350	7.74
S6913ZZ	Shielded	65mm	90mm	13mm	15570	14400	7.47
S6013ZZ	Shielded	65 mm	100mm	18mm	27450	22680	7.2
S6213ZZ	Shielded	65 mm	120mm	23mm	51480	36090	5.67
S6313ZZ	Shielded	65 mm	140mm	33mm	83430	53910	5.4
S6814ZZ	Shielded	70mm	90mm	10mm	10440	10620	7.29
S6914ZZ	Shielded	70mm	100mm	16mm	21330	18990	6.84
S6014ZZ	Shielded	70 mm	110mm	20mm	34290	27810	6.39
S6214ZZ	Shielded	70 mm	125mm	24mm	55980	39690	5.67
S6314ZZ	Shielded	70 mm	150mm	35mm	93600	61380	4.77
S6815ZZ	Shielded	75mm	95mm	10mm	11070	11520	6.84
S6915ZZ	Shielded	75mm	105mm	16mm	21600	20340	6.39
S6015ZZ	Shielded	75 mm	115mm	20mm	35640	30150	6.03
S6215ZZ	Shielded	75 mm	130mm	25mm	60660	43470	5.04
S6315ZZ	Shielded	75 mm	160mm	37mm	101700	69480	4.5
S6816ZZ	Shielded	80mm	100mm	10mm	11340	11970	6.39
S6916ZZ	Shielded	80mm	110mm	16mm	22320	21510	6.03
S6016ZZ	Shielded	80 mm	125mm	22mm	42840	35820	5.67
S6216ZZ	Shielded	80 mm	140mm	26mm	65430	47700	4.77
S6316ZZ	Shielded	80 mm	170mm	39mm	110700	78030	4.32
S6817ZZ	Shielded	85mm	110mm	13mm	16830	17100	5.94
S6917ZZ	Shielded	85mm	120mm	18mm	28710	26640	5.58
S6017ZZ	Shielded	85 mm	130mm	22mm	44550	38790	5.4
S6217ZZ	Shielded	85 mm	150mm	28mm	75600	55710	4.5
S6317ZZ	Shielded	85 mm	180mm	41mm	119700	87120	4.05
S6818ZZ	Shielded	90mm	115mm	13mm	16470	17550	5.58
S6918ZZ	Shielded	90mm	125mm	18mm	29520	28440	5.4
S6018ZZ	Shielded	90 mm	140mm	24mm	52380	44730	5.04
S6218ZZ	Shielded	90 mm	160mm	30mm	86490	64350	4.32
S6318ZZ	Shielded	90 mm	190mm	43mm	128700	96300	3.87
S6819ZZ	Shielded	95mm	120mm	13mm	16920	18270	5.31
S6019ZZ	Shielded	95 mm	145mm	24mm	54360	48510	4.77
S6219ZZ	Shielded	95 mm	170mm	32mm	98100	73710	4.05
S6319ZZ	Shielded	95 mm	200mm	45mm	137700	107100	4.77
S6020ZZ	Shielded	100 mm	150mm	24mm	54180	48780	4.77
S6220ZZ	Shielded	100 mm	180mm	34mm	109800	83790	3.87
S6320ZZ	Shielded	100 mm	215mm	47mm	155700	126900	3.06
S6021ZZ	Shielded	105 mm	160mm	26mm	65070	59220	4.32
S6221ZZ	Shielded	105 mm	190mm	36mm	119700	94500	3.6
S6321ZZ	Shielded	105 mm	225mm	49mm	165600	137700	2.88

Ball Bearings-Popular Deep Groove Ball Bearings-AISI440C Stainless Steel, deep groove ball bearings, SINGLE row, OPEN / SELAED (2RS) / SHIELDED (ZZ), METRIC sizes
