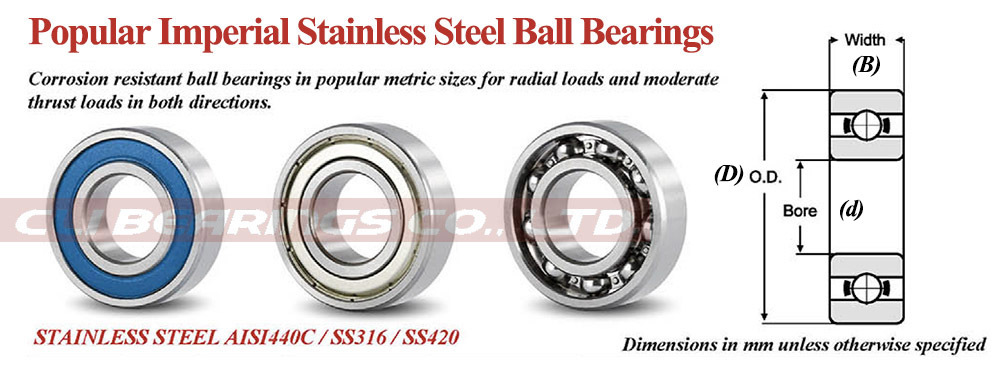

AISI440C Stainless Steel,
deep groove ball bearings, SINGLE row,
OPEN / SELAED (2RS) / SHIELDED (ZZ), INCH sizes
|
|
CLI stainless steel bearings are designed for wet and mildly corrosive environments where the bearings are required to cope with medium to high loads or speeds.
These stainless steel bearings are manufactured in AISI-440C. The stainless steel shields and retainers are usually made from AISI-304 stainless steel but some sizes are available with a reinforced polyamide retainer. All sizes can be supplied with stainless steel shields or rubber contact seals.
Our stainless steel ball bearings can be supplied with food grade lubricants, water resistant or chemically resistant lubricants as well as high temperature lubricants to withstand up to 300°C. Stainless steel will cope with much higher temperatures than chrome steel. Our stainless steel bearings are widely used in the food and beverage industries where equipment is frequently washed down.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
Standard OPEN (No Suffix) type
AISI440C Stainless Steel bearings for
shaft sizes from 0.0938 inch to 1.5 inch
|
 |
| |
CLI
BEARING NO. |
Seal Type
(No Suffix) |
Bore Dia |
Outer Dia |
Width |
Dynamic Load |
Static Load |
MAX SPEED |
| d |
D |
B |
Rating |
Rating |
(GREASE) |
| (inch) |
(inch) |
(inch) |
(Cr) |
(Cor) |
(X1000 RPM) |
| SR133 |
Open |
0.0938" | 2.381 mm |
0.1875" | 4.763 mm |
0.0625" | 1.588 mm |
144.153 |
44.046 |
85.5 |
| SR1-5 |
Open |
0.0938" | 2.381 mm |
0.3125" | 7.938 mm |
0.1094" | 2.779 mm |
424.458 |
128.133 |
63.9 |
| SR144 |
Open |
0.125" | 3.175 mm |
0.25" | 6.35 mm |
0.0937" | 2.38 mm |
216.234 |
68.076 |
72 |
| SR2-5 |
Open |
0.125" | 3.175 mm |
0.3125" | 7.938 mm |
0.1094" | 2.779 mm |
428.454 |
128.133 |
60.3 |
| SR2 |
Open |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1562" | 3.967 mm |
484.515 |
156.168 |
60.3 |
| SR2-6 |
Open |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1094" | 2.779 mm |
488.52 |
164.178 |
56.7 |
| SR2A |
Open |
0.125" | 3.175 mm |
0.5" | 12.7 mm |
0.1719" | 4.366 mm |
488.52 |
164.178 |
56.7 |
| SR155 |
Open |
0.1563" | 3.969 mm |
0.3125" | 7.938 mm |
0.1094" | 2.779 mm |
276.291 |
108.117 |
56.7 |
| SR156 |
Open |
0.1875" | 4.763 mm |
0.3125" | 7.938 mm |
0.1094" | 2.779 mm |
276.291 |
108.117 |
56.7 |
| SR166 |
Open |
0.1875" | 4.763 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
544.581 |
196.209 |
54 |
| SR3 |
Open |
0.1875" | 4.763 mm |
0.5" | 12.7 mm |
0.1562" | 3.967 mm |
997.065 |
352.377 |
45 |
| SR3A |
Open |
0.1875" | 4.763 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
1133.208 |
448.479 |
40.5 |
| S1601 |
Open |
0.1875" | 4.763 mm |
0.6875" | 17.463 mm |
0.25" | 6.35 mm |
540 |
198 |
5.4 |
| SR168 |
Open |
0.25" | 6.35 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
284.301 |
124.137 |
50.4 |
| SR188 |
Open |
0.25" | 6.35 mm |
0.5" | 12.7 mm |
0.125" | 3.175 mm |
828.882 |
320.346 |
45 |
| SR4 |
Open |
0.25" | 6.35 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
1133.208 |
448.479 |
40.5 |
| S1602 |
Open |
0.25" | 6.35 mm |
0.6875" | 17.463 mm |
0.25" | 6.35 mm |
571.5 |
216 |
5.4 |
| SR4A |
Open |
0.25" | 6.35 mm |
0.75" | 19.05 mm |
0.2188" | 5.558 mm |
1785.906 |
644.688 |
38.7 |
| SR1810 |
Open |
0.3125" | 7.938 mm |
0.5" | 12.7 mm |
0.1562" | 3.967 mm |
416.448 |
200.214 |
43.2 |
| S1603 |
Open |
0.3125" | 7.938 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
670.5 |
279 |
5.4 |
| S1605 |
Open |
0.3125" | 7.938 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
670.5 |
283.5 |
5.4 |
| S1604 |
Open |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
675 |
288 |
5.4 |
| SR6 |
Open |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2188" | 5.558 mm |
2550.726 |
1025.1 |
34.2 |
| S1606 |
Open |
0.375" | 9.525 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
675 |
288 |
5.4 |
| S1614 |
Open |
0.375" | 9.525 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1026 |
468 |
5.4 |
| S1607 |
Open |
0.4375" | 11.113 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
913.5 |
387 |
5.4 |
| S1615 |
Open |
0.4375" | 11.113 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1030.5 |
477 |
5.4 |
| S1620 |
Open |
0.4375" | 11.113 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1521 |
720 |
5.4 |
| S1616 |
Open |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1035 |
405 |
5.4 |
| SR8 |
Open |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.25" | 6.35 mm |
1034.1 |
459.9 |
28.8 |
| S1621 |
Open |
0.5" | 12.7 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1530 |
733.5 |
5.4 |
| S1622 |
Open |
0.5625" | 14.288 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1539 |
742.5 |
5.4 |
| S1623 |
Open |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1548 |
751.5 |
5.4 |
| SR10 |
Open |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.2812" | 7.142 mm |
1426.5 |
661.5 |
22.5 |
| S1628 |
Open |
0.625" | 15.875 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
1890 |
985.5 |
5.4 |
| S1633 |
Open |
0.625" | 15.875 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
1890 |
1008 |
5.4 |
| S1630 |
Open |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
1899 |
1003.5 |
5.4 |
| SR12 |
Open |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.3125" | 7.938 mm |
2229.3 |
1059.3 |
18.9 |
| S1635 |
Open |
0.75" | 19.05 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
1903.5 |
1026 |
5.4 |
| S1638 |
Open |
0.75" | 19.05 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2043 |
1161 |
5.4 |
| SR14 |
Open |
0.875" | 22.225 mm |
1.875" | 47.625 mm |
0.375" | 9.525 mm |
2392.2 |
1176.3 |
10.8 |
| S1640 |
Open |
0.875" | 22.225 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2038.5 |
1183.5 |
5.4 |
| S1641 |
Open |
1" | 25.4 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2034 |
1210.5 |
5.4 |
| SR16 |
Open |
1" | 25.4 mm |
2" | 50.8 mm |
0.375" | 9.525 mm |
2386.8 |
1176.3 |
9.9 |
| SR18 |
Open |
1.125" | 28.575 mm |
2.125" | 53.975 mm |
0.375" | 9.525 mm |
3142.8 |
1635.3 |
9 |
| S1652 |
Open |
1.125" | 28.575 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
3242.7 |
2052 |
5.4 |
| SR20 |
Open |
1.25" | 31.75 mm |
2.25" | 57.15 mm |
0.375" | 9.525 mm |
3325.5 |
1787.4 |
8.1 |
| S1654 |
Open |
1.25" | 31.75 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
3240 |
2070 |
5.4 |
| S1657 |
Open |
1.25" | 31.75 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
3960 |
2250 |
5.4 |
| S1658 |
Open |
1.3125" | 33.338 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
3933 |
2340 |
5.4 |
| SR22 |
Open |
1.375" | 34.925 mm |
2.5" | 63.5 mm |
0.4375" | 11.113 mm |
3660.3 |
2022.3 |
7.2 |
| SR24 |
Open |
1.5" | 38.1 mm |
2.625" | 66.675 mm |
0.4375" | 11.113 mm |
3983.4 |
2201.4 |
5.4 |
|
| |
| BEARING LIST & BEARING DETAILS |
Standard SEALED (2RS) type
AISI440C Stainless Steel bearings for
shaft sizes from 0.0938 inch to 1.5 inch
|
|
| |
CLI
BEARING NO. |
Seal Type
(2RS) |
Bore Dia |
Outer Dia |
Width |
Dynamic Load |
Static Load |
MAX SPEED |
| d |
D |
B |
Rating |
Rating |
(GREASE) |
| (Inch) |
(Inch) |
(Inch) |
(Cr) |
(Cor) |
(X1000 RPM) |
| SR133-2RS |
Sealed |
0.0938" | 2.381 mm |
0.1875" | 4.763 mm |
0.0937" | 2.38 mm |
112.122 |
40.041 |
85.5 |
| SR1-5-2RS |
Sealed |
0.0938" | 2.381 mm |
0.3125" | 7.938 mm |
0.1406" | 3.571 mm |
424.458 |
128.133 |
63.9 |
| SR144-2RS |
Sealed |
0.125" | 3.175 mm |
0.25" | 6.35 mm |
0.1094" | 2.779 mm |
216.234 |
68.076 |
72 |
| SR2-5-2RS |
Sealed |
0.125" | 3.175 mm |
0.3125" | 7.938 mm |
0.1406" | 3.571 mm |
428.454 |
128.133 |
60.3 |
| SR2-2RS |
Sealed |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1562" | 3.967 mm |
484.515 |
156.168 |
60.3 |
| SR2-6-2RS |
Sealed |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1406" | 3.571 mm |
488.52 |
164.178 |
56.7 |
| SR2A-2RS |
Sealed |
0.125" | 3.175 mm |
0.5" | 12.7 mm |
0.1719" | 4.366 mm |
488.52 |
164.178 |
56.7 |
| SR155-2RS |
Sealed |
0.1563" | 3.969 mm |
0.3125" | 7.938 mm |
0.125" | 3.175 mm |
276.291 |
108.117 |
56.7 |
| SR156-2RS |
Sealed |
0.1875" | 4.763 mm |
0.3125" | 7.938 mm |
0.125" | 3.175 mm |
276.291 |
108.117 |
56.7 |
| SR166-2RS |
Sealed |
0.1875" | 4.763 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
544.581 |
196.209 |
54 |
| SR3-2RS |
Sealed |
0.1875" | 4.763 mm |
0.5" | 12.7 mm |
0.196" | 4.978 mm |
997.065 |
352.377 |
47.7 |
| SR3A-2RS |
Sealed |
0.1875" | 4.763 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
1133.208 |
448.479 |
40.5 |
| S1601-2RS |
Sealed |
0.1875" | 4.763 mm |
0.6875" | 17.463 mm |
0.3125" | 7.938 mm |
540 |
198 |
5.4 |
| SR168-2RS |
Sealed |
0.25" | 6.35 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
284.301 |
124.137 |
50.4 |
| SR188-2RS |
Sealed |
0.25" | 6.35 mm |
0.5" | 12.7 mm |
0.1875" | 4.763 mm |
828.882 |
320.346 |
45 |
| SR4-2RS |
Sealed |
0.25" | 6.35 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
1133.208 |
448.479 |
40.5 |
| S1602-2RS |
Sealed |
0.25" | 6.35 mm |
0.6875" | 17.463 mm |
0.3125" | 7.938 mm |
571.5 |
216 |
5.4 |
| SR4A-2RS |
Sealed |
0.25" | 6.35 mm |
0.75" | 19.05 mm |
0.2812" | 7.142 mm |
1785.906 |
644.688 |
38.7 |
| SR1810-2RS |
Sealed |
0.3125" | 7.938 mm |
0.5" | 12.7 mm |
0.1562" | 3.967 mm |
416.448 |
200.214 |
43.2 |
| S1603-2RS |
Sealed |
0.3125" | 7.938 mm |
0.875" | 22.225 mm |
0.3438" | 8.733 mm |
670.5 |
279 |
5.4 |
| S1605-2RS |
Sealed |
0.3125" | 7.938 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
670.5 |
283.5 |
5.4 |
| S1604-2RS |
Sealed |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.3438" | 8.733 mm |
675 |
288 |
5.4 |
| SR6-2RS |
Sealed |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
2550.726 |
1025.1 |
34.2 |
| S1606-2RS |
Sealed |
0.375" | 9.525 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
675 |
288 |
5.4 |
| S1614-2RS |
Sealed |
0.375" | 9.525 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1026 |
468 |
5.4 |
| S1607-2RS |
Sealed |
0.4375" | 11.113 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
913.5 |
387 |
5.4 |
| S1615-2RS |
Sealed |
0.4375" | 11.113 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1030.5 |
477 |
5.4 |
| S1620-2RS |
Sealed |
0.4375" | 11.113 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1521 |
720 |
5.4 |
| S1616-2RS |
Sealed |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1035 |
405 |
5.4 |
| SR8-2RS |
Sealed |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.3125" | 7.938 mm |
1034.1 |
459.9 |
28.8 |
| S1621-2RS |
Sealed |
0.5" | 12.7 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1530 |
733.5 |
5.4 |
| S1622-2RS |
Sealed |
0.5625" | 14.288 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1539 |
742.5 |
5.4 |
| S1623-2RS |
Sealed |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1548 |
751.5 |
5.4 |
| SR10-2RS |
Sealed |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.3438" | 8.733 mm |
1426.5 |
661.5 |
22.5 |
| S1628-2RS |
Sealed |
0.625" | 15.875 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
1890 |
985.5 |
5.4 |
| S1633-2RS |
Sealed |
0.625" | 15.875 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
1890 |
1008 |
5.4 |
| S1630-2RS |
Sealed |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
1899 |
1003.5 |
5.4 |
| SR12-2RS |
Sealed |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.4375" | 11.113 mm |
2229.3 |
1059.3 |
18.9 |
| S1635-2RS |
Sealed |
0.75" | 19.05 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
1903.5 |
1026 |
5.4 |
| S1638-2RS |
Sealed |
0.75" | 19.05 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2043 |
1161 |
5.4 |
| SR14-2RS |
Sealed |
0.875" | 22.225 mm |
1.875" | 47.625 mm |
0.5" | 12.7 mm |
2392.2 |
1176.3 |
10.8 |
| S1640-2RS |
Sealed |
0.875" | 22.225 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2038.5 |
1183.5 |
5.4 |
| S1641-2RS |
Sealed |
1" | 25.4 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2034 |
1210.5 |
5.4 |
| SR16-2RS |
Sealed |
1" | 25.4 mm |
2" | 50.8 mm |
0.5" | 12.7 mm |
2386.8 |
1176.3 |
9.9 |
| SR18-2RS |
Sealed |
1.125" | 28.575 mm |
2.125" | 53.975 mm |
0.5" | 12.7 mm |
3142.8 |
1635.3 |
9 |
| S1652-2RS |
Sealed |
1.125" | 28.575 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
3242.7 |
2052 |
5.4 |
| SR20-2RS |
Sealed |
1.25" | 31.75 mm |
2.25" | 57.15 mm |
0.5" | 12.7 mm |
3325.5 |
1787.4 |
8.1 |
| S1654-2RS |
Sealed |
1.25" | 31.75 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
3240 |
2070 |
5.4 |
| S1657-2RS |
Sealed |
1.25" | 31.75 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
3960 |
2250 |
5.4 |
| S1658-2RS |
Sealed |
1.3125" | 33.338 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
3933 |
2340 |
5.4 |
| SR22-2RS |
Sealed |
1.375" | 34.925 mm |
2.5" | 63.5 mm |
0.5625" | 14.288 mm |
3660.3 |
2022.3 |
7.2 |
| SR24-2RS |
Sealed |
1.5" | 38.1 mm |
2.625" | 66.675 mm |
0.5625" | 14.288 mm |
3983.4 |
2201.4 |
5.4 |
|
| |
| |
| BEARING LIST & BEARING DETAILS |
Standard SHIELDED (ZZ) type
AISI440 Stainless Steel bearings for
shaft sizes from 0.0938 inch to 1.5 inch
|
|
| |
CLI
BEARING NO. |
Seal Type
(ZZ) |
Bore Dia |
Outer Dia |
Width |
Dynamic Load |
Static Load |
MAX SPEED |
| d |
D |
B |
Rating |
Rating |
(GREASE) |
| (inch) |
(inch) |
(inch) |
(Cr) |
(Cor) |
(X1000 RPM) |
| SR133ZZ |
Shielded |
0.0938" | 2.381 mm |
0.1875" | 4.763 mm |
0.0937" | 2.38 mm |
112.122 |
40.041 |
85.5 |
| SR1-5ZZ |
Shielded |
0.0938" | 2.381 mm |
0.3125" | 7.938 mm |
0.1406" | 3.571 mm |
424.458 |
128.133 |
63.9 |
| SR144ZZ |
Shielded |
0.125" | 3.175 mm |
0.25" | 6.35 mm |
0.1094" | 2.779 mm |
216.234 |
68.076 |
72 |
| SR2-5ZZ |
Shielded |
0.125" | 3.175 mm |
0.3125" | 7.938 mm |
0.1406" | 3.571 mm |
428.454 |
128.133 |
60.3 |
| SR2-6ZZ |
Shielded |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1406" | 3.571 mm |
488.52 |
164.178 |
56.7 |
| SR2ZZ |
Shielded |
0.125" | 3.175 mm |
0.375" | 9.525 mm |
0.1562" | 3.967 mm |
484.515 |
156.168 |
60.3 |
| SR2AZZ |
Shielded |
0.125" | 3.175 mm |
0.5" | 12.7 mm |
0.1719" | 4.366 mm |
488.52 |
164.178 |
56.7 |
| SR155ZZ |
Shielded |
0.1563" | 3.969 mm |
0.3125" | 7.938 mm |
0.125" | 3.175 mm |
276.291 |
108.117 |
56.7 |
| SR156ZZ |
Shielded |
0.1875" | 4.763 mm |
0.3125" | 7.938 mm |
0.125" | 3.175 mm |
276.291 |
108.117 |
56.7 |
| SR166ZZ |
Shielded |
0.1875" | 4.763 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
544.581 |
196.209 |
54 |
| SR3ZZ |
Shielded |
0.1875" | 4.763 mm |
0.5" | 12.7 mm |
0.196" | 4.978 mm |
997.065 |
352.377 |
47.7 |
| SR3AZZ |
Shielded |
0.1875" | 4.763 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
1133.208 |
448.479 |
40.5 |
| S1601 ZZ |
Shielded |
0.1875" | 4.763 mm |
0.6875" | 17.463 mm |
0.25" | 6.35 mm |
540 |
198 |
5.4 |
| SR168ZZ |
Shielded |
0.25" | 6.35 mm |
0.375" | 9.525 mm |
0.125" | 3.175 mm |
284.301 |
124.137 |
50.4 |
| SR188ZZ |
Shielded |
0.25" | 6.35 mm |
0.5" | 12.7 mm |
0.1875" | 4.763 mm |
828.882 |
320.346 |
45 |
| SR4ZZ |
Shielded |
0.25" | 6.35 mm |
0.625" | 15.875 mm |
0.196" | 4.978 mm |
1133.208 |
448.479 |
40.5 |
| S1602 ZZ |
Shielded |
0.25" | 6.35 mm |
0.6875" | 17.463 mm |
0.25" | 6.35 mm |
571.5 |
216 |
5.4 |
| SR4AZZ |
Shielded |
0.25" | 6.35 mm |
0.75" | 19.05 mm |
0.2812" | 7.142 mm |
1785.906 |
644.688 |
38.7 |
| SR1810ZZ |
Shielded |
0.3125" | 7.938 mm |
0.5" | 12.7 mm |
0.1562" | 3.967 mm |
416.448 |
200.214 |
43.2 |
| S1603 ZZ |
Shielded |
0.3125" | 7.938 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
670.5 |
279 |
5.4 |
| S1605 ZZ |
Shielded |
0.3125" | 7.938 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
670.5 |
283.5 |
5.4 |
| S1604 ZZ |
Shielded |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
675 |
288 |
5.4 |
| SR6ZZ |
Shielded |
0.375" | 9.525 mm |
0.875" | 22.225 mm |
0.2812" | 7.142 mm |
2550.726 |
1025.1 |
28.8 |
| S1606 ZZ |
Shielded |
0.375" | 9.525 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
675 |
288 |
5.4 |
| S1614 ZZ |
Shielded |
0.375" | 9.525 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1026 |
468 |
5.4 |
| S1607 ZZ |
Shielded |
0.4375" | 11.113 mm |
0.9062" | 23.017 mm |
0.3125" | 7.938 mm |
913.5 |
387 |
5.4 |
| S1615 ZZ |
Shielded |
0.4375" | 11.113 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1030.5 |
477 |
5.4 |
| S1620 ZZ |
Shielded |
0.4375" | 11.113 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1521 |
720 |
5.4 |
| S1616 ZZ |
Shielded |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.375" | 9.525 mm |
1035 |
405 |
5.4 |
| SR8ZZ |
Shielded |
0.5" | 12.7 mm |
1.125" | 28.575 mm |
0.3125" | 7.938 mm |
1034.1 |
459.9 |
28.8 |
| S1621 ZZ |
Shielded |
0.5" | 12.7 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1530 |
733.5 |
5.4 |
| S1622 ZZ |
Shielded |
0.5625" | 14.288 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1539 |
742.5 |
5.4 |
| S1623 ZZ |
Shielded |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.4375" | 11.113 mm |
1548 |
751.5 |
5.4 |
| SR10ZZ |
Shielded |
0.625" | 15.875 mm |
1.375" | 34.925 mm |
0.3438" | 8.733 mm |
1426.5 |
661.5 |
22.5 |
| S1628 ZZ |
Shielded |
0.625" | 15.875 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
1890 |
985.5 |
5.4 |
| S1633 ZZ |
Shielded |
0.625" | 15.875 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
1890 |
1008 |
5.4 |
| S1630 ZZ |
Shielded |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.5" | 12.7 mm |
1899 |
1003.5 |
5.4 |
| SR12ZZ |
Shielded |
0.75" | 19.05 mm |
1.625" | 41.275 mm |
0.4375" | 11.113 mm |
2229.3 |
1059.3 |
18.9 |
| S1635 ZZ |
Shielded |
0.75" | 19.05 mm |
1.75" | 44.45 mm |
0.5" | 12.7 mm |
1903.5 |
1026 |
5.4 |
| S1638 ZZ |
Shielded |
0.75" | 19.05 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2043 |
1161 |
5.4 |
| SR14ZZ |
Shielded |
0.875" | 22.225 mm |
1.875" | 47.625 mm |
0.5" | 12.7 mm |
2392.2 |
1176.3 |
10.8 |
| S1640 ZZ |
Shielded |
0.875" | 22.225 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2038.5 |
1183.5 |
5.4 |
| S1641 ZZ |
Shielded |
1" | 25.4 mm |
2" | 50.8 mm |
0.5625" | 14.288 mm |
2034 |
1210.5 |
5.4 |
| SR16ZZ |
Shielded |
1" | 25.4 mm |
2" | 50.8 mm |
0.5" | 12.7 mm |
2386.8 |
1176.3 |
9.9 |
| SR18ZZ |
Shielded |
1.125" | 28.575 mm |
2.125" | 53.975 mm |
0.5" | 12.7 mm |
3142.8 |
1635.3 |
9 |
| S1652 ZZ |
Shielded |
1.125" | 28.575 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
3242.7 |
2052 |
5.4 |
| SR20ZZ |
Shielded |
1.25" | 31.75 mm |
2.25" | 57.15 mm |
0.5" | 12.7 mm |
3325.5 |
1787.4 |
8.1 |
| S1654 ZZ |
Shielded |
1.25" | 31.75 mm |
2.5" | 63.5 mm |
0.625" | 15.875 mm |
3240 |
2070 |
5.4 |
| S1657 ZZ |
Shielded |
1.25" | 31.75 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
3960 |
2250 |
5.4 |
| S1658 ZZ |
Shielded |
1.3125" | 33.338 mm |
2.5625" | 65.088 mm |
0.6875" | 17.463 mm |
3933 |
2340 |
5.4 |
| SR22ZZ |
Shielded |
1.375" | 34.925 mm |
2.5" | 63.5 mm |
0.5625" | 14.288 mm |
3660.3 |
2022.3 |
7.2 |
| SR24ZZ |
Shielded |
1.5" | 38.1 mm |
2.625" | 66.675 mm |
0.5625" | 14.288 mm |
3983.4 |
2201.4 |
5.4 |
|
| |
| |
