Rolling Ball Bearings-Popular Deep Groove Ball Bearings-AISI440C Stainless Steel, 67 / 68 / 69 Thin-Section Ball Bearings, METRIC sizes

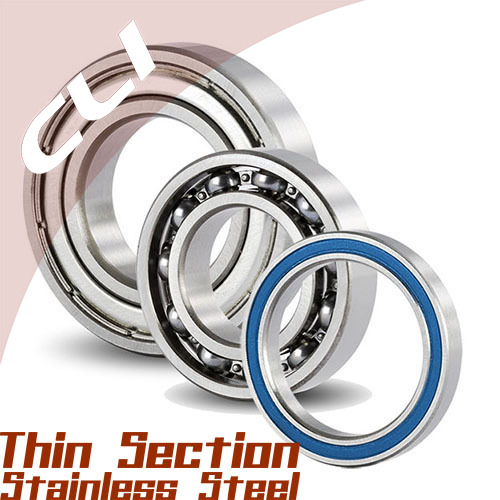

Original thin ss open zz 2rs 244
Product Picture

AISI440C Stainless Steel,
Thin-Section Ball Bearings

67 / 68 / 69 , METRIC sizes




CLI stainless steel AISI-440C thin section bearings are used in applications where space is at a premium or weight reduction is required. Stainless steel thin section bearings have low rotational torque and high rotational accuracy. Thin section bearings are designed for mainly radial loads. They will support axial loads but, with the 6700 series in particular, these should be limited due to the shallower raceways. The smaller sizes in this range are also available with a flanged outer ring.

Stainless steel thin section bearings, with a stainless steel retainer and a suitable high temperature lubricant, can be used at temperatures of 250°C constant or up to 300°C intermittent. Stainless steel bearings are suitable for use in mildly corrosive environments as the steel is corrosion resistant but it is affected by seawater and stronger acids or alkalis. A stainless steel bearing does not need preservative oil on the exterior surfaces so they can be used without lubrication (dry).

The bearings in the table below can be supplied open, with AISI-304 stainless steel shields, with rubber contact seals and some with low friction non-contact rubber seals. The open bearings are normally oil lubricated. Shielded or sealed bearings are generally pre-lubricated with grease but shielded bearings can also be supplied with instrument oil for low torque applications or completely dry for low speed, low torque applications. If required, these bearings can also be relubricated with a food grade lubricant, a high temperature lubricant, a cleanroom lubricant or according to customer requirements.

The standard cage or retainer for a stainless steel miniature bearing is made from AISI-304 stainless steel. A one-piece crown cage is more common for the very small and the very thin section bearings due to space constraints. Larger sizes have a two piece ribbon cage.

Special attention should be given to shaft and housing roundness. The rings of stainless steel thin section bearings are easily distorted. Poor shaft or housing roundness will greatly increase bearing noise. Choosing the correct radial play for an application is even more important with thin section bearings. The internal clearance of a thin section bearing can be reduced by as much as 80% of the interference fit.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

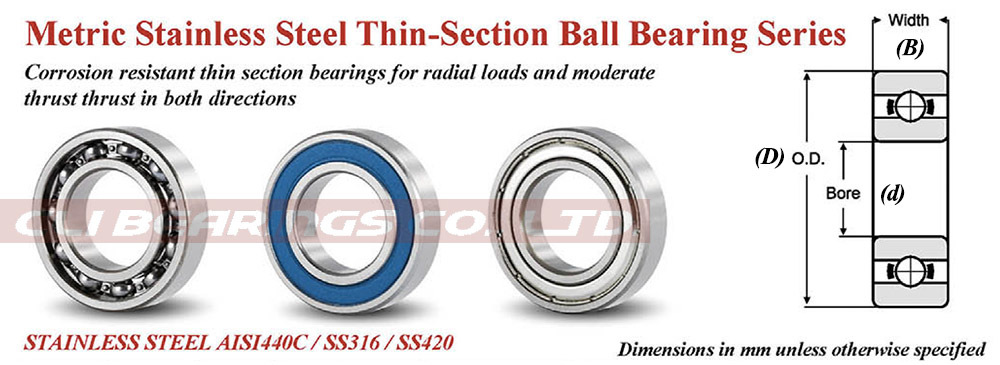

BEARING LIST & BEARING DETAILS

AISI440C Stainless Steel, Thin-Section Ball Bearings for
shaft sizes from
3 mm to 80 mm



BORE
(d)
O.D.
(D)
OPEN BEARING (No Suffix) SHIELDED BEARING (ZZ) SEALED BEARING (2RS)
WIDTH (B) CLI BEARING DETAILS WIDTH (B) CLI BEARING DETAILS WIDTH (B) CLI BEARING DETAILS
(mm) (Mm) (mm) NO. (mm) NO. (mm) NO.
10 15 3 S6700 Details 4 S6700ZZ Details 4 S6700-2RS Details
19 5 S6800 Details 5 S6800ZZ Details 5 S6800-2RS Details
19       6 S6800ZZW6 Details
19       7 S6800ZZW7 Details 7 S6800-2RSW7 Details
22 6 S6900 Details 6 S6900ZZ Details 6 S6900-2RS Details
12 18 4 S6701 Details 4 S6701ZZ Details 4 S6701-2RS Details
21 5 S6801 Details 5 S6801ZZ Details 5 S6801-2RS Details
21       7 S6801ZZW7 Details 7 S6801-2RSW7 Details
24 6 S6901 Details 6 S6901ZZ Details 6 S6901-2RS Details
15 21 4 S6702 Details 4 S6702ZZ Details 4 S6702-2RS Details
24 5 S6802 Details 5 S6802ZZ Details 5 S6802-2RS Details
24       7 S6802ZZW7 Details 7 S6802-2RSW7 Details
28 7 S6902 Details 7 S6902ZZ Details 7 S6902-2RS Details
17 23 4 S6703 Details 4 S6703ZZ Details 4 S6703-2RS Details
26 5 S6803 Details 5 S6803ZZ Details 5 S6803-2RS Details
26       7 S6803ZZW7 Details 7 S6803-2RSW7 Details
30 7 S6903 Details 7 S6903ZZ Details 7 S6903-2RS Details
20 25 4 SET2520 Details 4 SET2520ZZ Details
27 4 S6704 Details 4 S6704ZZ Details 4 S6704-2RS Details
32 7 S6804 Details 7 S6804ZZ Details 7 S6804-2RS Details
37 9 S6904 Details 9 S6904ZZ Details 9 S6904-2RS Details
25 32 4 S6705 Details       4 S6705-2RS Details
37 7 S6805 Details 7 S6805ZZ Details 7 S6805-2RS Details
42 9 S6905 Details 9 S6905ZZ Details 9 S6905-2RS Details
30 37 4 S6706 Details       4 S6706-2RS Details
42 7 S6806 Details 7 S6806ZZ Details 7 S6806-2RS Details
47 9 S6906 Details 9 S6906ZZ Details 9 S6906-2RS Details
35 44 5 S6707 Details       5 S6707-2RS Details
47 7 S6807 Details 7 S6807ZZ Details 7 S6807-2RS Details
55 10 S6907 Details 10 S6907ZZ Details 10 S6907-2RS Details
40 50 6 S6708 Details       6 S6708-2RS Details
52 7 S6808 Details 7 S6808ZZ Details 7 S6808-2RS Details
62 12 S6908 Details 12 S6908ZZ Details 12 S6908-2RS Details
45 58 7 S6809 Details 7 S6809ZZ Details 7 S6809-2RS Details
58 7 S6909 Details 7 S6909ZZ Details 7 S6909-2RS Details
50 65 7 S6810 Details 7 S6810ZZ Details 7 S6810-2RS Details
72 12 S6910 Details 12 S6910ZZ Details 12 S6910-2RS Details
55 72 9 S6811 Details 9 S6811ZZ Details 9 S6811-2RS Details
80 13 S6911 Details 13 S6911ZZ Details 13 S6911-2RS Details
