Rolling Roller Bearings-Needle Roller Bearings-811 / 812 / K811 / K812 axial cylindrical roller bearings, needle roller thrust bearings, Single direction, METRIC sizes

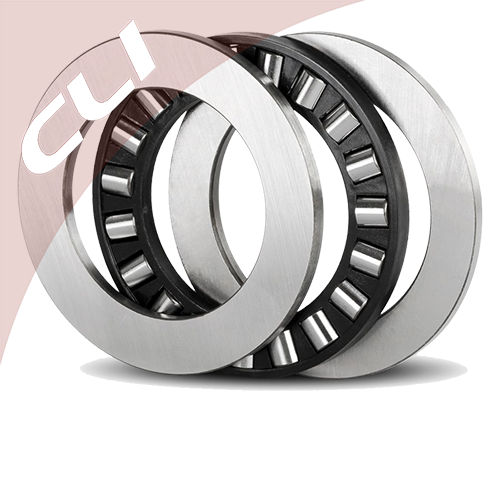

Original 24 picture 811 tn
Product Picture


811 / 812 / K811 / K812
Axial cylindrical roller bearings, needle roller thrust bearings,
Single direction, METRIC sizes




CLI axial cylindrical roller bearings are designed to withstand heavy loads in the direction of the shaft. Depending on the bearing design, the load can occur from one or both sides. Axial cylindrical roller bearings are fundamentally different in design from cylindrical roller bearings and consist of roller rings, housing washers, shaft washers and can be dismantled.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

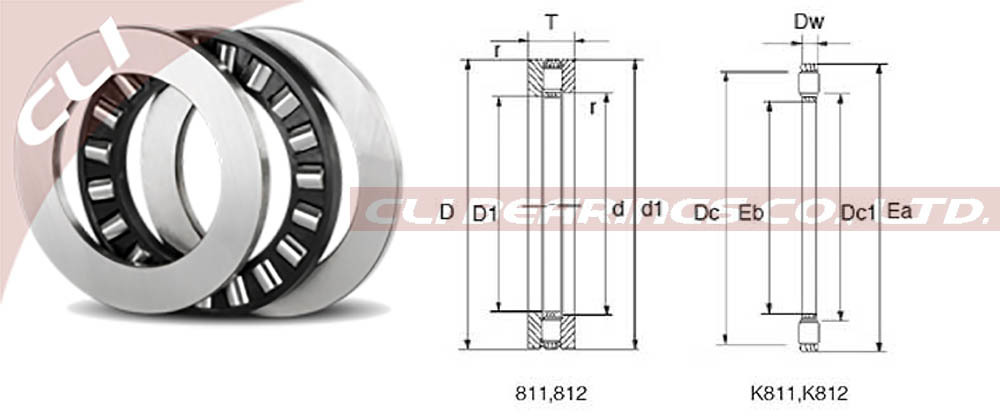

811 / 812 / K811 / K812
Axial cylindrical roller bearings for
shaft sizes from
15 mm to 340 mm




CLI Bearing NO. Boundary dimensions Basic load ratings Fatigue load limit Speed ratings
d D T Dw dynamic static Pu Ref speed Limited speed
[mm] [mm] [mm]

[mm]

C [kN] C0 [kN] [kN] [r/min] [r/min]
81102 15 28 9   11.2 27 2.45 4300 8500
K 81102 TN 15 28   3.5 11.2 27 2.45 4300 8500
81103 17 30 9   12.2 31.5 2.85 4300 8500
K 81103 TN 17 30   3.5 12.2 31.5 2.85 4300 8500
81104 20 35 10   18.6 48 4.65 3800 7500
K 81104 TN 20 35   4.5 18.6 48 4.65 3800 7500
81105 25 42 11   25 69.5 6.8 3200 6300
K 81105 TN 25 42   5 25 69.5 6.8 3200 6300
81106 30 47 11   27 78 7.65 3000 6000
K 81106 TN 30 47   5 27 78 7.65 3000 6000
81206 30 52 16   50 134 13.4 2400 4800
K 81206 TN 30 52   7.5 50 134 13.4 2400 4800
81107 35 52 12   29 93 9.15 2800 5600
K 81107 TN 35 52   5 29 93 9.15 2800 5600
81207 35 62 18   62 190 19.3 2000 4000
K 81207 TN 35 62   7.5 62 190 19.3 2000 4000
81108 40 60 13   43 137 13.7 2400 5000
K 81108 TN 40 60   6 43 137 13.7 2400 5000
81208 40 68 19   83 255 26.5 1900 3800
K 81208 TN 40 68   9 83 255 26.5 1900 3800
81109 45 65 14   45 153 15.3 2200 4500
K 81109 TN 45 65   6 45 153 15.3 2200 4500
81209 45 73 20   83 255 26.5 1800 3600
K 81209 TN 45 73   9 83 255 26.5 1800 3600
81110 50 70 14   47.5 166 16.6 2200 4300
K 81110 TN 50 70   6 47.5 166 16.6 2200 4300
81210 50 78 22   91.5 300 31 1700 3400
K 81210 TN 50 78   9 91.5 300 31 1700 3400
81111 55 78 16   69.5 285 29 1900 3800
K 81111 TN 55 78   6 69.5 285 29 1900 3800
81211 55 90 25   122 390 40 1400 2800
K 81211 TN 55 90   11 122 390 40 1400 2800
81112 60 85 17   80 300 30.5 1800 3600
K 81112 TN 60 85   7.5 80 300 30.5 1800 3600
81212 60 95 26   137 465 47.5 1400 2800
K 81212 TN 60 95   11 137 465 47.5 1400 2800
81113 65 90 18   83 320 32.5 1700 3400
K 81113 TN 65 90   7.5 83 320 32.5 1700 3400
81213 65 100 27   140 490 50 1300 2600
K 81213 TN 65 100   11 140 490 50 1300 2600
81114 70 95 18   86.5 345 34.5 1700 3400
K 81114 TN 70 95   7.5 86.5 345 34.5 1700 3400
81214 70 105 27   146 530 55 1300 2600
K 81214 TN 70 105   11 146 530 55 1300 2600
81115 75 100 19   83 335 34 1600 3200
K 81115 TN 75 100   7.5 83 335 34 1600 3200
81215 75 110 27   137 490 50 1200 2400
K 81215 TN 75 110   11 137 490 50 1200 2400
81116 80 105 19   81.5 335 34 1500 3000
K 81116 TN 80 105   7.5 81.5 335 34 1500 3000
81216 80 115 28   160 610 63 1200 2400
K 81216 TN 80 115   11 160 610 63 1200 2400
81117 85 110 19   88 365 37.5 1500 3000
K 81117 TN 85 110   7.5 88 365 37.5 1500 3000
81217 85 125 31   170 640 67 1100 2200
K 81217 TN 85 125   12 170 640 67 1100 2200
81118 90 120 22   110 450 45.5 1300 2600
K 81118 TN 90 120   9 110 450 45.5 1300 2600
81218 90 135 35   232 865 90 1000 2000
K 81218 TN 90 135   14 232 865 90 1000 2000
81120 100 135 25   156 630 62 1200 2400
K 81120 TN 100 135   11 156 630 62 1200 2400
81220 100 150 38   270 1060 104 900 1800
81122 110 145 25   163 680 65.5 1100 2200
K 81122 TN 110 145   11 163 680 65.5 1100 2200
81222 110 160 38   260 1000 98 850 1700
81124 120 155 25   170 735 68 1100 2200
K 81124 TN 120 155   11 170 735 68 1100 2200
81224 120 170 39   255 1000 96.5 800 1600
81126 130 170 30   200 880 81.5 950 1900
81226 130 190 45   380 1460 137 700 1400
81128 140 180 31   208 930 85 900 1800
K 81128 TN 140 180   12 208 930 85 900 1800
81228 140 200 46   360 1400 129 700 1400
K 81228 M 140 200   19 360 1400 129 700 1400
81130 150 190 31   212 1000 88 850 1700
K 81130 TN 150 190   12 212 1000 88 850 1700
81230 150 215 50   465 1900 170 630 1300
K 81230 M 150 215   21 465 1900 170 630 1300
81132 160 200 31   216 1020 90 850 1700
K 81132 TN 160 200   12 216 1020 90 850 1700
81232 160 225 51   480 2000 176 600 1200
K 81232 M 160 225   21 480 2000 176 600 1200
81134 170 215 34   285 1340 118 800 1600
K 81134 TN 170 215   14 285 1340 118 800 1600
81234 170 240 55   540 2280 200 560 1100
K 81234 M 170 240   22 540 2280 200 560 1100
81136 180 225 34   270 1270 110 750 1500
K 81136 M 180 225   14 270 1270 110 750 1500
81236 180 250 56   550 2400 204 560 1100
K 81236 M 180 250   22 550 2400 204 560 1100
81138 190 240 37   310 1460 125 700 1400
K 81138 M 190 240   15 310 1460 125 700 1400
81238 190 270 62   695 2900 250 500 1000
K 81238 M 190 270   26 695 2900 250 500 1000
81140 200 250 37   310 1500 125 700 1400
K 81140 M 200 250   15 310 1500 125 700 1400
81240 200 280 62   720 3100 255 500 1000
K 81240 M 200 280   26 720 3100 255 500 1000
81144 220 270 37   335 1700 137 670 1300
K 81144 M 220 270   15 335 1700 137 670 1300
81244 220 300 63   750 3350 275 480 950
K 81244 M 220 300   26 750 3350 275 480 950
81148 240 300 45   475 2450 196 560 1100
K 81148 M 240 300   18 475 2450 196 560 1100
81248 240 340 78   1100 4900 390 400 800
81152 260 320 45   490 2600 200 530 1100
K 81152 M 260 320   18 490 2600 200 530 1100
81252 260 360 79   1140 5300 415 380 750
K 81252 M 260 360   32 1140 5300 415 380 750
81156 280 350 53   680 3550 275 480 950
K 81156 M 280 350   22 680 3550 275 480 950
K 81256 M 280 380   32 1160 5500 425 360 750
81160 300 380 62   850 4400 335 430 850
K 81160 M 300 380   25 850 4400 335 430 850
K 81260 M 300 420   38 1530 7200 540 320 630
81164 320 400 63   880 4650 345 400 800
81168 340 420 64   900 4900 355 380 800
K 81168 M 340 420   25 900 4900 355 380 800
