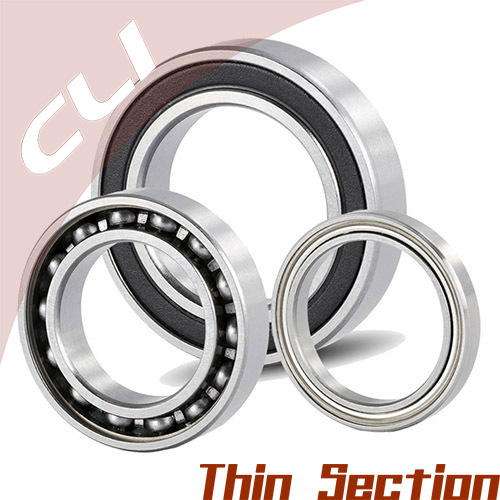

Product Picture

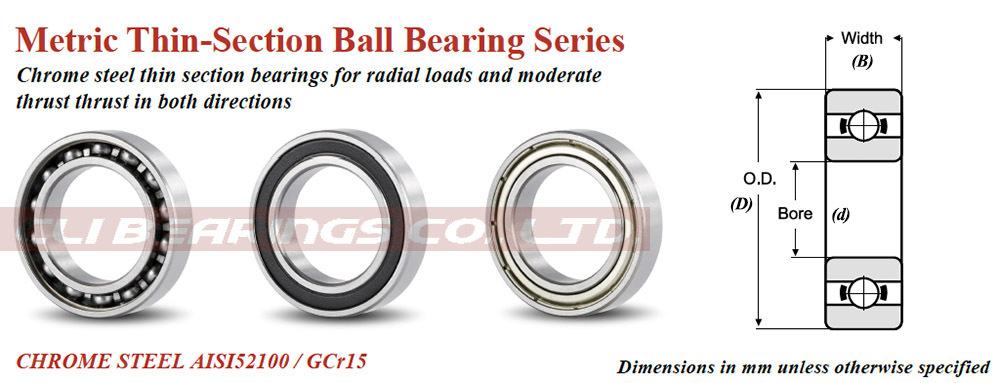

Standard 67 / 68 / 69 / ET / ER
Thin-Section Ball Bearings,
AISI52100 chrome steel,
METRIC sizes




CLI thin section bearings are used in instrumentation, robotics, aerospace, medical equipment, cameras and optical equipment. They are chosen for an application where space is at a premium or weight reduction is required. Thin section bearings have low rotational torque and high rotational accuracy. Thin section bearings are designed for mainly radial loads. They will support axial loads but, with the 6700 series in particular, these should be limited due to the shallower raceways. Our chrome steel thin section bearings are also available with a flange on the outer ring.

Chrome steel is the standard material for ball bearings thanks to its high load capacity and low noise properties. Chrome steel thin section bearings, with a steel retainer and a suitable lubricant, can be used at temperatures of 120°C constant or up to 150°C intermittent. Above these temperatures, the load capacity of chrome steel is reduced and the steel undergoes greater dimensional changes.

Chrome steel bearings are not suitable for use in corrosive environments as the steel is not corrosion resistant. Most of our chrome steel thin section bearings can be supplied with metal shields although the larger 6700 series bearings are only available with seals. Many sizes are available with rubber contact seals or low friction non-contact rubber seals. Open bearings are supplied with a light oil lubrication. Shielded or sealed bearings are usually supplied with grease lubrication but shielded bearings can be offered with instrument oil for low speed, low friction applications.

A one-piece crown cage is more common for the smallest and the thinnest section bearings due to space constraints. All 6700 series bearings use a crown cage. Many 6800 and 6900 series bearings have a two piece ribbon cage. Attention should be paid to shaft and housing roundness. The inner and outer rings of these bearings are very thin and easily distorted. Poor shaft or housing roundness will greatly increase bearing noise and vibration. Choosing the correct radial play for an application is even more important with thin section bearings. The internal clearance (radial play) of a thin section bearing can be reduced by as much as 80% of the interference fit.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...


BEARING LIST & BEARING DETAILS

67 / 68 / 69 / ET / ER
Standard Thin-Section Ball Bearings for
shaft sizes from
3 mm to 125 mm



BORE
(d)
O.D.
(D)
OPEN BEARING (No Suffix) SHIELDED BEARING (ZZ) SEALED BEARING (2RS)
WIDTH
(B)
CLI BEARING DETAILS WIDTH
(B)
CLI BEARING DETAILS WIDTH
(B)
CLI BEARING DETAILS
(mm) (Mm) (mm) NO. (mm) NO. (mm) NO.
10 15 3 6700 Details 4 6700ZZ Details 4 6700-2RS Details
19 5 6800 Details 5 6800ZZ Details 5 6800-2RS Details
19       6 6800ZZW6 Details 6 6800-2RSW6 Details
19       7 6800ZZW7 Details 7 6800-2RSW7 Details
22 6 6900 Details 6 6900ZZ Details 6 6900-2RS Details
12 18 4 6701 Details 4 6701ZZ Details 4 6701-2RS Details
21 5 6801 Details 5 6801ZZ Details 5 6801-2RS Details
21       7 6801ZZW7 Details 7 6801-2RSW7 Details
24 6 6901 Details 6 6901ZZ Details 6 6901-2RS Details
13 24 6 6901-TW13 Details
14 25 6 6901A-TW14 Details
15 20 3.5 ET2015 Details
21 3.5 ET2115 Details
21 4 6702 Details 4 6702ZZ Details 4 6702-2RS Details
24 5 6802 Details 5 6802ZZ Details 5 6802-2RS Details
24       7 6802ZZW7 Details 7 6802-2RSW7 Details
28 7 6902 Details 7 6902ZZ Details 7 6902-2RS Details
16 22 4 ET2216 Details
17 23 4 6703 Details 4 6703ZZ Details 4 6703-2RS Details
26 5 6803 Details 5 6803ZZ Details 5 6803-2RS Details
26       7 6803ZZW7 Details 7 6803-2RSW7 Details
30 7 6903 Details 7 6903ZZ Details 7 6903-2RS Details
32 8 6903A Details 8 6903AZZ Details
20 25 4 ET2520 Details 4 ET2520ZZ Details
27 4 6704 Details 4 6704ZZ Details 4 6704-2RS Details
32 7 6804 Details 7 6804ZZ Details 7 6804-2RS Details
32 10 6804W10 Details 10 6804ZZW10 Details 10 6804-2RSW10 Details
37 9 6904 Details 9 6904ZZ Details 9 6904-2RS Details
25 32 4 6705 Details 4 6705ZZ Details 4 6705-2RS Details
37 7 6805 Details 7 6805ZZ Details 7 6805-2RS Details
37 10 6805W10 Details 10 6805ZZW10 Details 10 6805-2RSW10 Details
42 9 6905 Details 9 6905ZZ Details 9 6905-2RS Details
30 37 4 6706 Details 4 6706ZZ Details 4 6706-2RS Details
42 7 6806 Details 7 6806ZZ Details 7 6806-2RS Details
42 10 6806W10 Details 10 6806ZZW10 Details 10 6806-2RSW10 Details
47 9 6906 Details 9 6906ZZ Details 9 6906-2RS Details
35 44 5 6707 Details 5 6707ZZ Details 5 6707-2RS Details
47 7 6807 Details 7 6807ZZ Details 7 6807-2RS Details
55 10 6907 Details 10 6907ZZ Details 10 6907-2RS Details
40 50 6 6708 Details       6 6708-2RS Details
52 7 6808 Details 7 6808ZZ Details 7 6808-2RS Details
62 12 6908 Details 12 6908ZZ Details 12 6908-2RS Details
45 55 6 6709 Details       6 6709-2RS Details
58 7 6809 Details 7 6809ZZ Details 7 6809-2RS Details
68 12 6909 Details 12 6909ZZ Details 12 6909-2RS Details
50 62 6 6710 Details       6 6710-2RS Details
65 7 6810 Details 7 6810ZZ Details 7 6810-2RS Details
72 12 6910 Details 12 6910ZZ Details 12 6910-2RS Details
55 72 9 6811 Details 9 6811ZZ Details 9 6811-2RS Details
80 13 6911 Details 13 6911ZZ Details 13 6911-2RS Details
60 78 10 6812 Details 10 6812ZZ Details 10 6812-2RS Details
85 13 6912 Details 13 6912ZZ Details 13 6912-2RS Details
65 85 10 6813 Details 10 6813ZZ Details 10 6813-2RS Details
90 13 6913 Details 13 6913ZZ Details 13 6913-2RS Details
70 90 10 6814 Details 10 6814ZZ Details 10 6814-2RS Details
100 16 6914 Details 16 6914ZZ Details 16 6914-2RS Details
75 95 10 6815 Details 10 6815ZZ Details 10 6815-2RS Details
105 16 6915 Details 16 6915ZZ Details 16 6915-2RS Details
80 100 10 6816 Details 10 6816ZZ Details 10 6816-2RS Details
110 16 6916 Details 16 6916ZZ Details 16 6916-2RS Details
85 110 13 6817 Details 13 6817ZZ Details 13 6817-2RS Details
120 18 6917 Details 18 6917ZZ Details 18 6917-2RS Details
90 115 13 6818 Details 13 6818ZZ Details 13 6818-2RS Details
125 18 6918 Details 18 6918ZZ Details 18 6918-2RS Details
