CLI thrust ball bearings & axial deep groove ball bearings are separable bearings.

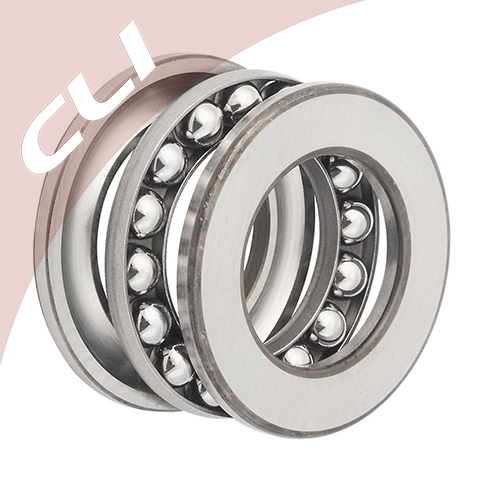

The single-acting thrust ball bearing consists of a shaft washer, a housing washer and a ball set with cage. The double-acting type consists of a shaft washer (centre washer), two housing washers and two ball sets with cages.
Thrust ball bearings can be applied for high axial loads and low to medium speeds. However, they cannot take radial loads. They are sensitive to angular deflection and characterized by extremely rigid guidance in axial direction. Depending on speed, a minimum load is necessary to avoid sliding movements of the ball set, which are caused by centrifugal forces. To compensate for misalignments of the shaft, bearings with spherical housing washers and support washers should be used.
• Thrust ball bearings are designed to handle axial loads only.
• Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.
• Thrust ball bearings are designed to handle axial loads only.
• Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| CLI Bearing No. |
Bearing Type |
Bore Dia |
Outer Dia |
Width |
Dynamic Load Rating |
Static Load Rating |
| (d) |
(D) |
(B) |
(Cr) (Newtons) |
(Cor) (Newtons) |
| 51405 Bearings |
with grooved raceway(s) |
25 mm |
60 mm |
24 mm |
55000 |
89400 |
| 51406M Bearings |
with grooved raceway(s) |
30 mm |
70 mm |
28 mm |
67,300 |
113,000 |
| 51407 Bearings |
with grooved raceway(s) |
35 mm |
80 mm |
32 mm |
86,300 |
155,000 |
| 51407M Bearings |
with grooved raceway(s) |
35 mm |
80 mm |
32 mm |
80,500 |
140,000 |
| 51408M Bearings |
with grooved raceway(s) |
40 mm |
90 mm |
36 mm |
105,000 |
185,000 |
| 51409 Bearings |
with grooved raceway(s) |
45 mm |
100 mm |
39 mm |
140,000 |
262,000 |
| 51409M Bearings |
with grooved raceway(s) |
45 mm |
100 mm |
39 mm |
131,000 |
236,000 |
| 51410M Bearings |
with grooved raceway(s) |
50 mm |
110 mm |
43 mm |
148,000 |
274,000 |
| 51411M Bearings |
with grooved raceway(s) |
55 mm |
120 mm |
48 mm |
192,000 |
358,000 |
| 51412 Bearings |
with grooved raceway(s) |
60 mm |
130 mm |
51 mm |
222,000 |
449,000 |
| 51412M Bearings |
with grooved raceway(s) |
60 mm |
130 mm |
51 mm |
206,000 |
404,000 |
| 51413M Bearings |
with grooved raceway(s) |
65 mm |
140 mm |
56 mm |
217,000 |
449,000 |
| 51413 Bearings |
with grooved raceway(s) |
65 mm |
140 mm |
56 mm |
231,000 |
494,000 |
| 51414 Bearings |
with grooved raceway(s) |
70 mm |
150 mm |
60 mm |
247,000 |
553,000 |
| 51414M Bearings |
with grooved raceway(s) |
70 mm |
150 mm |
60 mm |
232,000 |
503,000 |
| 51415M Bearings |
with grooved raceway(s) |
75 mm |
160 mm |
65 mm |
298,000 |
685,000 |
| 51416M Bearings |
with grooved raceway(s) |
80 mm |
170 mm |
68 mm |
314,000 |
751,000 |
| 51416 Bearings |
with grooved raceway(s) |
80 mm |
170 mm |
68 mm |
314,000 |
751,000 |
| 51417M Bearings |
with grooved raceway(s) |
85 mm |
180 mm |
72 mm |
349,000 |
857,000 |
| 51418M Bearings |
with grooved raceway(s) |
90 mm |
190 mm |
77 mm |
378,000 |
945,000 |
| 51420M Bearings |
with grooved raceway(s) |
100 mm |
210 mm |
85 mm |
445,000 |
1,217,000 |
| 51422M Bearings |
with grooved raceway(s) |
110 mm |
230 mm |
95 mm |
491,000 |
1,397,000 |
| 51424M Bearings |
with grooved raceway(s) |
120 mm |
250 mm |
102 mm |
531,000 |
1,590,000 |
| 51426M Bearings |
with grooved raceway(s) |
130 mm |
270 mm |
110 mm |
633,000 |
2,012,000 |
| 51428M Bearings |
with grooved raceway(s) |
140 mm |
280 mm |
112 mm |
626,000 |
2,012,000 |
| 51430 Bearings |
with grooved raceway(s) |
150 mm |
300 mm |
120 mm |
668,000 |
2,242,000 |
|
