Rolling Ball Bearings-Thrust Ball Bearings-513 thrust ball bearings & axial deep groove ball bearings, SINGLE direction, Separable, AISI52100 chrome steel, METRIC sizes

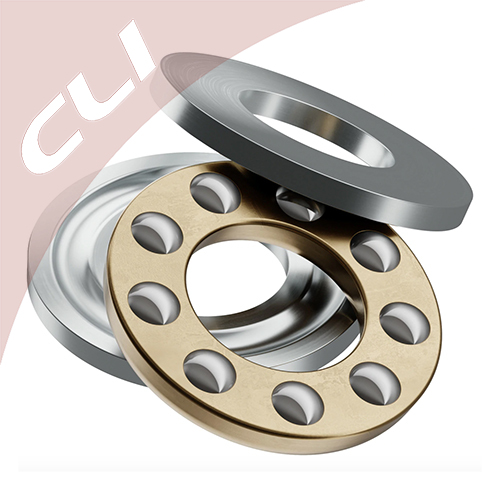

Original thrust ball bearings 51300
Product Picture

513
thrust ball bearings & axial deep groove ball bearings,

SINGLE direction, Separable, AISI52100 chrome steel, METRIC sizes




CLI thrust ball bearings & axial deep groove ball bearings are separable bearings.

The single-acting thrust ball bearing consists of a shaft washer, a housing washer and a ball set with cage. The double-acting type consists of a shaft washer (centre washer), two housing washers and two ball sets with cages.

Thrust ball bearings can be applied for high axial loads and low to medium speeds. However, they cannot take radial loads. They are sensitive to angular deflection and characterized by extremely rigid guidance in axial direction. Depending on speed, a minimum load is necessary to avoid sliding movements of the ball set, which are caused by centrifugal forces. To compensate for misalignments of the shaft, bearings with spherical housing washers and support washers should be used.


 • Thrust ball bearings are designed to handle axial loads only.

 • Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.
 • Thrust ball bearings are designed to handle axial loads only.
 • Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...


BEARING LIST & BEARING DETAILS

513
thrust ball bearings & axial deep groove ball bearings for
shaft sizes from
25 mm to 200 mm

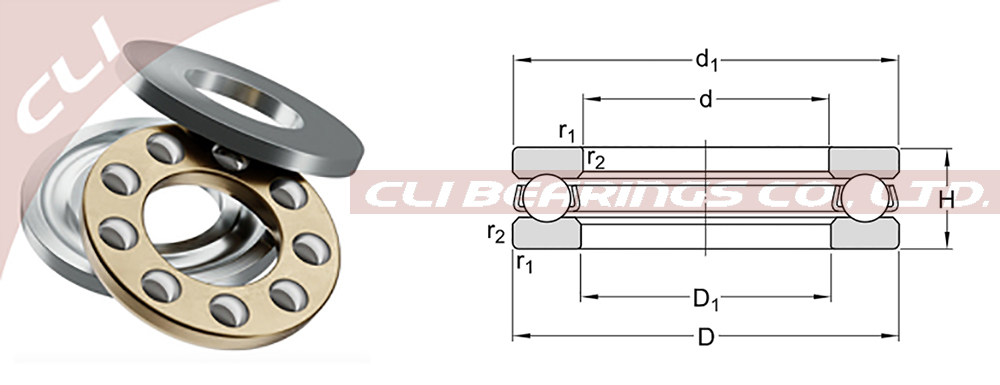

CLI Bearing No. Bearing Type Bore Dia Outer Dia Width Dynamic Load Rating Static Load Rating
(d) (D) (H) (Cr)(Newtons) (Cor)(Newtons)
51305 Bearings with grooved raceway(s) 25 mm 52 mm 18 mm 35400 61500
51306 Bearings with grooved raceway(s) 30 mm 60 mm 21 mm 42,200 78,700
51307 Bearings with grooved raceway(s) 35 mm 68 mm 24 mm 55,400 105,000
51308 Bearings with grooved raceway(s) 40 mm 78 mm 26 mm 68,400 135,000
51309 Bearings with grooved raceway(s) 45 mm 85 mm 28 mm 78,900 164,000
51310 Bearings with grooved raceway(s) 50 mm 95 mm 31 mm 95,300 202,000
51311 Bearings with grooved raceway(s) 55 mm 105 mm 35 mm 118,000 246,000
51311M Bearings with grooved raceway(s) 55 mm 105 mm 35 mm 111,000 226,000
51312 Bearings with grooved raceway(s) 60 mm 110 mm 35 mm 123,000 267,000
51313 Bearings with grooved raceway(s) 65 mm 115 mm 36 mm 127,000 287,000
51313M Bearings with grooved raceway(s) 65 mm 115 mm 36 mm 121,000 267,000
51314 Bearings with grooved raceway(s) 70 mm 125 mm 40 mm 153,000 341,000
51314M Bearings with grooved raceway(s) 70 mm 125 mm 40 mm 153,000 341,000
51315 Bearings with grooved raceway(s) 75 mm 135 mm 44 mm 184,000 426,000
51315M Bearings with grooved raceway(s) 75 mm 135 mm 44 mm 175,000 396,000
51316 Bearings with grooved raceway(s) 80 mm 140 mm 44 mm 181,000 426,000
51316M Bearings with grooved raceway(s) 80 mm 140 mm 44 mm 172,000 396,000
51317 Bearings with grooved raceway(s) 85 mm 150 mm 49 mm 290,000 716,000
51318M Bearings with grooved raceway(s) 90 mm 155 mm 50 mm 202,000 489,000
51320 Bearings with grooved raceway(s) 100 mm 170 mm 55 mm 247,000 628,000
51320M Bearings with grooved raceway(s) 100 mm 170 mm 55 mm 247,000 628,000
51322 Bearings with grooved raceway(s) 110 mm 190 mm 63 mm 319,000 869,000
51322M Bearings with grooved raceway(s) 110 mm 190 mm 63 mm 304,000 807,000
51324M Bearings with grooved raceway(s) 120 mm 210 mm 70 mm 347,000 977,000
51326M Bearings with grooved raceway(s) 130 mm 225 mm 75 mm 392,000 1,162,000
51328M Bearings with grooved raceway(s) 140 mm 240 mm 80 mm 438,000 1,364,000
51330M Bearings with grooved raceway(s) 150 mm 250 mm 80 mm 432,000 1,364,000
51332M Bearings with grooved raceway(s) 160 mm 270 mm 87 mm 479,000 1,582,000
51334M Bearings with grooved raceway(s) 170 mm 280 mm 87 mm 496,000 1,704,000
51336M Bearings with grooved raceway(s) 180 mm 300 mm 95 mm 546,000 1,956,000
51340M Bearings with grooved raceway(s) 200 mm 340 mm 110 mm 656,000 24,140,005


 * Note: No suffix = Steel Cage, M = Bronze Cage
