512 thrust ball bearings & axial deep groove ball bearings, SINGLE direction, Separable, AISI52100 chrome steel, METRIC sizes

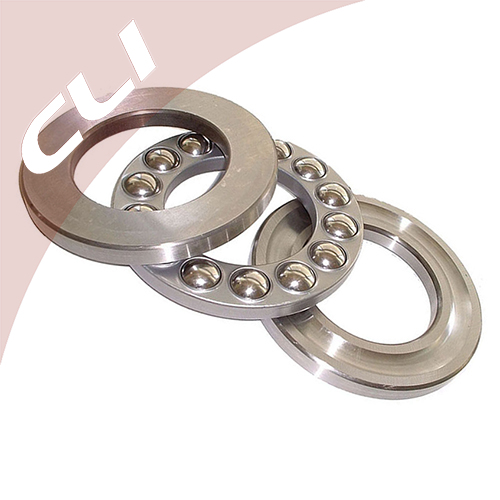

Product Picture

512
thrust ball bearings & axial deep groove ball bearings,
SINGLE direction, Separable, AISI52100 chrome steel, METRIC sizes

CLI thrust ball bearings & axial deep groove ball bearings are separable bearings.

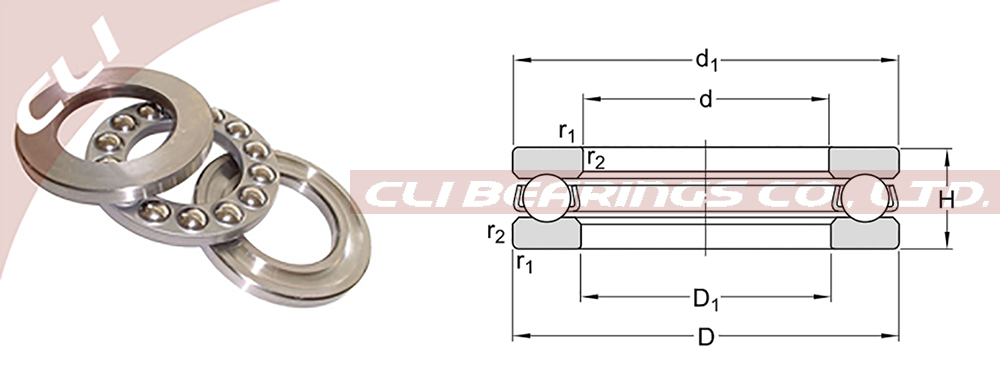

The single-acting thrust ball bearing consists of a shaft washer, a housing washer and a ball set with cage. The double-acting type consists of a shaft washer (centre washer), two housing washers and two ball sets with cages.

Thrust ball bearings can be applied for high axial loads and low to medium speeds. However, they cannot take radial loads. They are sensitive to angular deflection and characterized by extremely rigid guidance in axial direction. Depending on speed, a minimum load is necessary to avoid sliding movements of the ball set, which are caused by centrifugal forces. To compensate for misalignments of the shaft, bearings with spherical housing washers and support washers should be used.

• Thrust ball bearings are designed to handle axial loads only.
• Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.
• Thrust ball bearings are designed to handle axial loads only.
• Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

512
thrust ball bearings & axial deep groove ball bearings for
shaft sizes from 10 mm to 340 mm

CLI Bearing No	Bearing Type	Bore Dia	Outer Dia	Width	Dynamic Load Rating	Static Load Rating
CLI Bearing No	Bearing Type	(d)	(D)	(H)	(Cr)(Newtons)	(Cor)(Newtons)
51200 Bearings	with grooved raceway(s)	10 mm	26 mm	11 mm	12600	17100
51201 Bearings	with grooved raceway(s)	12 mm	28mm	11mm	13000	19000
51202 Bearings	with grooved raceway(s)	15 mm	32mm	12mm	15600	24400
51203 Bearings	with grooved raceway(s)	17 mm	35mm	12mm	17100	27300
51204 Bearings	with grooved raceway(s)	20 mm	40mm	14mm	22100	37700
51206 Bearings	with grooved raceway(s)	30 mm	52mm	16mm	28100	54300
51205 Bearings	with grooved raceway(s)	25 mm	47mm	15mm	27800	50500
51208 Bearings	with grooved raceway(s)	40 mm	68mm	19mm	46900	98300
51207 Bearings	with grooved raceway(s)	35 mm	62mm	18mm	38800	78200
51210 Bearings	with grooved raceway(s)	50 mm	78mm	22mm	56300	129000
51209 Bearings	with grooved raceway(s)	45 mm	73mm	20mm	49300	112000
51212 Bearings	with grooved raceway(s)	60 mm	95mm	26mm	70400	169000
51211 Bearings	with grooved raceway(s)	55 mm	90mm	25mm	68800	159000
51213 Bearings	with grooved raceway(s)	65 mm	100mm	27mm	78500	191000
51214 Bearings	with grooved raceway(s)	70 mm	105mm	27mm	72800	189000
51215 Bearings	with grooved raceway(s)	75 mm	110mm	27mm	73700	199000
51216 Bearings	with grooved raceway(s)	80 mm	115mm	28mm	76100	209000
51217 Bearings	with grooved raceway(s)	85 mm	125mm	31mm	94100	264000
51218 Bearings	with grooved raceway(s)	90 mm	135mm	35mm	127000	338000
51220 Bearings	with grooved raceway(s)	100 mm	150mm	38mm	149000	402000
51220M Bearings	with grooved raceway(s)	100 mm	150mm	38mm	143000	380000
51222 Bearings	with grooved raceway(s)	110 mm	160mm	38mm	156000	447000
51222M Bearings	with grooved raceway(s)	110 mm	160mm	38mm	151000	425000
51224 Bearings	with grooved raceway(s)	120 mm	170mm	39mm	170000	509000
51225 Bearings	with grooved raceway(s)	130 mm	190mm	45mm	220000	653000
51226M Bearings	with grooved raceway(s)	130 mm	190mm	45mm	212000	620000
51230M Bearings	with grooved raceway(s)	150 mm	215mm	50mm	257000	795000
51232M Bearings	with grooved raceway(s)	160 mm	225mm	51mm	257000	795000
51234M Bearings	with grooved raceway(s)	170 mm	240mm	55mm	294000	966000
51236M Bearings	with grooved raceway(s)	180 mm	250mm	56mm	304000	1014000
51238M Bearings	with grooved raceway(s)	190 mm	270mm	62mm	351000	1242000
51240M Bearings	with grooved raceway(s)	200 mm	280mm	62mm	362000	1304000
51244M Bearings	with grooved raceway(s)	220 mm	300mm	63mm	365000	1366000
51248M Bearings	with grooved raceway(s)	240 mm	340mm	78mm	453000	1788000
51252M Bearings	with grooved raceway(s)	260 mm	360mm	79mm	456000	1878000
51256M Bearings	with grooved raceway(s)	280 mm	380mm	80mm	459000	1967000
51260M Bearings	with grooved raceway(s)	300 mm	420mm	95mm	619000	2794000
51268M Bearings	with grooved raceway(s)	340 mm	460mm	96mm	627000	3074000

* Note: No suffix = Steel Cage, M = Bronze Cage
