511 thrust ball bearings & axial deep groove ball bearings, SINGLE direction, Separable, AISI52100 chrome steel, METRIC sizes

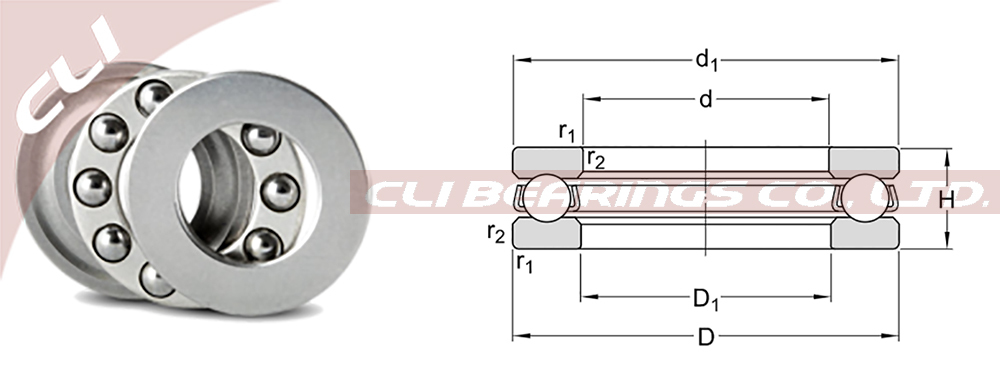

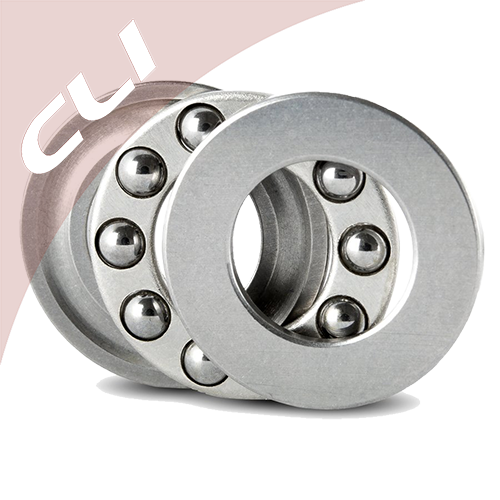

Product Picture

511
thrust ball bearings & axial deep groove ball bearings,
SINGLE direction, Separable, AISI52100 chrome steel, METRIC sizes

CLI thrust ball bearings & axial deep groove ball bearings are separable bearings.

The single-acting thrust ball bearing consists of a shaft washer, a housing washer and a ball set with cage. The double-acting type consists of a shaft washer (centre washer), two housing washers and two ball sets with cages.

Thrust ball bearings can be applied for high axial loads and low to medium speeds. However, they cannot take radial loads. They are sensitive to angular deflection and characterized by extremely rigid guidance in axial direction. Depending on speed, a minimum load is necessary to avoid sliding movements of the ball set, which are caused by centrifugal forces. To compensate for misalignments of the shaft, bearings with spherical housing washers and support washers should be used.

• Thrust ball bearings are designed to handle axial loads only.
• Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.
• Thrust ball bearings are designed to handle axial loads only.
• Thrust ball bearings consist of ball, retainer and both shaft and housing washers which contain grooves for the ball.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

511
thrust ball bearings & axial deep groove ball bearings for
shaft sizes from 10 mm to 320 mm

CLI Bearing No	Bearing Type	Bore Dia	Outer Dia	Width	Dynamic Load Rating	Static Load Rating
CLI Bearing No	Bearing Type	(d)	(D)	(H)	(Cr)(Newtons)	(Cor)(Newtons)
51100 Bearings	with grooved raceway(s)	10 mm	24 mm	9 mm	10000	14000
51101 Bearing	with grooved raceway(s)	12 mm	26mm	9 mm	10300	15400
51102 Bearings	with grooved raceway(s)	15 mm	28mm	9mm	10500	16800
51103 Bearings	with grooved raceway(s)	17 mm	30mm	9mm	10800	18200
51104 Bearings	with grooved raceway(s)	20 mm	35mm	10mm	14900	26600
51105 Bearings	with grooved raceway(s)	25 mm	42mm	11mm	15300	30400
51106 Bearings	with grooved raceway(s)	30 mm	47mm	11mm	18600	39900
51107 Bearings	with grooved raceway(s)	35 mm	52mm	12mm	19100	44400
51108 Bearings	with grooved raceway(s)	40 mm	60mm	13mm	26800	62900
51109 Bearings	with grooved raceway(s)	45 mm	65mm	14mm	27200	69200
51110 Bearings	with grooved raceway(s)	50 mm	70mm	14mm	28100	75500
51111 Bearings	with grooved raceway(s)	55 mm	78mm	16mm	31100	81500
51112 Bearings	with grooved raceway(s)	60 mm	85mm	17mm	37900	98600
51113 Bearings	with grooved raceway(s)	65 mm	90mm	18mm	39200	108000
51114 Bearings	with grooved raceway(s)	70 mm	95mm	18mm	39300	113000
51115 Bearings	with grooved raceway(s)	75 mm	100mm	19mm	47200	140000
51116 Bearings	with grooved raceway(s)	80 mm	105mm	19mm	48500	145000
51117 Bearings	with grooved raceway(s)	85 mm	110mm	19mm	48000	151000
51118 Bearings	with grooved raceway(s)	90 mm	120mm	22mm	62300	190000
51120 Bearings	with grooved raceway(s)	100 mm	135mm	25mm	79300	248000
51122 Bearings	with grooved raceway(s)	110 mm	145mm	25mm	82600	278000
51124 Bearings	with grooved raceway(s)	120 mm	155mm	25mm	84500	288000
51124M Bearings	with grooved raceway(s)	120 mm	155mm	25mm	84500	288000
51126 Bearings	with grooved raceway(s)	130 mm	170mm	30mm	117000	392000
51128M Bearings	with grooved raceway(s)	140 mm	180mm	31mm	113000	392000
51130M Bearings	with grooved raceway(s)	150 mm	190mm	31mm	114000	420000
51132M Bearings	with grooved raceway(s)	160 mm	200mm	31mm	119000	448000
51134M Bearings	with grooved raceway(s)	170 mm	215mm	34mm	153000	564000
51138M Bearings	with grooved raceway(s)	190 mm	240mm	37mm	173000	671000
51136M Bearings	with grooved raceway(s)	180 mm	225mm	34mm	151000	582000
51140M Bearings	with grooved raceway(s)	200 mm	250mm	37mm	181000	715000
51152M Bearings	with grooved raceway(s)	260 mm	320mm	45mm	254000	1110000
51144M Bearings	with grooved raceway(s)	220 mm	270mm	37mm	181000	760000
51156M Bearings	with grooved raceway(s)	280 mm	350mm	53mm	330000	1436000
51160M Bearings	with grooved raceway(s)	300 mm	380mm	62mm	412000	1863000
51164M Bearings	with grooved raceway(s)	320 mm	400mm	63mm	397000	1863000

* Note: No suffix = Steel Cage, M = Bronze Cage
