Rolling Roller Bearings-Tapered roller bearings-Metric 302 / 303 Tapered Roller Bearings, Separable Cup & Cone, CHROME STEEL AISI52100

Original tapered roller bearing metric size 302 303

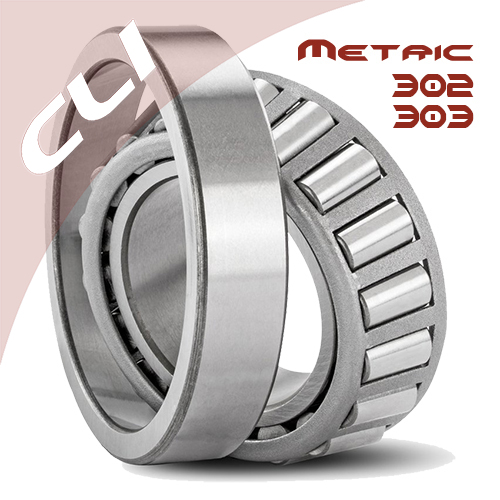

Product Picture

302 / 303
Tapered Roller Bearings, Separable Cup & Cone,
CHROME STEEL AISI52100, METRIC sizes




CLI tapered roller bearings have the rolling elements under the form of frustum of cone. They roll on tapered surface which, if extended, converges towards a single point on the bearing axis.

The rollers are guided tangentially by the cage and axially by the big rib of the inner ring, on which they have contact. As between rollers and raceways there is linear contact, they can take heavy radial loads. They can also take heavy axial or combined loads, depending on the contact angle caused by the tapered elements.

CLI one row tapered roller bearings are of separable design, which means the outer ring/cup and the inner ring/cone with rollers and cage assembly can be separately mounted. The two parts are interchangeable.

CLI tapered roller bearings are manufactured both in standardized (metric and inch sizes) and in non-standardized constructive version.

The metric size bearings have standardized dimensions as listed in ISO 355:1977 and those designated with prefix J conform to American AFBMA 19.1/1987. The inch size bearings, prefix J, are according to American AFBMA 19/1974.

The one row tapered roller bearings can carry only single direction axial loads. Under pure radial loads, an axial force is induced within the bearings so that they cannot be used singly and a second bearing is required.

The one row tapered roller bearings have pressed steel cage as standard. For large size and/or heavy engineering applications, the steel pin-type cage and case hardened carburizing alloy steels can be considered.

The one row tapered roller bearings can also be produced with a rib on the outer cup as a flange to be used when the housing cannot be manufactured with shoulder, but only with a passed through hole so that, in this case, axial location can be provided by the bearing cup.

When the load carrying capacity of a single row is inadequate or where the load has to be located in both directions, CLI BEARINGS produces the single row taper roller bearings as ready-to-mount matched pairs.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

302 series Tapered Roller Bearings
 for shaft sizes from
15 mm to 200 mm


CLI
Bearing No.

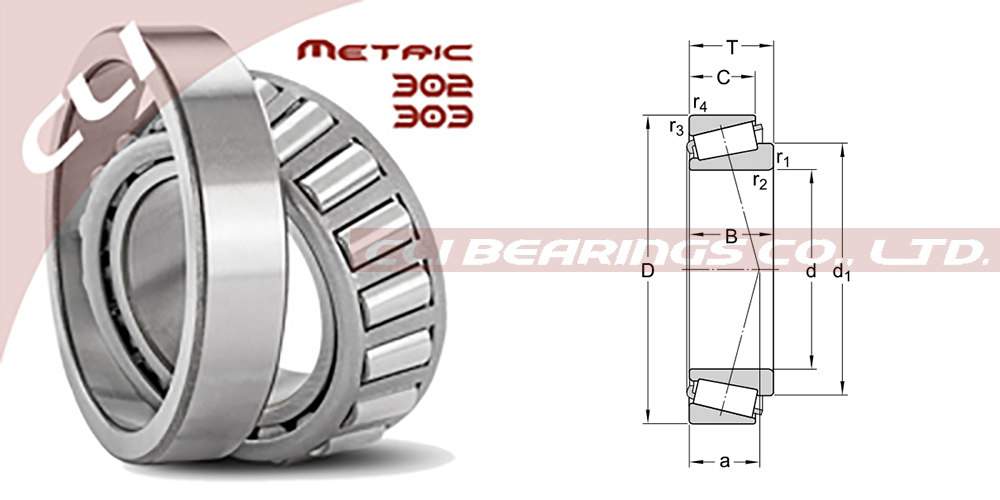

Boundary dimensions Basic load rating(kN) Limiting speed Mass
mm Dynamic Static rpm Kg
d D T B C Rmin rmin Cr Cor Grease Oil
30202 15 35 11.75 11 10 0.6 0.6 11.9 13.5 9000 13000 0.053
30203 17 40 13.25 12 11 1 1 20.7 22.2 9000 13000 0.096
30204 20 47 15.25 14 12 1 1 28.2 30.9 8000 11000 0.128
30205 25 52 16.25 15 13 1 1 33.7 39.4 7500 10000 0.153
30206 30 62 17.25 16 14 1 1 43.3 50.6 6300 8500 0.232
30207 35 72 18.25 17 15 1.5 1.5 54.2 63.7 5300 7000 0.337
30208 40 80 19.75 18 16 1.5 1.5 63 74.1 4800 6300 0.422
30209 45 85 20.75 19 16 1.5 1.5 67 84 4500 6000 0.476
30210 50 90 21.75 20 17 1.5 1.5 76 97 4300 5600 0.538
30211 55 100 22.75 21 18 2 1.5 90 116 3800 5000 0.715
30212 60 110 23.75 22 19 2 1.5 103 132 3400 4500 0.905
30213 65 120 24.75 23 20 2 1.5 120 154 3000 4000 1.12
30214 70 125 26.25 24 21 2 1.5 132 174 3000 4000 1.26
30215 75 130 27.25 25 22 2 1.5 137 186 2800 3800 1.36
30216 80 140 28.25 26 22 2.5 2 160 213 2400 3400 1.67
30217 85 150 30.5 28 24 2.5 2 180 242 2200 3200 2.08
30218 90 160 32.5 30 26 2.5 2 199 270 2000 3000 2.53
30219 95 170 34.5 32 27 3 2.5 226 310 1900 2800 3.06
30220 100 180 37 34 29 3 2.5 253 351 1900 2800 3.72
30221 105 190 39 36 30 3 2.5 284 400 1800 2600 4.39
30222 110 200 41 38 32 3.5 2 314 445 1700 2400 5.21
30224 120 215 43.5 40 34 3 2.5 335 487 1600 2200 6.19
30226 130 230 43.75 40 34 4 3 364 525 1500 2000 6.94
30228 140 250 45.75 42 36 4 3 407 589 1400 1900 8.75
30230 150 270 49 45 38 4 3 449 651 1300 1800 10.8
30232 160 290 52 48 40 4 3 509 744 1100 1600 12.9
30234 170 310 57 52 43 5 4 616 865 1000 1500 19
30236 180 320 57 52 43 5 4 583 815 1000 1500 20
30238 190 340 60 55 46 3 2.5 721 1000 950 1400 24
30240 200 360 64 58 48 5 4 792 1120 900 1300 25


303 series Tapered Roller Bearings
for shaft sizes from
15 mm to 170 mm

CLI
Bearing No.
Boundary dimensions Basic load rating(kN) Limiting speed Mass
mm Dynamic Static rpm Kg
d D T B C Rmin rmin Cr Cor Grease Oil
30302 15 42 14.25 13 11 1 1 22.9 21.7 9000 13000 0.096
30303 17 47 15.25 14 12 1 1 28.3 27.4 8500 12000 0.13
30304 20 52 16.25 15 13 1.5 1.5 33.2 33.3 8000 11000 0.166
30305 25 62 18.25 17 15 1.5 1.5 47 48.3 6700 9000 0.266
30306 30 72 20.75 19 16 1.5 1.5 59 63.9 5600 7500 0.391
30307 35 80 22.75 21 18 2 1.5 75.4 83.6 5000 6700 0.484
30308 40 90 25.25 23 20 2 1.5 90 108 4500 6000 0.751
30309 45 100 27.25 25 22 2 1.5 108 120 4000 5300 0.985
30310 50 110 29.25 27 23 2.5 2 130 159 3600 4800 1.28
30311 55 120 31.5 29 25 2.5 2 153 190 3200 4300 1.61
30312 60 130 33.5 31 26 3 2.5 170 211 3000 4000 1.95
30313 65 140 36 33 28 3 2.5 195 244 2600 3600 2.44
30314 70 150 38 35 30 3 2.5 187 220 2000 3000 2.99
30315 75 160 40 37 31 3 2.5 250 318 2200 3200 3.58
30316 80 170 42.5 39 33 3 2.5 278 356 2000 3000 4.27
30317 85 180 44.5 41 34 4 3 304 392 1900 2800 4.97
30318 90 190 46.5 43 36 4 3 341 445 1800 2600 5.79
30319 95 200 49.5 45 38 4 3 368 483 1800 2600 6.8
30320 100 215 51.5 47 39 4 3 402 490 1700 2400 8.2
30321 105 225 53.5 49 41 4 3 432 568 1600 2200 9.91
30322 110 240 54.5 50 42 4 3 471 619 1600 2200 11.5
30324 120 260 59.5 55 46 4 3 562 754 1500 2000 13.7
30326 130 280 63.75 58 49 5 4 639 864 1300 1800 17.1
30328 140 300 67.75 62 53 5 4 721 985 1200 1700 21.7
30330 150 320 72 65 55 5 4 825 1060 1100 1600 28.5
30332 160 340 75 68 58 5 4 880 1400 1100 1600 29
30334 170 360 80 72 62 5 4 1020 1340 950 1400 35
