293 series axial spherical roller bearings, SINGLE direction, SEPARABLE, CHROME STEEL AISI52100, METRIC sizes

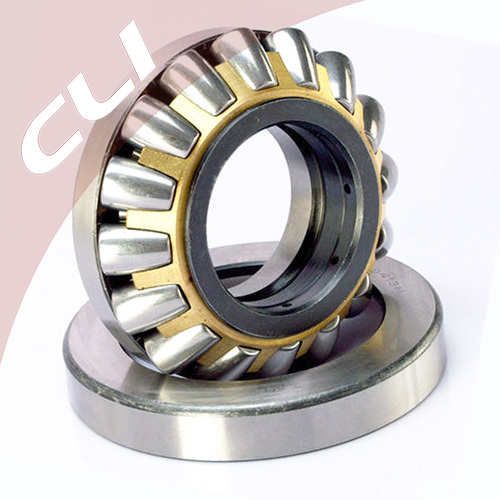

Original spherical roller thrust bearing 500x500

Product Picture

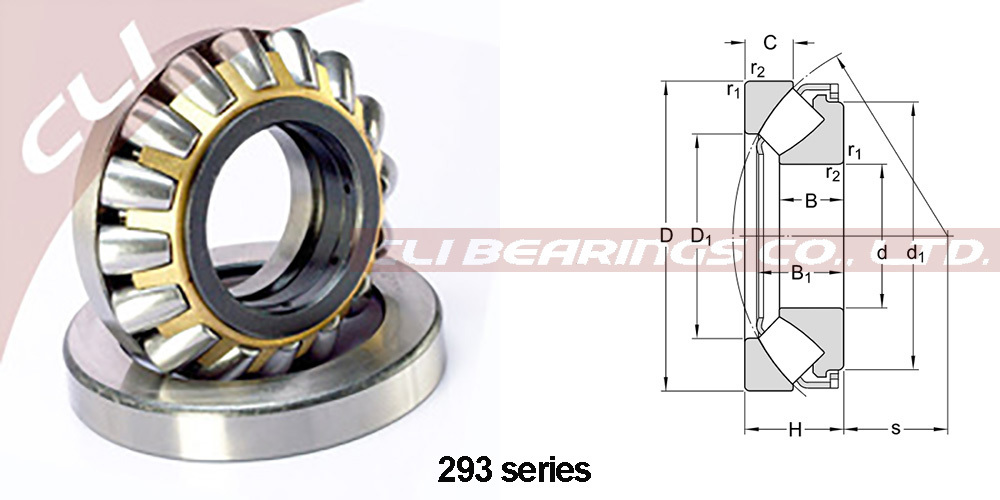

293 series
spherical roller thrust bearings, SINGLE direction, SEPARABLE,
CHROME STEEL AISI52100, METRIC sizes

CLI spherical roller thrust bearings & axial spherical roller bearings are strong axial loading capacity, self-aligning.
The concentricity and shaft deflection have small impacts to the bearing.Different structures have different allowable self-aligning angles.
Generally, the self-aligning angle is not more than 3°. If the axial load is higher, the allowable self-aligning angle is smaller.

CLI spherical roller thrust bearing can carry combined loads which is main in axial and axial loads in one direction. Their loading capacity and limiting speed are high, and they can align by themselves when the precision of shafts or housing is not high or there is instalation error.

CLI spherical roller thrust bearings usually adopt steel pressed cages or machined solid cages. They are mainly used in oil rigs, screw propeller shafts of sea-going freighter, helldrivers, gantry cranes, turnplates of large tower cranes, turnplates of sounding borers, etc.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

293 series
spherical roller thrust bearings AISI52100 chrome steel for
shaft sizes from 85 mm to 800 mm

CLI Bearing No.	Principal dimensions			Basic load ratings		Weight
	d	D	H	dynamic	static	Weight
	(MM)			Cr(kN)	Cor(kN)	(KG)
29317 spherical roller thrust bearing	85	150	39	380	1060	2.75
29317 E spherical roller thrust bearing	85	150	39	380	1060	2.75
29317 EX spherical roller thrust bearing	85	150	39	380	1060	2.75
29318 spherical roller thrust bearing	90	155	39	400	1080	2.85
29318 E spherical roller thrust bearing	90	155	39	400	1080	2.85
29318 EX spherical roller thrust bearing	90	155	39	400	1080	2.85
29320 spherical roller thrust bearing	100	170	42	465	1290	3.65
29320 E spherical roller thrust bearing	100	170	42	465	1290	3.65
29320 EX spherical roller thrust bearing	100	170	42	465	1290	3.65
29322 spherical roller thrust bearing	110	190	48	610	1730	5.3
29322 E spherical roller thrust bearing	110	190	48	610	1730	5.3
29322 EX spherical roller thrust bearing	110	190	48	610	1730	5.3
29324 spherical roller thrust bearing	120	210	54	765	2120	7.35
29324 E spherical roller thrust bearing	120	210	54	765	2120	7.35
29324 EX spherical roller thrust bearing	120	210	54	765	2120	7.35
29324/YA8 spherical roller thrust bearing	120	210	54	765	2120	7.35
29326E spherical roller thrust bearing	130	225	58	865	2500	9
29326EX spherical roller thrust bearing	130	225	58	865	2500	9
29326/YA8 spherical roller thrust bearing	130	225	58	865	2500	9
29326 spherical roller thrust bearing	130	225	58	865	2500	9
29328 spherical roller thrust bearing	140	240	60	980	2850	10.5
29328 E spherical roller thrust bearing	140	240	60	980	2850	10.5
29328 EX spherical roller thrust bearing	140	240	60	980	2850	10.5
29328/YA8 spherical roller thrust bearing	140	240	60	980	2850	10.5
29330 spherical roller thrust bearing	150	250	60	1000	2850	11
29330 E spherical roller thrust bearing	150	250	60	1000	2850	11
29330/YA8 spherical roller thrust bearing	150	250	60	1000	2850	11
29332 spherical roller thrust bearing	160	270	67	1180	3450	14.5
29332 E spherical roller thrust bearing	160	270	67	1180	3450	14.5
29332 EX spherical roller thrust bearing	160	270	67	1180	3450	14.5
29332/YA8 spherical roller thrust bearing	160	270	67	1180	3450	14.5
29334 spherical roller thrust bearing	170	280	67	1200	3550	15
29334 E spherical roller thrust bearing	170	280	67	1200	3550	15
29336 spherical roller thrust bearing	180	300	73	1430	4300	19.5
29336 E spherical roller thrust bearing	180	300	73	1430	4300	19.5
29336/YA8 spherical roller thrust bearing	180	300	73	1430	4300	19.5
29338 spherical roller thrust bearing	190	320	78	1630	4750	23.5
29338 E spherical roller thrust bearing	190	320	78	1630	4750	23.5
29338/YA8 spherical roller thrust bearing	190	320	78	1630	4750	23.5
29340 spherical roller thrust bearing	200	340	85	1860	5500	28.4
29340 E spherical roller thrust bearing	200	340	85	1860	5500	28.4
29340/YA8 spherical roller thrust bearing	200	340	85	1860	5500	28.4
29340K spherical roller thrust bearing	200	340	85	1860	5500	28.4
29344 spherical roller thrust bearing	220	360	85	2000	6300	31.2
29344 E spherical roller thrust bearing	220	360	85	2000	6300	31.2
29344/YA8 spherical roller thrust bearing	220	360	85	2000	6300	31.2
29348 spherical roller thrust bearing	240	380	85	2040	6550	35.5
29348 E spherical roller thrust bearing	240	380	85	2040	6550	35.5
29348/YA8 spherical roller thrust bearing	240	380	85	2040	6550	35.5
29352 spherical roller thrust bearing	260	420	95	2550	8300	49
29352 E spherical roller thrust bearing	260	420	95	2550	8300	49
29356 spherical roller thrust bearing	280	440	95	2550	8650	53
29356 E spherical roller thrust bearing	280	440	95	2550	8650	53
29360 spherical roller thrust bearing	300	480	109	3100	10600	75
29360 E spherical roller thrust bearing	300	480	109	3100	10600	75
29364 spherical roller thrust bearing	320	500	109	3350	11200	78
29364 E spherical roller thrust bearing	320	500	109	3350	11200	78
29368 spherical roller thrust bearing	340	540	122	2710	11000	105
29368 E spherical roller thrust bearing	340	540	122	2710	11000	105
29372 spherical roller thrust bearing	360	560	122	2760	11600	110
29372 E spherical roller thrust bearing	360	560	122	2760	11600	110
29376 spherical roller thrust bearing	380	600	132	3340	14000	140
29376 E spherical roller thrust bearing	380	600	132	3340	14000	140
29380 spherical roller thrust bearing	400	620	132	3450	14600	150
29380 E spherical roller thrust bearing	400	620	132	3450	14600	150
29384 spherical roller thrust bearing	420	650	140	3740	16000	170
29384 E spherical roller thrust bearing	420	650	140	3740	16000	170
29388 spherical roller thrust bearing	440	680	145	5200	19300	180
29388 E spherical roller thrust bearing	440	680	145	5200	19300	180
29388 EM spherical roller thrust bearing	440	680	145	5200	19300	180
29392 spherical roller thrust bearing	460	710	150	4310	19000	215
29392 E spherical roller thrust bearing	460	710	150	4310	19000	215
29396 spherical roller thrust bearing	480	730	150	4310	19000	215
29396 E spherical roller thrust bearing	480	730	150	4310	19000	215

293/500 spherical roller thrust bearing	500	750	150	4490	20400	235
293/500E spherical roller thrust bearing	500	750	150	4490	20400	235
293/530 spherical roller thrust bearing	530	800	160	5870	26500	265
293/600 spherical roller thrust bearing	600	900	180	5870	26500	265
293/630 EM spherical roller thrust bearing	630	950	190	8450	38000	485
293/710 EM spherical roller thrust bearing	710	1060	212	9950	45500	610
293/750 spherical roller thrust bearing	750	1120	224	9950	45500	610
293/800 spherical roller thrust bearing	800	1180	230	11300	55000	810
293/1250 EF spherical roller thrust bearing	800	1180	230	11300	55000	810
293/1600 EF spherical roller thrust bearing	800	1180	230	11300	55000	810

* Suffix Descriptions:
E - increased capacity roller set, designed for very high load carrying capacity
TVP2 - plastic cage PA66
M1 - 2-piece solid brass cage
MPAX - 1-piece, milled brass cage, guided on the outer ring rib
MPBX - 1-piece, milled brass cage, guided on the inner ring rib
JP3 - sheet steel cage
C3 - radial clearance as C3
