Rolling Roller Bearings-Spherical Roller Thrust Bearings-292 series spherical roller thrust bearings, SINGLE direction, SEPARABLE, CHROME STEEL AISI52100, METRIC sizes

Original spherical roller thrust bearings 1 1

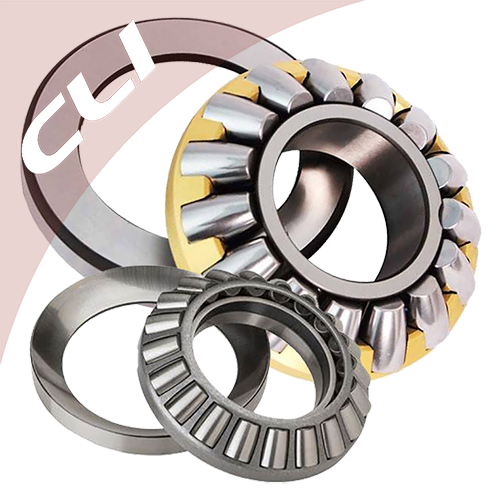

Product Picture

292 series
spherical roller thrust bearings,

SINGLE direction, SEPARABLE, CHROME STEEL AISI52100, METRIC sizes




CLI spherical roller thrust bearings & axial spherical roller bearings are strong axial loading capacity, self-aligning.
The concentricity and shaft deflection have small impacts to the bearing.Different structures have different allowable self-aligning angles.
Generally, the self-aligning angle is not more than 3°. If the axial load is higher, the allowable self-aligning angle is smaller.

CLI spherical roller thrust bearing can carry combined loads which is main in axial and axial loads in one direction. Their loading capacity and limiting speed are high, and they can align by themselves when the precision of shafts or housing is not high or there is instalation error.

CLI spherical roller thrust bearings usually adopt steel pressed cages or machined solid cages. They are mainly used in oil rigs, screw propeller shafts of sea-going freighter, helldrivers, gantry cranes, turnplates of large tower cranes, turnplates of sounding borers, etc.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

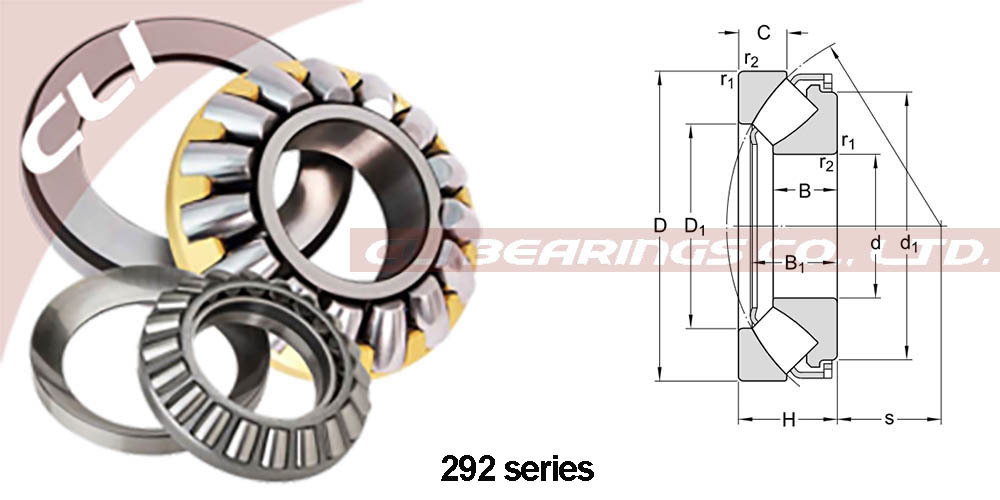

292 series
spherical roller thrust bearings

AISI52100 chrome steel for shaft sizes from 150 mm to 1060 mm



CLI Bearing No. Principal dimensions Basic load ratings Weight
d D H dynamic static
(MM) Cr(kN) Cor(kN) (KG)
29230E spherical roller thrust bearing 150 215 39 408 1600 4.3
29232E spherical roller thrust bearing 160 225 39
29234 spherical roller thrust bearing 170 240 42
29234E spherical roller thrust bearing 170 240 42
29236 spherical roller thrust bearing 180 250 42 495 2040 5.8
29236E spherical roller thrust bearing 180 250 42 495 2040 5.8
29238 spherical roller thrust bearing 190 270 48
29238E spherical roller thrust bearing 190 270 48
29240 spherical roller thrust bearing 200 280 48 656 2650 9.3
29240E spherical roller thrust bearing 200 280 48 656 2650 9.3
29244 spherical roller thrust bearing 220 300 48 690 3000 10
29244E spherical roller thrust bearing 220 300 48 690 3000 10
29248 spherical roller thrust bearing 240 340 60 799 3450 16.5
29248E spherical roller thrust bearing 240 340 60 799 3450 16.5
29252 spherical roller thrust bearing 260 360 60 817 3650 18.5
29252E spherical roller thrust bearing 260 360 60 817 3650 18.5
29256 spherical roller thrust bearing 280 380 60 863 4000 19.5
29256E spherical roller thrust bearing 280 380 60 863 4000 19.5
29260 spherical roller thrust bearing 300 420 73 1070 4800 30.5
29260E spherical roller thrust bearing 300 420 73 1070 4800 30.5
29264 spherical roller thrust bearing 320 440 73 1110 5100 33
29264E spherical roller thrust bearing 320 440 73 1110 5100 33
29268 spherical roller thrust bearing 340 460 73 1130 5400 33.5
29268E spherical roller thrust bearing 340 460 73 1130 5400 33.5
29272 spherical roller thrust bearing 360 500 85 1460 6800 52
29272E spherical roller thrust bearing 360 500 85 1460 6800 52
29276 spherical roller thrust bearing 380 520 85 1580 7650 53
29276E spherical roller thrust bearing 380 520 85 1580 7650 53
29280 spherical roller thrust bearing 400 540 85 1610 8000 55.5
29280E spherical roller thrust bearing 400 540 85 1610 8000 55.5
29284 spherical roller thrust bearing 420 580 95 1990 9800 75.5
29284E spherical roller thrust bearing 420 580 95 1990 9800 75.5
29288 spherical roller thrust bearing 440 600 95 2070 10400 78
29288E spherical roller thrust bearing 440 600 95 2070 10400 78
29292 spherical roller thrust bearing 460 620 95 2070 10600 81
29292E spherical roller thrust bearing 460 620 95 2070 10600 81
29296 spherical roller thrust bearing 480 650 103 2350 11800 98
29296E spherical roller thrust bearing 480 650 103 2350 11800 98

292/500 spherical roller thrust bearing 500 670 103 2390 12500 100
292/500E spherical roller thrust bearing 500 670 103 2390 12500 100
292/530 spherical roller thrust bearing 530 710 109 3110 15300 115
292/530E spherical roller thrust bearing 530 710 109 3110 15300 115
292/530EM spherical roller thrust bearing 530 710 109 3110 15300 115
292/560 spherical roller thrust bearing 560 750 115 2990 16000 140
292/600 spherical roller thrust bearing 600 800 122 3740 18600 170
292/600EM spherical roller thrust bearing 600 800 122 3740 18600 170
292/630 spherical roller thrust bearing 630 850 132 4770 23600 210
292/630EM spherical roller thrust bearing 630 850 132 4770 23600 210
292/670 spherical roller thrust bearing 670 900 140
292/670EM spherical roller thrust bearing
292/750 spherical roller thrust bearing 750 1000 150
292/750EM spherical roller thrust bearing
292/800 spherical roller thrust bearing 800 1060 155 6560 34500 380
292/800EM spherical roller thrust bearing 800 1060 155 6560 34500 380
292/850EM spherical roller thrust bearing 850 1120 160
292/900 spherical roller thrust bearing 900 1180 170
292/950 spherical roller thrust bearing 950 1250 180
292/950EM spherical roller thrust bearing 950 1250 180
292/1060 spherical roller thrust bearing 1060 1400 206
292/1060EF spherical roller thrust bearing
292/1180EF spherical roller thrust bearing


 Suffix Descriptions:

E - increased capacity roller set, designed for very high load carrying capacity

TVP2 - plastic cage PA66

M1 - 2-piece solid brass cage

MPAX - 1-piece, milled brass cage, guided on the outer ring rib

MPBX - 1-piece, milled brass cage, guided on the inner ring rib

JP3 - sheet steel cage

C3 - radial clearance as C3
