Rolling Ball Bearings-Self-Aligning Ball Bearings-23 Self-aligning ball bearings, OPEN or SEALED, with STEEL cage or PLASTIC cage, CHROME STEEL AISI52100, METRIC sizes

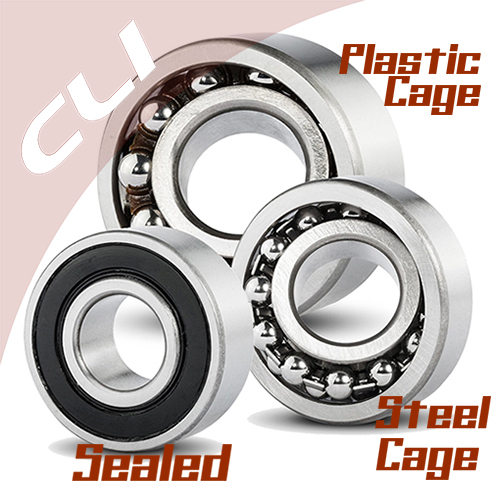

Original self aligning ball bearing 22 2rs tn open 244
Product Picture

23 Self-aligning ball bearings, OPEN or SEALED,
with
STEEL cage or PLASTIC cage,
CHROME STEEL AISI52100, METRIC sizes




CLI self-aligning ball bearings have the same basic characteristics as deep groove ball bearings. However, they have two rows of balls. These can be pivoted together with the inner ring by a few degrees. Thus, the bearing can compensate for misalignment and deflections of the shaft.

Main dimensions according to DIN 630. Double row. Usable in case of high radial and low axial load-ratings. Excellent compensation of misalignment. With cylindrical or tapered bore.

CLI self-aligning ball bearings are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -10°C up to +120°C, in case of rubber seals and metal cage temperature-resistant up to circa +100°C in the long run, in case of the use of polyamide cages usable up to circa +70°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...



BEARING LIST & BEARING DETAILS

23
AISI52100 chrome steel self-aligning ball bearings for
shaft sizes from
10 mm to 110 mm



CLI
Bearing No.

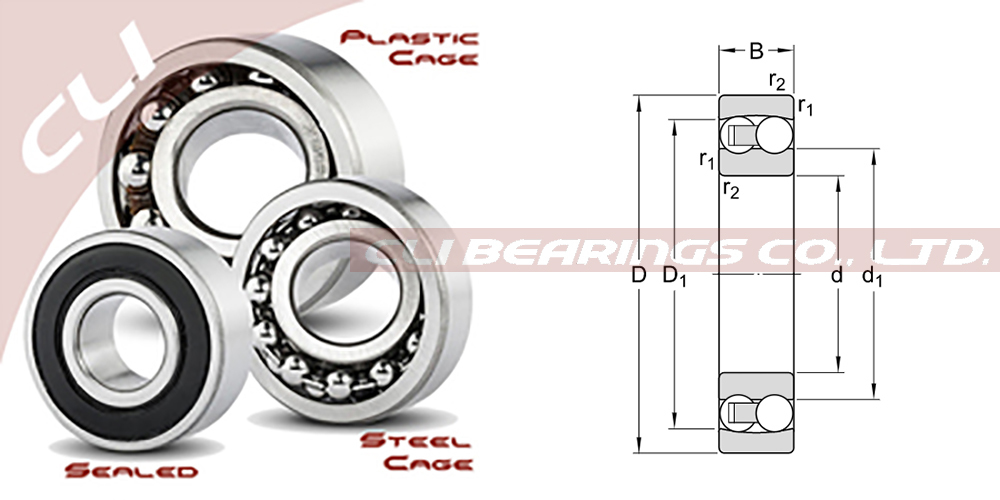

Bore Type Cage Type Seal Type  Bearing Dimensions Basic load ratings Limiting speed Weight
(mm) (kN) (rpm)
d D B rsmin Cr Cor Grease Oil kg
2300 Cylindrical Steel OPEN 10 35 17 0.6 10.1 2.15 17,000 20,000 0.083
2300-2RS Cylindrical Steel SEALED 10 35 17 0.6 10.1 2.15 17,000 20,000 0.083
2300-TN Cylindrical Plastic OPEN 10 35 17 0.6 10.1 2.15 17,000 20,000 0.083
2300-2RS-TN Cylindrical Steel SEALED 10 35 17 0.6 10.1 2.15 17,000 20,000 0.083
2301 Cylindrical Steel OPEN 12 37 17 1 11.8 2.71 15,000 17,000 0.091
2301-TN Cylindrical Plastic OPEN 12 37 17 1 11.8 2.71 15,000 17,000 0.091
2301-2RS-TN Cylindrical Plastic SEALED 12 37 17 1 11.8 2.71 15,000 17,000 0.091
2302 Cylindrical Steel OPEN 15 42 17 1 12 2.9 13,000 15,000 0.114
2302-TN Cylindrical Plastic OPEN 15 42 17 1 12 2.9 13,000 15,000 0.114
2302-2RS Cylindrical Steel SEALED 15 42 17 1 12 2.9 13,000 15,000 0.114
2302-2RS-TN Cylindrical Plastic SEALED 15 42 17 1 12 2.9 13,000 15,000 0.114
2303 Cylindrical Steel OPEN 17 47 19 1 14.4 3.55 11,000 14,000 0.156
2303-TN Cylindrical Plastic OPEN 17 47 19 1 14.4 3.55 11,000 14,000 0.156
2303-2RS Cylindrical Steel SEALED 17 47 19 1 14.4 3.55 11,000 14,000 0.156
2303-2RS-TN Cylindrical Plastic SEALED 17 47 19 1 14.4 3.55 11,000 14,000 0.156
2304 Cylindrical Steel OPEN 20 52 21 1.1 18.1 4.7 10,000 12,000 0.206
2304-TN Cylindrical Plastic OPEN 20 52 21 1.1 18.1 4.7 10,000 12,000 0.206
2304-2RS Cylindrical Steel SEALED 20 52 21 1.1 18.1 4.7 10,000 12,000 0.206
2304-2RS-TN Cylindrical Plastic SEALED 20 52 21 1.1 18.1 4.7 10,000 12,000 0.206
2304K Tapered Steel OPEN 20 52 21 1.1 18.1 4.7 10,000 12,000 0.206
2304K-TN Tapered Plastic OPEN 20 52 21 1.1 18.1 4.7 10,000 12,000 0.206
2304K-2RS Tapered Steel SEALED 20 52 21 1.1 18.1 4.7 10,000 12,000 0.206
2304K-2RS-TN Tapered Plastic SEALED 20 52 21 1.1 18.1 4.7 10,000 12,000 0.206
2305 Cylindrical Steel OPEN 25 62 24 1.1 24.4 6.6 8,500 10,000 0.334
2305-TN Cylindrical Plastic OPEN 25 62 24 1.1 24.4 6.6 8,500 10,000 0.334
2305-2RS Cylindrical Steel SEALED 25 62 24 1.1 24.4 6.6 8,500 10,000 0.334
2305K Tapered Steel OPEN 25 62 24 1.1 24.4 6.6 8,500 10,000 0.334
2305K-TN Tapered Plastic OPEN 25 62 24 1.1 24.4 6.6 8,500 10,000 0.334
2305K-2RS Tapered Steel SEALED 25 62 24 1.1 24.4 6.6 8,500 10,000 0.334
2305K-2RS-TN Tapered Plastic SEALED 25 62 24 1.1 24.4 6.6 8,500 10,000 0.334
2306 Cylindrical Steel OPEN 30 72 27 1.1 31.5 8.75 7,200 8,500 0.496
2306-TN Cylindrical Plastic OPEN 30 72 27 1.1 31.5 8.75 7,200 8,500 0.496
2306-2RS Cylindrical Steel SEALED 30 72 27 1.1 31.5 8.75 7,200 8,500 0.496
2306-2RS-TN Cylindrical Plastic SEALED 30 72 27 1.1 31.5 8.75 7,200 8,500 0.496
2306K Tapered Steel OPEN 30 72 27 1.1 31.5 8.75 7,200 8,500 0.496
2306K-TN Tapered Plastic OPEN 30 72 27 1.1 31.5 8.75 7,200 8,500 0.496
2306K-2RS Tapered Steel SEALED 30 72 27 1.1 31.5 8.75 7,200 8,500 0.496
2306K-2RS-TN Tapered Plastic SEALED 30 72 27 1.1 31.5 8.75 7,200 8,500 0.496
2307 Cylindrical Steel OPEN 35 80 31 1.5 39.5 11.3 6,300 7,400 0.671
2307-TN Cylindrical Plastic OPEN 35 80 31 1.5 39.5 11.3 6,300 7,400 0.671
2307-2RS Cylindrical Steel SEALED 35 80 31 1.5 39.5 11.3 6,300 7,400 0.671
2307K Tapered Steel OPEN 35 80 31 1.5 39.5 11.3 6,300 7,400 0.671
2307K-TN Tapered Plastic OPEN 35 80 31 1.5 39.5 11.3 6,300 7,400 0.671
2307K-2RS Tapered Steel SEALED 35 80 31 1.5 39.5 11.3 6,300 7,400 0.671
2307K-2RS-TN Tapered Plastic SEALED 35 80 31 1.5 39.5 11.3 6,300 7,400 0.671
2308 Cylindrical Steel OPEN 40 90 33 1.5 45 13.5 5,600 6,600 0.918
2308-TN Cylindrical Plastic OPEN 40 90 33 1.5 45 13.5 5,600 6,600 0.918
2308-2RS Cylindrical Steel SEALED 40 90 33 1.5 45 13.5 5,600 6,600 0.918
2308-2RS-TN Cylindrical Plastic SEALED 40 90 33 1.5 45 13.5 5,600 6,600 0.918
2308K Tapered Steel OPEN 40 90 33 1.5 45 13.5 5,600 6,600 0.918
2308K-TN Tapered Plastic OPEN 40 90 33 1.5 45 13.5 5,600 6,600 0.918
2308K-2RS Tapered Steel SEALED 40 90 33 1.5 45 13.5 5,600 6,600 0.918
2308K-2RS-TN Tapered Plastic SEALED 40 90 33 1.5 45 13.5 5,600 6,600 0.918
2309 Cylindrical Steel OPEN 45 100 36 1.5 54 16.7 5,000 5,900 1.23
2309-TN Cylindrical Plastic OPEN 45 100 36 1.5 54 16.7 5,000 5,900 1.23
2309-2RS Cylindrical Steel SEALED 45 100 36 1.5 54 16.7 5,000 5,900 1.23
2309-2RS-TN Cylindrical Plastic SEALED 45 100 36 1.5 54 16.7 5,000 5,900 1.23
2309K Tapered Steel OPEN 45 100 36 1.5 54 16.7 5,000 5,900 1.23
2309K-TN Tapered Plastic OPEN 45 100 36 1.5 54 16.7 5,000 5,900 1.23
2309K-2RS Tapered Steel SEALED 45 100 36 1.5 54 16.7 5,000 5,900 1.23
2309K-2RS-TN Tapered Plastic SEALED 45 100 36 1.5 54 16.7 5,000 5,900 1.23
2310 Cylindrical Steel OPEN 50 110 40 2 64.5 20.2 4,600 5,400 1.63
2310-TN Cylindrical Plastic OPEN 50 110 40 2 64.5 20.2 4,600 5,400 1.63
2310-2RS Cylindrical Steel SEALED 50 110 40 2 64.5 20.2 4,600 5,400 1.63
2310-2RS-TN Cylindrical Plastic SEALED 50 110 40 2 64.5 20.2 4,600 5,400 1.63
2310K Tapered Steel OPEN 50 110 40 2 64.5 20.2 4,600 5,400 1.63
2310K-TN Tapered Plastic OPEN 50 110 40 2 64.5 20.2 4,600 5,400 1.63
2310K-2RS Tapered Steel SEALED 50 110 40 2 64.5 20.2 4,600 5,400 1.63
2310K-2RS-TN Tapered Plastic SEALED 50 110 40 2 64.5 20.2 4,600 5,400 1.63
2311 Cylindrical Steel OPEN 55 120 43 2 75.5 24 4,200 4,900 2.1
2311-TN Cylindrical Plastic OPEN 55 120 43 2 75.5 24 4,200 4,900 2.1
2311K Tapered Steel OPEN 55 120 43 2 75.5 24 4,200 4,900 2.1
2311K-TN Tapered Plastic OPEN 55 120 43 2 75.5 24 4,200 4,900 2.1
2312 Cylindrical Steel OPEN 60 130 46 2.1 87 28.2 3,800 4,500 2.59
2312-TN Cylindrical Plastic OPEN 60 130 46 2.1 87 28.2 3,800 4,500 2.59
2312K Tapered Steel OPEN 60 130 46 2.1 87 28.2 3,800 4,500 2.59
2312K-TN Tapered Plastic OPEN 60 130 46 2.1 87 28.2 3,800 4,500 2.59
2313 Cylindrical Steel OPEN 65 140 48 2.1 96 32.5 3,600 4,200 3.2
2313-TN Cylindrical Plastic OPEN 65 140 48 2.1 96 32.5 3,600 4,200 3.2
2313K Tapered Steel OPEN 65 140 48 2.1 96 32.5 3,600 4,200 3.2
2313K-TN Tapered Plastic OPEN 65 140 48 2.1 96 32.5 3,600 4,200 3.2
2314 Cylindrical Steel OPEN 70 150 51 2.1 109 37.5 3,300 3,900 3.92
2314-TN Cylindrical Plastic OPEN 70 150 51 2.1 109 37.5 3,300 3,900 3.92
2314K Tapered Steel OPEN 70 150 51 2.1 109 37.5 3,300 3,900 3.92
2314K-TN Tapered Plastic OPEN 70 150 51 2.1 109 37.5 3,300 3,900 3.92
2315 Cylindrical Steel OPEN 75 160 55 2.1 123 43 3,100 3,600 4.78
2315-TN Cylindrical Plastic OPEN 75 160 55 2.1 123 43 3,100 3,600 4.78
2315K Tapered Steel OPEN 75 160 55 2.1 123 43 3,100 3,600 4.78
2315K-TN Tapered Plastic OPEN 75 160 55 2.1 123 43 3,100 3,600 4.78
2316 Cylindrical Steel OPEN 80 170 58 2.1 128 45 2,900 3,400 5.65
2316-TN Cylindrical Plastic OPEN 80 170 58 2.1 128 45 2,900 3,400 5.65
2316K Tapered Steel OPEN 80 170 58 2.1 128 45 2,900 3,400 5.65
2316K-TN Tapered Plastic OPEN 80 170 58 2.1 128 45 2,900 3,400 5.65
2317 Cylindrical Steel OPEN 85 180 60 3 140 51.5 2,700 3,200 6.55
2317K Tapered Steel OPEN 85 180 60 3 140 51.5 2,700 3,200 6.39
2318 Cylindrical Steel OPEN 90 190 64 3 152 57.5 2,600 3,000 7.75
2318K Tapered Steel OPEN 90 190 64 3 152 57.5 2,600 3,000 7.56
2319 Cylindrical Steel OPEN 95 200 67 3 165 64.5 2,400 2,800 9.05
2319K Tapered Steel OPEN 95 200 67 3 165 64.5 2,400 2,800 8.83
2320 Cylindrical Steel OPEN 100 215 73 3 192 79 2,300 2,700 11.5
2320K Tapered Steel OPEN 100 215 73 3 192 79 2,300 2,700 11.2
2321 Cylindrical Steel OPEN 105 225 77 3 205 87 2,200 2,600 13.2
2322 Cylindrical Steel OPEN 110 240 80 3 217 94.5 2,100 2,400 15.8
2322K Tapered Steel OPEN 110 240 80 3 217 94.5 2,100 2,400 15.4


 * Note: No suffix = STEEL cage, TN = PLASTIC cage, K = TAPERED bore
