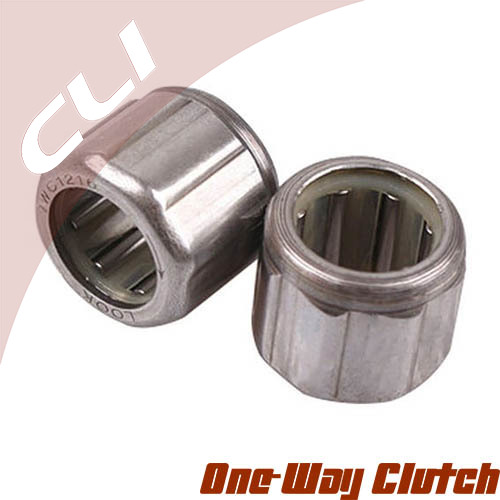

Product Picture

Original 5 one way clutch 1wc ewc a ewc c ss ewc nw

Download PDF Catalogue

1WC / IWC
Miniature One-Way Clutch Bearings,
One-Way Needle-Roller Bearing Clutches, METRIC Sizes

CLI one-way bearings roll freely in one direction, but lock to transmit torque when the rotation of the shaft is reversed.Also known as drawn-cup roller clutches. An arrow on the lip indicates the rotational direction that locks the bearings.Single-row bearings do not support loads from any direction. To support radial loads, use with our Needle-Roller Bearings.Triple-row bearings support radial loads.

CLI miniature one-way clutch consists of drawn cup, rollers, cage, and springs.The drawn cup, made of carburized steel sheet, has a unique structure: a protruding portion, which serves as a stopper of rotation on the outside surface at O.D. side, and a cam on the outer ring at bore side are provided.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

1WC / IWC
Miniature One-Way Clutch Bearings for
shaft sizes from 6 mm to 12 mm

CLI Bearing No.	Seal Type	Bore Dia	Outer Dia	Outer Dia	Width	Torque Capacity	Weight
CLI Bearing No.	Seal Type	(Fw)	(D1)	(D2)	(C)	Torque Capacity	(g)
1WC0608	Open	6 mm	10 mm	10.4 mm	8 mm	0.44	2
1WC0612	Open	6 mm	10 mm	10.4 mm	12 mm	0.88	3
1WC0812	Open	8 mm	14.2 mm	15 mm	12 mm	1.96	7
1WC0815	Open	8 mm	14.2 mm	15 mm	14.5 mm	2.65	8
1WC1012	Open	10 mm	16 mm	17 mm	12 mm	2.35	8
1WC1216	Open	12 mm	18 mm	19 mm	16 mm	6.28	12

• Differences Between EWC and 1WC One-Way Clutches
