Ball Bearings-Self-Aligning Ball Bearings-13 / 13-K / 13-K-TN Self-aligning ball bearings with STEEL cage or PLASTIC cage, CHROME STEEL AISI52100, METRIC sizes

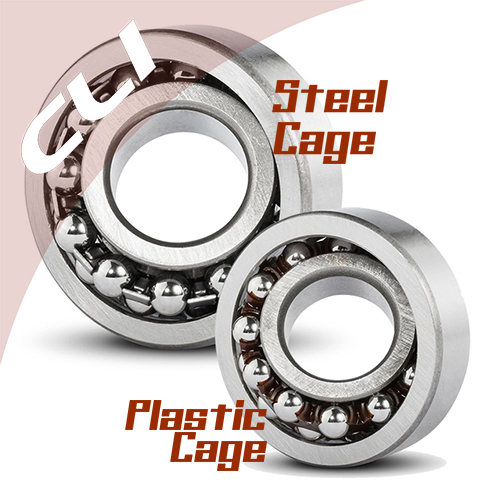

Original self aligning ball bearing 12 open tn 244
Product Picture

13 / 13-K / 13-K-TN Self-aligning ball bearings
with STEEL cage or PLASTIC cage,
CHROME STEEL AISI52100, METRIC sizes



CLI self-aligning ball bearings have the same basic characteristics as deep groove ball bearings. However, they have two rows of balls. These can be pivoted together with the inner ring by a few degrees. Thus, the bearing can compensate for misalignment and deflections of the shaft.

Main dimensions according to DIN 630. Double row. Usable in case of high radial and low axial load-ratings. Excellent compensation of misalignment. With cylindrical or tapered bore.

CLI self-aligning ball bearings are economical, withstand extremely high load-ratings and are suitable for temperatures from circa -10°C up to +120°C, in case of rubber seals and metal cage temperature-resistant up to circa +100°C in the long run, in case of the use of polyamide cages usable up to circa +70°C. The rolling bearing steel is wear-resistant, shock-resistant, conductive and magnetic.

Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...

BEARING LIST & BEARING DETAILS

13 / 13-K / 13-K-TN
AISI52100 chrome steel self-aligning ball bearings for
shaft sizes from 10 mm to 110 mm


CLI

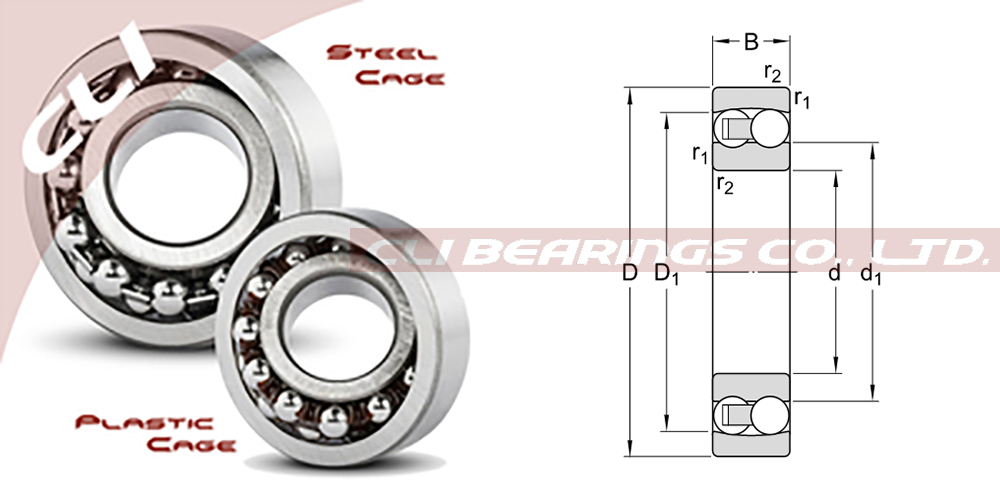

Bearing No.		 Bore Type Cage Type Seal Type  Bearing Dimensions Basic load ratings Limiting speed Weight
(mm) (kN) (rpm)
d D B rsmin Cr Cor Grease Oil kg
1300 Cylindrical Steel OPEN 10 35 11 0.6 7.25 1.62 18,000 21,000 0.058
1300-TN Cylindrical Plastic OPEN 10 35 11 0.6 7.25 1.62 18,000 21,000 0.058
1301 Cylindrical Steel OPEN 12 37 12 1 9.45 2.16 16,000 18,000 0.066
1301-TN Cylindrical Plastic OPEN 12 37 12 1 9.45 2.16 16,000 18,000 0.066
1302 Cylindrical Steel OPEN 15 42 13 1 9.55 2.3 13,000 16,000 0.092
1302-TN Cylindrical Plastic OPEN 15 42 13 1 9.55 2.3 13,000 16,000 0.092
1303 Cylindrical Steel OPEN 17 47 14 1 12.5 3.2 12,000 14,000 0.128
1303-TN Cylindrical Plastic OPEN 17 47 14 1 12.5 3.2 12,000 14,000 0.128
1304 Cylindrical Steel OPEN 20 52 15 1.1 12.4 3.35 11,000 13,000 0.16
1304-TN Cylindrical Plastic OPEN 20 52 15 1.1 12.4 3.35 11,000 13,000 0.158
1304K Tapered Steel OPEN 20 52 15 1.1 12.4 3.35 11,000 13,000 0.16
1304K-TN Tapered Plastic OPEN 20 52 15 1.1 12.4 3.35 11,000 13,000 0.158
1305 Cylindrical Steel OPEN 25 62 17 1.1 18 5 9,100 11,000 0.255
1305-TN Cylindrical Plastic OPEN 25 62 17 1.1 18 5 9,100 11,000 0.251
1305K Tapered Steel OPEN 25 62 17 1.1 18 5 9,100 11,000 0.255
1305K-TN Tapered Plastic OPEN 25 62 17 1.1 18 5 9,100 11,000 0.251
1306 Cylindrical Steel OPEN 30 72 19 1.1 21.3 6.3 7,700 9,100 0.383
1306-TN Cylindrical Plastic OPEN 30 72 19 1.1 21.3 6.3 7,700 9,100 0.377
1306K Tapered Steel OPEN 30 72 19 1.1 21.3 6.3 7,700 9,100 0.383
1306K-TN Tapered Plastic OPEN 30 72 19 1.1 21.3 6.3 7,700 9,100 0.377
1307 Cylindrical Steel OPEN 35 80 21 1.5 25.1 7.85 6,800 8,000 0.5
1307-TN Cylindrical Plastic OPEN 35 80 21 1.5 25.1 7.85 6,800 8,000 0.492
1307K Tapered Steel OPEN 35 80 21 1.5 25.1 7.85 6,800 8,000 0.5
1307K-TN Tapered Plastic OPEN 35 80 21 1.5 25.1 7.85 6,800 8,000 0.492
1308 Cylindrical Steel OPEN 40 90 23 1.5 29.6 9.7 6,000 7,000 0.709
1308-TN Cylindrical Plastic OPEN 40 90 23 1.5 29.6 9.7 6,000 7,000 0.698
1308K Tapered Steel OPEN 40 90 23 1.5 29.6 9.7 6,000 7,000 0.709
1308K-TN Tapered Plastic OPEN 40 90 23 1.5 29.6 9.7 6,000 7,000 0.698
1309 Cylindrical Steel OPEN 45 100 25 1.5 38 12.7 5,400 6,300 0.953
1309-TN Cylindrical Plastic OPEN 45 100 25 1.5 38 12.7 5,400 6,300 0.938
1309K Tapered Steel OPEN 45 100 25 1.5 38 12.7 5,400 6,300 0.953
1309K-TN Tapered Plastic OPEN 45 100 25 1.5 38 12.7 5,400 6,300 0.938
1310 Cylindrical Steel OPEN 50 110 27 2 43.5 14.1 4,900 5,800 1.2
1310-TN Cylindrical Plastic OPEN 50 110 27 2 43.5 14.1 4,900 5,800 1.18
1310K Tapered Steel OPEN 50 110 27 2 43.5 14.1 4,900 5,800 1.2
1310K-TN Tapered Plastic OPEN 50 110 27 2 43.5 14.1 4,900 5,800 1.18
1311 Cylindrical Steel OPEN 55 120 29 2 51.5 17.9 4,500 5,200 1.58
1311-TN Cylindrical Plastic OPEN 55 120 29 2 51.5 17.9 4,500 5,200 1.56
1311K Tapered Steel OPEN 55 120 29 2 51.5 17.9 4,500 5,200 1.58
1311K-TN Tapered Plastic OPEN 55 120 29 2 51.5 17.9 4,500 5,200 1.56
1312 Cylindrical Steel OPEN 60 130 31 2.1 57 20.8 4,100 4,800 1.96
1312-TN Cylindrical Plastic OPEN 60 130 31 2.1 57 20.8 4,100 4,800 1.93
1312K Tapered Steel OPEN 60 130 31 2.1 57 20.8 4,100 4,800 1.96
1312K-TN Tapered Plastic OPEN 60 130 31 2.1 57 20.8 4,100 4,800 1.93
1313 Cylindrical Steel OPEN 65 140 33 2.1 62 22.9 3,800 4,500 2.42
1313-TN Cylindrical Plastic OPEN 65 140 33 2.1 62 22.9 3,800 4,500 2.38
1313K Tapered Steel OPEN 65 140 33 2.1 62 22.9 3,800 4,500 2.42
1313K-TN Tapered Plastic OPEN 65 140 33 2.1 62 22.9 3,800 4,500 2.38
1314 Cylindrical Steel OPEN 70 150 35 2.1 74.5 27.7 3,500 4,200 2.99
1314-TN Cylindrical Plastic OPEN 70 150 35 2.1 74.5 27.7 3,500 4,200 2.99
1314K Tapered Steel OPEN 70 150 35 2.1 74.5 27.7 3,500 4,200 2.99
1314K-TN Tapered Plastic OPEN 70 150 35 2.1 74.5 27.7 3,500 4,200 2.99
1315 Cylindrical Steel OPEN 75 160 37 2.1 79.5 30 3,300 3,900 3.55
1315-TN Cylindrical Plastic OPEN 75 160 37 2.1 79.5 30 3,300 3,900 3.5
1315K Tapered Steel OPEN 75 160 37 2.1 79.5 30 3,300 3,900 3.55
1315K-TN Tapered Plastic OPEN 75 160 37 2.1 79.5 30 3,300 3,900 3.5
1316 Cylindrical Steel OPEN 80 170 39 2.1 88.5 33 3,100 3,600 4.17
1316-TN Cylindrical Plastic OPEN 80 170 39 2.1 88.5 33 3,100 3,600 4.11
1316K Tapered Steel OPEN 80 170 39 2.1 88.5 33 3,100 3,600 4.17
1316K-TN Tapered Plastic OPEN 80 170 39 2.1 88.5 33 3,100 3,600 4.11
1317 Cylindrical Steel OPEN 85 180 41 3 97.5 38 2,900 3,400 4.96
1317-TN Cylindrical Plastic OPEN 85 180 41 3 97.5 38 2,900 3,400 4.89
1317K Tapered Steel OPEN 85 180 41 3 97.5 38 2,900 3,400 4.96
1317K-TN Tapered Plastic OPEN 85 180 41 3 97.5 38 2,900 3,400 4.89
1318 Cylindrical Steel OPEN 90 190 43 3 116 44.5 2,700 3,200 5.78
1318K Tapered Steel OPEN 90 190 43 3 116 44.5 2,700 3,200 5.69
1319 Cylindrical Steel OPEN 95 200 45 3 132 51 2,600 3,000 6.69
1319K Tapered Steel OPEN 95 200 45 3 132 51 2,600 3,000 6.59
1320 Cylindrical Steel OPEN 100 215 47 3 143 57.5 2,400 2,900 8.3
1320K Tapered Steel OPEN 100 215 47 3 143 57.5 2,400 2,900 8.19
1321 Cylindrical Steel OPEN 105 225 49 3 156 64.5 2,300 2,700 10
1321K Tapered Steel OPEN 105 225 49 3 156 64.5 2,300 2,700 10
1322 Cylindrical Steel OPEN 110 240 50 3 164 71.5 2,200 2,600 11.8
1322K Tapered Steel OPEN 110 240 50 3 164 71.5 2,200 2,600 11.7


 * Note: No suffix=STEEL cage, TN=PLASTIC cage, K=TAPERED bore
