112 series
self-aligning ball bearings, with EXTENDED Inner Rings,
CHROME STEEL AISI52100, METRIC sizes
|
|
CLI 112 seris self-aligning ball bearings' main dimensions are according to DIN 630. Self-aligning ball bearings of the series 112 have an extended inner ring for an easy and stable fixing on the shaft by a trunnion screw. Their inner and outer diameter corresponds to the inner and outer diameter of the series 12. They are open, can thus be regreased easily and can be used in case of high rotational speed.
Plese select the bearings in the following tables. Click " CLI BEARING NO. " or " DETAILS " to check the specifications...
|
| BEARING LIST & BEARING DETAILS |
112 series
AISI52100 chrome steel self-aligning ball bearings for
shaft sizes from 20 mm to 60 mm
|
 |
| |
| CLI Bearing No. |
Bore Type |
Cage Material |
Seal Type |

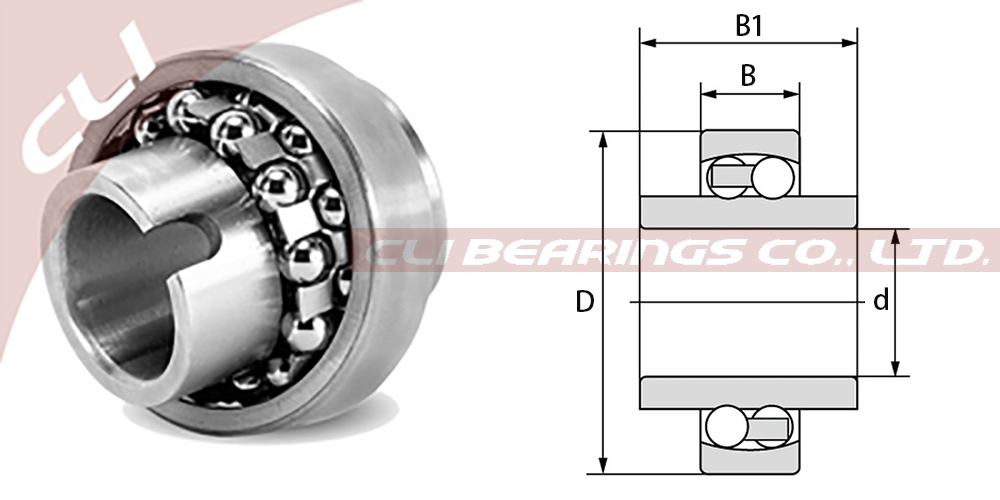

∅ d |
∅ D |
B |
B1 |
| mm |
mm |
mm |
mm |
| 11204 |
Cylindrical |
Steel |
OPEN |
20 |
47 |
14 |
40 |
| 11205 |
Cylindrical |
Steel |
OPEN |
25 |
52 |
15 |
44 |
| 11205-TN |
Cylindrical |
Plastic |
OPEN |
25 |
52 |
15 |
44 |
| 11206 |
Cylindrical |
Steel |
OPEN |
30 |
62 |
16 |
48 |
| 11206-TN |
Cylindrical |
Plastic |
OPEN |
30 |
62 |
16 |
48 |
| 11207 |
Cylindrical |
Steel |
OPEN |
35 |
72 |
17 |
52 |
| 11207-TN |
Cylindrical |
Plastic |
OPEN |
35 |
72 |
17 |
52 |
| 11208 |
Cylindrical |
Steel |
OPEN |
40 |
80 |
18 |
56 |
| 11208-TN |
Cylindrical |
Plastic |
OPEN |
40 |
80 |
18 |
56 |
| 11209 |
Cylindrical |
Steel |
OPEN |
45 |
85 |
19 |
58 |
| 11210 |
Cylindrical |
Steel |
OPEN |
50 |
90 |
20 |
58 |
| 11212 |
Cylindrical |
Steel |
OPEN |
60 |
110 |
22 |
62 |
| 11212-TN |
Cylindrical |
Plastic |
OPEN |
60 |
110 |
22 |
62 |
|
| |
* Note: No suffix = STEEL cage, TN = PLASTIC cage
|
|
| |
| |
