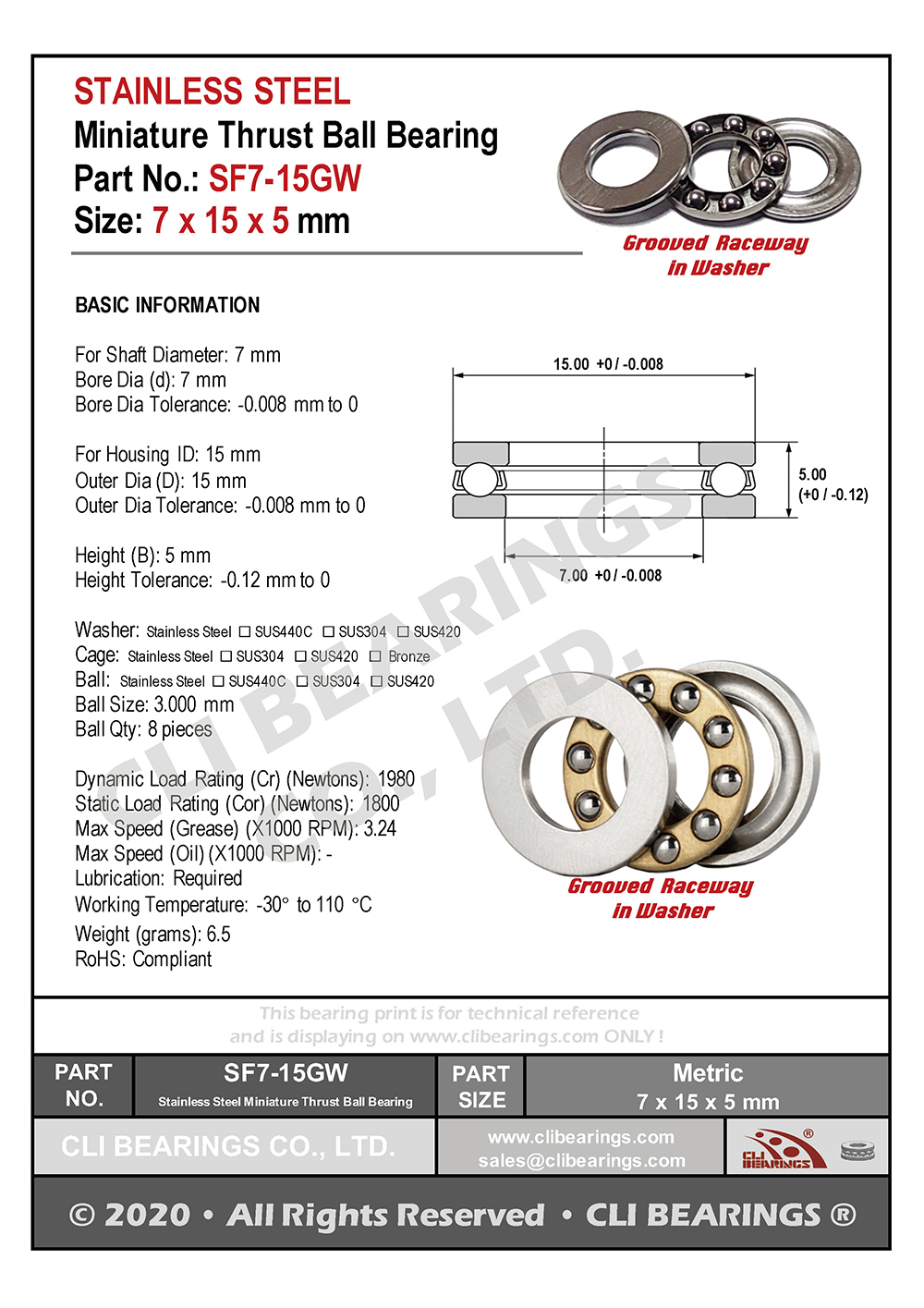

| Part No.: SF7-15GW (SF7-15M) | |
| Standards | Metric Size |
| Bearing Type | Miniature Thrust Ball Bearing |
| For Load Direction | Thrust |
| Seal Type | Open |
| Washer Type | Grooved washer ( with raceway in washer) |
| Bore Dia | 7 mm |
| Bore Dia Tolerance | -0.008 mm to 0 |
| Outer Dia | 15 mm |
| Outer Dia Tolerance | -0.008 mm to 0 |
| Housing Washer ID | 7.2 mm |
| Shaft Washer OD | 14.8 mm |
| Height | 5 mm |
| Height Tolerance | -0.12 mm to 0 |
| Washer Material | SUS440C Stainless Steel |
| Ball Material | SUS440C Stainless Steel |
| Retainer Material | Bronze / Stainless Steel |
| Dynamic Thrust Load | 1980 N |
| Static Thrust Load | 1800 N |
| Max Speed (X1000 rpm) | 3.24 |
| Lubrication | Required |
| Working Temperature | -30° to 110 °C |
| RoHS | Compliant |
| REACH | Compliant |
| Ball Dia | 3 mm |
| Ball Qty (pieces) | 8 |
| Weight | 6.5 g |
| Brand | Neutral / CLI |
