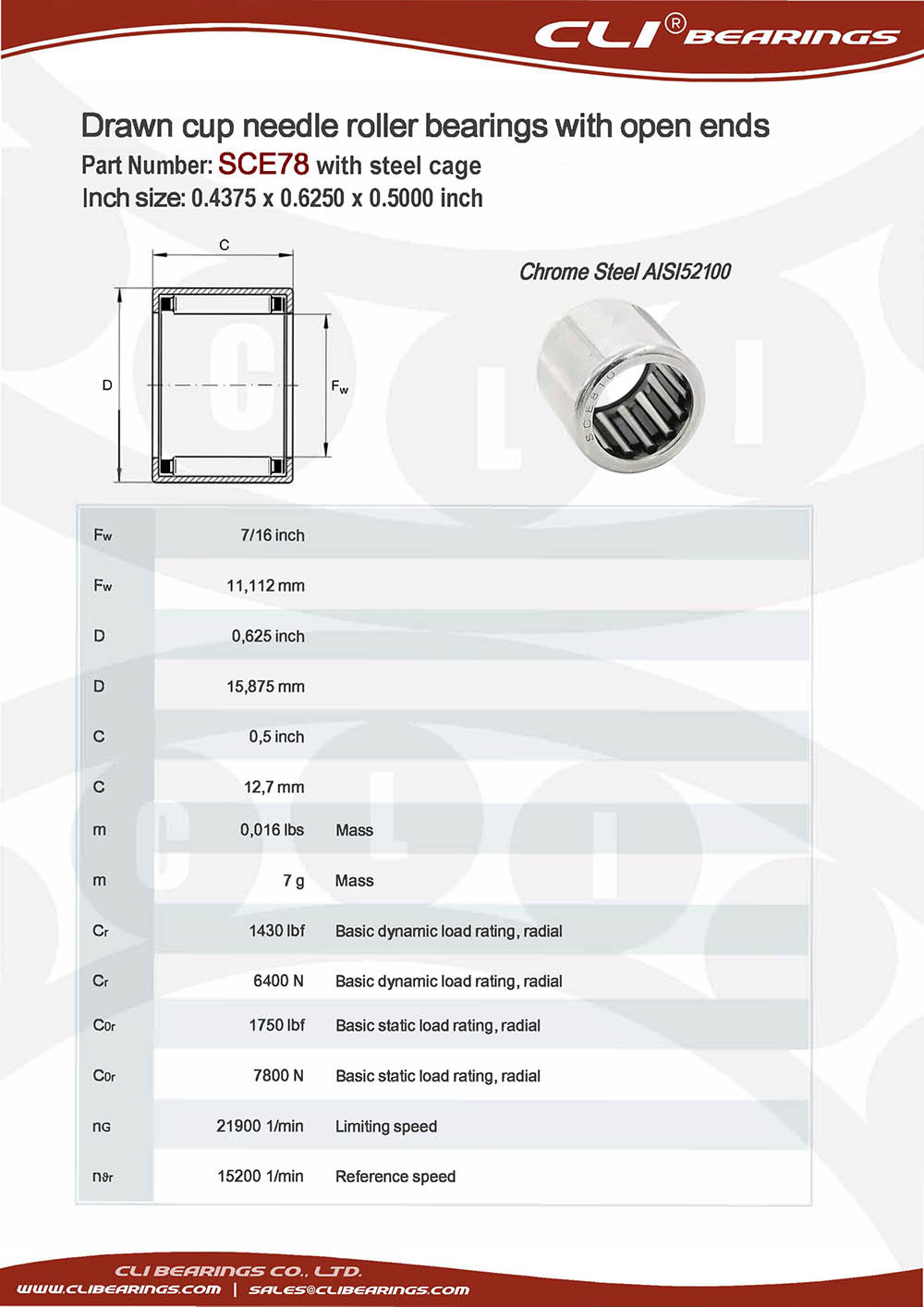

| Part Number: SCE78 (0.4375x0.625x0.5") | |
| Bearing Type | Needle Roller Bearing |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| Measurement Unit | Imperial |
| Seal Type | Open |
| For Shaft Diameter | 7/16 " |
| Bore Dia (Fw) | 7/16 " | 11.1125 mm |
| Bore Dia Tolerance | +13 to +31 um |
| For Housing ID | 15.875 mm |
| Outer Dia (D) | 0.625" | 15.875 mm |
| Outer Dia Tolerance | +16 to +34 um |
| Width (C) | 0.5" | 12.7 mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 6400 N |
| Static Load Rating (Cor) (Newtons) | 7800 N |
| Max Speed (Grease) (RPM) | 21900 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 7.0 g |
| Brand / Trade Mark | CLI |
