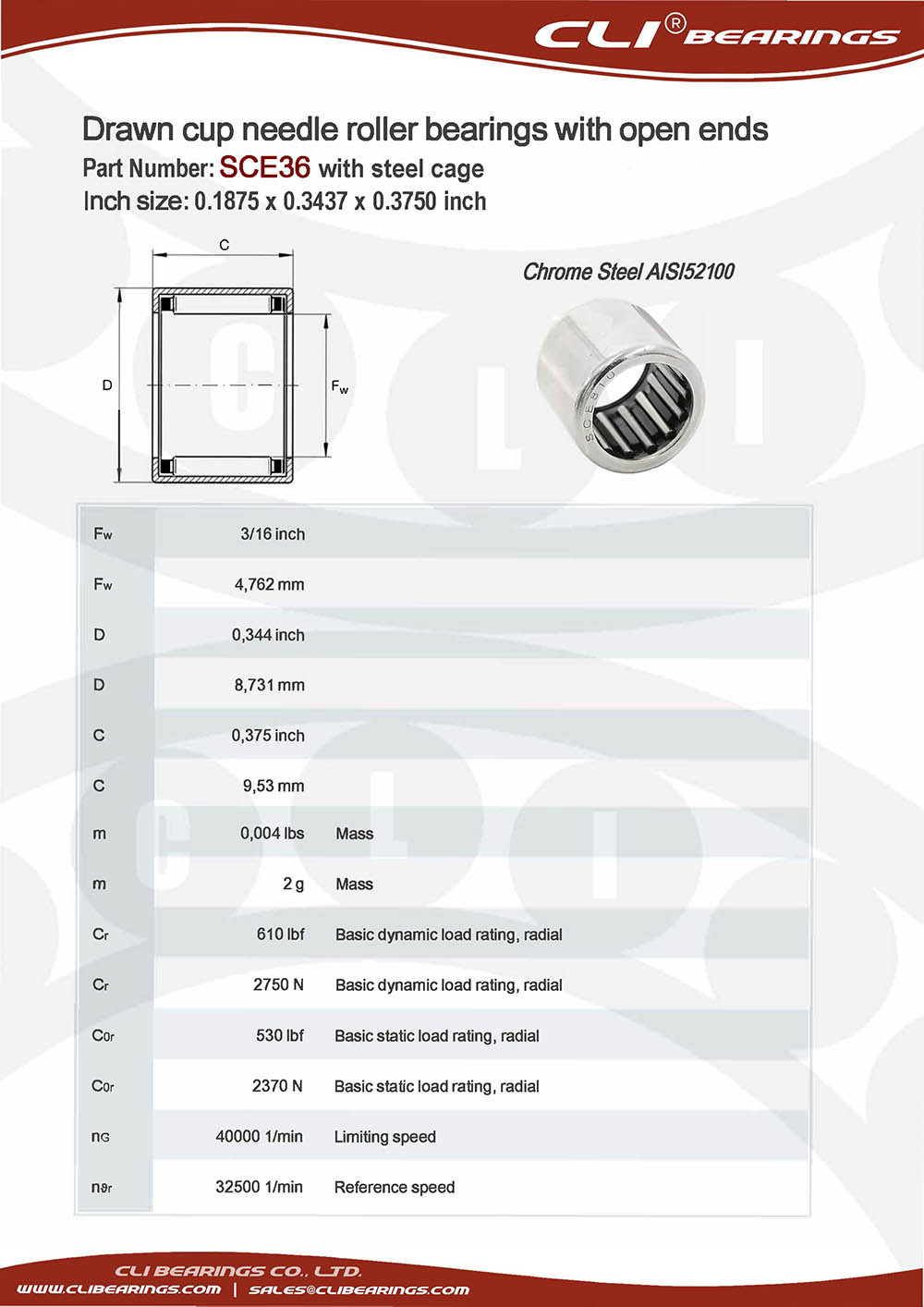

| Part No.: SCE36 (0.1875 x 0.3437 x 0.375 ") | |
| Standards | Metric Size |
| Bearing Type | Needle Roller Bearing |
| Seal Type | Open |
| Number of Row (s) | Single Row |
| Load Direction | Radial |
| For Shaft Diameter | 3/16 " |
| Bore Dia (d) | 3/16 " | 4.7625 mm |
| Bore Dia Tolerance | +10 to +28 um |
| For Housing ID | 8.731mm |
| Outer Dia (D) | 0.3437" | 8.731mm |
| Outer Dia Tolerance | Not Rated |
| Width (B) | 0.3752" | 9.53mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 2750 N |
| Static Load Rating (Cor) (Newtons) | 2370 N |
| Max Speed (Grease) (RPM) | 40000 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Working Temperature | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 2.0 g |
| Wokring Precision | ABEC-1 |
| Brand | Neutral / CLI |
