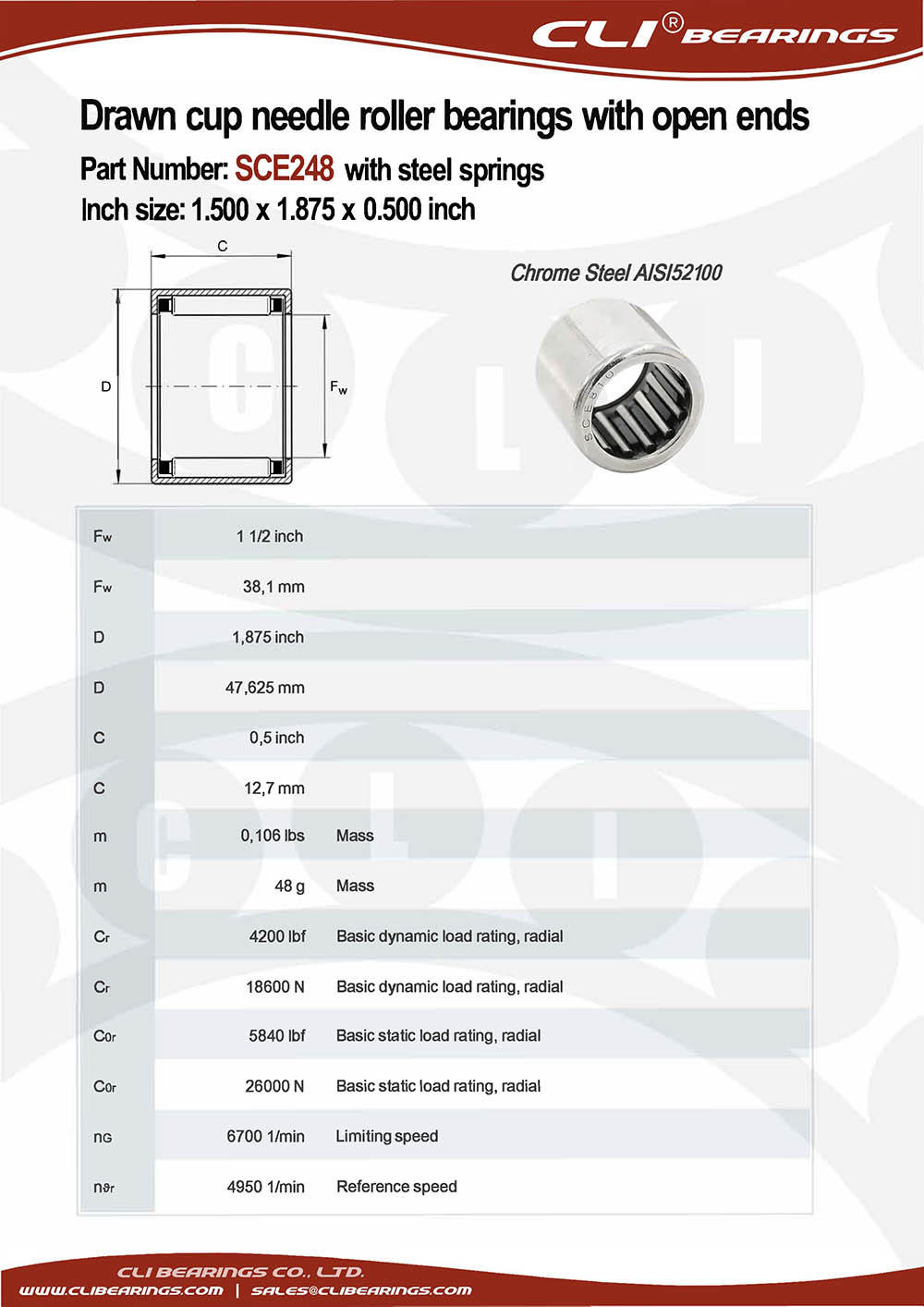

Part No: SCE248 ( 1.5 x 1.875 x 0.5 " ) |
Bearing Type |
Needle Roller Bearing |
For Load Direction |
Radial |
Construction |
Single Row |
End |
Open |
Measurement Unit |
Imperial |
Seal Type |
Open |
For Shaft Diameter |
1.5" |
Bore Dia (Fw) |
1.5" | 38.1 mm |
Bore Dia Tolerance |
+25 to +50 μm |
For Housing ID |
47.625 mm |
Outer Dia (D) |
1.875" | 47.625 mm |
Outer Dia Tolerance |
+25 to +50 μm |
Width (C) |
0.5" | 12.7 mm |
Width Tolerance |
-0.01" to 0" |
Ring Material |
steel |
Ball Material |
steel |
Cage Material |
steel |
Dynamic Load Rating (Cr) (Newtons) |
18600 N |
Static Load Rating (Cor) (Newtons) |
26000 N |
Max Speed (Grease) (RPM) |
6700 RPM |
Lubrication |
Required |
Lubricant |
Grease |
Shaft Mount Type |
Press Fit |
Temperature Range |
-20 to 110 °C |
RoHS |
Compliant |
Weight (grams) |
48.0 g |
Brand / Trade Mark |
CLI |
