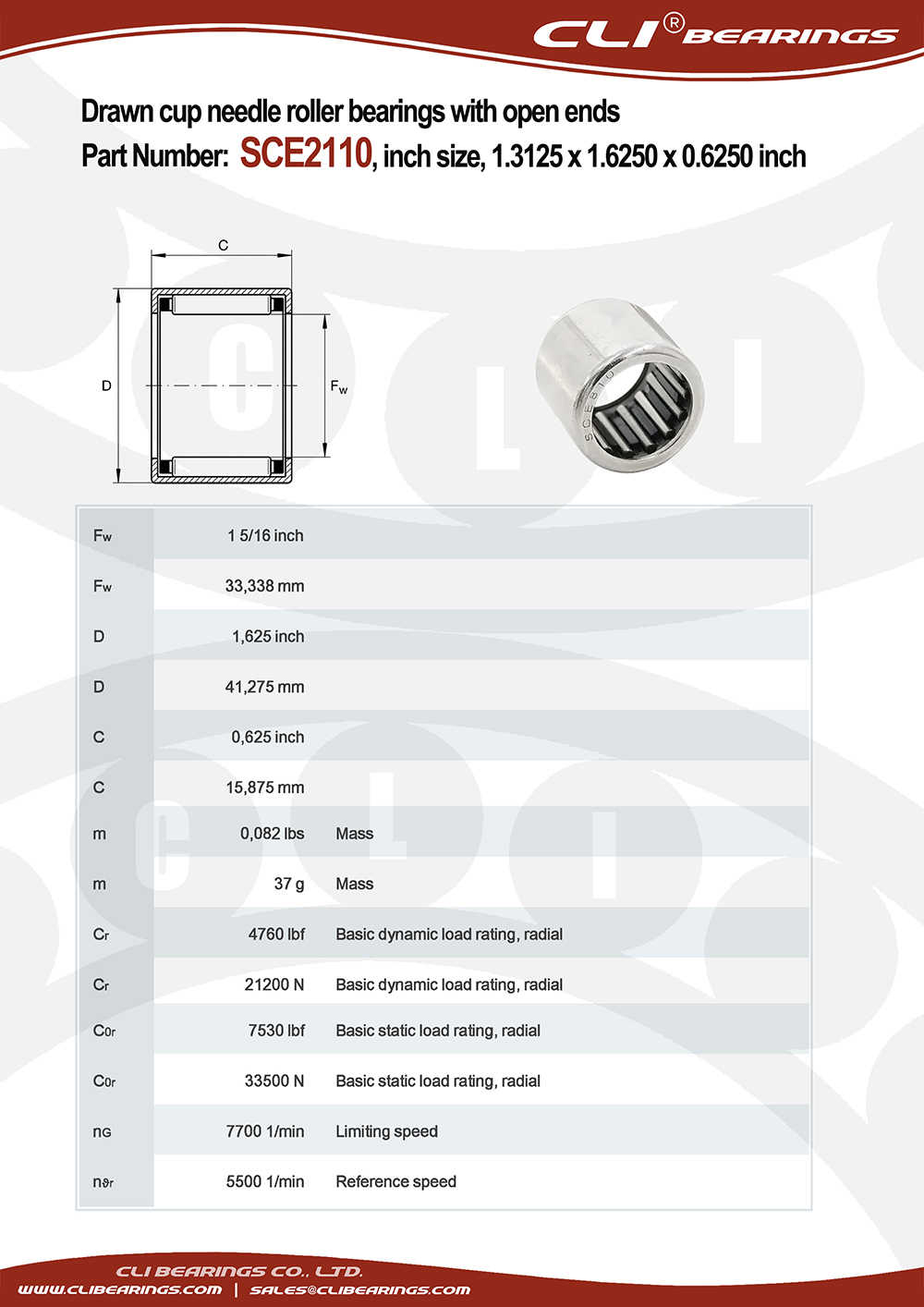

| Part No: SCE2110 ( 1.3125 x 1.625 x 0.625 " ) | |
| Bearing Type | Needle Roller Bearing |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| Measurement Unit | Imperial |
| Seal Type | Open |
| For Shaft Diameter | 1.3125" |
| Bore Dia (Fw) | 1.3125" | 33.3375 mm |
| Bore Dia Tolerance | +25 to +50 μm |
| For Housing ID | 41.275 mm |
| Outer Dia (D) | 1.625" | 41.275 mm |
| Outer Dia Tolerance | +25 to +50 μm |
| Width (C) | 0.625" | 15.875 mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 21200 N |
| Static Load Rating (Cor) (Newtons) | 33500 N |
| Max Speed (Grease) (RPM) | 7700 RPM |
| Lubrication | Required |
| Lubricant | Greased |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 37.0 g |
| Brand / Trade Mark | CLI |
