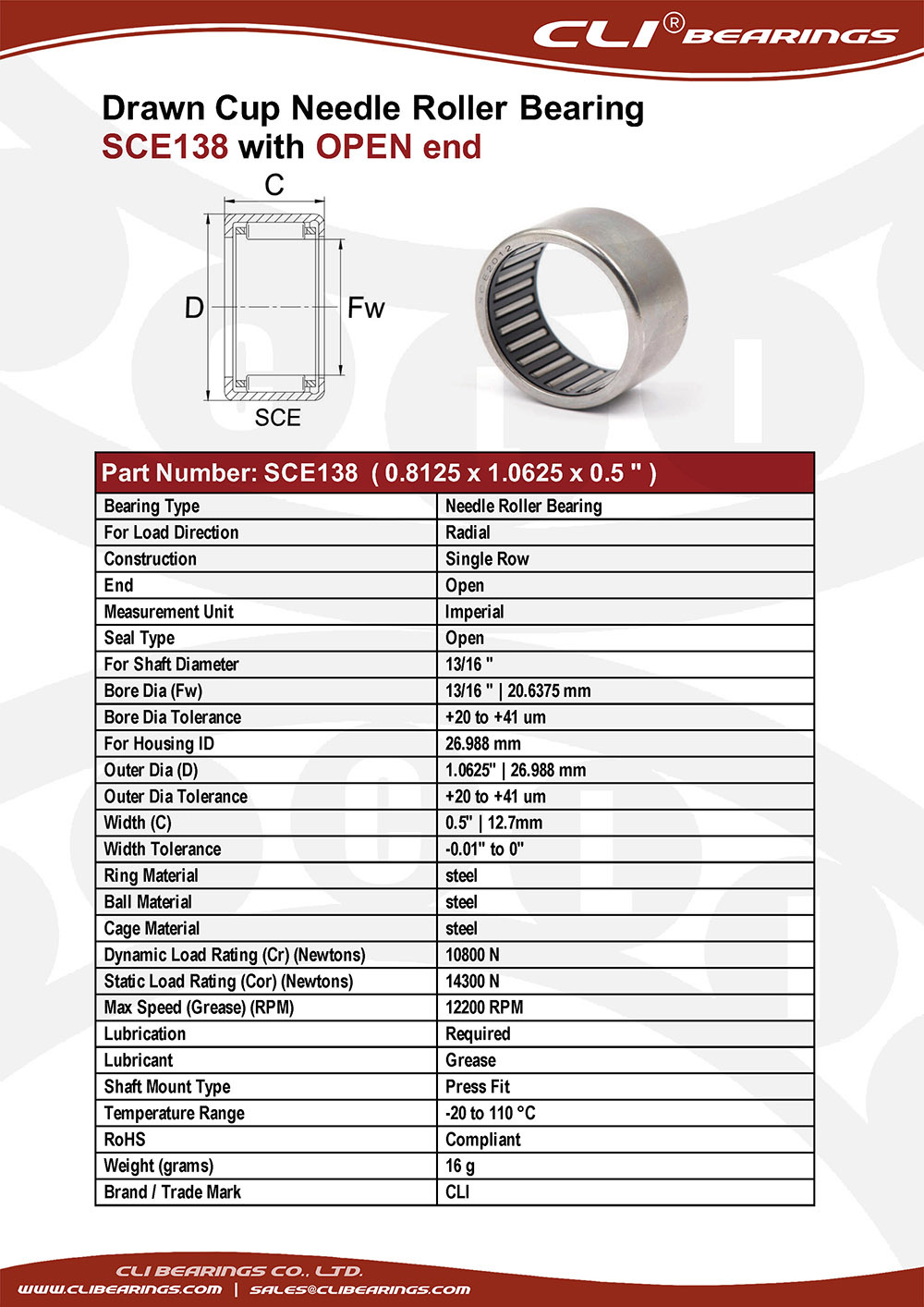

| Part No.: SCE138 ( 0.8125 x 1.0625 x 0.5 " ) | |
| Bearing Type | Needle Roller Bearing |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| Measurement Unit | Imperial |
| Seal Type | Open |
| For Shaft Diameter | 13/16 " |
| Bore Dia (Fw) | 13/16 " | 20.6375 mm |
| Bore Dia Tolerance | +20 to +41 um |
| For Housing ID | 26.988 mm |
| Outer Dia (D) | 1.0625" | 26.988 mm |
| Outer Dia Tolerance | +20 to +41 um |
| Width (C) | 0.5" | 12.7mm |
| Width Tolerance | -0.01" to 0" |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 10800 N |
| Static Load Rating (Cor) (Newtons) | 14300 N |
| Max Speed (Grease) (RPM) | 12200 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 16 g |
| Brand / Trade Mark | CLI |
