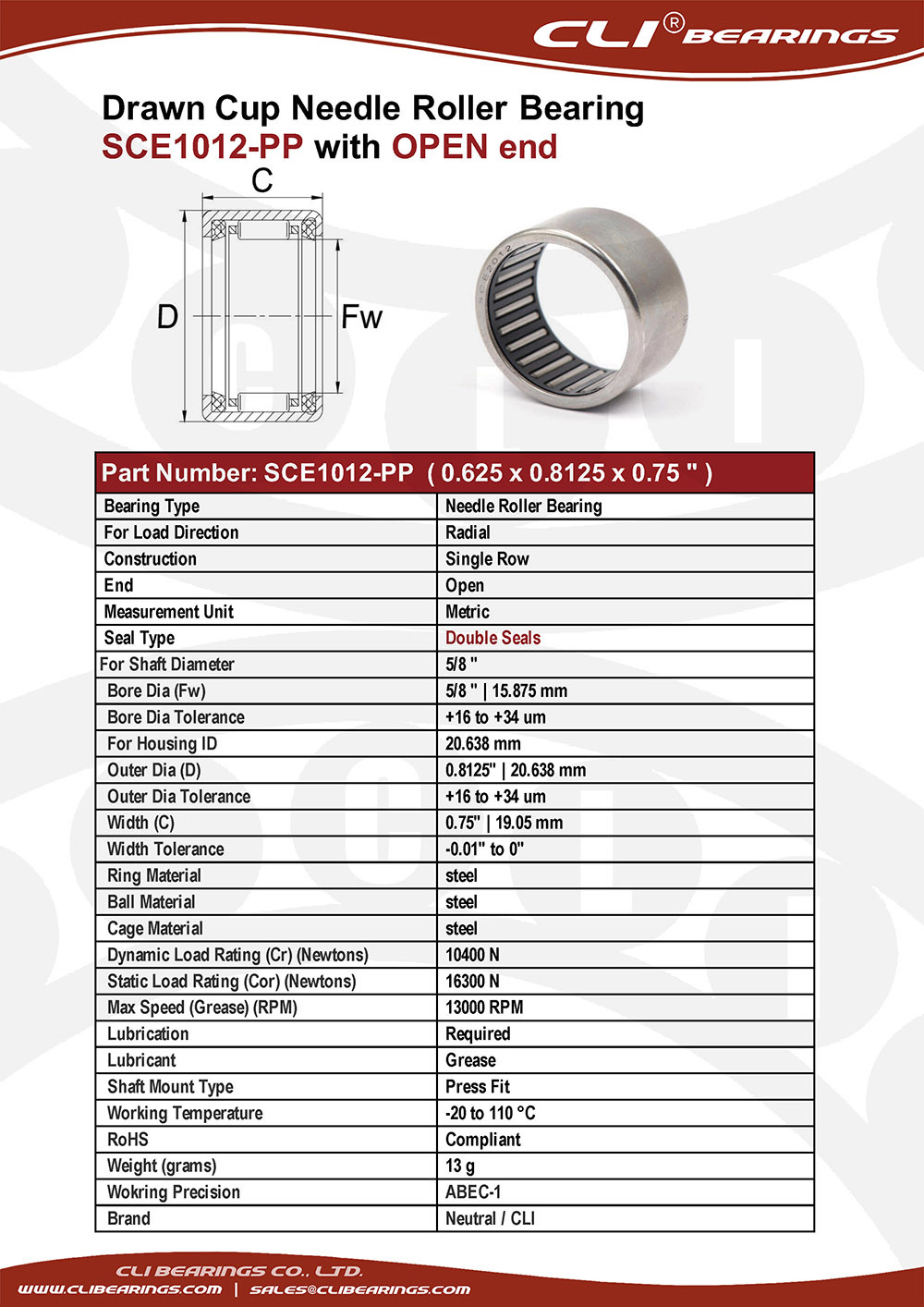

Part No: SCE1012-PP ( 0.625x0.8125x0.75" ) |
Bearing Type |
Needle Roller Bearing |
For Load Direction |
Radial |
Construction |
Single Row |
End |
Open |
Measurement Unit |
Imperial |
Seal Type |
Double Seals |
For Shaft Diameter |
5/8 " |
Bore Dia (Fw) |
5/8 " | 15.875 mm |
Bore Dia Tolerance |
+16 to +34 um |
For Housing ID |
20.638 mm |
Outer Dia (D) |
0.8125" | 20.638 mm |
Outer Dia Tolerance |
+16 to +34 um |
Width (C) |
0.75" | 19.05 mm |
Width Tolerance |
-0.01" to 0" |
Ring Material |
steel |
Ball Material |
steel |
Cage Material |
steel |
Dynamic Load Rating (Cr) (Newtons) |
10400 N |
Static Load Rating (Cor) (Newtons) |
16300 N |
Max Speed (Grease) (RPM) |
13000 RPM |
Lubrication |
Required |
Lubricant |
Grease |
Shaft Mount Type |
Press Fit |
Working Temperature |
-20 to 110 °C |
RoHS |
Compliant |
Weight (grams) |
13 g |
Wokring Precision |
ABEC-1 |
Brand |
Neutral / CLI |
