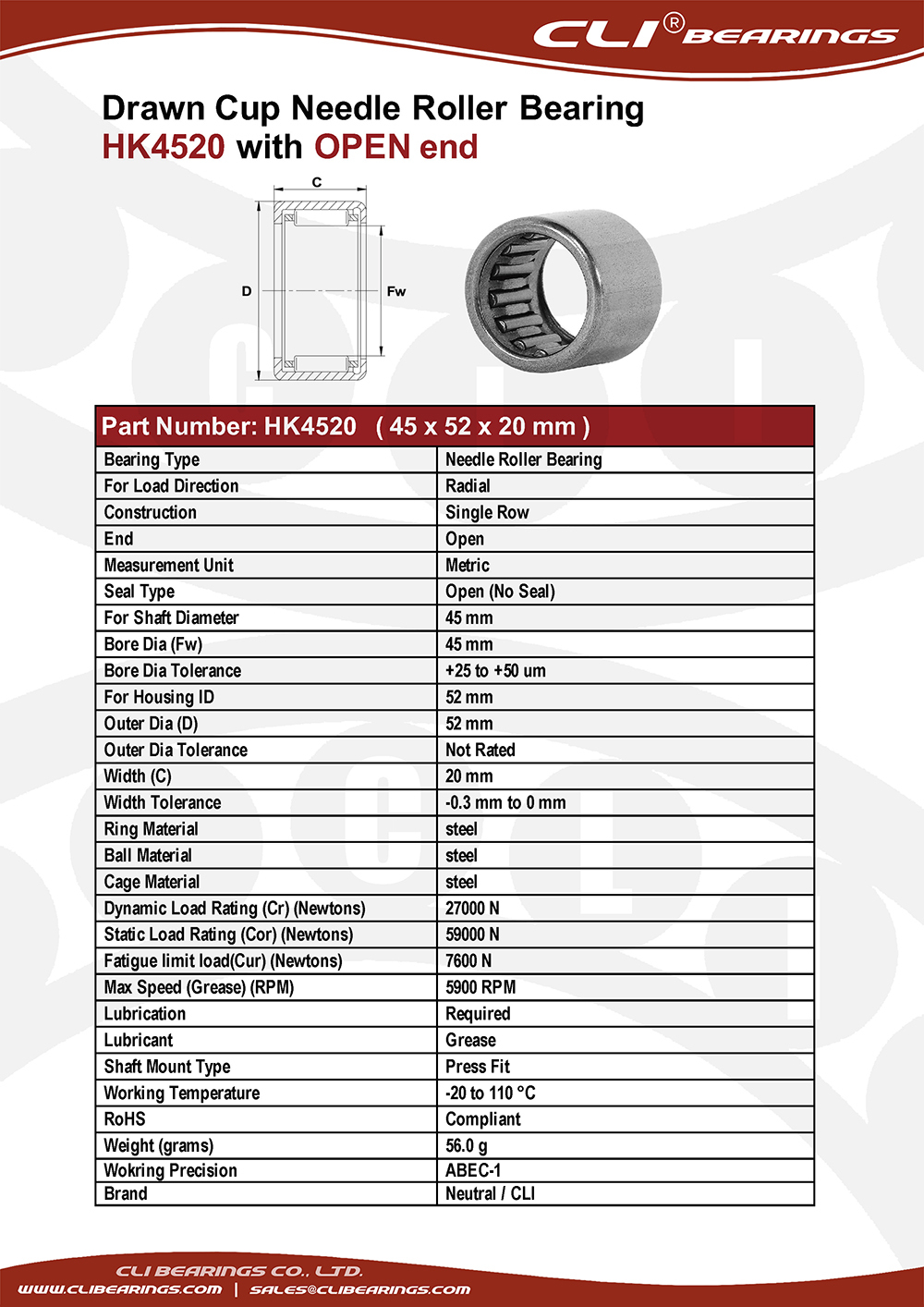

| Part Number: HK4520 (45x52x20 mm) | |
| Bearing Type | Needle Roller Bearing |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Open |
| Measurement Unit | Metric |
| Seal Type | Open (No Seal) |
| For Shaft Diameter | 45 mm |
| Bore Dia (Fw) | 45 mm |
| Bore Dia Tolerance | +25 to +50 um |
| For Housing ID | 52 mm |
| Outer Dia (D) | 52 mm |
| Outer Dia Tolerance | Not Rated |
| Width (C) | 20 mm |
| Width Tolerance | -0.3 mm to 0 mm |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 27000 N |
| Static Load Rating (Cor) (Newtons) | 59000 N |
| Fatigue limit load(Cur) (Newtons) | 7600 N |
| Max Speed (Grease) (RPM) | 5900 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Working Temperature | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 56.0 g |
| Wokring Precision | ABEC-1 |
| Brand | Neutral / CLI |
