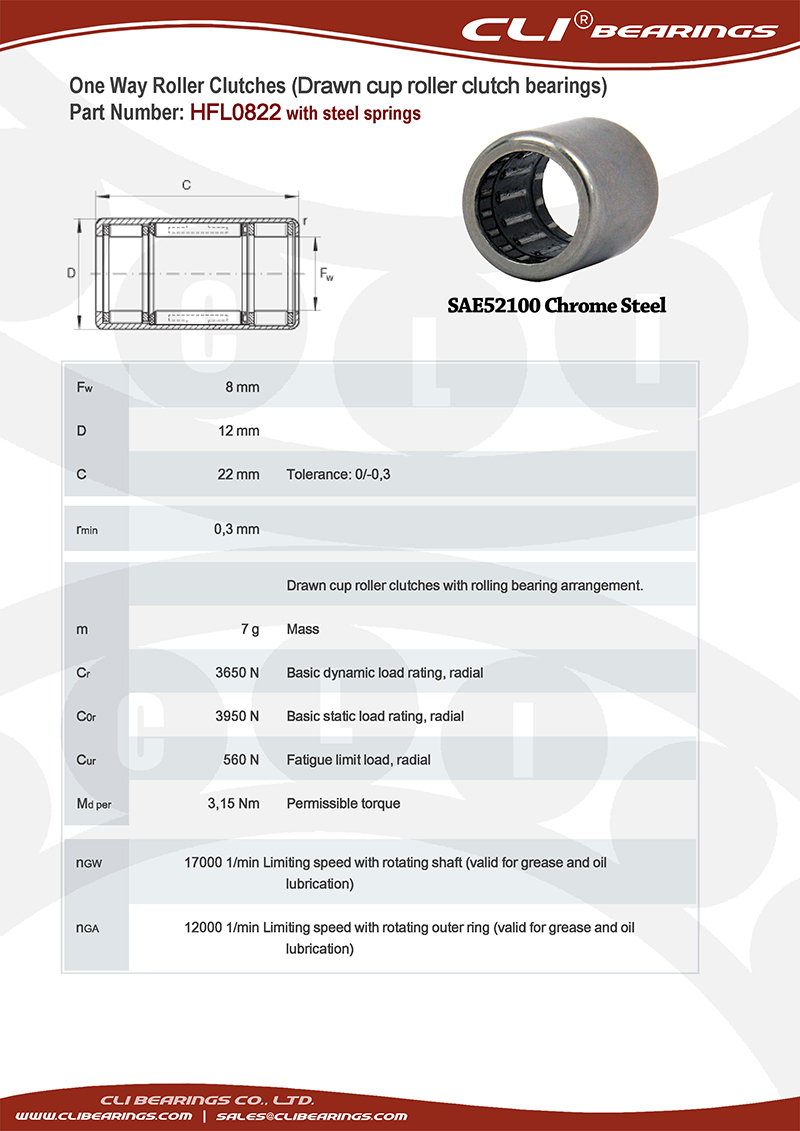

Roller Bearings-One-Way Clutch Bearings-HFL, HFL-KF, HFL-R, HFL-KF-R ( METRIC )- HFL0822
| Part No.: HFL0822 |
| Standards |
Metric Size |
| Bearing Type |
One-way Clutch |
| Seal Type |
Open |
| Construction |
Triple Row |
| For Housing ID |
12 mm |
| For Shaft Diameter |
8 mm |
| Bore Dia |
8 mm |
| Outer Dia |
12 mm |
| Width |
22 mm |
| Ring Material |
Steel |
| Cage Material |
Steel |
| Needle Material |
Steel |
| Spring Material |
Steel |
| MAX SPEED(RPM) |
17000 |
| nGA |
12000 1/min |
| Lubrication |
Lubricated |
| RoHS |
Compliant |
| Knurledy |
No |
| Shaft Mount Type |
Press Fit |
| Temperature Range |
-30° to 110 °C |
| Weight |
7 g |
| Torque Capacity |
3.15 Nm |
| Brand |
1.76 Nm |
