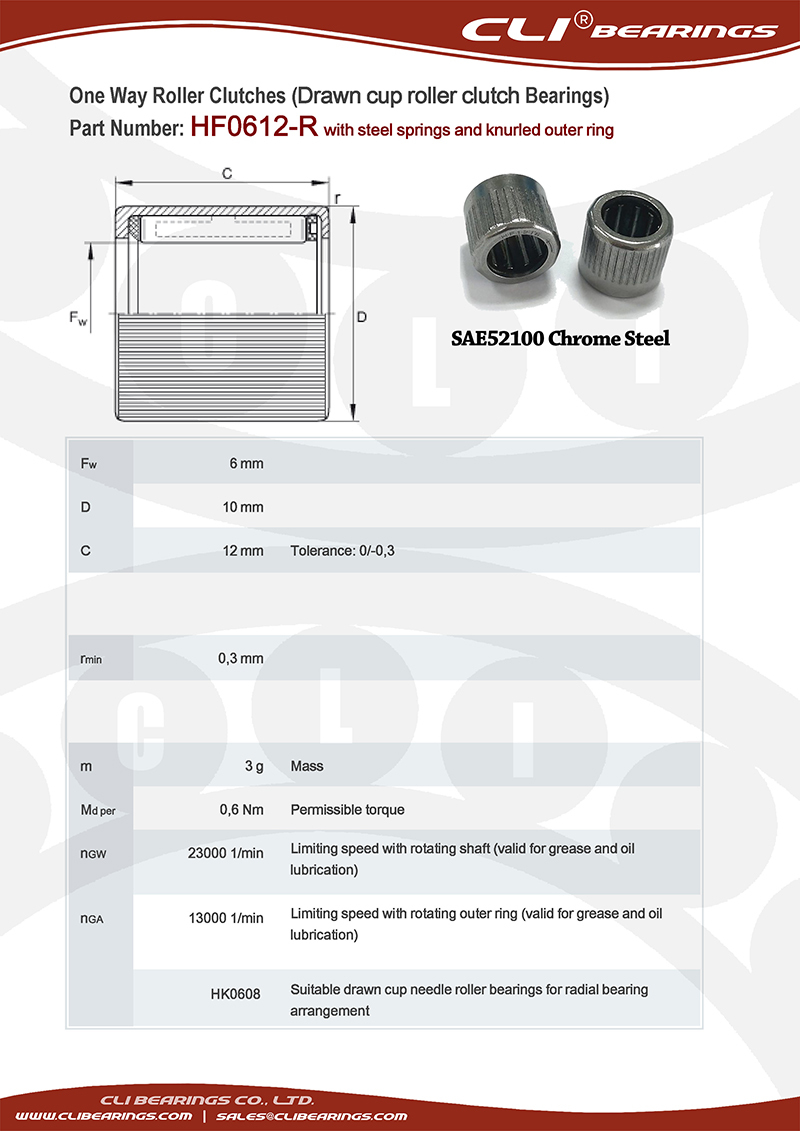

Roller Bearings-One-Way Clutch Bearings-HF, HF-KF, HF-R, HF-KF-R ( METRIC )- HF0612-R
| Part No.: HF0612-KF-R |
| Standards |
Metric Size |
| Bearing Type |
One-Way Clutch |
| Construction |
Single Row |
| Seal Type |
Open |
| System of Measurement |
Metric |
| For Shaft Diameter |
6 mm |
| Bore Dia (d) |
6 mm |
| For Housing ID |
10 mm |
| Outer Dia (D) |
10 mm |
| Width (B) |
12 mm |
| Ring Material |
Steel |
| Needle Material |
Steel |
| Cage Material |
Steel |
| Spring Material |
Steel |
| Knurledy |
Yes |
| Md per |
0,6 Nm |
| nGW |
23000 1/min |
| nGA |
13000 1/min |
| Lubrication |
Lubricated |
| Shaft Mount Type |
Press Fit |
| Temperature Range |
-30° to 110 °C |
| RoHS |
Compliant |
| Brand |
CLI |
