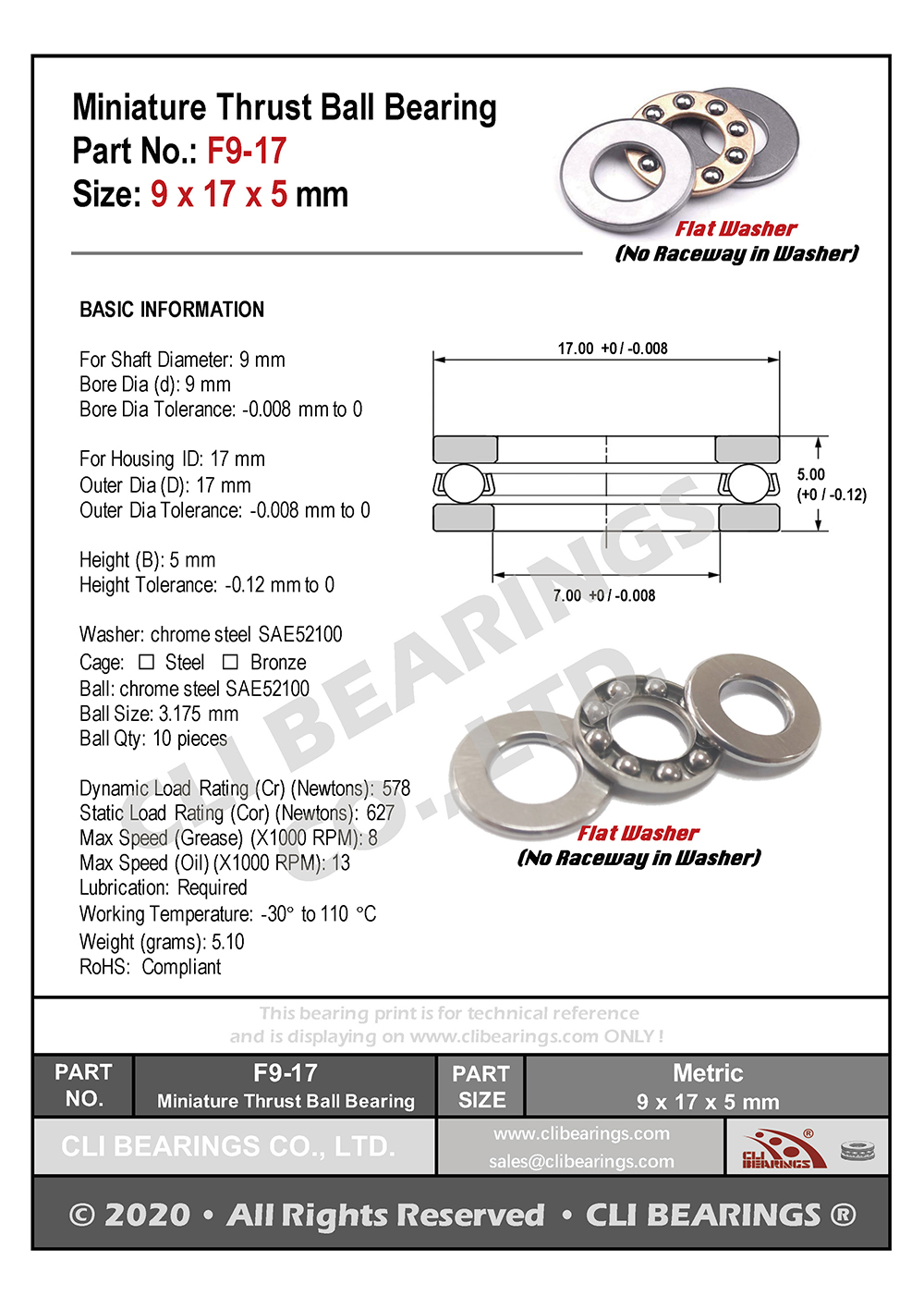

| Part No.: F9-17 | |
| Standards | Metric Size |
| Bearing Type | Miniature Thrust Ball Bearing |
| For Load Direction | Thrust |
| Seal Type | Open |
| Flat Washer / Grooved Wahser | Flat washer (No raceway in washer) |
| For Shaft Diameter | 9 mm |
| Bore Dia (d) | 9 mm |
| Bore Dia Tolerance | -0.008 mm to 0 |
| For Housing ID | 17 mm |
| Outer Dia (D) | 17 mm |
| Outer Dia Tolerance | -0.008 mm to 0 |
| Height | 5 mm |
| Height Tolerance | -0.12 mm to 0 |
| Washer Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Bronze / Steel |
| Dynamic Load Rating (Cr) (Newtons) | 578 |
| Static Load Rating (Cor) (Newtons) | 627 |
| Max Speed (Grease) (X1000 RPM) | 8 |
| Max Speed (Oil) (X1000 RPM) | 13 |
| Lubrication | Required |
| Temperature Range | -30°C to 110 °C |
| RoHS | Compliant |
| Ball Qty (pcs) | 10 |
| Ball Dia | 3.175 mm |
| Weight (grams) | 5.1 |
| Brand | Neutral / CLI |
