Ball Bearings-Miniature Ball Bearings-Flanged miniature ball bearings, CHROME STEEL AISI52100, METRIC sizes- F686-2RSW45 flanged miniature bearing, 6x13x4.5mm, double sealed - CLI BEARINGS CO., LTD.

Bearing Type Ball
For Load Direction Radial
Construction Single Row
Ball Bearing Type Flanged
Seal Type Sealed
Part Number F686 2rs w45
For Shaft Diameter 6 mm
Bore Dia (d) 6 mm
Bore Dia Tolerance -0.008mm to 0
For Housing ID 13mm
Outer Dia (D) 13mm
Outer Dia Tolerance -0.008mm to 0
Width (B) 4.5mm
Width Tolerance -0.12mm to 0
Flange OD 15mm
Flange Thickness 1.1mm
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material 300 Series Stainless Steel
Shield Material 300 Series Stainless Steel
Dynamic Load Rating (Cr) (Newtons) 920
Static Load Rating (Cor) (Newtons) 354
Max Speed (Grease) (X1000 RPM) 40
Max Speed (Oil) (X1000 RPM)  50
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Trade No. C0
Radial Clearance 0.002mm to 0.013mm
RoHS Compliant
Ball Qty 8
Ball Dia 2.0000 mm
Weight (grams) 3.06

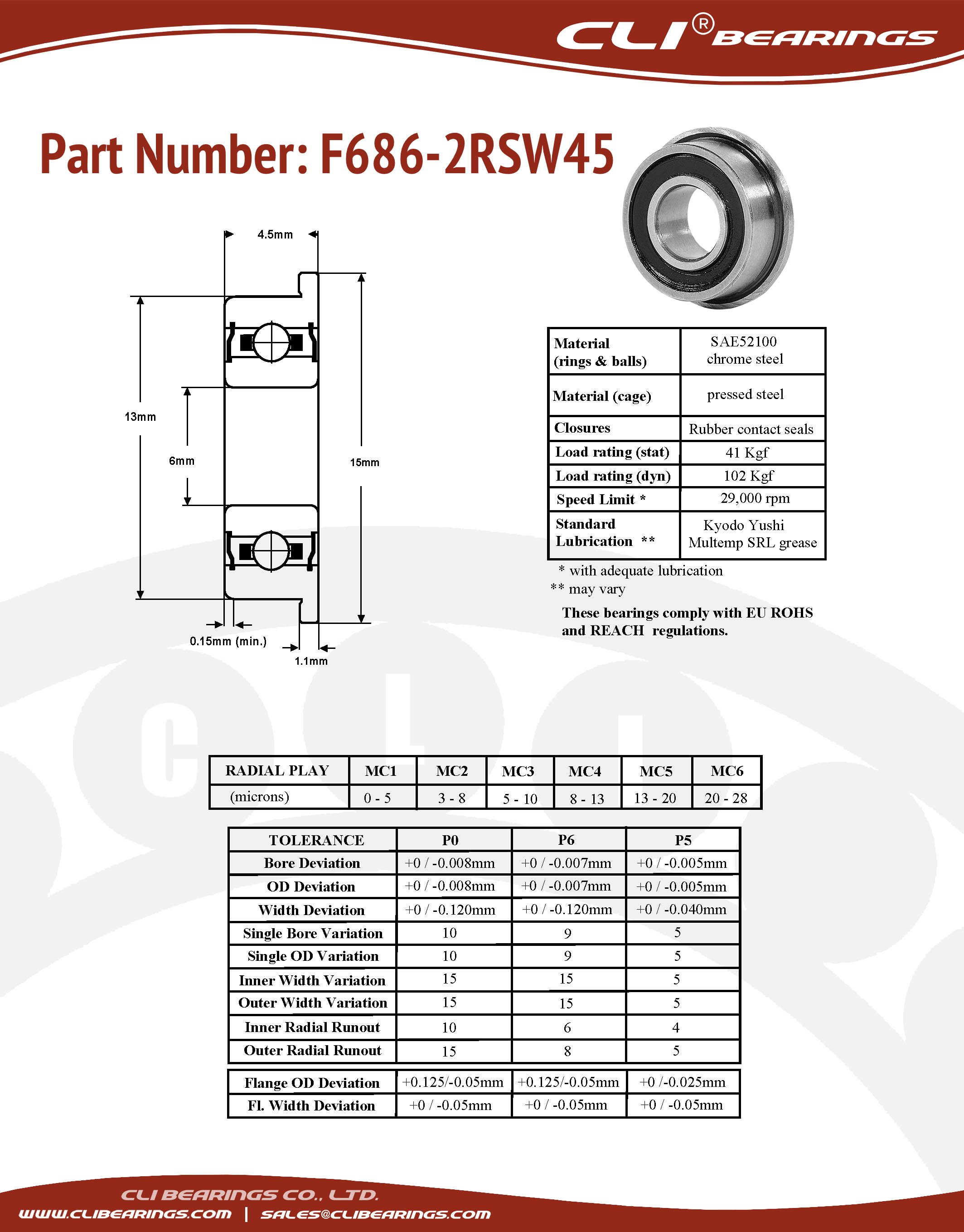

Original f686 2rsw45 flanged miniature bearing 6x13x4 5mm cli nw
