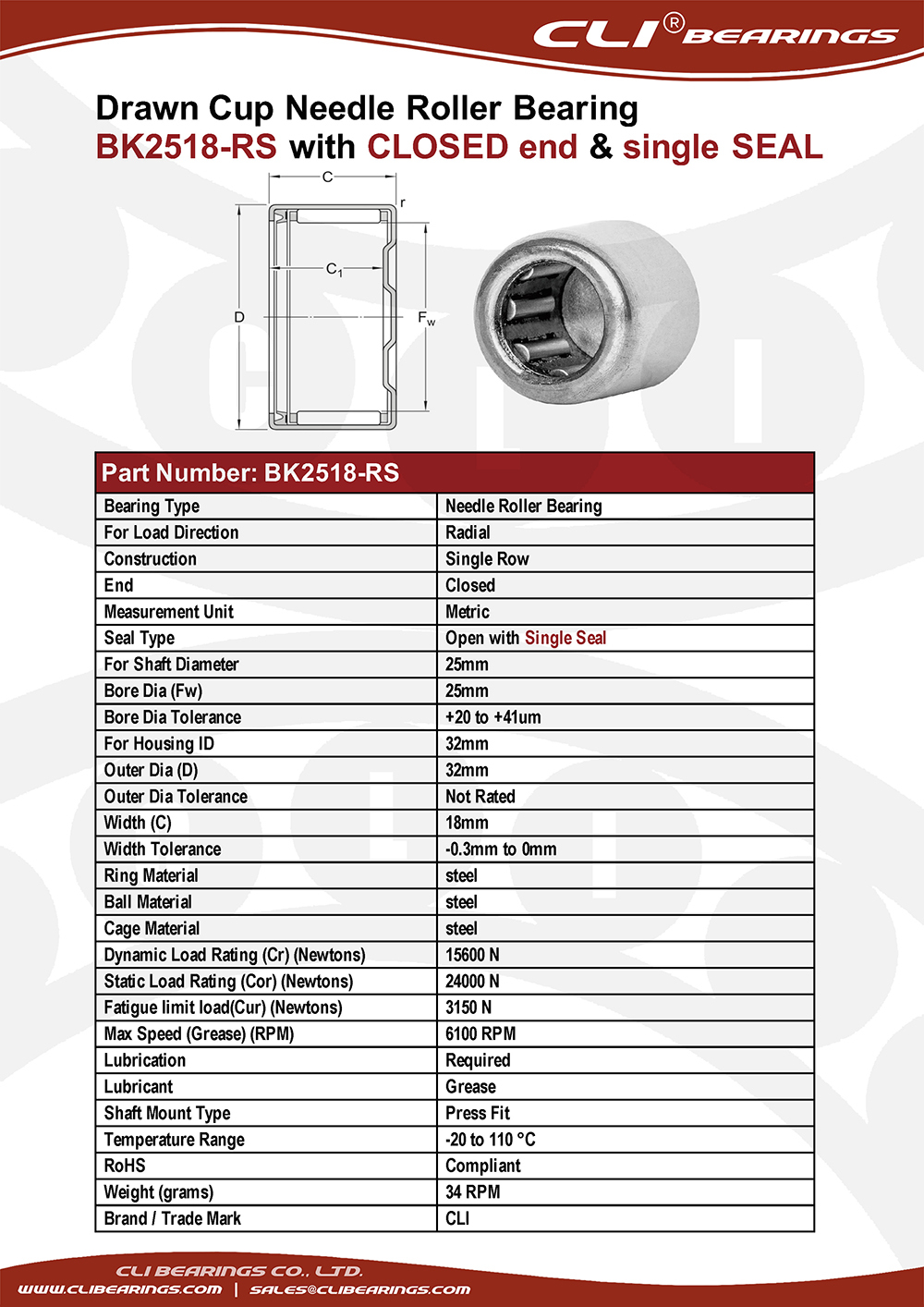

| Part Number: BK2518-RS (25x32x18 mm) | |
| Bearing Type | Needle Roller Bearing |
| For Load Direction | Radial |
| Construction | Single Row |
| End | Closed |
| Measurement Unit | Metric |
| Seal Type | Open with Single Seal |
| For Shaft Diameter | 25mm |
| Bore Dia (Fw) | 25mm |
| Bore Dia Tolerance | +20 to +41um |
| For Housing ID | 32mm |
| Outer Dia (D) | 32mm |
| Outer Dia Tolerance | Not Rated |
| Width (C) | 18mm |
| Width Tolerance | -0.3mm to 0mm |
| Ring Material | steel |
| Ball Material | steel |
| Cage Material | steel |
| Dynamic Load Rating (Cr) (Newtons) | 15600 N |
| Static Load Rating (Cor) (Newtons) | 24000 N |
| Fatigue limit load(Cur) (Newtons) | 3150 N |
| Max Speed (Grease) (RPM) | 6100 RPM |
| Lubrication | Required |
| Lubricant | Grease |
| Shaft Mount Type | Press Fit |
| Temperature Range | -20 to 110 °C |
| RoHS | Compliant |
| Weight (grams) | 34 RPM |
| Brand / Trade Mark | CLI |
